Insignia NS-A1113 User manual

DVD Executive Shelf System |

Lecteur de DVD de salon haut de gamme | Sistema de audio tipo ejecutivo con DVD

NS-A1113

User Guide | Guide de l’utilisateur | Guía del Usuario

Untitled3.fm Page 1 Monday, January 2, 2006 5:40 PM

www.insignia-products.com 1

Welcome

Congratulations on your purchase of a high-quality Insignia product.

Your NS-A1113 represents the state of the art in DVD executive shelf

systems, and is designed for reliable and trouble-free performance.

Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Setting up your DVD Executive Shelf System. . . . . . . . . . . . . .7

Using your DVD Executive Shelf System . . . . . . . . . . . . . . . .10

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Introduction

Features:

• Standby function and clock time on/off function

• Compatible with DVD/CD/CD-R/MP3 discs

• Optical fiber/coaxial digital audio output and simulated audio

output

• DVD component output/S-Video output

• Bass/treble independent adjustment features

• Four EQ sound effect modes

• 360-degree intelligent digital volume adjustment coder

• External two-way audio input–directly connect a computer to

enjoy networked digital audio

• Quartz phase-lock FM/AM digital tuner

• Search and Save radio stations automatically

• High sensitivity for signal reception, 60 FM/AM radio station

preset memories

• Built-in 2.1, 3-way speaker output: 10W ×2, 25W ×1 (RMS)

Safety information

• Unpack carefully, and keep all the accessories in the same

place.

• Do not place objects filled with liquids, such as vases, on this

system.

• Do not place open flame sources, such as lighted candles, on

this system.

• Do not interfere with the normal ventilation of this system.

NS-A1113 DVD Executive Shelf System

www.insignia-products.com

• If your system is damaged or cannot be operated, immediately

notify your local dealers.

• We recommend that you keep the original cartons and packing

materials intact for future shipping.

Features

Accessories

• Remote control

• Audio/Video (A/V) cable

• AM/FM Antenna

•UserGuide

Note • After using this system, turn off the power.

• After you turn offthis system’spower, turn off other connected

audio devices.

Warning Read and understand all warnings and instructions given in this

user guide and those marked on the system. Retain this guide for

future reference.

• This system should only be used with power sources as

indicated on the marking label.

• Keep the system and power plug away from water.

• Avoid direct sunlight and heating. Neveropen the cover. Avoid

dropping small metal objects into the system, such as

needles, hairpins, and coins.

• Protect the power cable. Avoid applying high pressure to it

and do not step on it.

• Do not pull the power cable or bend it excessively.

• Unplug the system from the power outlet when you are not

going to use it for a long time.

CLOCK MUTE

AUDIO

NS-A1113

NS-A1113 DVD Executive Shelf System

www.insignia-products.com

Front panel

1Power On/Off

2Prev/Next (CH-/CH+)

3Disc door

4Play/Enter

5Eject

6Stop (AM/FM)

7Remote control sensor

8Display

9Volume Up/Down

DVD EXECUTIVE SHELF SYSTEM

NS-A1113 DVD Executive Shelf System

www.insignia-products.com

Back panel

1Optical fiber output

2Coaxial output

3Pb/Cb, Y, Pr/Cr component output

4Video output

5S-Video output

6L/R front audio output

7FM antenna jack

8AM antenna jack

9Audio 2 input

10 Audio 1 input

11 Right speaker output

12 Left speaker output

13 Subwoofer output

14 Power supply input

NS-A1113 DVD Executive Shelf System

www.insignia-products.com

Remote Control

Note 1Make sure that there are batteries (2 AAA batteries required)

in your remote control and that you point the remote control at

the sensor on the front of the system.

2The remote control’s range is about 23 feet (7 meters).

3If the line of sight between the remote control and the

system’s sensor is obstructed, the signal may be blocked.

4The remote control may be affected by strong interference

signals, such as power supplies and other strong,

high-frequency signals.

NS-A1113 DVD Executive Shelf System

www.insignia-products.com

1Clock 2Power 3FM/AM

4Search 5Fast Rewind/Tune - 6Fast Forward/Tune +

7Number 8Title 9Menu

10 OSD 11 Language 12 Pause

13 Direction 14 Setup 15 EQ

16 Bass +/- 17 Reset 18 Mute

19 Eject 20 L/R (MO/ST) 21 Save

22 Next/CH + 23 Prev/CH - 24 T/F

25 Repeat AB 26 Repeat 27 Angle

28 Subtitle 29 Stop 30 Play/Enter

31 Audio-in 32 Treble + 33 Vol +/-

34 Treble -

NS-A1113 DVD Executive Shelf System

www.insignia-products.com

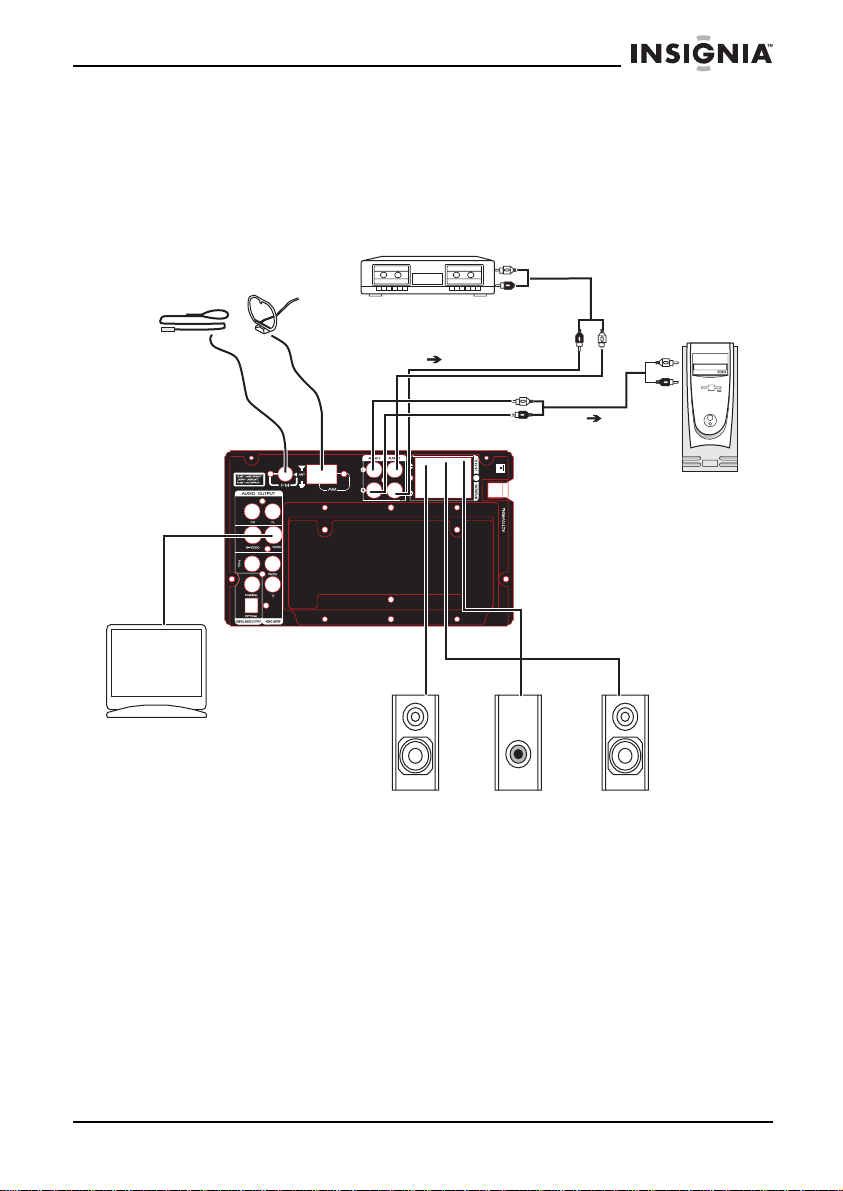

Setting up your DVD Executive Shelf System

Overview • Refer to the following figure to connect your audio equipment.

• Make sure that all connections are correct and secure.

• Connect the Power supply last.

TAPE

NS-A1113 DVD Executive Shelf System

www.insignia-products.com

Connecting your TV

• If your TV has A/V inputs, connect this system to your TV with

A/V cables, and set the TV to the A/V input.

• If your TV has an S-Video input, use the S-Video input to

connect the system and TV (higher quality image than A/V).

• If your TV has component inputs, use three connection cables

to connect the system and TV (higher quality image than

S-Video).

Note 1Turn off and unplug both the system and the TV before you

connect them to each other.

2If there are multiple connections between the system and

your TV, select one and unplug others to avoid affecting the

quality of images and sound.

3Do not switch on and off or press the power switch frequently.

Wait three seconds between turning the power on and off.

4Do not connect the digital optical or coaxial output jack of this

system with the analog signal input jack.

Pb/Cb Pr/Cr
