INOX DC61 Series User manual

10 YEAR WARRANTY

ANSI/BHMA A156.4 GRADE 1 SPECIFICATION

Division 8

GRADE 1 STANDARD DUTY DOOR CLOSER

UNISON HARDWARE, INC.

Version: 2015.10

www.inoxproducts.com

TABLE OF CONTENTS

Exploded Diagram …………………………………………………………

How to Order ………………………………………………………………

Features and Specications ………………………………………………

Arms and Drop Plates ………………………………………………………

Covers, Brackets and Fixing Packs …………………………………………

Mounting Diagrams ………………………………………………………

Page 1

Page 2

Page 3

Page 5

Page 6

Page 7

DC61 Cutaway View

Latch Adjusting Valve

Power Adjusting

Screw

Back Check

Adjusting Valve

Cast Aluminum Alloy Body

Pinion Nut

5/8"(16mm) Pinion Shaft

Secondary Power Spring

Primary Power Spring

1-11/32" (34mm) Diameter Piston

Body Nut

Sweep Adjusting Valve

Disclaimer: All information in this catalog has been deemed accurate as of the date of printing. We are continuously improving and expanding our line in an effort to offer our clients the

nest quality products and services; therefore, Unison Hardware, Inc., reserves the right to alter this information or correct printing errors at any time.

INOX® DC6126/6114 Door Closer

CROSS REFERENCES

NORTON DORMA LCN CAL-ROYAL HAGER SARGENT DOR-O-MATIC PARKER YALE

160 640 1260 300 5300 1130 S660 900 50

Unison Hardware, Inc. 6 Wayne Court, Sacramento, CA 95829, USA

Tel: +1.916.388.1888 Fax: +1.916.388.8322 Email: [email protected] Web: www.inoxproducts.com

Version: 2014.3

DC61 SERIES DOOR CLOSER

DC61 Series Door Closer Cross Reference Chart

1. Pinion Cap

2. Closer Body

3. Pinion Arm Screw

4. Main Arm

5. Arm Pin

6. Pivot Bushing

7. Pivot Screw

8. Round Adjustable Arm

9. Adjustable Arm Bolt

10. Arm Bolt Lock Nut

11. Regular Shoe Plate

12. Bushing

13. Reg / PA Screw

ANSI CODE REFERENCES

ANSI No. Grade 1 Function (Surface Closers - Modern Type, with Cover) INOX® Closer

C02011/C32011 Regular Mounting DC6126/6114SLC

C02021/C32021 Parallel Arm Mounting DC6126/6114SLC

C02041/C32041 Top Jamb Mounting DC6126/6114SLC

ANSI No. Grade 1 Function (Surface Closers - Modern Type, No Cover) INOX® Closer

C03011/C33011 Regular Mounting DC6126/6114LCV

C03021/C33021 Parallel Arm Mounting DC6126/6114LCV

C03041/C33041 Top Jamb Mounting DC6126/6114LCV

PT 4 Options A, B, C, D, E, F, H

Exploded Diagram

Grade 1 Standard Duty Door Closer

Version: 2014.3

02 Unison Hardware, Inc. 6 Wayne Court, Sacramento, CA 95829, USA

Tel: +1.916.388.1888 Fax: +1.916.388.8322 Email: [email protected] Web: www.inoxproducts.com

DC61 SERIES DOOR CLOSER

Product Identication

DC61 26 HO -LCV -AL

Door Closer Series:

DC61 Series

Power Size 1-6

26 = Power Size 2-6

14 = Power Size 1-4

Finish:

-AL = US28 (689) Aluminum Painted

-DU = US20 (690) Duro/Dark Bronze Painted

-GD = Gold Painted

Cover:

-LCV = Door Closer with Sleeve Arm, Less Cover (Standard)

-SLC = Door Closer with Standard Arm, Slim Plastic Cover

Function:

Blank = Door Closer with Sleeve Arm, Less Cover (Standard)

HO = Door Closer with Friction Hold Open Arm

CUSH = Door Closer with Cush Arm

HCUSH = Door Closer with Hold Open Cush Arm

ST = Door Closer with Slide Track Arm*

STH = Door Closer with Slide Track Hold Open Arm*

* Slide track arm is only available for AL nish

Accessory Product Identication

Item No. Description

DCCV61SLC Plastic Slim Cover for DC61

DCAMHO Friction Hold Open Arm for DC61 Series Door Closer

DCAMCUSH Cush Arm for DC61 Series Door Closer

DCAMHCUSH Hold Open Cush Arm for DC61 Series Door Closer

DCAMST Slide Track Arm for DC61 Series Door Closer

DCAMSTH Slide Track Hold Open Arm for DC61 Series Door Closer

DCDP61P1 Drop Plate for DC61 Series Door Closer Top Jamb, Narrow Drop Plate

DCDP61P2 Drop Plate for DC61 Series Door Closer Parallel Arm, Wide Drop Plate

DCBK Parallel Arm Bracket for DC61

DCFP61 Standard Fixing Pack for DC61 Closer Body

DCFPBK Standard Fixing Pack for Parallel Arm Bracket

DCFPSNB Standard Sex Nuts and Bolts (SNB) Fixing Pack

How to Order

Version: 2014.3

Unison Hardware, Inc. 6 Wayne Court, Sacramento, CA 95829, USA

Tel: +1.916.388.1888 Fax: +1.916.388.8322 Email: [email protected] Web: www.inoxproducts.com

DC61 SERIES DOOR CLOSER

Specications

. DC6114: Adjustable Power Size: 1 Thru 4

. DC6126: Adjustable Power Size: 2 Thru 6

. One piece Aluminum Alloy Body

. Rack-and-Pinion Design

. Separate and independent, latch, sweep and back-check

pressure valves

. DC6114 door closer meets ADA Barrier-Free

requirements (adjustable power size 1 thru 4)

. Non-Handed

. Standard Closer comes Less Cover. Optional Slim Cover

available by special order.

. Tri-packed

. 34mm (1-11/32”) diameter piston

. 16mm (5/8”) diameter pinion journals

. 66.7mm (2-5/8”) projection, without cover

. All standard arm applications with or without cover will

allow doors to swing 180°, conditions permitting

Options

. Hold Open Arm (DCAMHO), Cush Arm (DCAMCUSH),

Hold Open Cush Arm (HCUSH)

. Slide Track (DCAMST): push or pull side mounting

. Slide Track Hold Open Arm (DCAMSTH)

. Drop Plates for Narrow Top Rail (DP)

. Slim Cover (DCCV61SLC)

Finishes

Stocking: AL - US28 (689) Aluminum Painted

Special Order:

DU - US20 (690) Duro/Dark Bronze Painted

GD - Gold Painted

Code Compliance

. ANSI/BHMA A156.4 Grade 1 Closers

. ANSI A117.1 ADA Accessibility (DC6114 Only)

. UL Listed for ANSI/UL10B and UL10C, CAN/ULC S104 up to 3 Hours

. UL 228 UBC Standard 7-2 (1997) NFPA 252

. NFPA 80 National Fire Protection - Fire Door Assembly

. NFPA101 National Fire Protection - Life Safety

. ANSI/BHMA A156.18 Finishes

Features

. Aluminum Alloy Body

Closer bodies are cast of special aluminum alloy and machined

to accommodate interactive steel components under

operation conditions

. Rack & Pinion Operation

Provides a smooth constant control of the door through its full

opening and closing cycle. 180° door swing, can be achieved

when door, frame, and/or arm do not interfere

. Non-Handed

DC6126/DC6114 door closer is non-handed and can be

installed on either right or left hand swing doors

. Sweep Speed Control Valve

Allows adjustment of door speed from the doors 90° open

position down to approximately 10° from the closed

position

. Latch Speed Control Valve

Allows adjustment of door latch speed from approximately 10°

down to the door’s fully closed position

. Tri-Packed

DC61 Series come with self-tapping (SRT), sex nuts & bolts

(SNB) and parallel arm (PA) bracket to allow for regular, top

jamb, and parallel arm installations

. Adjustable Back-Check Valve

Provides control of the door in the opening cycle, beginning

at approximately 75° of door opening. Back check cushions

the door opening when the door is forcibly opened beyond its

preadjusted setting

. Multi-Sized Door Closer

Adjustable through the power range of 1 through 4. DC6114

door closer also conrms to the opening force requirements of

the ADA and ANSI/BHMA standard A117.1 for interior doors

Warranty

10 Year Warranty

DC6114/DC6126 Grade 1 Standard Duty Door Closer

Version: 2014.3

04 Unison Hardware, Inc. 6 Wayne Court, Sacramento, CA 95829, USA

Tel: +1.916.388.1888 Fax: +1.916.388.8322 Email: [email protected] Web: www.inoxproducts.com

DC61 SERIES DOOR CLOSER

Application Chart

Door

Closer Size

Full Turns of Power

Adjusting Screw

Applicable Door Leaf Width Applicable Door Weight

Interior Exterior (swing out)

1 -6 32" (0.81m) 28" (0.71m) 33~66LBS (15~30kg)

2 -4 36" (0.91m) 32" (0.81m) 66~99LBS (30~45kg)

3 0 (PRE SET) 42" (1.07m) 36" (0.91m) 99~143LB (45~55kg)

4 +5 48" (1.22m) 42" (1.07m) 143~187LBS (65~85kg)

5 +9 54" (1.37m) 48" (1.22m) 187~264LBS (85~120kg)

6 +12 58" (1.47m) 54" (1.37m) 264~330LBS (120~150kg)

The closing force for DC61 series door closers is adjustable from size 1 to size 4, as outlined in ANSI Standard A156.4. When this series of door closers are installed

and adjusted to conrm to ADA reduced opening force requirements (5 Ibs max.) for Interior door, they may not have adequate closing force to reliably close

and latch door. Power adjustments charted on this page are recommended where possible, to ensure proper door control.

CAUTION!!

Do not turn speed adjusting valve more than two (2) full turns counter-clockwise from its order; do not back the valves out of closer or a leak will result.

Power

Adjusting

Screw

Use 4mm Hex

For this

4mm

Wrench

INCREASE

DECREASE

BACKCHECK

Adjusting Valve

LATCH

Adjusting

Valve

SWEEP

Adjusting

Valve

SLOWER

INCREASE

DECREASE

FASTER

CLOSING CYCLE

OPENING CYCLE

Standard Arms

. Regular / Parallel Arm with PA Bracket

- Regular Non-handed arm with adjustable slider can be used

for a wide range of frame conditions, can be mounted to

hinge (pull) side, top jamb.

- For Parallel arm, use parallel arm bracket to mount on stop of

frame on (push) side of the door. Frame should be reinforced

for parallel arm bracket.

Optional Drop Plates – Narrow Top Rail

. For use on doors with glass where the drop plates cover the

back of the closer for a pleasing view from the front.

. Also used when the top rail is narrow preventing the closer to

be mounted to surface of wood or metal.

. Correct installations will permit 180° Maximum Opening.

Please see Drop Plate Installation Guide for detail applications.

DCDP61P1: Drop Plate for DC61 Series Door Closer Regular

arm, narrow drop plate

DCDP61P2: Drop Plate for DC61 Series Door Closer Parallel

arm, wide drop plate

Version: 2014.3

Unison Hardware, Inc. 6 Wayne Court, Sacramento, CA 95829, USA

Tel: +1.916.388.1888 Fax: +1.916.388.8322 Email: [email protected] Web: www.inoxproducts.com

DC61 SERIES DOOR CLOSER

Optional Arms

. Hold Open Arm (DCAMHO)

Non-handed arm with adjustable

round slide arm for a wide range of

frame conditions. Open to desired

range then tighten screw & lock

nut and door will hold in that

position every time until changed.

For parallel mount use parallel

arm bracket.

. Cush Arm (DCAMCUSH)

Non-handed heavy duty forged

arm with cush stop, parallel

arm mount. Must use frame

reinforcement in stop to mount.

. Hold Open Cush Arm

(DCAMHCUSH)

(Optional) Non-handed heavy

duty forged arm with cush stop

and hold open parallel arm

mount. Handle controls the hold

open function. Must use frame

reinforcement in stop to mount.

. Sliding Track (DCAMST)

Single lever (track) arm with a

surface mounted closer designed

for interior use on narrow head

frames and top rails. Oers three

mounting positions: Pull Side,

Push Side and Top Jamb.

Sliding Track Hold Open Arm (DCAMSTH)

The Hold-Open options allows for hold-open points at 85°, 90°,

95°, 100°, 105° or 110° depending on clip location in track.

Version: 2014.3

06 Unison Hardware, Inc. 6 Wayne Court, Sacramento, CA 95829, USA

Tel: +1.916.388.1888 Fax: +1.916.388.8322 Email: [email protected] Web: www.inoxproducts.com

DC61 SERIES DOOR CLOSER

Optional Covers

. Plastic Slim Cover

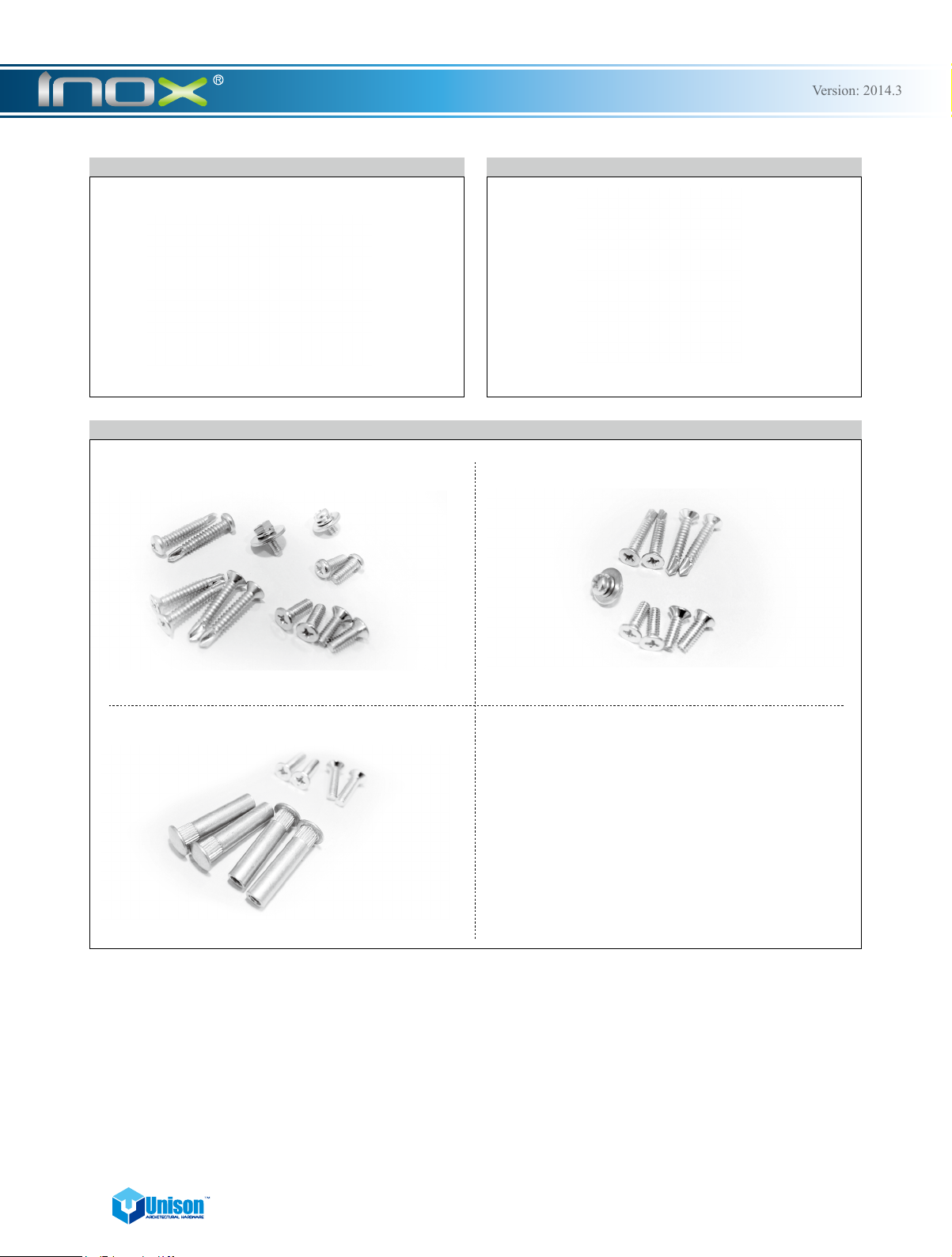

Fixing Packs

. Standard xing pack for closer body

Parallel Arm Bracket

. Parallel Arm Bracket

. Standard xing pack for parallel arm bracket

. Standard sex nuts and bolts (SNB) xing pack

DCCV61SLC DCBK

DCFP61

DCFPSNB

DCFPBK

Mounting Diagrams

. Regular Mounting (Pull Side)

- Regular arm is the most common and strongest mounting option. Usually the closer is mounted on the door and the arm is

mounted on the frame.

. Top Jamb Mounting (Push Side)

- Closer body is mounted to the frame with the arm straight out. Ideal for exterior door installations. You must consider frame

depth reveal. Extended arm may be required.

. Parallel Arm Mounting (Push Side)

- Closer body on door with parallel bracket on stop of frame. Arm is parallel to the door and does not stick out.

Parallel arm installations have 25% less power than regular pull side mounting.

Version: 2014.3

Unison Hardware, Inc. 6 Wayne Court, Sacramento, CA 95829, USA

Tel: +1.916.388.1888 Fax: +1.916.388.8322 Email: [email protected] Web: www.inoxproducts.com

DC61 SERIES DOOR CLOSER

This manual suits for next models

Table of contents

Other INOX Door Opening System manuals

INOX

INOX EL-PTC-20 User manual

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

Assa Abloy

Assa Abloy SARGENT 1431 Series instructions

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual
