InfraSave IEP-6024 Manual
4. INSTALLATION INSTRUCTIONS
General: READ ALL INSTRUCTIONS AND PLAN THE INSTALLATION
BEFORE PROCEEDING
This appliance conforms to ANSI/UL 2021 and is certified to CAN/CSA C22.2 No.46. This ap-
pliance is approved for outdoor and indoor non-residential use. Do not use this heater in envi-
ronments such as bathrooms and laundry rooms.
The heater must connect to a properly grounded 230 - 240Vac outlet on a copper wire electri-
cal supply circuit. Installation must conform with the latest edition Electrical Code ANSI/NFPA
N0 70 in the U.S.A. and PART 1 CSA C22.1 in Canada.

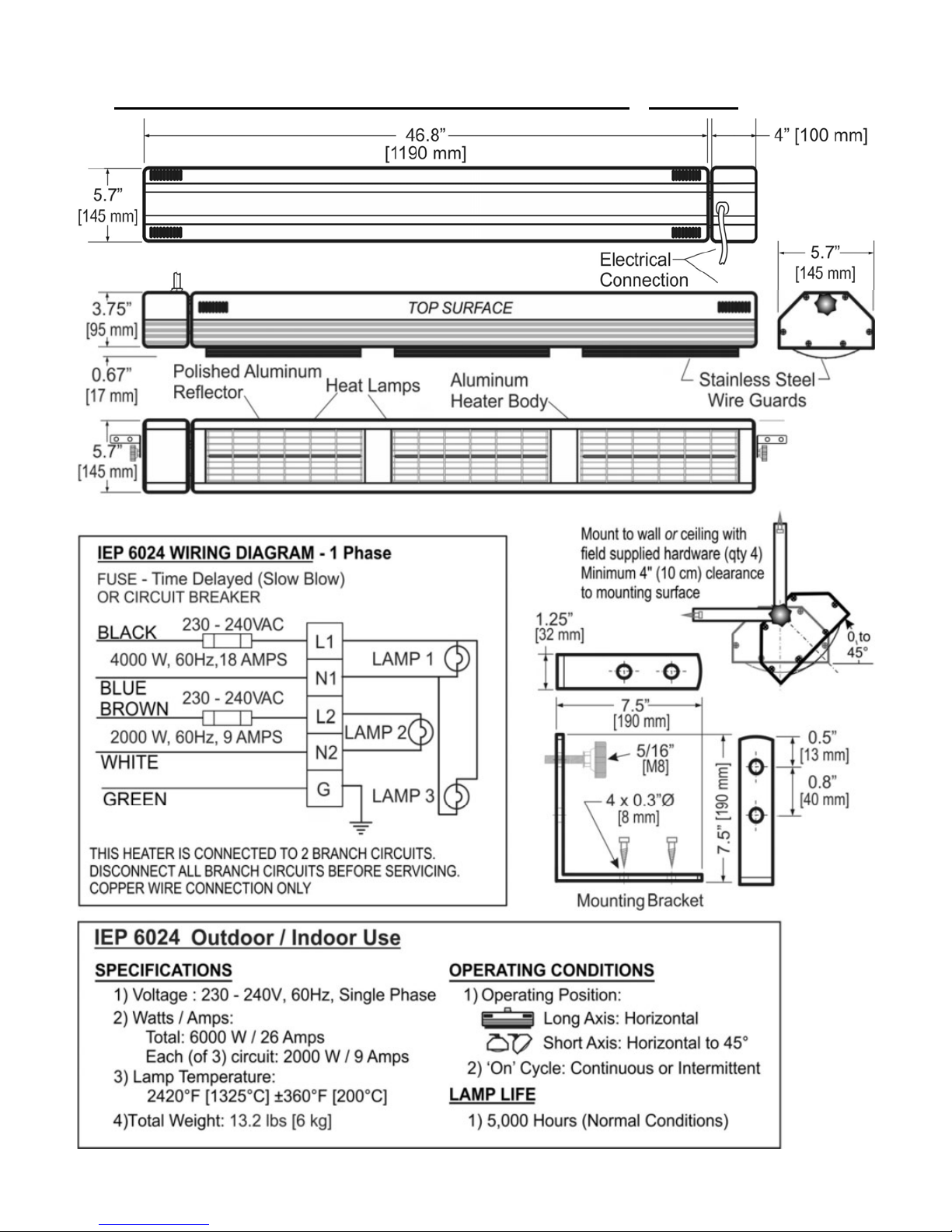

A mounting bracket is supplied with the heater, and can be mounted to a wall, a permanent
post, or above to the ceiling or overhead joist. The heater must be mounted to the brackets
during operation. The heater must be mounted to this bracket during operation. Hardware to
fasten the mounting bracket to the structure is determined by site conditions, and is field sup-
plied by the installer.
IMPORTANT: Always maintain the minimum clearances from the floor, mounting
surface (wall or ceiling), side walls, and combustible materials. Refer to Table 2

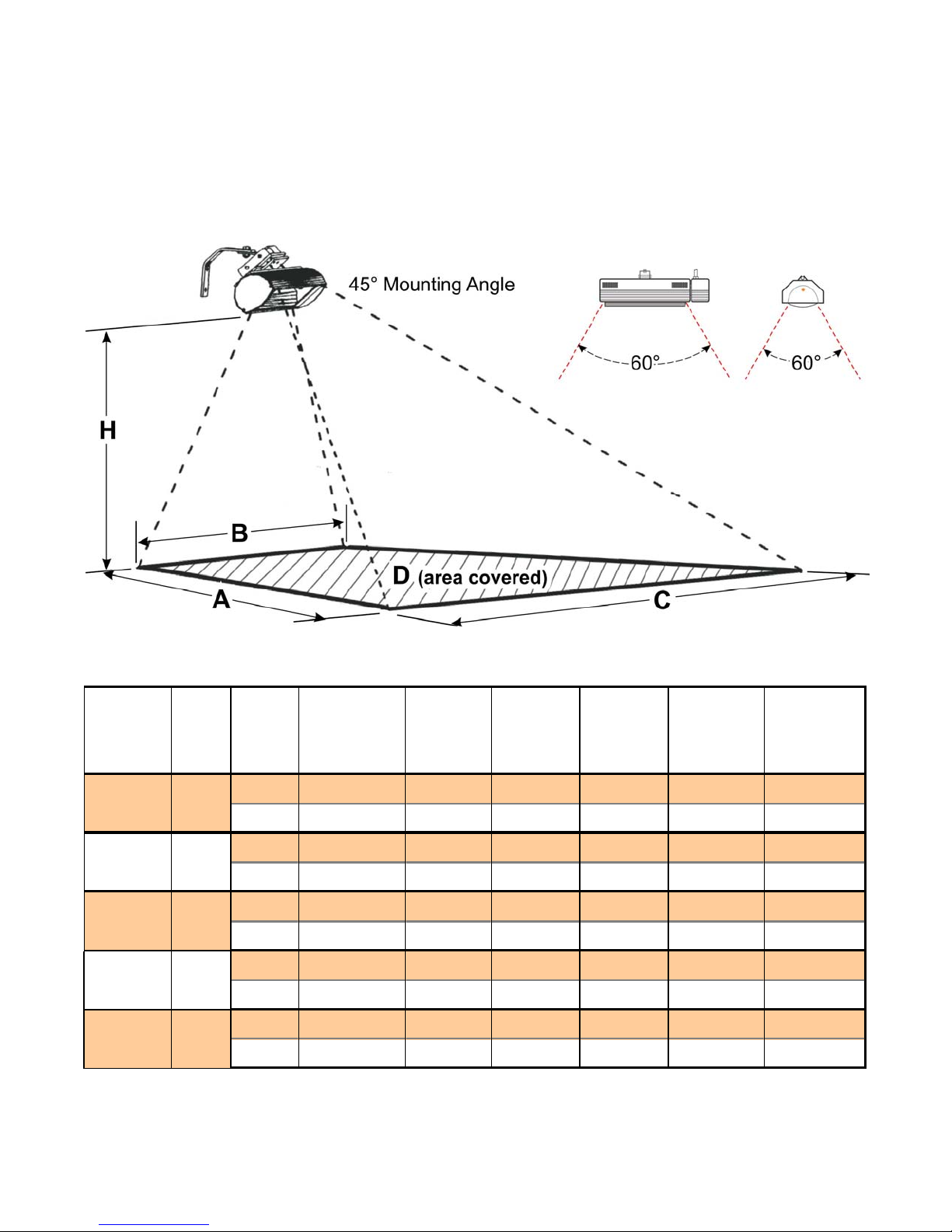

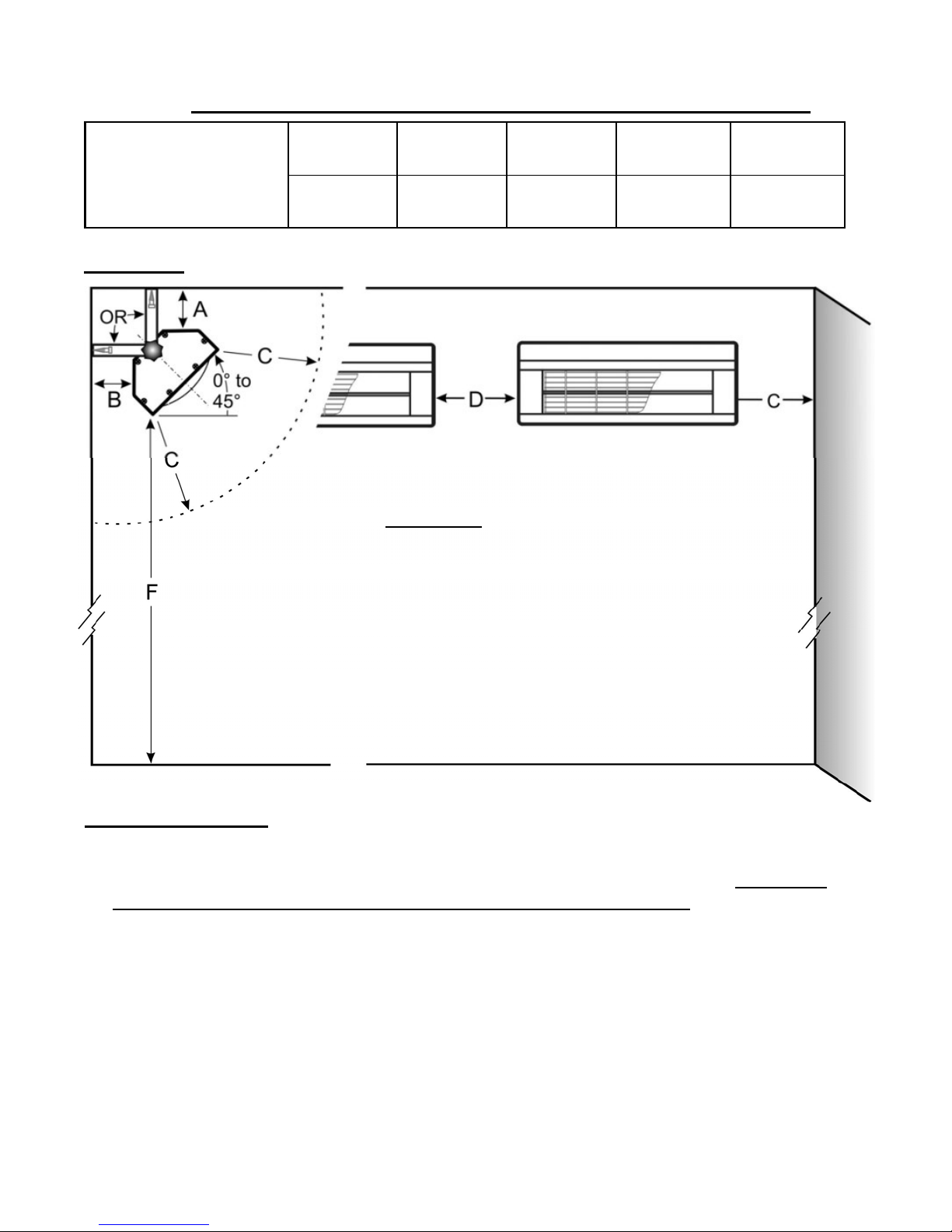

and Figure 2 next page.
Locating the Heater:
Warning: Use of this heater in coastal salt-air regions can result in corrosion of the aluminum
body and reflector, and premature failure the quartz lamp. Corrosion and failure resulting from
use in coastal areas represents normal use in that environment and is not covered by war-
ranty.
1. The heater is designed for wall, permanent post, or ceiling (overhead) mounting and must.
be installed at least 6 feet (1.8 m) above the floor. (see Table 1 - Suggested Mounting)
2. Ensure that clearances from the heater meet or exceed the minimum required clearances
in Table 2, and Figure 2.
3. The heater must be connected to properly grounded 230 - 240Vac copper wire circuits.
4. The heater should never be placed nor mounted directly under a wall electrical outlet.
5. A minimum distance of 3 ft (36 inches) [90 cm] must be maintained between the front grille
and flammable items (e.g. curtains), walls and other structures.
6. Do not allow an electrical cord to pass in front of the heater or to touch any hot surface.
7. The appliance must not be mounted directly on flammable materials (no wood or similar).
8. Since the appliance radiates heat, no obstruction or object such as furniture should be
placed between the heater and the person being heated.
9. Do not use heater on a soft surface, like a bed, where air openings may become blocked.
10. This heater has hot surfaces and potentially arcing or sparking parts inside. Do not use in
areas where gasoline, paint, or flammable vapors or liquids are used or stored.
