infaco POWERCOUP SC160 User manual
Assembly instructions SC160
All manuals and user guides at all-guides.com
all-guides.com
3
All manuals and user guides at all-guides.com
SAFETY INSTRUCTIONS ______________________________________________ 5
PERSONAL PROTECTIVE EQUIPMENT__________________________________ 5
ENVIRONMENTAL PROTECTION ______________________________________ 5
GENERAL OVERVIEW ________________________________________________ 6
CHARACTERISTICS __________________________________________________ 6
VIEWS OF ACCESSORIES _____________________________________________ 6
USER’S MANUAL____________________________________________________ 7
INSTALLATION AND POWER CONNECTION ___________________________________________7
USING THE MACHINE _______________________________________________________ 7-8
USING WITH EXTENSION POLE _________________________________________________________ 9
CLEARANCE ADJUSTMENT _________________________________________________________ 10
WEEKLY GREASING ________________________________________________________________ 10
SAFETY PRECAUTIONS ______________________________________________________________ 11
CARE AND MAINTENANCE __________________________________________ 12
CARE – CHANGING THE BLADE ___________________________________________________ 13-14
CARE - BLADE ADJUSTMENT _________________________________________________________ 15
CARE – CLEANING AND GREASING ____________________________________________________ 16
SAFETY INSTRUCTIONS ____________________________________________ 17
WARRANTY CONDITIONS __________________________________________ 17
RECOMMANDATIONS ______________________________________________ 18
TROUBLESHOOTING________________________________________________ 19
WARRANTY CARD _________________________________________________ 20
EQUIPMENT MANUFACTURED IN FRANCE ____________________________ 25
DECLARATION OF CONFORMITY (CE) ________________________________ 26
Contents
3
All manuals and user guides at all-guides.com
Reference Description
PW2 Universal handle for the POWERCOUP PW2 range.
THD600 Double hedge trimmer, length of the cutting bar 600 mm (23,5’’).
THD700 Double hedge trimmer, length of the cutting bar 700 mm (27,5’’).
THS700 Single hedge trimmer, length of the cutting bar 700 mm (27,5’’).
TR8 Reciprocating saw, max cutting capacity max. Ø150 (5,9’’).
SC160 Reciprocating saw, max cutting capacity Ø100 (3’’).
PW930 Carbon extension pole, length 930 mm (3 ft ).
PW1830 Carbon extension pole, length 1830 mm (6 ft ).
PWT1650 Carbon extension pole, length 1650 mm (5,4 ft ).
EC1700 Flower Thinner, telescopic pole 1,5m à 1,9m (59’’ to 74,5’’).
EP1700 Desuckering tool, telescopic pole 1,2m à 1,6m (47’’ to 63’’).
OT2650 Olive harvester, telescopic pole 2,2 à 2,8m (86,5’’ to 110’’).
OF1830 Olive harvester, fixed pole 2,5m (98,5‘‘).
OF1530
Olive harvester, fixed pole 2,2m (86,5‘‘).
4
5
All manuals and user guides at all-guides.com
Keep all safety warnings and instructions so that you can refer to them at
a later date.
The term “tool” in the warnings refers to your electrical tool run off the main
supply (with supply power cord) or your electrical battery-operated tool (without
a supply power cord).
WARNING. Read all safety warnings and all instructions. Failure to
abide by warnings and instructions could lead to an electric shock, fire
and/or serious injury.
PERSONAL PROTECTIVE EQUIPMENT
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your
country. Electrical appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on
eco-compatible waste elimination.
SAFETY SAFETY INSTRUCTIONS
Read the user manual carefully, especially the safety instructions.
You MUST wear a helmet, eye protection and hearing protection.
Hand protection, for work gloves.
Foot protection by closed toed shoes.
Face protection, or visor.
Note: The extensions poles are made of carbon, which conducts electricity. Do not
use the extensions poles near electricity supply points or electrical wires.
Note: Do not place any part of your body close to the blade. Do not remove cut
material or hold the material you wish to cut while the blades are moving
10m
4
5
All manuals and user guides at all-guides.com
GENERAL OVERVIEW
CHARACTERISTICS
VIEWS OF ACCESSORIES
Référence SC160
Alimentation 48VCC
Power 1000W Max
Weight 820g
Size (L x l x H) in mm
420mm x 70mm x 140mm
Cutting capacity Ø100 mm maximum
Blade speed
3100 in and out movement /min
These specifications are given as an indication only. Under no circumstances may they be considered as contractually binding. They are subject to
modification
without prior notice in the interests of product development. Patented equipment
Blade cover
Removable cover
Saw head
Removable cover screw
Saw blade
Hook
Handle nozzle
Battery 500Wh
10,4Amp.
Réf : L810B
Power cord
Réf : PW225S
PW2 handle
Réf : PW2
Battery 150Wh
3,1Amp.
Réf : 731B
Pole PW930
length : 93cm
Pole PW1830
Length : 183cm
Pole PWT1650
Length : 106 à 164cm
Réf : PW930 - PW1830 -
PWT1650
NOT
L810B
NOT
PW2
NOT
PW2
NOT
F3010
NOT
SC160
6
All manuals and user guides at all-guides.com
all-guides.com
Handle nozzle
USER’S MANUAL
Only use INFACO brand batteries with a supply voltage 48 volts.
It is imperative to read the operating instructions for the tools and accessories
before handling or connecting the tool.
If it is raining, the battery vest must be worn underneath waterproof clothing so
that the battery unit and control box remain dry.
INSTALLATION AND POWER CONNECTION
AOFF ON
F
USING THE MACHINE
2
1
A / B/
C/
6
7
All manuals and user guides at all-guides.com
D / E /
H /
J /
I/
F / G /
1
1
1
2
2
2
1 Start: : 2 short pulls of the trigger = ON
Standby output : 2 short pulls of the trigger = ON
Normal operation : 1 long pull of the trigger = ON
Releasing the trigger = OFF
OFF ON
The tool is fitted with an electronic protection system. As soon as the tool becomes blocked due to meeting
strong resistance, the electronic system causes the motor to stop. Restart the tool by carrying out operation "j" in
“Using the Tool” on page 8 8
All manuals and user guides at all-guides.com

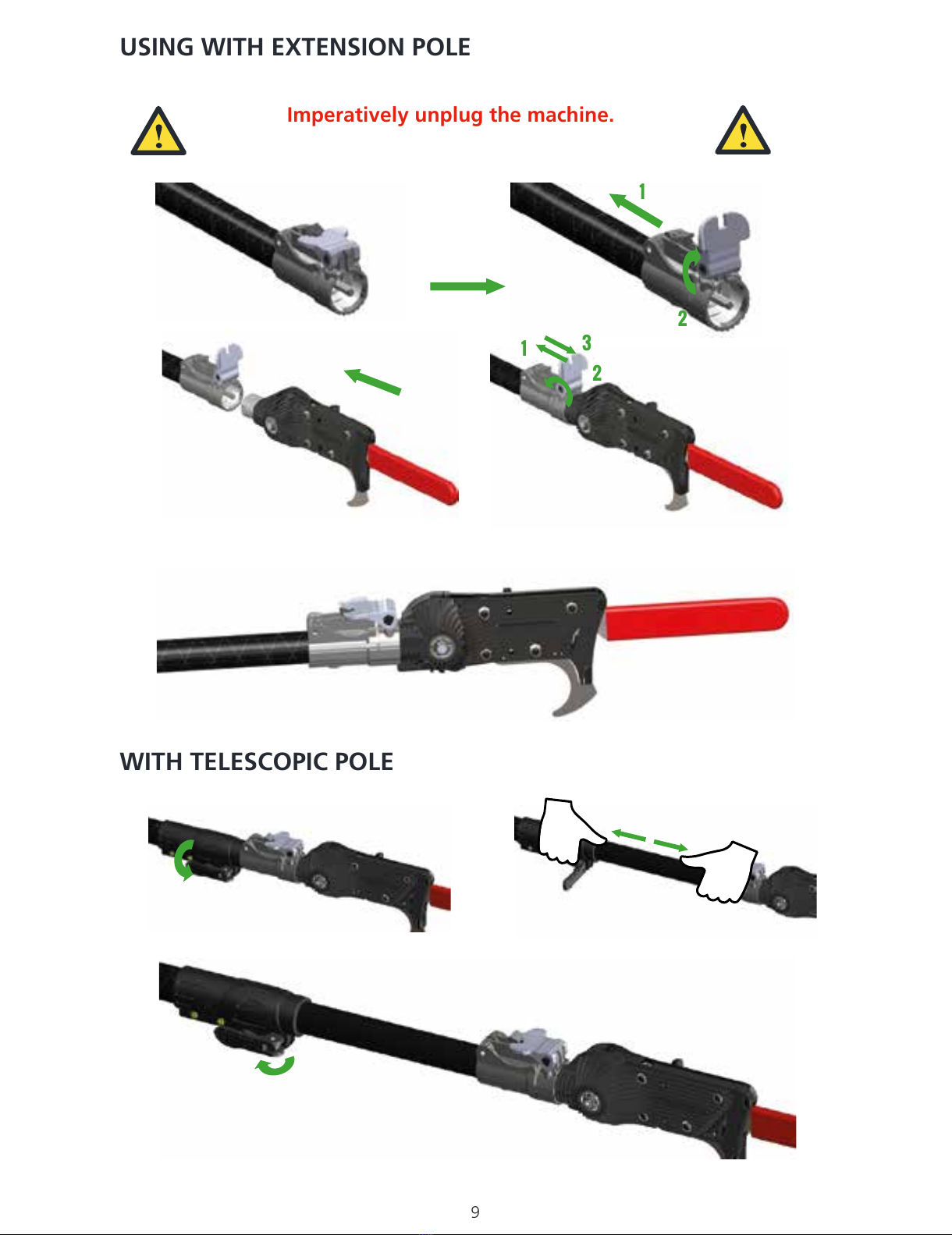

USING WITH EXTENSION POLE
WITH TELESCOPIC POLE
Imperatively unplug the machine.
1
2
3
1
2
8
9
All manuals and user guides at all-guides.com

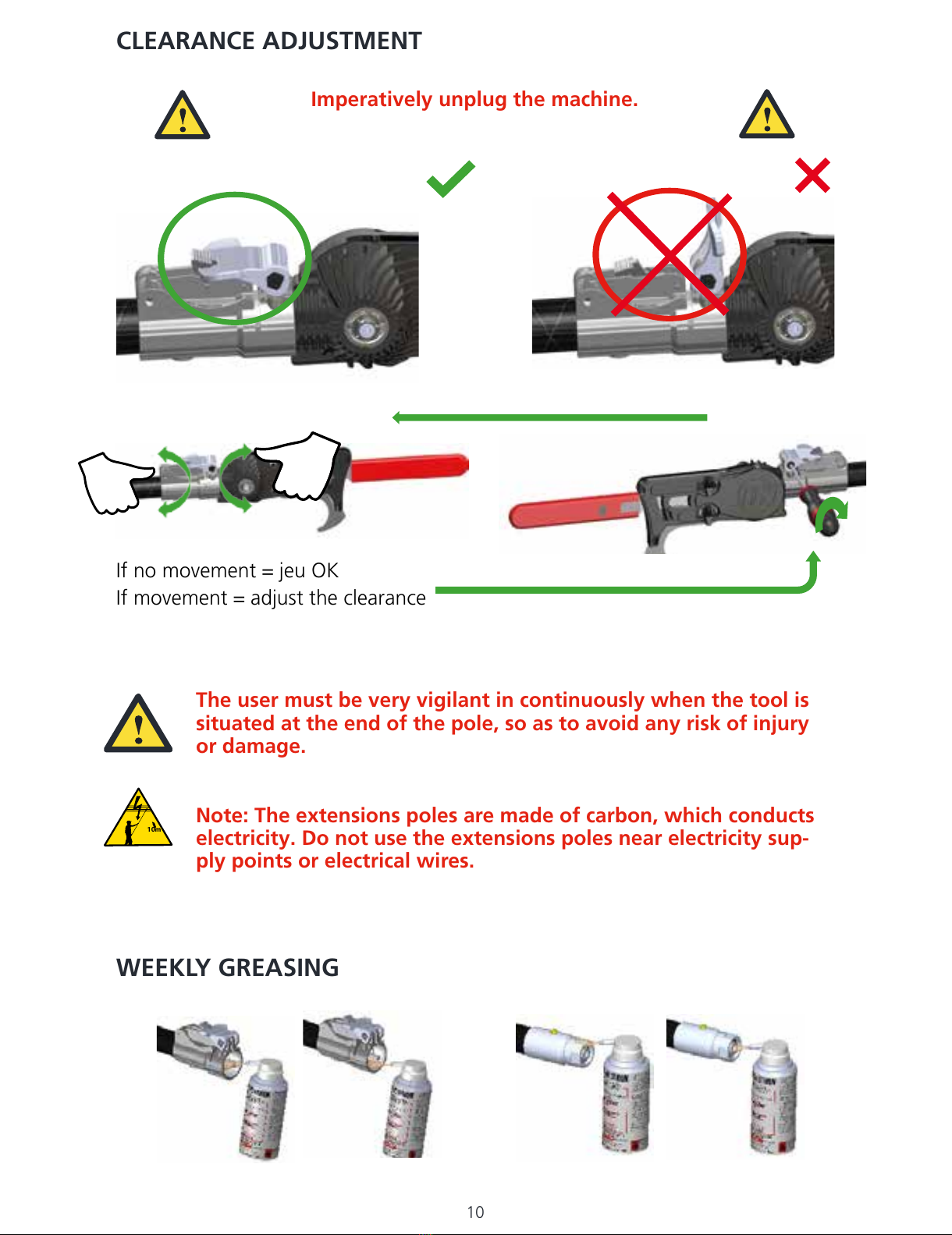

CLEARANCE ADJUSTMENT
WEEKLY GREASING
The user must be very vigilant in continuously when the tool is
situated at the end of the pole, so as to avoid any risk of injury
or damage.
Note: The extensions poles are made of carbon, which conducts
electricity. Do not use the extensions poles near electricity sup-
ply points or electrical wires.
10m
If no movement = jeu OK
If movement = adjust the clearance
Imperatively unplug the machine.
10
