WELCOME TO YOUR NEW EXACT IDIP®

SMART PHOTOMETER SYSTEM™.

Thank you for your eXact iDip®purchase! This guide will quickly

walk you through the technical details of your new eXact iDip®.

This guide includes initial set-up, downloading the app, test

procedures, and tips. You are on your way to smart digital water

testing! Currently we offer two iDip®models: eXact iDip®(525nm)

and eXact iDip®570 (570nm). Please ensure you purchase the

compatible premium tests and strips/reagents according to the

iDip®model you are using.

eXact iDip

570

YOUR EXACT IDIP®COMES WITH

•Cleaning Brush

•Quick Start Guide (this booklet)

•24 foil packet strips (6 of each): Free Chlorine (DPD-1),

Combined/Total Chlorine (DPD-3), pH, and Total Alkalinity

Note: The iDip®Starter Kits include eXact®Strip/Reagent

bottles with 25 tests each (reagents vary with each kit) and

not individual foil packets listed above.

WHAT YOU WILL NEED TO GET STARTED:

•Four (4) AAA batteries

•#4 Phillips head screwdriver

• eXact iDip®app

Visit sensafe.com to download the app, or see page 7 for app

download instructions

•Compatible smart device

For a list of compatible smart devices,

see pages 8-9

We are constantly adding new devices to this list. View the

most up-to-date list at sensafe.com/compatible-devices.

WELCOME

US Designed and US and International Patent-Protected by Industrial Test Systems, Inc. 1875 Langston Street, Rock

Hill, SC USA.

EXACT®, IDIP® , EXACT IDIP®, and READY SNAP®are registered trademarks and SMART PHOTOMETER SYSTEM™,

SMART BREW™, and SMART DIGITAL WATER TESTING™are trademarks of Industrial Test Systems, Inc. Rock Hill, SC USA. Apple, the

Apple logo, iPad, iPhone, and iPod touch are trademarks of Apple Inc., Android, Google, and Google play are trademarks of Google

Inc., Registered in the U.S. Bluetooth®word mark and logos are owned by Bluetooth SIG and any use of such marks is under license.

MarketWatch and R&D 100 are registered trademarks of each.

THE EXACT IDIP®

SMART PHOTOMETER SYSTEM™

Using eXact® Micro reagents in combination with the

app and photometer completes the eXact iDip®Smart

Photometer System™. Each test will require the use of one or

more of the testing methods outlined in this manual.

This system’s unique and innovative technologies have

earned the eXact iDip®US and international patents (US

Patents #7,333,194 and #7,491,546, Euro Pat No. 1 725

864 DE FR UK, and South African Patent #2007/0628) for

underlying technology, and currently pending are US Pat

App 13/651305 and Euro Pat App 2 906 942 for technical

features relating to two-way data communication between a

photometer and a smart device.

Note:

This system has been manufactured for use with only

our eXact®Micro reagents.

WARRANTY (2 YEARS)

Registration of your eXact®photometer must be received within 30

days from date of purchase to activate the warranty. Registration

is available over the phone (+1-803-329-9712 Ext. 0) or online at

sensafe.com/micro/warranty/ (Personal data is kept condential).

The eXact®photometer is warranted to be free from defects in

materials and workmanship for a period of two (2) years from

the date of purchase by the customer. ITS will repair or replace,

at its discretion, product which is deemed to be faulty due to

manufacturing defect. Warranty does not cover product damage

caused by abuse (such as crushing a tablet in the cell), battery

corrosion damage, or improper use. If the meter is faulty or

otherwise defective contact ITS by phone (1-803-329-9712 Ext. 0)

or email (its@sensafe.com) to describe the problem and obtain a

return authorization form before returning the photometer to ITS.

Damage caused by improper packing of the photometer for return

shipment to ITS will not be covered by the warranty. Customer is

responsible for shipping charges to ITS. ITS pays postage when

photometer is returned to customer. A maximum processing fee

of $75 will be charged for repair or replacement of non-registered

photometers and damages not covered by this warranty. The repair

or replacement of the photometer will not extend or renew the

period of guarantee. This warranty does not affect your statutory

rights. The warranty is not transferable.

WELCOME

Sensafe.com

FOR BEST ACCURACY

All tests that begin with 570 are for use with the eXact iDip

570 Smart

Photometer only.

Visit sensafe.com/idip/ for individual test instructions.

The meter has a default 3 minute automatic shutoff timer. You can change

the duration in the ‘Settings’ menu located within the eXact iDip

app.

Always ll the cell to capacity (4mL).

Test immediately after lling the cell with the water sample.

When testing pH, it is recommended to run the pH test prior to running

Chlorine. If you choose to run the pH after Chlorine, ensure you

thoroughly clean the cell with water and the brush provided.

To obtain optimal accuracy when testing outdoors (sunlight), use the

Cell Cover when zeroing and reading the sample.

Due to the strip slitting process, you may nd one or two strips that are

noticeably smaller or larger in width than the normal strips in the bottle.

These should be discarded. Using these strips may give unreliable results.

Meter is not compatible for use with powder pillows, tablets, and liquids

from other manufacturers.

Dip strip for entire countdown.

Each eXact

Strip Micro is valid for ONLY one test. Discard strip after use.

Dry the outside of the meter before storage.

Remove batteries before storing for prolonged periods.

Store the meter and test materials out of direct sunlight and away from

chemical storage areas.

Minimize exposure of meter and test reagents to heat above 90°F (32°C).

When installing batteries, make sure that the O-ring is still attached to

the screw before tightening.

To pair the eXact iDip

Smart Photometer with your smart device, open

the app and connect through the app. You cannot connect the devices

in the settings section of your smart device.

All results must be saved from the results page to history in order to

permanently save to your smart device.

The eXact iDip

Smart Photometer may experience Bluetooth

disconnection when submerged in water too deep. To avoid this,

collect water sample in a small container/cup and pour or pipette

(contact us for ordering) the water into the Sample Cell.

To ensure lab quality results, it is recommended to clean the cell with

the brush provided after every test.

Cleaning the cell with water and brush after each test and prior to

storage of unit is recommended. Use Distilled White Vinegar to clean

the cell after testing for Phosphate or Iron to remove reagent deposits

from the cell wall.

IDIP® SMART PHOTOMETER OVERVIEW

YOUR NEW EXact iDip®SmaRt phOtOmEtER iS iDEaL

FOR tEStiNg aND maiNtaiNiNg DRiNKiNg WatER, pOOLS,

SpaS, pONDS, aqUaRiUmS, FOOD pROcESS WatER,

ENviRONmENtaL WatERS, aND mORE!

SampLE cELL - 4 mL

Built-in plastic 4mL cell

for collecting your water

sample

LcD DiSpLaY

Displays results

and test name

Light SOURcE

Uses 525nm or

570nm wavelength,

depending on model

purchased, and

11mm path-length

for testing

REaD BUttON

Starts test timer

BaSE

Install/replace batteries here

(IP67 rated waterproof)

RESULt

UNitS

LOW

BattERY

BLUEtOOth

cONNEctED

LCD DISPLAY

ZERO/ON BUttON

Powers on the

meter and creates

a baseline for your

water testing

cELL cOvER

Covers the cell for

mixing and bright

light situations

Protected against the effects

of immersion in water to depth

between 15 cm and 1 meter

ScREW

Unscrew to

remove base

Part no. 486101

iNStaLL “aaa” BattERiES (NOt iNcLUDED)

1. Use a #4 Phillips head screwdriver to remove the screw

from the base of your eXact iDip®

2. Remove the base.

3. Install Four (4) new AAA batteries as illustrated inside

your iDip’s battery compartment. We recommend using

high quality batteries.

4. Replace the base rmly with pressure while tightening the

screw. The meter will turn on automatically.

5. Tighten the screw with #4 Phillips head screwdriver. Be

sure not to over tighten.

Sensafe.com

DOWNLOAD THE APP

Using your Smart Device, download the eXact iDip®

app. The eXact iDip®application is the brain for this

system, download the latest update to ensure you are

using the current version with up-to-date tests and

features. To see if your smart device is compatible,

reference our table on pages 8 and 9 of this manual.

We are constantly improving the

eXact iDip®app and welcome your

suggestions. Visit www.sensafe.com/idip

or e-mail your feedback to exactidip@

sensafe.com.

DOWNLOAD ADDITIONAL TESTS

The app comes pre-installed with tests for Total Alkalinity,

Free Chlorine, Combined Chlorine, and pH. Ensure you

have any additional tests you need by visiting the Store in

the eXact iDip®app. All tests that begin with 570 are for

use with the eXact iDip®570 Smart Photometer only.

Step-by-step instructions on using the Store function of the

app can be found on page 13.

APP STORE

DOWNLOAD GOOGLE PLAY

DOWNLOAD

To view an instructional video,

please visit sensafe.com/idip.

Note:

If using an Apple®iPad™, ensure you select 'iPhone

only app' when searching from the App Store, or scan the

QR code above.

GETTING STARTED

COMPATIBLE SMART DEVICES

SMART PHONE COMPATIBILITY

Updated 07/15/15

For updated list visit www.sensafe.com/compatible-devices

APPLE SAMSUNG MOTOROLA DROID MOTOROLA HTC

LG SONY GOOGLE LENOVO ZTE

iPhone 4s Galaxy Ace Style Maxx Moto E Desire 610

F70 Xperia AX Nexus 4 Vibe X2 Pro Grand S II

iPod touch 5th Galaxy Core II Mini Moto G Desire 816

G Pro2 Xperia E1 Nexus 5 Vibe Z Grand S3

iPhone 5 Galaxy Core Lite Razr HD Moto X One

G2 Xperia M Nexus 6 Vibe Z2 Nubia X6

iPhone 5c Galaxy Core Prime Razr HD Maxx One (E8)

G2 Mini Xperia M2 Vibe Z2 Pro Nubia Z5S Mini

iPhone 5s Galaxy Grand 2 Razr M One (M7)

G3 Xperia SP Vibe Z3 Pro Nubia Z7

iPhone 6 Galaxy Grand Duos Ultra One (M8)

Optimus Exceed 2 Xperia T2 Ultra Nubia Z7 Max

iPhone 6+ Galaxy Grand Neo One Max

Optimus Fuel Xperia VL Nubia Z7 Mini

Galaxy J One Mini

Optimus G Xperia Z Nubia Z9 Mini

Galaxy Mega One Mini 2

Optimus G Pro Xperia Z ULTRA

Galaxy Mega 2

Optimus L35 Xperia Z1

Galaxy S3

Optimus L40 Xperia Z1 Compact

Galaxy S3 Neo

Optimus L65 Xperia Z1F

Galaxy S4

Optimus L70 Xperia Z1S

Galaxy S4 Active

Optimus L80 Xperia Z2

Galaxy S4 Mini

Optimus L90 Xperia Z3

Galaxy S4 Zoom

Optimus Zone 2 Xperia ZL

Galaxy S5

Volt Xperia ZR

Galaxy S5 Active

Xperia ZR

Galaxy S5 Sport

Galaxy Xcover 3

Galaxy Young II Duos

TABLET COMPATIBILITY

APPLE SAMSUNG MOTOROLA DROID MOTOROLA HTC

LG SONY GOOGLE LENOVO ZTE

iPad (3rd) Galaxy Note 10.1

G Pad Xperia Tablet Z Nexus 7 (2013)

iPad (4th) Galaxy Note 3 Neo

Xperia Tablet Z2 Nexus 9

iPad Air

Galaxy Note 3 Neo Duos

iPad Air II Galaxy Note 4

iPad Mini Galaxy Note 8.0

iPad Mini II Galaxy Note II

iPad Mini Retina Galaxy Note II Duos

Galaxy Note III

Galaxy Note III Round

Galaxy Note Pro

Galaxy Tab 3 V

Galaxy Tab 4

Galaxy Tab Pro

Galaxy Tab S

This list is current as of July, 2015. To view the most up-to-date list of compatible

devices, please visit sensafe.com/compatible-devices.

VIEW INSTRUCTIONAL VIDEO

Sensafe.com

VIEW EXACT IDIP

COMMERCIAL

SMART PHONE COMPATIBILITY

Updated 07/15/15

For updated list visit www.sensafe.com/compatible-devices

APPLE SAMSUNG MOTOROLA DROID MOTOROLA HTC

LG SONY GOOGLE LENOVO ZTE

iPhone 4s Galaxy Ace Style Maxx Moto E Desire 610

F70 Xperia AX Nexus 4 Vibe X2 Pro Grand S II

iPod touch 5th Galaxy Core II Mini Moto G Desire 816

G Pro2 Xperia E1 Nexus 5 Vibe Z Grand S3

iPhone 5 Galaxy Core Lite Razr HD Moto X One

G2 Xperia M Nexus 6 Vibe Z2 Nubia X6

iPhone 5c Galaxy Core Prime Razr HD Maxx One (E8)

G2 Mini Xperia M2 Vibe Z2 Pro Nubia Z5S Mini

iPhone 5s Galaxy Grand 2 Razr M One (M7)

G3 Xperia SP Vibe Z3 Pro Nubia Z7

iPhone 6 Galaxy Grand Duos Ultra One (M8)

Optimus Exceed 2 Xperia T2 Ultra Nubia Z7 Max

iPhone 6+ Galaxy Grand Neo One Max

Optimus Fuel Xperia VL Nubia Z7 Mini

Galaxy J One Mini

Optimus G Xperia Z Nubia Z9 Mini

Galaxy Mega One Mini 2

Optimus G Pro Xperia Z ULTRA

Galaxy Mega 2

Optimus L35 Xperia Z1

Galaxy S3

Optimus L40 Xperia Z1 Compact

Galaxy S3 Neo

Optimus L65 Xperia Z1F

Galaxy S4

Optimus L70 Xperia Z1S

Galaxy S4 Active

Optimus L80 Xperia Z2

Galaxy S4 Mini

Optimus L90 Xperia Z3

Galaxy S4 Zoom

Optimus Zone 2 Xperia ZL

Galaxy S5

Volt Xperia ZR

Galaxy S5 Active

Xperia ZR

Galaxy S5 Sport

Galaxy Xcover 3

Galaxy Young II Duos

TABLET COMPATIBILITY

APPLE SAMSUNG MOTOROLA DROID MOTOROLA HTC

LG SONY GOOGLE LENOVO ZTE

iPad (3rd) Galaxy Note 10.1

G Pad Xperia Tablet Z Nexus 7 (2013)

iPad (4th) Galaxy Note 3 Neo

Xperia Tablet Z2 Nexus 9

iPad Air

Galaxy Note 3 Neo Duos

iPad Air II Galaxy Note 4

iPad Mini Galaxy Note 8.0

iPad Mini II Galaxy Note II

iPad Mini Retina Galaxy Note II Duos

Galaxy Note III

Galaxy Note III Round

Galaxy Note Pro

Galaxy Tab 3 V

Galaxy Tab 4

Galaxy Tab Pro

Galaxy Tab S

The eXact iDip®Smart Photometer requires the use of a smart device with

Bluetooth®4.0 and Android 4.3 or greater.

COMPATIBLE SMART DEVICES

hiStORY:

Accesses

saved results

which can be

sorted, edited,

and emailed.

Also accesses

History Map

caLENDaR:

Displays your

schedule/

appointments

StORE:

Opens store

to unlock

additional tests

cUStOmERS:

Attaches

results to

people and/or

locations from

your

smart

device contacts

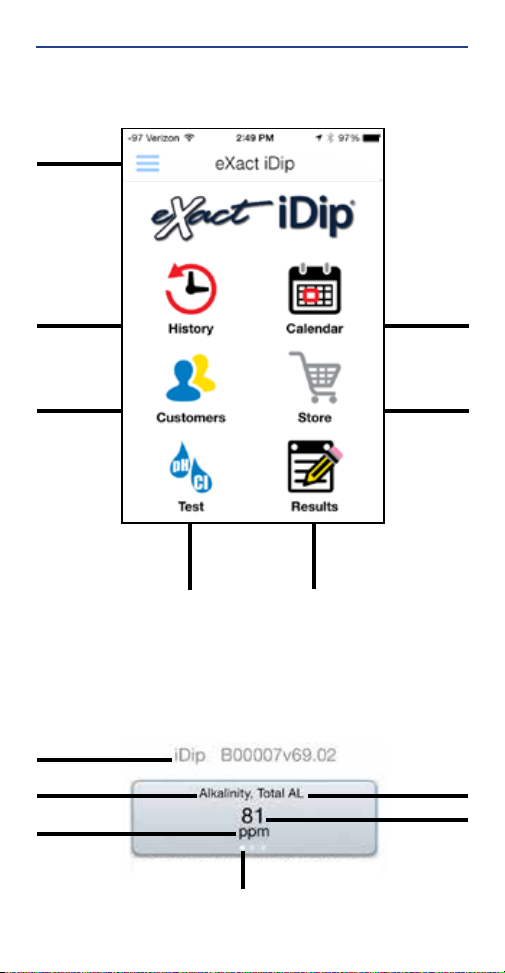

tESt:

Initiates water

testing

RESULtS:

Accesses temporary

results that have

not been saved to

history

mENU:

Opens

slide-out for

easy access to

all app features

BLUEtOOth

DEvicE

tEStiNg

paRamEtER

tESt RESULt

HOME SCREEN

TEST RESuLT SCREEN

tESt

aBBREviatiON

paRamEtER

UNit OF mEaSURE DOtS iNDicatE

mULtipLE UNitS OF mEaSURE

Swipe unit of measure values.

(Available for some tests)

IDIP®APP OVERVIEW

Other manuals for eXact iDip

Table of contents

Other Industrial Test Systems Test Equipment manuals

Industrial Test Systems

Industrial Test Systems Pool eXact EZ User manual

Industrial Test Systems

Industrial Test Systems Spa eXact EZ User manual

Popular Test Equipment manuals by other brands

SMART

SMART KANAAD SBT XTREME 3G Series user manual

Agilent Technologies

Agilent Technologies BERT Serial Getting started

Agilent Technologies

Agilent Technologies N3280A user guide

Vernier

Vernier Go Direct Voltage manual

Lifeloc

Lifeloc R.A.D.A.R. quick start guide

Fluke

Fluke T5-600 Service information

Mercury

Mercury TSL01 user manual

MAHA

MAHA MBT Series Original operating instructions

Fuji Electric

Fuji Electric P-61 instruction manual

ETC

ETC SealerAtor user manual

Skyfine

Skyfine ETHYWAY V2 user manual

Appion

Appion G5 Twin Operation manual

PCB Piezotronics

PCB Piezotronics 8159-0112A Installation and operating manual

BW Technologies

BW Technologies MicroDock II user manual

Sun Nuclear

Sun Nuclear 1027 user guide

Biomark

Biomark HPR LITE READER user manual

Hioki

Hioki 3169-20 instruction manual

Ashcroft

Ashcroft ATE-100 operating manual

Industrial Test Systems eXact iDip User manual

Popular Test Equipment manuals by other brands
