Indesit HWD24X User manual

FR - Manuel de montage FOUR 48 - TIROIR 24

UK - Installation Instructions OVEN 48 - DRAWER 24

SP - Instrucciones de Instalación Horno 48 - Cajón 24

IT - Manuale di installazione FORNO 48 - CASSETTO 24

QUICK GUIDE

01/07 - 195057321.00 Indesit Company

Four dessus - tiroir dessous

Forno sopra - cassetto sotto

Oven above - drawer below

Horno arriba - cajón abajo

550

680

45

1

2

560

1

5

23

4

FR

Four au-dessus et tiroir en dessous

* dimensions d’encastrement

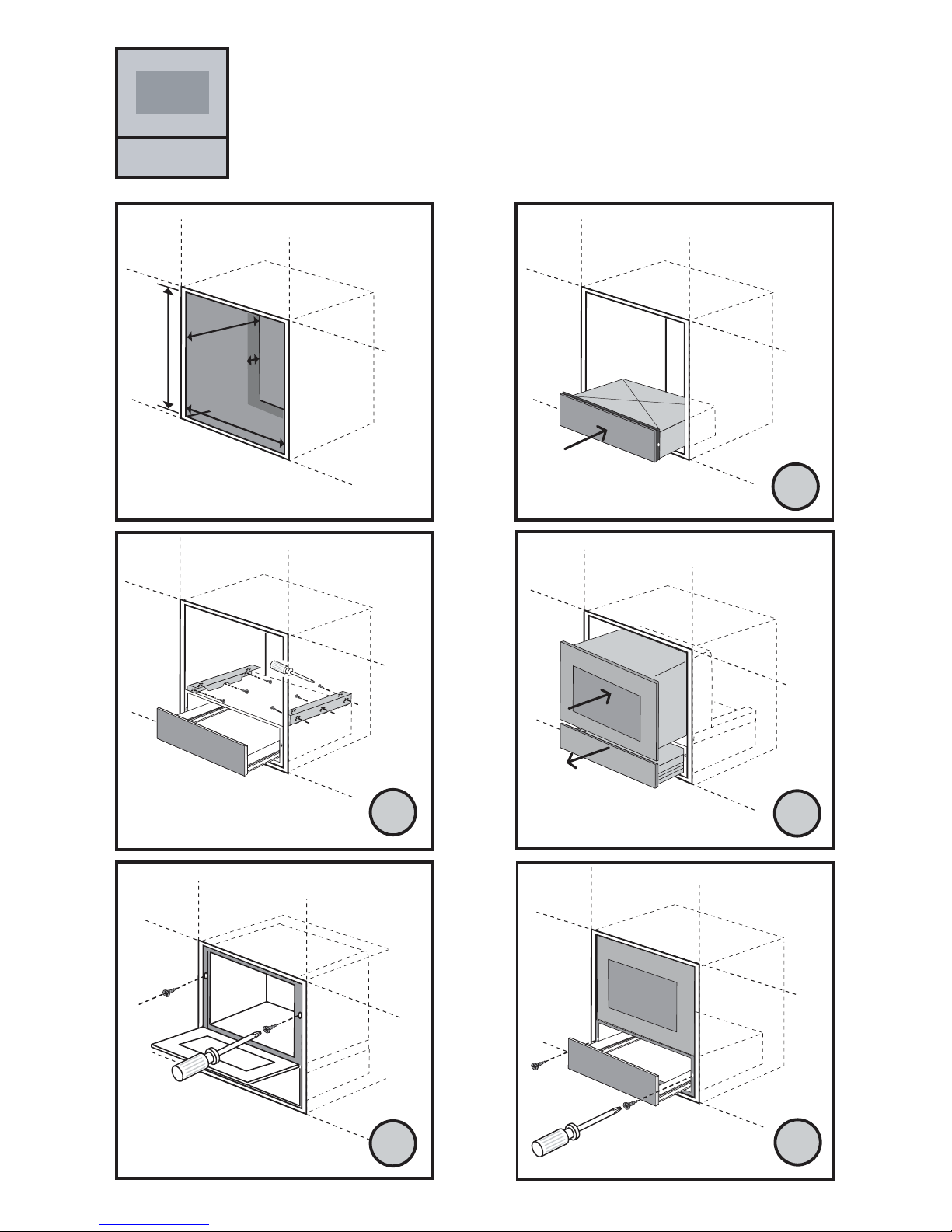

1 - installer le tiroir

2 - poser les équerres sur le tiroir et les fixer avec 3 vis sur chaque coté du meuble

3 - ouvrir le tiroir et poser le four sur les équerres

4 - aligner le four et le tiroir et fixer le four à la façade du meuble à l’aide des vis

5 - fixer le tiroir à la façade du meuble

IT

Forno sopra - cassetto sotto

* dimensioni incasso

1 - inserire il cassetto

2 - appoggiare le staffette sul cassetto e fissarle con le 3 viti su ogni lato del mobile della cucina

3 - aprire il cassetto e appoggiare il forno sulle staffe

4 - allineare forno e cassetto e fissare il forno con le viti

5 - fissare il cassetto

UK

Oven above - drawer below

* cupboard dimensions

1 - insert the drawer

2 - put the brackets on the drawer and secure to the cupboard with the 3 screws

3 - open the drawer and place the oven on the brackets

4 - align oven and drawer and secure the oven using the screws provided

5 - secure the drawer to the cupboard

SP

Horno arriba - Cajón abajo

* Dimensiones del encastre

1- Introducir el cajón.

2- Poner los soportes al cajón y asegura al encastre con los tres tornillos.

3- Abrir el cajón y poner el horno sobre los soportes.

4- Alinear el horno y el cajón y asegurar el horno utilizando los tornillos proporcionados.

5- Asegurar el cajón al encastre.
