Impex MARCY PL-2009 User manual
MARCY
PL-2009 RECUMBENT BIKE
IMPEX INC.
14777 Don Julian Rd., City of Industry, CA 91746
Tel: (800) 999-8899 Fax (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Exploded Diagram
Parts List
Warranty
Ordering Parts
Model
PL-2009
Retain This
Manual for
Reference
May 11, 2001
OWNER'S
MANUAL
TABLE OF CONTENTS
BEFORE YOU BEGIN....................................................................................................... 1
IMPORTANT SAFETY NOTICE........................................................................................ 2
HARDWARE IDENTIFIER................................................................................................ 3
ASSEMBLY INSTRUCTIONS........................................................................................... 4
EXPLODED DIAGRAM.........................................................................................……… 9
COMPUTER….………………........................................................................................... 10
FITNESS TIPS………....................................................................................................... 11
PARTS LIST...................................................................................................................... 15
WARRANTY...................................................................................................................... 16
ORDERING PARTS.......................................................................................................... 16
BEFORE YOU BEGIN
Thank you for selecting the MARCY Recumbent Bike by IMPEX
FITNESS PRODUCTS. For your safety and benefit, read this manual
carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you
have any questions, or find there are missing or damaged parts, we
guarantee you complete satisfaction through direct assistance
from our factory. To avoid unnecessary delays, please call our
TOLL-FREE customer service number. Our Customer Service
Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. -Fri. 9 a.m. -5 p.m. PST
www.impex-fitness.com
info@impex-fitness.com
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions
apply whenever you operate a piece of exercise equipment. Be sure to read the
entire manual before you assemble or operate your machine. In particular, note
the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED
BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2
3
ASSEMBLY INSTRUCTION
Tools required to assembly the machine:
Two Adjustable Wrenches and Allen Wrenches.
STEP 1
•Connect the Front Bike Frame
(#1) to the Front Leg Base
(#2). Secure them with two
M10 x 3 1/8” Carriage Bolts
(#17), two Bent Washers
(#19), and two M10 Aircraft
Nuts (#18).
Step 2
•Connect the Rear Vertical
Support (#8) to the Rear Leg
Base (#3). Secure them with
two M10 x 3 1/8” Carriage
Bolts (#17), two Bent Washers
(#19), and two M10 Aircraft
Nuts (#18).
•Connect the Main Seat Frame
(#4) to the Rear Vertical
Support (#8). Attach a Bracket
(#25) to each side of the Main
Seat Frame (#4) and Rear
Vertical Support (#8). Secure
it in lower holes on the Bracket
(#25) with two M8 x ½” Allen
Bolts (#23) and∅5/8”
Washers (#24). Secure the
Upper holes on the Bracket
(#25) with a M6 x 2 ½” Allen
Socket Bolt (#30) on one side,
a M6 x ½” Allen Bolt (#26) on
the other side, and two∅5/8”
Washers (#24). Secure the
back of the Rear Vertical
Support (#8) with two M8 x ½”
Allen Bolts (#23) and∅5/8”
Washers (#24).
4
Step 3
•Thread Seat Adjustment Handle
(#29) into seat adjustment notch.
•Place Seat Support (#5) onto
top of Main Seat Frame (#4).
Insert two M6 x 2 3/8” Allen
Hollow Socket Bolts (#22), and
two ∅5/8” Washers (#24) on
one side. Secure them with two
M6 x ½” Allen Bolts, two∅5/8”
Washers (#24) on the other side.
Step 4
•Insert Main Seat Frame (#4) into
Front Bike Frame (#1). Attach a
U-shaped Bracket (#20) from
underneath. Align all the holes.
Secure both sides with six M8 x
½” Allen Bolts (#23) and∅5/8”
Washers (#24). Secure the top
with three M8 x 1 3/8” Allen Bolts
(#21) and ∅5/8” Washers (#24).
5

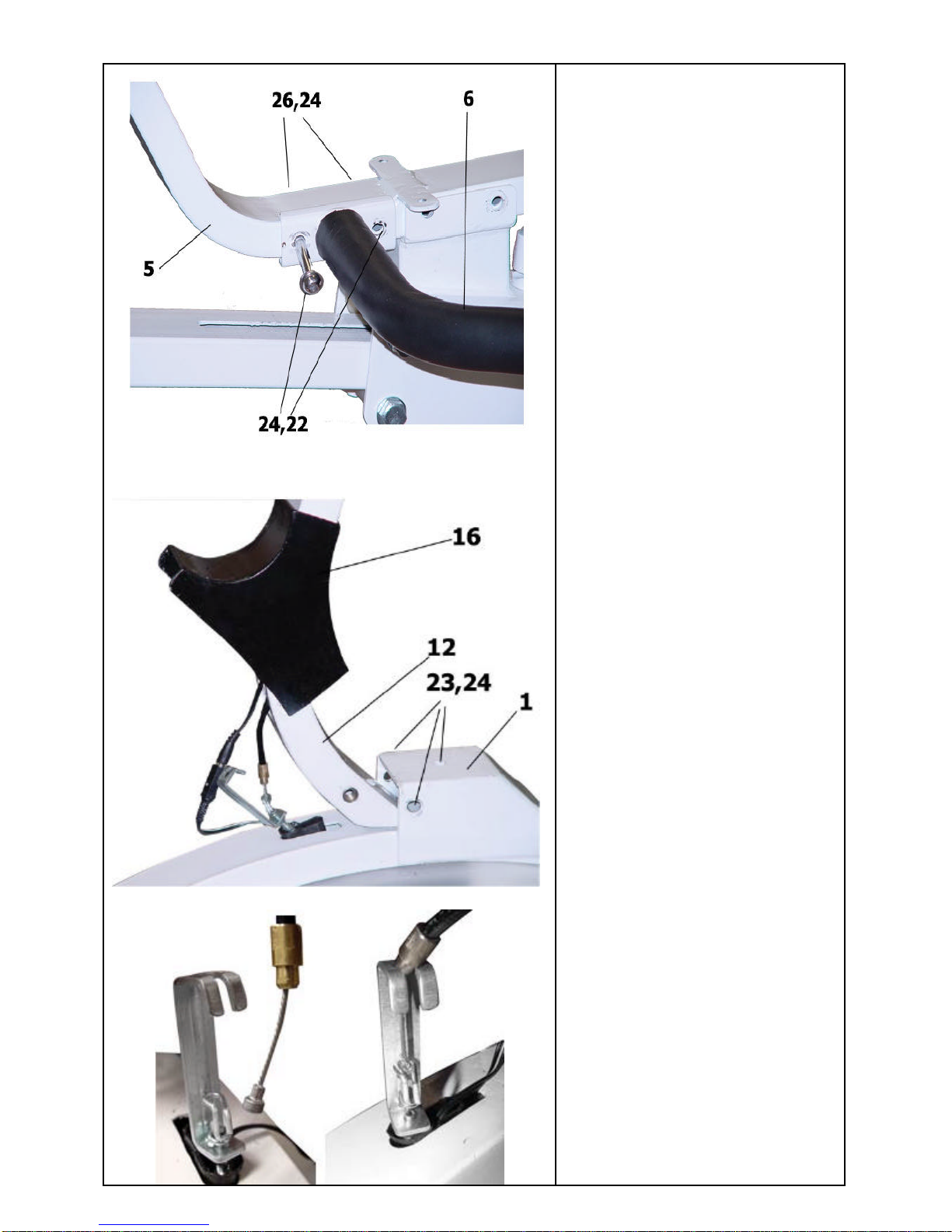

Step 5
•Attach the Right Seat Handle
(#6) and Left Seat Handle
(#7) to the Seat Support (#5).
Align the holes and secure
them with two M6 x 2 3/8”
Allen Hollow Socket Bolts
(#22) and ∅5/8” Washers
(#24) on one side, two M6 x ½”
Allen Bolts (#26) and two∅
5/8” Washers (#24) on the
opposite side.
Step 6
•Slide the Plastic Sleeve (#16)
onto Front Vertical Post (#12).
Insert Front Vertical Post
(#12) into Front Bike Frame
(#1). Secure them with three
M8 x ½” Allen Bolts (#23) and
∅5/8” Washers (#24).
•Connect the sensor wire from
Front Vertical Post to the
sensor wire from Front Bike
Frame (#1).
•To connect the tension wires,
first turn the dial knob on the
top of the Vertical Post
counterclockwise all the way
to the end. Then slide the
cable wire in between the
opening on the lower bracket
and pull up. At last pull the
black housing on the cable
upward and slide it in between
and over the big bracket.
•Slide down the Plastic Sleeve
(#16) to cover up the opening.
6
Step 7
•Attach the Stationary Handle
(#11) to the Front Vertical
Post (#12). Secure it with a
M8 x 1 ¼” Allen Bolts (#27)
and ∅5/8” Washers (#24).
Step 8
•Connect the sensor wire from
Front Vertical Post (#12) to
the sensor wire from
Computer (#13). Plug the
pulse wire from Front Vertical
Post into the hole located on
the bottom of the Computer.
Slide the Computer onto the
slot onto top of the Front
Vertical Post (#12).
7
Step 9
•Place Seat Pad (#10) onto the
Seat Support (#5). Secure it
with four M6 x 1 ½” Philips
Head Screws (#28).
•Place the Backrest Pad (#9)
onto the Seat Support (#5).
Secure them with four M6 x 1
½” Philips Head Screws (#28).
Step 10
•Attach the Left Pedal (#14)
and Right Pedal (#15) to the
side of each crank on the
Front Base Frame (#1).
Secure them by threading the
pedal into the crank.
8
