Iluminarc Ilumipod 7 User manual

Quick Reference Guide

Ilumipod 7 IP Optic RGBW QRG

About this

Guide

The Ilumipod 7 IP Optic RGBW Quick Reference Guide (QRG) only

contains the product’s connection and mounting information as well as the

menu options and the DMX values.

Disclaimer

This QRG does not replace the product’s user manual. You must download

the corresponding user manual from the ILUMINARC® Web site

(www.iluminarc.com) to learn about the disclaimers, safety notes,

programming modes and technical information.

Safety Notes

•DO NOT open this fixture unless instructed. It contains no user

serviceable parts.

•DO NOT look at the light source when this fixture is on.

•DO NOT touch the fixture when it is operating because it may be hot.

•DO NOT leave any flammable material within 50 cm from this fixture

while operating or connected to the power outlet to minimize the risk of

fire.

•DO NOT mount this fixture overhead without using a safety cable.

•DO NOT submerge this product at more than 1 m and/or for longer than

30 minutes (IP67 rating). Regular outdoor operation is fine.

•DO NOT operate this fixture if you see damage on the housing, lenses,

or cables; have the damaged parts replaced by an authorized technician

at once.

•DO NOT connect this fixture to a dimmer or rheostat.

•ONLY connect this fixture to a grounded and protected circuit.

What is

Included

•One Ilumipod 7 IP Optic RGBW

•One mounting plate

•One mounting spike

•One Warranty Card

•

One Quick Reference Guide

Features

•4, 5, or 7-channel DMX RGBW LED wash light

•Operating modes:

4-channel: RGBW control

5-channel: RGBW, dimmer

7-channel: RGBW, dimmer, color macros, strobe

•High power 1 W (350 mA) LEDs

•Static color control without DMX controller

•Cast aluminum, IP67, black housing

•Stainless steel, IP67 gland nuts

•Impact resistant glass lens cover

Options

•Ilumicode controller (for fixture configuration)

•

Ilumicon controller (for operation without a DMX controller)

Ordering

•18°lenses Order Number: 11007008

Ilumipod 7 IP Optic RGBW QRG

Mounting

Before mounting this product, read the safety notes at the beginning of the

Ilumipod 7 IP Optic RGBW User Manual and follow the mounting

procedures indicated in it.

This product comes with a plate to mount it on any firm, non-flammable

surface, whether horizontally or vertically, on the floor or overhead. The

articulated arm that connects the light to the base is adjustable and it can

swivel, thus providing full angle control.

A spike is included for mounting this product on soil (gardens and large

flowerpots).

Mounting Diagram

AC Power

This product has an auto-ranging power supply that can work with an input

voltage range of 100~240 VAC, 50/60 Hz.

Power Wiring

You can connect the bare-ended IP67 rated power cable from the fixture to

an IP67 junction box, as shown below. Make sure to use IP67 rated conduit

or direct buried cable (DBC) to link the junction boxes.

AC Power Junction

Box Wiring

Floor Mount

Overhead Mount

Ilumipod 7 IP Optic RGBW QRG

DMX Control

You will be able to control this product using a standard DMX controller.

The Ilumipod 7 IP Optic RGBW is set by default to the 7-channel ARC

FULL DMX personality and its DMX address is 001. The connections for

the DMX cables are indicated below.

To change the DMX personality, DMX address, or any other parameter of

the Ilumipod 7 IP Optic RGBW, you will need to use the optional Ilumicode

unit (see Settings on page 5).

DMX

Connection

You can connect the bare-ended IP67 rated signal cable from the fixture to

an IP67 junction box, as shown below.

Make sure to use IP67 rated conduit or direct buried cable (DBC) to link the

junction boxes.

DMX

Junction Box

Wiring

Ilumipod 7 IP Optic RGBW QRG

Settings

The Ilumipod 7 IP Optic RGBW uses the Ilumicode unit for configuration

purposes.

Ilumicode

Connections

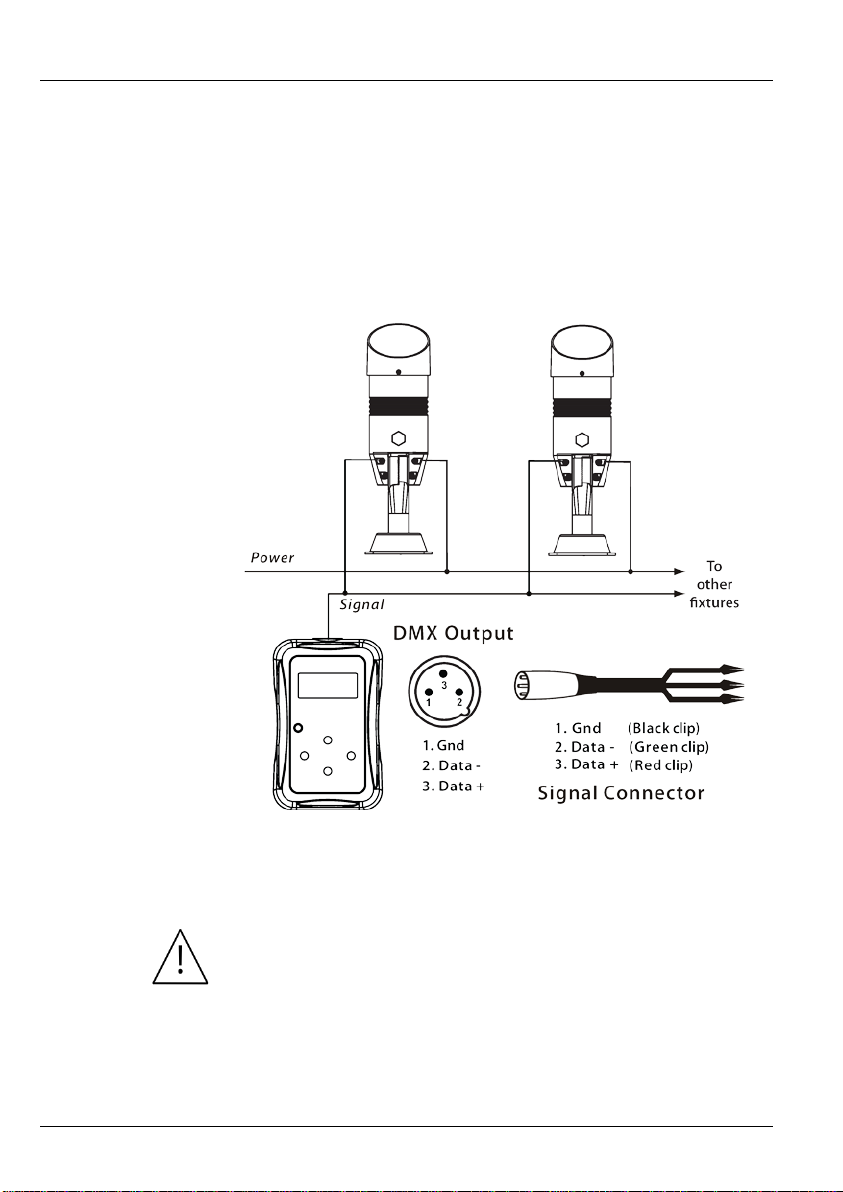

The diagram below shows how to connect the Ilumicode to this product.

Note that this connection will control multiple fixtures at the same time, all

having the same DMX address. To assign individual DMX addresses to

each fixture, you must connect the Ilumicode unit to each fixture,

individually. This means that you will also have to disconnect the DMX

output of the fixture under configuration if there are other fixtures connected

to it.

Ilumicode

Connection

Diagram

ILUMINARC® suggests you to connect no more than 20 fixtures in this

mode, while keeping the total distance to less than 60 m (197 ft). Otherwise,

you might need to use an optically isolated signal amplifier.

•The RDM2go, which includes a built in ilumicode addresser along

with many other useful features is now available.

•The Ilumicoode addresser is required for product configuration

(sold separately).

Ilumipod 7 IP Optic RGBW QRG

Ilumicode

Panel

Description

Button Function

<POWER>

Turns the Ilumicode unit on

<MENU>

Scrolls through the main level or exits from the current menu

or function (NOTE: Press and hold it to turn the unit off)

<ENTER>

Enables the currently displayed menu or sets the currently

selected value into the selected function

<UP>

Navigates upwards through the menu options and increases the

numeric value when in a function

<DOWN>

Navigates downwards through the menu options and decreases

the numeric value when in a function

Options

1st Level

Programming Levels

Description

DMX 001~512 Sets the DMX starting address

PERSON

ARC 2

4-channel: RGBW control

ARC 2 + D

4-channel: RGBW, dimmer

ARC FULL

7-channel: RGBW, dimmer, color

macros, strobe

CALIB

WHITE1~11 RED

GREEN

BLUE

WHITE

0~255

Determines the white balance for

the color macros

RGB

Determines the white balance when

RGBTOW is active

STATIC

RED

0~255 Configures the static color and

effect

GREN

BLUE

WHITE

STRB

Ilumipod 7 IP Optic RGBW QRG

DMX Channel Values

ARC FULL

Channel

Function

Value

Percent/Setting

RGB Dimmer

000 ó255

0~100%

Red

000 ó255

0~100%

Green

000 ó255

0~100%

Blue

000 ó255

0~100%

White

000 ó255

0~100%

6 Color Macros

000 ó010

011 ó030

031 ó050

051 ó070

071 ó090

091 ó110

111 ó130

131 ó150

151 ó170

171 ó200

201 ó205

206 ó210

211 ó215

216 ó220

221 ó225

226 ó230

231 ó235

236 ó240

241 ó245

246 ó250

251 ó255

No function

R: 100% G: Up B: 0%

R: Down G: 100% B: 0%

R: 0% G: 100% B: Up

R: 0% G: Down Be: 100%

R: Up G: 0% Be: 100%

R: 100% G: 0% B: Down

R: 100% G: Up B: Up

R: Down G: Down B: 100%

R: 100% G: 100% B: 100% W:100%

White 1: 3,200 K

White 2: 3,400 K

White 3: 4,200 K

White 4: 4,900 K

White 5: 5,600 K

White 6: 5,900 K

White 7: 6,500 K

White 8: 7,200 K

White 9: 8,000 K

White 10: 8,500 K

White 11: 10,000 K

7 Strobe

000 ó009

010

255

No function

Slow~Fast

ARC2

Channel

Function

Value

Percent/Setting

Red

000 ó255

0~100%

Green

000 ó255

0~100%

Blue

000 ó255

0~100%

White

000 ó255

0~100%

Ilumipod 7 IP Optic RGBW QRG

ARC2 + D

Channel

Function

Value

Percent/Setting

Dimmer

000 ó255

0~100%

Red

000 ó255

0~100%

Green

000 ó255

0~100%

Blue

000 ó255

0~100%

White

000 ó255

0~100%

Contact

USA WORLD HEADQUARTERS

General Information - ILUMINARC

Address:5200 NW 108th Avenue

Sunrise, FL 33351

Voice: (954) 923-3680

Fax: (800) 544-4898

Technical Support

Voice: (800) 762-1074

Email: support@iluminarc.com

World Wide Web

www.iluminarc.com

EUROPE

General Information - Chauvet Europe BVBA

Address:Stokstraat 18

9770 Kruishoutem

Belgium

Voice: +32 9 388 93 97

General Information - Chauvet Europe Ltd.

Address:Unit 1C

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: +44 (0)1773 511115

Fax: +44 (0)1773 511110

Technical Support

Email: Eutech@chauvetlighting.eu

World Wide Web

www.chauvetlighting.eu

Technical Support

Email: uktech@iluminarc.com

World Wide Web

www.chauvetlighting.co.uk

MEXICO

General Information - Chauvet Mexico

Address:Av. Santa Ana 30

Parque Industrial Lerma

Lerma, Mexico C.P. 52000

Voice: +52 (728) 285-5000

Technical Support

Email: servicio@iluminarc.com.mx

World Wide Web

www.chauvet.com.mx

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of

record. Follow their instructions to request support or to return a product. Visit our website

for contact details.

Ilumipod 7 IP Optic RGBW QRG – Rev. 02

Printed in the P. R. C.
