iLive IT319 User manual
For the most up-to-date version of this User’s Guide, go to www.ilive.net
IT319
3.1 Channel Home Theater System with Dock for iPod
USER’S GUIDE
V:1425-0119-10
iLive | IT319B2
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To prevent re or shock hazards, do not expose this unit to
rain or moisture.
• CAUTION: Use of controls or adjustments or performance of procedures
other than those specied may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive
surfaces to avoid damaging the surface. Use a protective barrier between
the unit and surface to protect the surface.
• WARNING: Use of this unit near uorescent lighting may cause interfer-
ence regarding use of the remote. If the unit is displaying erratic behavior
move away from any uorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Re-
place only with the same or equivalent type.
• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de fa-
çon incorrect. Remplacer les piles seulement par le même type de pile ou
l’équivalent.
• WARNING: There is a danger of explosion if you attempt to charge stan-
dard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control’s button cell battery contains mercury. Do
not put in the trash, instead recycle or dispose of as hazardous waste
• WARNING: Lithium ion batteries, like all rechargeable batteries are recy-
clable and should be recycled or disposed of in normal household waste.
Contact your local government for disposal or recycling practices in your
area. They should never be incinerated since they might explode.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh,
etc) batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-
cad, ni-mh, etc.).
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. When the provided
plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
WARNINGS AND PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
12. Use only with a cart, stand, tripod, bracket, or table
specied by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
This product utilizes a Class 1 laser to read Compact
Discs. This laser Compact Disc Player is equipped with
safety switches to avoid exposure when the CD door
is open and the safety interlocks are defeated. Invis-
ible laser radiation is present when the CD Player’s lid
is open and the system’s interlock has failed or been
defeated. It is very important that you avoid direct
exposure to the laser beam at all times. Please do not
attempt to defeat or bypass the safety switches.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons.
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSON-
NEL.
CUSTOMER HELPLINE | 1-314-621-2881 iLive | IT319B 3
• IT319
• AM Loop Antenna
• FM Wire Antenna
• Wall-mount hardware
• Remote & 2 AAA batteries
• Documentation
Plug the attached AC power cable into a standard AC power outlet.
The remote control requires 2 AAA batteries (included).
Additional Warnings Features
What’s Included
Powering the Unit
Powering the Remote
FCC Warnings
• The apparatus shall not be exposed to dripping or splashing and
that no objects lled with liquids, such as vases, shall be placed on
apparatus.
L'appareil ne doit pas être exposé aux écoulements ou aux écla-
boussures et aucun objet ne contenant de liquide, tel qu'un vase,
ne doit être placé sur l'objet.
• Main plug is used as disconnect device and it should remain read-
ily operable during intended use. In order to disconnect the appa-
ratus from the mains completely, the mains plug should be discon-
nected form the mains socket outlet completely.
La prise du secteur ne doit pas être obstruée ou doit être facile-
ment accessible pendant son utilisation. Pour être complètement
déconnecté de l'alimentation d'entrée, la prise doit être débran-
chée du secteur.
• Battery shall not be exposed to excessive heat such as sunshine,
re or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu'à
la lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the bottom of apparatus.
Les précautions d'emploi sont inscrites en bas de l'appareil.
• The marking information is located at the bottom of apparatus.
Les marquages sont inscrits en bas de l'appareil.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equip-
ment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
• Dock plays and charges iPod
• HDMI DVD player upconverts to 1080p
• 3.1 channel speaker system with integrated subwoofer
• AM/FM radio with digital tuning
• SRS TruSurround XT™
• Motorized iPod docking drawer
• Remote
• 2 Composite video inputs
• 3 RCA stereo inputs
• Subwoofer output
• Component output
• S-Video output
• Composite video output
• HDMI output
• Disc compatibility: DVD, DVD±R/RW, CD, CD-R/RW, JPEG
• Preset EQ settings, electronic volume, treble, and bass controls
• Wall mountable
• Slot-load disc drive with anti-skip function
• Station memory presets and last channel memory
• Digital clock with timer function
• 32” wide
• AC power: built-in AC cord
iLive | IT319B4
SUB
WOOFER
OUTPUT
Pr
Pb
Y
COMPONENT
VIDEO
OUTPUT
AV 2
VIDEO IN
AV 1
VIDEO IN
AUX INPUT
OUTPUT
ANTENNA INPUT

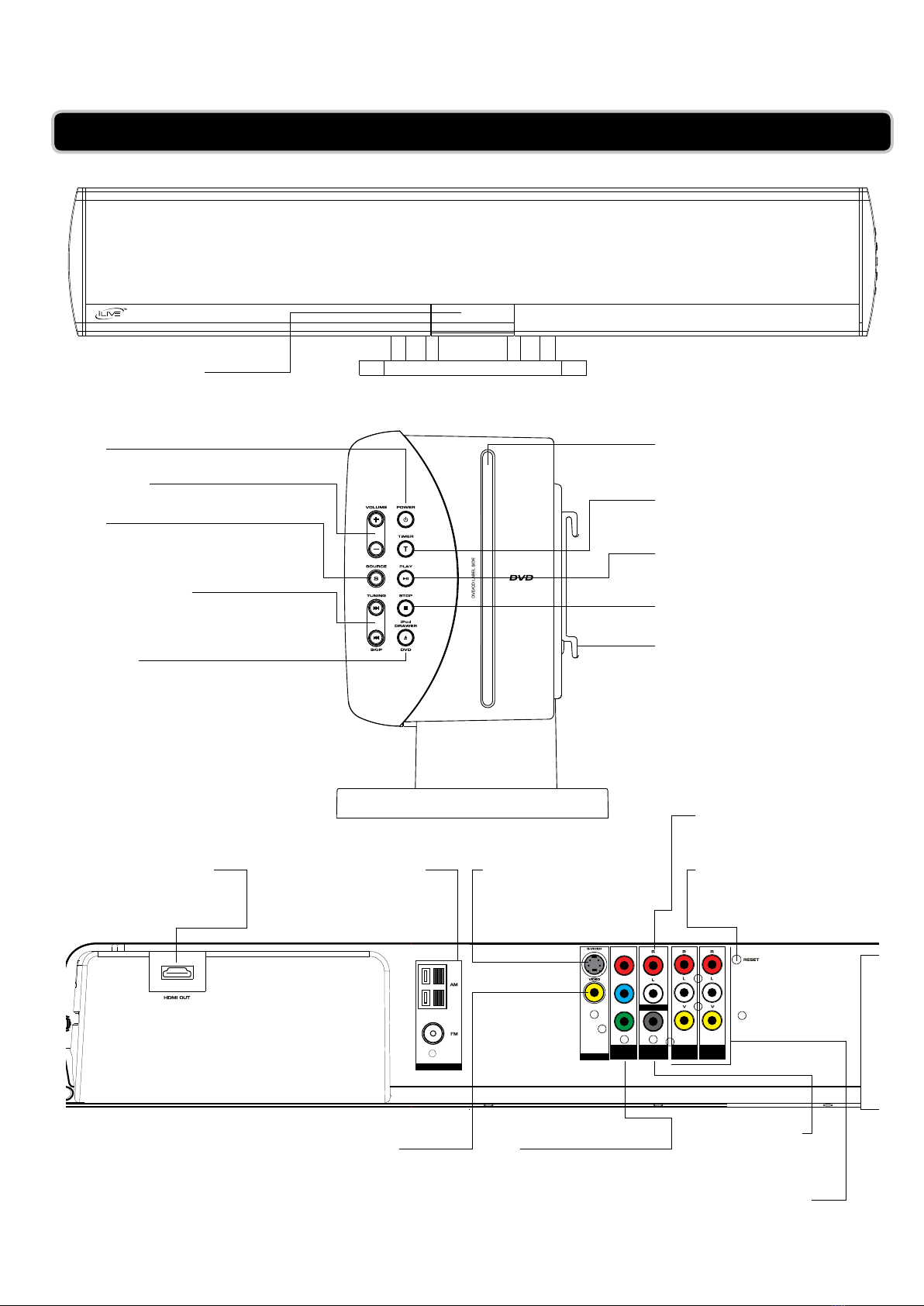

INTRODUCTION
Eject Button
Press to eject a CD or DVD in DVD mode,
or the motorized iPod dock in iPod mode.
HDMI Output (DVD only)
Use to connect the unit to a high
denition display.
FM & AM Antenna Inputs
Use to connect an FM and AM
antenna to the unit.
S-Video Output (DVD or iPod)
Use to connect the unit to a display
using an S-Video cable.
Subwoofer Output
Use to connect an external
subwoofer to the unit.
Component Video Output (DVD
only)
Use to connect the unit to a display
using component video cables (not
included).
Composite Video Output (DVD,
iPod, or AV Inputs)
Use to connect the unit to a display
using RCA video cables (not
included).
Stereo Auxiliary Input
Use to connect an MP3 player or
other audio source to the unit.
AV 1 & AV 2 Inputs
Use to connect a DVD player or
Set-Top Box to the unit.
Reset
Press to reset the unit to it’s original
default settings.
Play/Pause Button
Press to play and pause a docked iPod or
loaded CD/DVD.
Stop Button
Press to stop a CD or DVD during play.
Wall-mount Connections
Motorized Dock for iPod
Power
Press to turn the unit off and on.
Source
Press to switch between DVD, iPod, AM
radio, FM radio, Aux, AV 1, and AV 2
mode.
Volume Button
Press to adjust the volume the unit.
Tuning & Skip Buttons
Press to skip tracks on a docked iPod or
loaded CD, skip chapters on a loaded
DVD, or tune the radio.
Timer
Press to set the “on” and “off” timer for
the unit.
DVD/CD Slot-Load Drive
CUSTOMER HELPLINE | 1-314-621-2881 iLive | IT319B 5
1
4
7
23
56
98
010+
ALBUM
CHAPTER
PLAYLIST PRESET
TITLE
BSU TITLE
LANGUAGE
ANGLE
ZOOM
SHUFFLE
STEP
PREVIOUS NEXT
STOP
SLOW
REV
FWD
AUDIO
PROG
REPEAT
A-B
CLEAR
SELECT
RETURN
TREBLE
BASSWIDE
VIDEO
POWER iPod DRAWER
MUTE
TIMER
SOURCE
GOTO DISPLAY
SETUP MEMORY
MENU
EQ
VOLUME
DVD
PLAY/PAUSE
SLEEP
HDMI
TUN TUN
Power
Press to turn the unit off and on.
Mute Button
Press to mute the volume of the unit.
Eject Button
Press to eject a CD or DVD in DVD mode,
or the motorized iPod dock in iPod mode.
Number Keypad
Preset Buttons
Press to cycle through saved radio stations.
Playlist Button
Press to cycle through playlists on a docked
iPod.
Memory Button
Press to save the current radio station to the
unit’s memory.
Clear
Directional & Select Buttons
Press to move through a docked iPod’s
menus and tune the radio. Press the Select
Button to make selections on a docked
iPod.
Repeat Button
Press to repeat a song, album or playlist
from a docked iPod or a loaded CD or
DVD.
Return
Timer
Press to set the “on” and “off” timer for
the unit.
Sleep
Press repeatedly to set the sleep timer
between 1-90 minutes.
Source
Press to switch between DVD, iPod, AM
radio, FM radio, Aux, AV 1, and AV 2
mode.
Go To Button
Press and enter a specic time using the
Number Keypad to automatically skip to
that time on the loaded DVD.
Set Up Button
Press to enter the unit’s setup menu. (Must
be in DVD Mode.)
A-B Button
Press once to mark a starting point during
a DVD. Press the button a second time
to mark an ending point. After doing so
the DVD will loop that section of video.
Press the button a third time to cancel this
function.
Menu
Press to return to the loaded DVD’s
menu when in DVD Mode. Press to move
backwards through a docked iPod’s menus.
Program
Press to program a loaded CD or DVD to
play tracks or chapters in a specied order.
Album Buttons
Press to cycle through albums on a docked
iPod.
Chapter Buttons
Press to cycle through chapters on a docked
iPod.
Display Button
Press to view the time when in radio,
DVD, or Aux mode.
Continued
iLive | IT319B6
1
4
7
23
56
98
010+
ALBUM
CHAPTER
PLAYLIST PRESET
TITLE
BSU TITLE
LANGUAGE
ANGLE
ZOOM
SHUFFLE
STEP
PREVIOUS NEXT
STOP
SLOW
REV
FWD
AUDIO
PROG
REPEAT
A-B
CLEAR
SELECT
RETURN
TREBLE
BASSWIDE
VIDEO
POWER iPod DRAWER
MUTE
TIMER
SOURCE
GOTO DISPLAY
SETUP MEMORY
MENU
EQ
VOLUME
DVD
PLAY/PAUSE
SLEEP
HDMI
TUN TUN
Bass Button
Press to adjust the bass of the unit. (The
unit must be in Music 2.1 or Music 3.1 EQ
mode.)
Treble Button
Press to adjust the treble of the unit. (The
unit must be in Music 2.1 or Music 3.1 EQ
mode.)
Volume Button
Press to adjust the volume the unit.
Slow Button
Press to view a DVD movie in slow
motion.
EQ Button
Press to adjust the unit’s preset equalizer
settings. (Details on Page 15)
Audio Button
Press to adjust the audio language of a
loaded DVD.
Angle Button
Press to view alternate angles on a playing
DVD. The Angle Button will only work
with compatible DVDs.
Subtitle Button
Press to adjust the subtitle language for a
loaded DVD.
Shufe Button
Press to play tracks from a CD or an iPod
in a random order.
Title Button
Press to return to the title screen of a
loaded DVD.
HDMI
Press to adjust the output resolution
between 480i, 480p, 720p60, 1080i60, and
1080p60
Zoom
Press to zoom in and out during a DVD
movie.
Wide
Press and hold to switch between 4:3LB,
4:3PS and 16:9 aspect ratio.
Play/Pause Button
Press to play and pause a docked iPod or
loaded CD/DVD.
Stop Button
Press to stop a CD or DVD during play.
Step Button
Press to skip forward through a DVD one
frame at a time.
Search Buttons
Press to search through an individual track
on a docked iPod, CD, or chapter on a
loaded DVD.
Skip Buttons
Press to skip through tracks on a docked
iPod, CD, or chapters on a loaded DVD.
Video Button
Press to switch between Component or
S-Video output.
Continued
CUSTOMER HELPLINE | 1-314-621-2881 iLive | IT319B 7
Docking an iPod
Playing an iPod
Advanced features
Video Output from a docked iPod
IPOD OPERATIONS
Locate the numbered bracket that ts the iPod that
will be docked.
Each included Bracket has a number on it,
indicating which iPod model that bracket is
compatible with. See the separate bracket chart
page to identify which bracket is needed.
Press the Power Button to turn the unit on.
Press the Source Button to switch the unit to iPod
mode.
Press the iPod Drawer Button to open the iPod
motorized door on the unit.
Snap the bracket into place over the iPod connector
in the Motorized Dock for iPod.
All Brackets will only fit one way onto the Dock.
When inserting an iPod nano (first or second
generation), slide the Dock connection on the
unit so that it matches the opening on the iPod
nano (first or second generation).
Connect the iPod to the iPod connector inside the
Motorized Dock for iPod.
Once an iPod is connected to the Motorized Dock
for iPod, the unit will charge the docked iPod.
Dock an iPod onto the unit by following the
“Docking an iPod” instructions.
Press the Power Button to turn the unit on.
Press the Source Button to switch the unit to iPod
mode.
Press the Play/Pause Button to begin playing a
docked iPod.
The included remote control will allow you to
access and play all of the media stored on the
docked iPod from a distance.
A docked iPod can only output video through the
S-Video Output or the Composite Video Output.
To watch video from a docked iPod on a connected
display, the iPod’s TV Out setting must be set to
“On” or “Ask”.
Directional & Select Buttons (on remote)
Press to move through a docked iPod’s menus.
Press the Select Button to make selections on a
docked iPod.
Repeat Button (on remote)
Press to repeat a song, album or playlist from a
docked iPod.
Playlist Button (on remote)
Press to cycle through playlists on a docked iPod.
Album Buttons (on remote)
Press to cycle through albums on a docked iPod.
Chapter Buttons (on remote)
Press to cycle through chapters on a docked iPod.
Menu Button (on remote)
Press to move backwards through a docked iPod’s
menus.
iPod Drawer Button
Press to open the motorized dock for iPod in iPod
mode.
iLive | IT319B8
USING THE BUILTIN DVD/CD PLAYER
Loading a CD or DVD
Playing a CD or DVD
Video Output from a loaded DVD Programming a CD or DVD
IMPORTANT: The CD or DVD must be loaded
with the label side facing in the same direction as
the front of the unit.
The unit must be connected to an external display
before viewing a DVD.
Press the Power Button to turn the unit on.
Press the Source Button to switch to DVD Mode.
Load a CD or DVD into the unit.
Press the Play/Pause Button to play the loaded
CD or DVD.
Video can be output from a loaded DVD using
any of the available video outputs on the unit.
(Composite, S-Video, Component, or HDMI)
Connect the bar speaker to the display using the
desired video output that has a corresponding input
on the display.
Press the Source Button to switch to DVD Mode.
Load a DVD into the unit.
Press the Play/Pause Button to play the loaded
DVD.
First press the Source Button to switch to DVD
Mode, and load a CD or DVD into the television
Press the Program Button.
Use the Number Keypad to enter in specic titles
and chapters or tracks in the order you want them
to play.
Press the Directional Buttons to select the
on-screen Start button to begin playing your
programmed DVD.
To cancel a set program, press the Program
Button, then use the Directional Buttons to select
Stop then Exit.
LABEL SIDE
SUB
WOOFER
OUTPUT
Pr
Pb
Y
COMPONENT
VIDEO
OUTPUT
AV 2
VIDEO IN
AV 1
VIDEO IN
AUX INPUT
OUTPUT
ANTENNA INPUT
HDMI Output (DVD only)
Use to connect the unit to a high
denition display.
S-Video Output (DVD or iPod)
Use to connect the unit to a display
using an S-Video cable.
Component Video Output (DVD
only)
Use to connect the unit to a display
using component video cables (not
included).
Composite Video Output (DVD,
iPod, or AV Inputs)
Use to connect the unit to a display
using RCA video cables (not
included).
CUSTOMER HELPLINE | 1-314-621-2881 iLive | IT319B 9
Advanced DVD featuresDVD Menu
To access the DVD menu, press the Setup Button
(on the remote) in DVD Mode.Go To Button
Press and enter a specic time using the Number
Keypad to automatically skip to that time on the
loaded DVD.
Set Up Button
Press to enter the unit’s setup menu. (Must be in
DVD Mode.)
Program
Press to program a loaded CD or DVD to play
tracks or chapters in a specied order.
Repeat Button
Press to repeat a song, album or playlist from a
docked iPod or a loaded CD or DVD.
A-B Button
Press once to mark a starting point during a DVD.
Press the button a second time to mark an ending
point. After doing so the DVD will loop that
section of video. Press the button a third time to
cancel this function.
Menu
Press to return to the loaded DVD’s menu when in
DVD Mode.
Video Button
Press to switch between Component or S-Video
Output.
HDMI
Press to adjust the output resolution between 480i,
480p, 720p60, 1080i60, and 1080p60
Angle Button
Press to view alternate angles on a playing DVD.
The Angle Button will only work with compatible
DVDs.
iLive | IT319B10
BASIC CONNECTIVITY
Below, you’ll see a basic ow chart of how you can connect your home entertainment devices to the bar speaker, and in turn how
the bar speaker connects to them. The following pages contain more detailed instructions on what exactly needs to be done to
make these connections.
DVD PLAYER
DIGITAL CABLE or SATELLITE TUNER
VCR
GAMING CONSOLE
SUBWOOFER
AUDIO &/Or
VIDEO
AUDIO &/Or
VIDEO
VIDEOHDMI
AUDIO
AUDIO
Table of contents
Other iLive Home Theater System manuals
