Contents
Safety information 4
Safety instructions 5
Installation 7
Product description 8
Operation 8
Daily use 9
Hints and tips 11
Care and cleaning 11
Troubleshooting 13
Technical data 16
ENVIRONMENTAL CONCERNS 17
IKEA GUARANTEE 17
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe and
accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged 8 years and
above and by persons with reduced capabilities provided
that they have been given instruction and/or supervision
regarding the safe use of the appliance and understand the
potential hazards involved.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices and other
working environments
ENGLISH 4
–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging and the transit
bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or
wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
ENGLISH 5
Electrical connection
Warning! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
Use
Warning! Risk of injury, burns,
electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.
• Do not store flammable gas and liquid in
the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Obey the storage instructions on the
packaging of frozen food.
Care and cleaning
Warning! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to be closed inside of the appliance.
ENGLISH 6
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
Installation
Warning! Refer to Safety
chapters.
Location
Refer to the assembly instructions
for the installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight etc.
Make sure that air can circulate freely
around the back of the cabinet.
Positioning
This appliance should be installed in a dry,
well ventilated indoor (garage or cellar)
also, but for optimum performance install
this appliance at a location where the
ambient temperature corresponds to the
climate class indicated on the rating plate
of the appliance:
Climate class Ambient temperature
SN +10°C to + 32°C
Climate class Ambient temperature
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power
supply socket is not earthed, connect the
appliance to a separate earth in
compliance with current regulations,
consulting a qualified electrician.
The manufacturer declines all responsibility
if the above safety precautions are not
observed.
This appliance complies with the E.E.C.
Directives.
ENGLISH 7

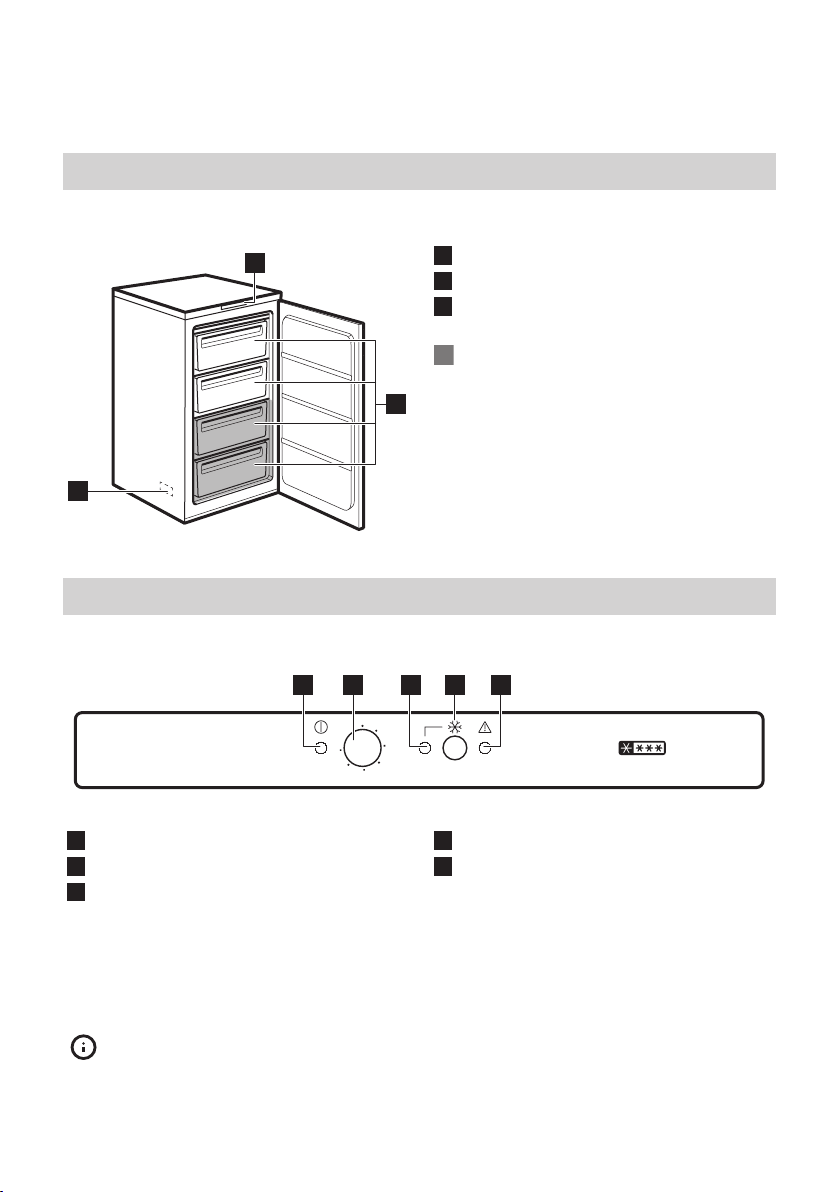

Product description
Product overview
1
3
2
1Control panel
2Freezer drawers
3Rating plate (situated inside of the
appliance)
Coldest zone
Operation
Control panel
1
2
3
4
5
6
1 2 43 5
1Pilot light
2Temperature regulator
3Fast Freezing light
4Fast Freezing switch/Alarm reset switch
5Alarm light
Switching on
Insert the plug into the wall socket.
The pilot light will light up and you will hear
the buzzer.
If the temperature inside the
appliance is too high the Alarm
light will blink. Active the Fast
Freezing function.
Switching off
To turn off the appliance, turn the
Temperature regulator to the "O" position.
The pilot light will switch off and you will
hear the buzzer.
ENGLISH 8
Temperature regulation
The temperature is regulated automatically.
1. Turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.
2. Turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.
A medium setting is generally the
most suitable.
However, the exact setting
should be chosen keeping in
mind that the temperature inside
the appliance depends on:
• room temperature,
• how often the door is opened,
• the quantity of food stored,
• the location of the appliance.
Fast Freezing function
1. Press the Fast Freezing switch to
activate the Fast Freezing function.
The Fast Freezing light will light up.
2. Press the Fast Freezing switch to
deactivate the function at any time.
The Fast Freezing light will switch off.
This function stops automatically
after 52 hours.
Acoustic alarm
An acoustic alarm will sound when the
temperature inside the freezer has risen to
a point where the safe storage of frozen
food is no longer ensured.
When normal conditions are restored, the
acoustic alarm will stop.
In any case, press the Alarm
reset switch to deactivate the
acoustic alarm.
Door open alarm
An acoustic alarm will sound when the door
is left open for around 80 seconds.
When normal conditions are restored (door
closed), the acoustic alarm will stop.
In any case, press the Alarm reset switch to
deactivate the acoustic alarm.
Daily use
Warning! Refer to Safety
chapters.
Freezing Calendar
3-6
1-2
10-12
3-4
10-12
3-6
10-12
3-6
10-12
3-6
The symbols show different types of frozen
goods.
The numbers indicate storage times in
months for the appropriate types of frozen
goods. Whether the upper or lower value of
the indicated storage time is valid depends
on the quality of the foods and treating
before freezing.
Accessories
Ice tray
ENGLISH 9
x1
Ice scraper
x1
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Fast
Freezing function at least 24 hours before
placing the food to be frozen in the freezer
compartment.
Place the fresh food to be frozen in the two
bottom compartments.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate, a label located on the side of the
appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be
frozen.
After 24 hours, when the freezing process is
completed, deactivate the Fast Freezing
function (see "Fast Freezing function").
Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
12 hours on the Fast Freezing setting.
If large quantities of food are to be stored,
remove all drawers from appliance and
place food on glass shelf to obtain the best
performance.
In the event of accidental
defrosting, for example due to a
power failure, if the power has
been off for longer that the value
shown in the technical
characteristics chart under "rising
time", the defrosted food must be
consumed quickly or cooked
immediately and then re-frozen
(after cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature,
depending on the time available for this
operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this case,
cooking will take longer.
Ice-cube production
This appliance is equipped with one tray for
the production of ice-cubes.
1. Fill the tray with water.
2. Put the tray in the freezer compartment
Caution! Do not use metallic
instruments to remove the tray
from the freezer.
ENGLISH 10
Other manuals for DJUPFRYSA
10
Table of contents
Languages:
Other IKEA Freezer manuals
