Ikan Rayden User manual
© 2016 ikan Corporation. All rights Reserved
QUICKSTART GUIDE

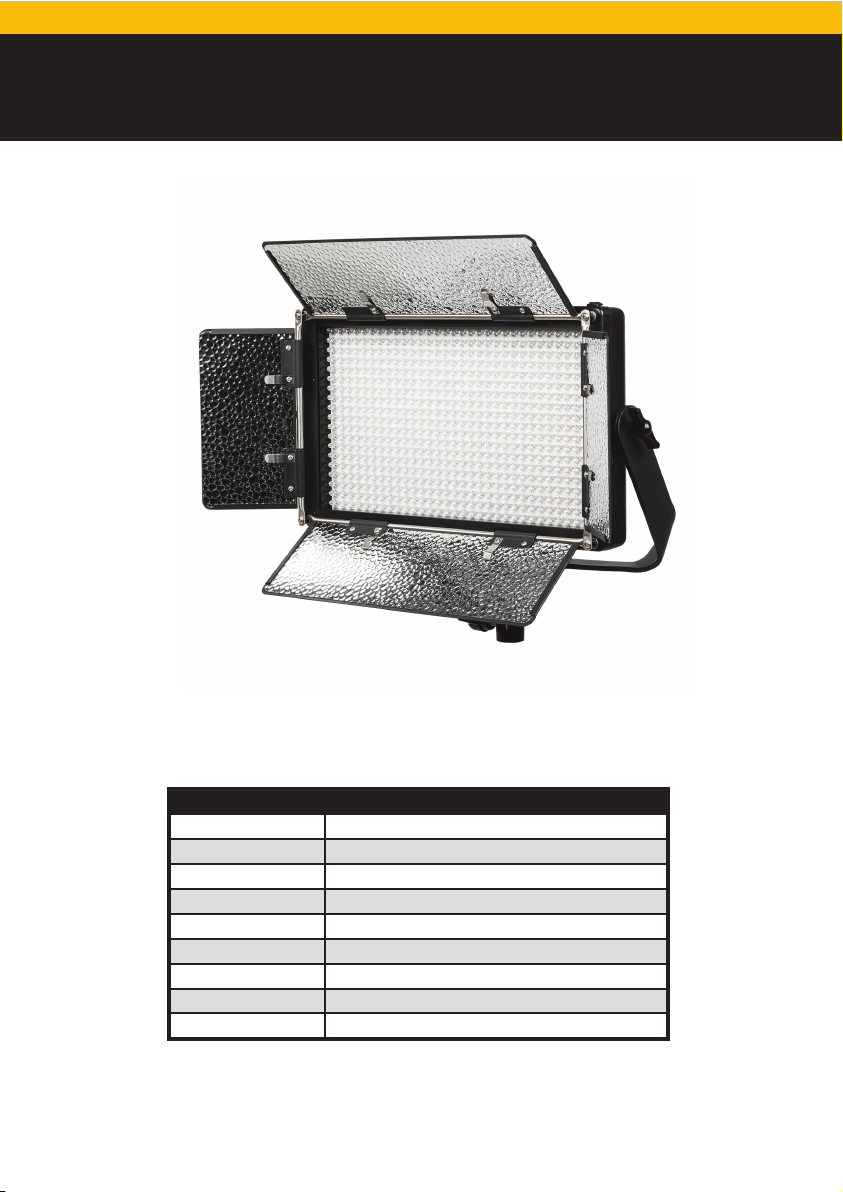

RW5
Rayden Daylight Half x 1 LED Light
RB5
Rayden Bi-Color Half x 1 LED Light

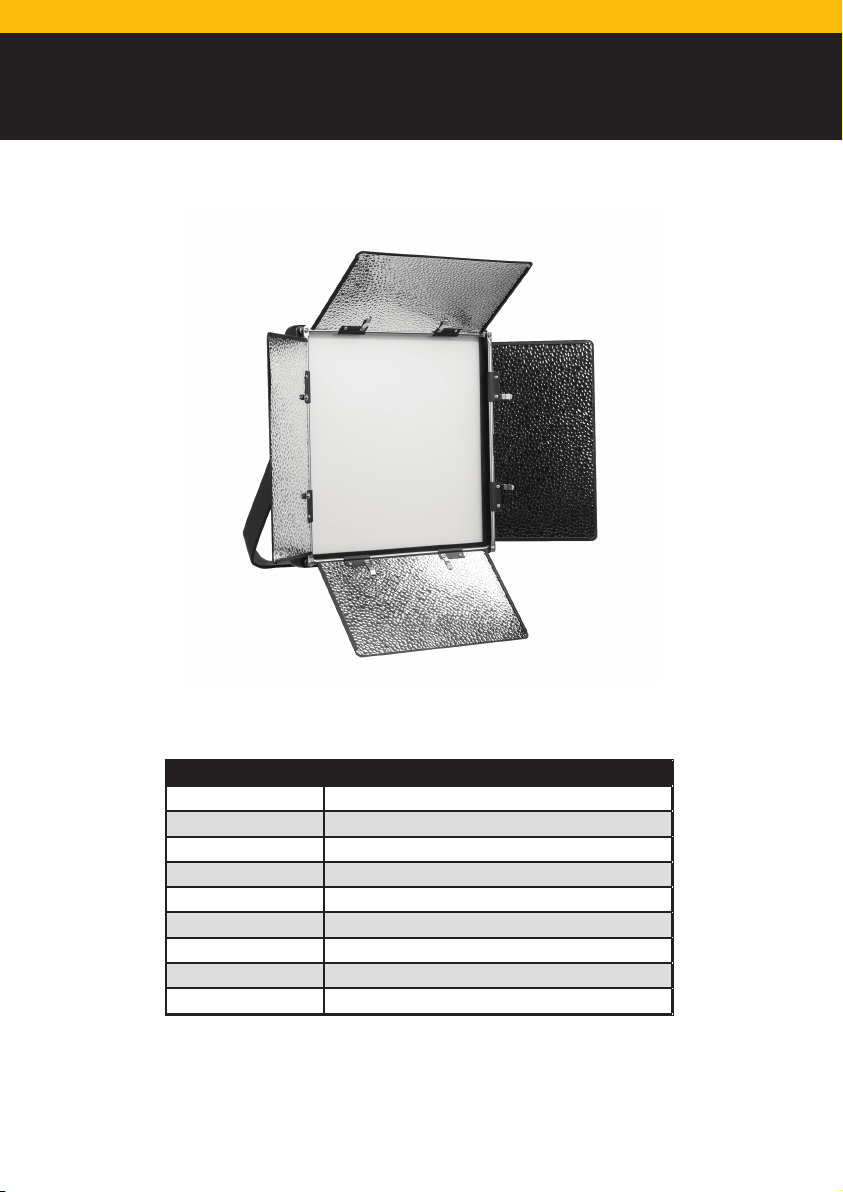

RW10
Rayden Daylight 1 x 1 LED Light
RB10
Rayden Bi-Color 1 x 1 LED Light
CHECKED BY
What’s Included
1 x Light Fixture
1 x Yoke Mount
1 x Remote Control
1 x Power Supply w/ Cable
1 x AB Mount Battery Plate
1 x V-Mount Battery Plate
Getting to know your RAYDEN lights
PRECAUTIONS:
• Keep the fixture away from water and all flammable gases or liquids.
• Use only the recommended batteries.
• Handle the unit with care.
• DO NOT attempt to disassemble or repair the unit without first contacting service department at
ikancorp.com.
• Keep the unit clean and free of dust. The unit can be cleaned with a soft dry cloth.
• Use only parts provided by the manufacture.
• Always use caution when plugging in the fixture.
Mounting the Rayden to a Stand:
The Rayden LED Light comes with a pre-installed yoke and combo mount. This allows the fixture to easily
sit and adjust on any stand. The 30° yoke gives the light free-range motion without obstructions. The Baby
5/8
" and Junior 1-1/8" Combo Pin allows the user a wide range of stands. The light can be mounted either
horizontally or vertically on a 5/8" baby pin.
Power the LEDs:
The Rayden light comes with an included AC power supply and 6 foot cable. This allows the user to plug
into any standard 120-240v electrical outlet. The Rayden LED light can be powered from either an AB
Mount pro battery, or a V-Mount battery. The fixture comes standard with either AB-Mount or V-Mount
plates. The plates can be easily removed and replaced for the type of batteries that are available.
Adjusting the Color & Brightness of the Light:
The Rayden LED light is controlled by the large yellow knob on the rear of the fixture. The knob was
designed with the idea that it could be reached and adjusted when the light is up on a stand. The knob
has three push settings.
1. The default setting is the brightness from 10%-100% brightness.
2. By pressing in on the knob the color temperature can be adjusted. (Bi-Color Lights)
Remote Control
The light can be adjusted also using the RF remote control. The use of the remote allows for multiple lights
to be connected as well as control of the brightness.
Optional Accessories
Some other products that work well with the RW10 available from Ikan include:
HD-STND
ROLLR-STND10
CP-STND-V3
SW-04
KCP-703
Heavy Duty Light Stand
2 Stage Roller Stand 10 ft 6 in
Compact Light Stand Version 3
Safety Wire
Stage Clamp w/ 16mm Stud
Remote Control Button Functions
• Press & Hold “A” for 5 seconds to sync remote control to light(s)
• Press “A” to power ON/OFF (for Daylight Light only)
• Press “A”& "B" to power ON/OFF (for Bi-Color Light only)
• Press “B” to adjust 4 levels of light intensity in increments of 25%
• Press and Hold “C” & “D” for 5 seconds to Enable/Disable sound
• Hold down “C” to increase light intensity 0%-100%
• Hold down “D” to decrease light intensity 100%-0%
Changing the Pro Battery Plate
Adding or removing the pro battery plate on the back of your fixture can be easily achieved.
NOTE: The fixture comes pre-installed with the Gold-Mount battery plate.
The process starts with the removal of the four screws on the four corners of the plate.
Once the screws are removed, separate the plate from the back of the fixture.
Unplug the 2-pin connector from the fixture.
Store the screws and the Gold-Mount in a safe place.
Reattaching the V-Mount plate is a simple process.
Plug the wired 2-pin connector into the fixture where we just unplugged the Gold-Mount
plate at the back of the light. Orient the holes on the plate to match up with the screw holes
on the back of the fixture. Using the screws supplied with the V-Mount plate, screw in the
plate until it is snug against the back of the fixture. Do not over-tighten the screws.
You’re now ready to install your battery to the V-Mount plate.
Specifications
RW5
Rayden Daylight Half x 1 LED Light
Specs
Head Type Daylight 5600K
Rating 36.4w ; 14-18VDC
Light Source 608 0.06 watt LEDs
Power Supply Input: 110-220VAC ; Output:15VDC @ 4.0A
Lens 45°
Beam Angle 50°
Yoke & Pin 30° Angled yoke w/ Baby 5/8” & 11/8” Combo Pin
Fixture Size 18 x 16 x 6 In.
Fixture Weight 9 lbs

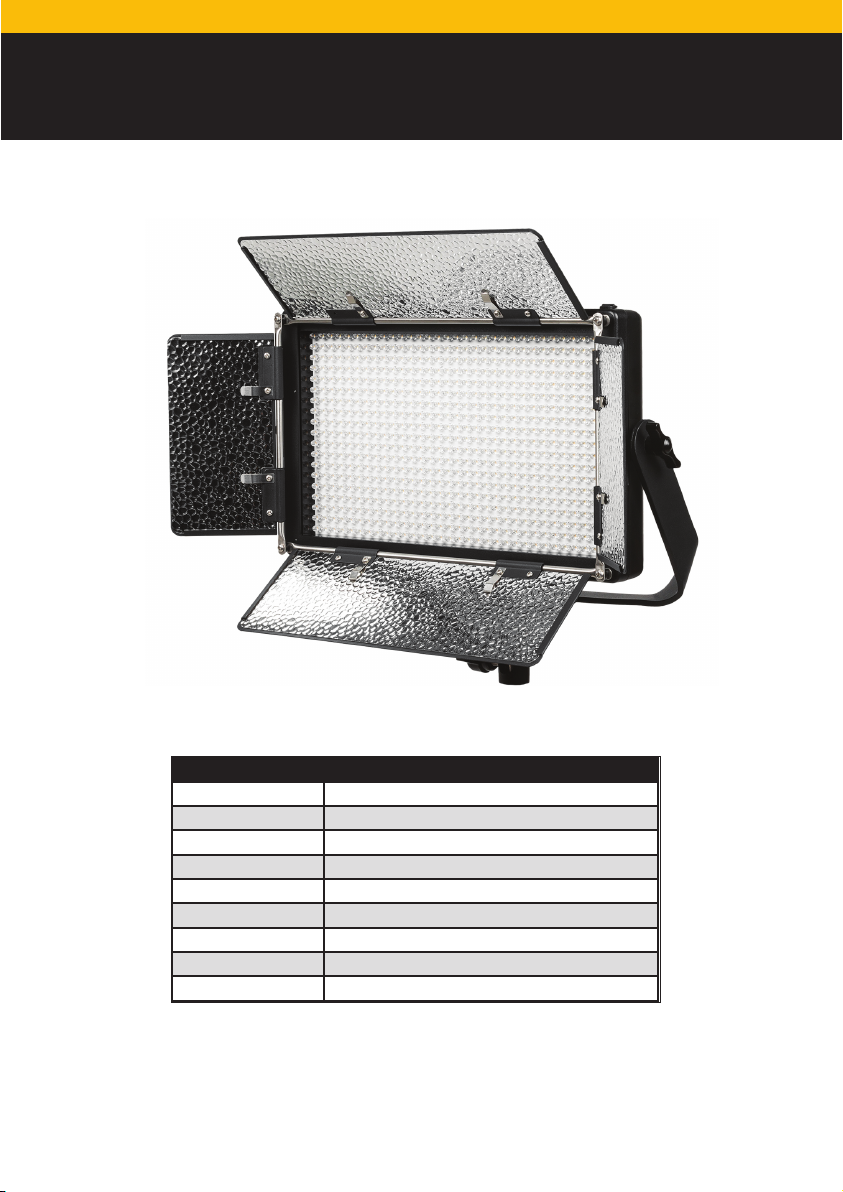

RB5
Rayden Bi-Color LED Half x 1 Light
Specifications
Specs
Head Type Bi-Color 5600K-3200K
Rating 36.4w ; 14-18VDC
Light Source 608 0.06 watt LEDs
Power Supply Input: 110-220VAC ; Output:15VDC @ 4.0A
Lens 45°
Beam Angle 50°
Yoke & Pin 30° Angled yoke w/ Baby 5/8” & 11/8” Combo Pin
Fixture Size 18 x 16 x 6 In.
Fixture Weight 9 lbs
RW10
Rayden Daylight 1 x 1 LED Light
Specifications
Specs
Head Type Daylight 5600K
Rating 71w ; 14-18VDC
Light Source 1184 0.06 watt LEDs
Power Supply Input: 110-220VAC ; Output:15VDC @ 4.0A
Lens 45°
Beam Angle 50°
Yoke & Pin 30° Angled yoke w/ Baby 5/8" & 11/8" Combo Pin
Fixture Size 21 x 18 x 6 In.
Fixture Weight 13 lbs
RB10
Rayden Bi-Color 1 x 1 LED Light
Specifications
Specs
Head Type Bi-Color 5600K-3200K
Rating 71w ; 14-18VDC
Light Source 11874 0.06 watt LEDs
Power Supply Input: 110-220VAC ; Output:15VDC @ 4.0A
Lens 45°
Beam Angle 50°
Yoke & Pin 30° Angled yoke w/ Baby
5
/
8
” & 1
1
/
8
” Combo Pin
Fixture Size 21 x 18 x 6 In.
Fixture Weight 13 lbs
Learn More
More dynamic information at official website: www.ikancorp.com
Support
CONDITIONS OF WARRANTY SERVICE
•
Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
•
The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
•
Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
•
Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2016 ikan Corporation. All rights reserved
