User Manual

Edition: 2011-02-23

K238

Media- / DVI-Converter

Model:

K238-5V

K238-5VE

K238-5VS

K238-5FBNC

K238 Media- / DVI-Converter

2 2011-02-23

manner without the prior written consent of the manufacturer.

Information in this document is subject to change without notice.

Trademarks

All trademark and trade names mentioned in this document are

acknowledged to be the property of their respective owners.

Disclaimer

While every precaution has been taken during preparation of this manual,

the manufacturer assumes no liability for errors or omissions. Neither does

the manufacturer assume any liability for damages resulting from the use

of the information contained herein.

The manufacturer reserves the right to change specifications, functions, or

circuitry of the product without notice.

The manufacturer cannot accept liability for damage due to misuse of the

product or due to any other circumstances outside the manufacturer’s

control (whether environmental or installation related). The manufacturer

shall not be liable for any loss, damage, or injury arising directly, indirectly,

incidentally, or consequently from the use of this product.

Contents

2011-02-23 3

Contents

1 About This Manual....................................................................... 6

1.1 Scope.................................................................................. 6

1.2 Validity ................................................................................ 6

1.3 Cautions and Notes ............................................................ 6

2 Safety Instructions.......................................................................7

3 Description ................................................................................... 8

3.1 Application .......................................................................... 8

3.2 System Overview ................................................................ 9

3.3 Product Range .................................................................. 10

3.4 Upgrade Kits ..................................................................... 10

3.5 Accessories....................................................................... 11

3.6 Device Views .................................................................... 12

3.6.1 Model K238-5V ................................................... 12

3.6.2 Model K238-5VE................................................. 13

3.6.3 Model K238-5VS................................................. 14

3.6.4 Model K238-5FBNC............................................ 15

3.7 Status LEDs ...................................................................... 16

4 Installation .................................................................................. 17

4.1 Package Contents............................................................. 17

4.2 System Setup.................................................................... 18

4.3 Example Applications........................................................ 19

5 Configuration.............................................................................. 20

5.1 Infrared Remote Control.................................................... 20

5.2 On Screen Display (OSD) ................................................. 23

5.2.1 Main Menu Item 'Color Settings' ......................... 24

5.2.2 Main Menu Item 'Picture Settings'....................... 26

5.2.3 Main Menu Item 'Input Settings' .......................... 29

5.2.4 Main Menu Item 'Output Settings' ....................... 30

5.2.5 Main Menu Item 'General Settings' ..................... 31

K238 Media- / DVI-Converter

4 2011-02-23

6 Operation .................................................................................... 35

6.1 Optimization of Picture Settings ........................................ 35

6.1.1 Optimization of Output Settings .......................... 36

6.1.2 Optimization of Input Settings ............................. 36

6.1.3 Optimization of Picture Settings .......................... 37

6.2 Download of DDC Information .......................................... 37

6.2.1 Download of DDC by Infrared Remote Control ... 38

6.2.2 Download of DDC via OSD................................. 38

7 Specifications............................................................................. 39

7.1 Interfaces .......................................................................... 39

7.1.1 DVI-D Single Link................................................ 39

7.1.2 DVI-I Single Link ................................................. 39

7.1.3 S-Video (Y/C)...................................................... 39

7.1.4 SDI Video............................................................ 39

7.1.5 EGA (D-Sub 9).................................................... 39

7.1.6 Composite Video (BAS / FBAS).......................... 40

7.1.7 Component Video (YPbPr).................................. 40

7.1.8 RGB Video.......................................................... 40

7.2 Supported Video Modes.................................................... 41

7.3 Connector Pinouts ............................................................ 49

7.4 Power Supply.................................................................... 52

7.5 Environmental Conditions ................................................. 52

7.6 Size................................................................................... 52

7.7 Shipping Weight................................................................ 53

8 Troubleshooting......................................................................... 54

8.1 Blank Screen..................................................................... 54

8.2 Picture............................................................................... 55

8.3 General ............................................................................. 55

9 Technical Support...................................................................... 56

9.1 Support Checklist.............................................................. 56

9.2 Shipping Checklist ............................................................ 56

Contents

2011-02-23 5

10 Regulatory and Standards Compliance ................................... 57

10.1 CE Declaration Of Conformity........................................... 57

10.2 North American Regulatory Compliance........................... 58

10.3 WEEE ............................................................................... 58

10.4 RoHS ................................................................................ 58

11 Glossary...................................................................................... 59

Pos: 1 /806-IHSE/ Zu diesem Handbuch/A TB_Zu diesem Handbuch @ 5\mod_1278 573163276_6.doc @ 41510 @ 1222

K238 Media- / DVI-Converter

6 2011-02-23

1 About This Manual

1.1 Scope

This manual describes how to install your Media- / DVI-Converter, how to

operate it and how to perform trouble shooting.

1.2 Validity

This manual is valid for all devices listed on the front page. The product

code is printed on the base of the devices.

1.3 Cautions and Notes

The following symbols are used in this manual:

This symbol indicates an important operating instruction that should be

followed to avoid any potential damage to hardware or property, loss of

data, or personal injury.

This symbol indicates important information to help you make the best use

of this product.

Pos: 2 /806-IHSE/ Sicherheitshinweis e/ATB_Sicherheits hinweise @ 5\mod_12785 73321245_6.doc @ 41528 @ 1

Safety Instructions

2011-02-23 7

2 Safety Instructions

To ensure reliable and safe long-term operation of your Media- / DVI-

Converter please note the following guidelines:

Installation

Only use in dry, indoor environments.

The Media- / DVI-Converter and the power supply units can get

warm. Do not situate them in an enclosed space without any airflow.

Do not place the power supply directly on top of the device.

Do not obscure ventilation holes.

Only use power supplies originally supplied with the product or

manufacturer-approved replacements. Do not use a power supply if it

appears to be defective or has a damaged case.

Connect all power supplies to grounded outlets. In each case, ensure

that the ground connection is maintained from the outlet socket

through to the power supply's AC power input.

Do not connect the link interface to any other equipment, particularly

network or telecommunications equipment.

Take any required ESD precautions.

Repair

Do not attempt to open or repair a power supply unit.

Do not attempt to open or repair the Media- / DVI-Converter. There

are no user serviceable parts inside.

Please contact your dealer or manufacturer if there is a fault.

Pos: 3 /806-IHSE/ Beschreibung/UEB_Besc hreibung @ 5\mod_1278 573379151_6.doc @ 41546 @ 1

K238 Media- / DVI-Converter

8 2011-02-23

3 Description

Pos: 4 /806-IHSE/ Beschreibung/Ver wendungszweck/238- 5v-xx @ 5\mod_1291132998828_ 6.doc @ 45123 @ 2

3.1 Application

The Media- / DVI-Converter is used to convert and output video signals of

one or more video sources (computer, CPU, camera, DVD player) in the

DVI-D format.

The Media- / DVI-Converter can be used as a switch between

concurrently available input signals.

The Media- / DVI-Converter can further be used as a scaler, scaling video

signals to a specific output format.

Pos: 5 /806-IHSE/ Beschreibung/Syst em-Übersicht /238- 5v-xx @ 5\mod_1291133036 937_6.doc @ 45141 @ 2

Description

2011-02-23 9

3.2 System Overview

The input ports of the Media- / DVI-Converter are connected to the video

source(s) (e.g. computer, CPU, camera, DVD player, SPS control), using

the provided cables or other suitable video cables.

The DVI-D monitor is connected to the output.

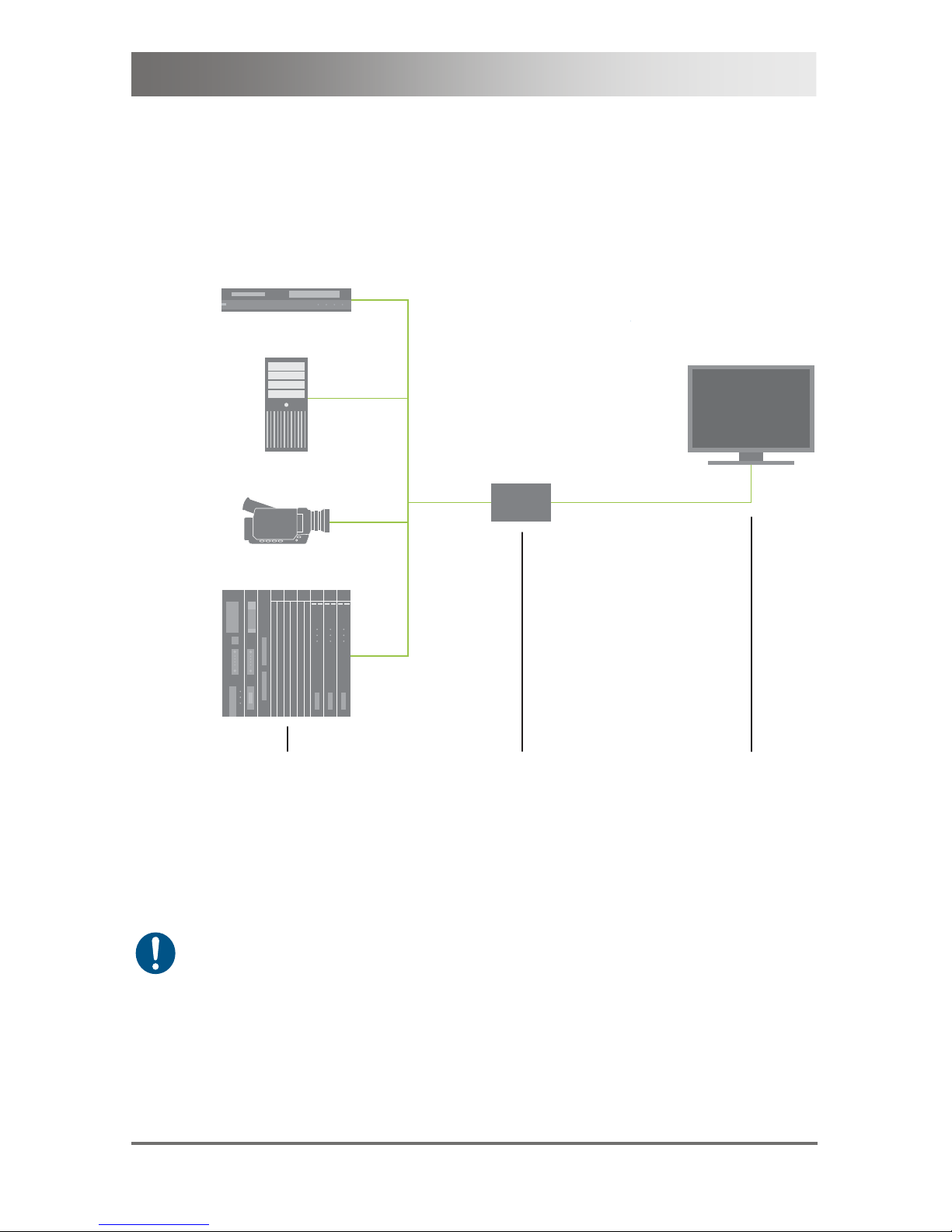

123

System Overview

1 Sources (DVD player, computer, camera, SPS control)

2 Media- / DVI-Converter

3 Monitor

See Chapter 4.3, Page 19 for installation examples.

Pos: 6 /806-IHSE/ Beschreibung/Gerä tetypen/238-5v- xx@ 5\m od_1291133064500_6.doc @ 45159 @ 2

K238 Media- / DVI-Converter

10 2011-02-23

3.3 Product Range

Model Description

K238-5V Media- / DVI-Converter for VGA- / DVI-Input (up

to 1920x1200)

K238-5VE Media- / DVI-Converter for VGA- / DVI-Input (up

to 1920x1200) and Video (Y/C) / Component (YPbPr) /

FBAS and CGA / EGA / MDA

K238-5VS Media- / DVI-Converter for VGA- / DVI-Input (up

to 1920x1200) and Video (Y/C) / Component (YPbPr) /

FBAS and (HD-)SDI

K238-5FBNC Media- / DVI-Converter for RGB- / VGA- / DVI-Input (up

to 1920x1200) with a separate 5x BNC RGB-Input

The input side of the following KVM extenders correspond to the Media- /

DVI-Converter K238-5V: K477-xxxxV, L474-xxxxV.

Pos: 7 /806-IHSE/ Beschreibung/Einb auoptionen/238-5 v-xx@ 5\ mod_1291133125140_6. doc @ 45177 @ 2

3.4 Upgrade Kits

Model Description

455-4G 19"/1U rack mount kit to mount up to 4 devices of type

K238-5V

455-8G 19"/1U rack mount kit to mount up to 4 devices of type

K238-5VE, -5VS or -5FBNC

455-1K Mounting plate to mount by screws

(Typ K238-5V)

455-2K Mounting plate to mount by snap on

(Typ K238-5V)

455-1G Mounting plate to mount by screws

(Typ K238-5VE, -5VS or -5FBNC)

455-2G Mounting plate to mount by snap on

(Typ K238-5VE, -5VS or -5FBNC)

Pos: 8 /806-IHSE/ Beschreibung/Zubehör /238-5v-xx @ 5\mod_129 1133182906_6.doc @ 45196 @ 2

This manual suits for next models

Table of contents

Other Ihse Media Converter manuals

Ihse

Ihse Draco MultiView 4K60 MV42 Series User manual

Ihse

Ihse Draco 238 Series User manual

Ihse

Ihse Draco 238 Series Specification sheet

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
