IEI Technology POC-W22A-H81 User manual

21.5” Medical Panel PC with 4th Generation Intel®Dual-Core CPU,

Touchscreen, Anti-bacteria Cover, Dual USB 3.0, Dual GbE LAN,

RS-232/422/485, HDMI, VGA, Front IP 65 Rating and RoHS

POC-W22A-H81

Quick Installation Guide

Version 1.01

Revision

Date Version Changes

January 24, 2017 1.01 Minor update

October 17, 2016 1.00 Initial release

Intended Use

The POC-W22A-H81 medical panel PC is intended to be used to review and update

electronic medical records (EMR) in hospital information system (HIS). The device

is not suitable for diagnosis display.

Equipment connected to analog or digital interfaces must comply with the respective

IEC Standards (e.g. IEC 60950 for data processing equipment and IEC 60601-1 for

medical equipment). Furthermore all configurations shall comply with the current

version of the standard for SYSTEMS IEC 60601-1-1. Everybody who connects

additional equipment to the signal input part or signal output part configure a

medical system, and is therefore responsible that the system complies with current

version of the requirements of the system standard IEC 60601-1-1. If in doubt,

consult the technical service department or your local representative.

Manual Conventions

WARNING

Warnings appear where overlooked details may cause damage to the

equipment or result in personal injury. Warnings should be taken

seriously.

CAUTION

Cautionary messages should be heeded to help reduce the chance of

losing data or damaging the product.

NOTE

These messages inform the reader of essential but non-critical

information. These messages should be read carefully as any

directions or instructions contained therein can help avoid making

mistakes.

Hot surface

This symbol indicates a hot surface that should not be touched without

taking care.

OPERATING INSTRUCTION

Follow operating instructions or consult instructions for use.

IEC 60417-5009: Stand-by

Overview

The POC-W22A-H81 is a 4th generation Intel®Core™/Pentium®CPU

powered medical-grade panel PC with a rich variety of functions and

peripherals. All POC-W22A-H81 models are designed for easy and

simplified integration into point-of-care (POC) applications.

An Intel®Core™ i5/Core™ i3/Pentium®processor coupled with the Intel®

H81 chipset delivers optimal memory, graphics, and peripheral I/O support.

The system comes with 4.0 GB of pre-installed DDR3 SO-DIMMs and

supports a maximum of 16.0 GB ensuring smooth data throughputs with

reduced bottlenecks and fast system access. Dual display support is

provided via the HDMI port or the VGA port.

One RS-232/422/485 serial port, two USB 3.0 ports and four USB 2.0 ports

provide simplified connectivity to a variety of external peripheral devices.

Wi-Fi 802.11a/b/g/n/ac high speed wireless and two RJ-45 GbE connectors

allow for smooth connection of the system to an external LAN. The system

also equips with a SATA interface, supporting both SATA HDD and SSD.

In addition, the POC-W22A-H81 features Intelligent Platform Management

Interface 2.0 (IPMI 2.0) that helps lower the overall costs of server

management by enabling users to maximize IT resource, save time and

manage multiple systems. The POC-W22A-H81 supports IPMI 2.0 through

the optional iRIS-2400 module.

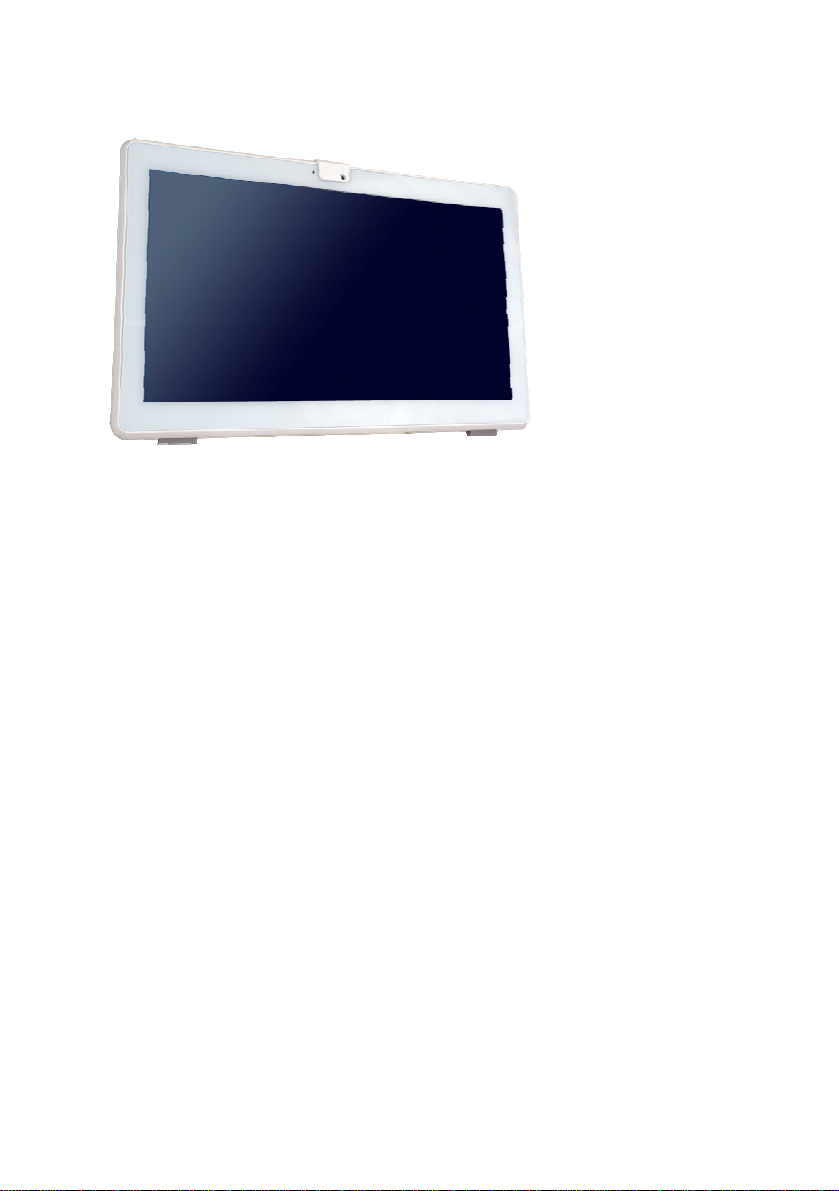

Front Panel

Side Panel

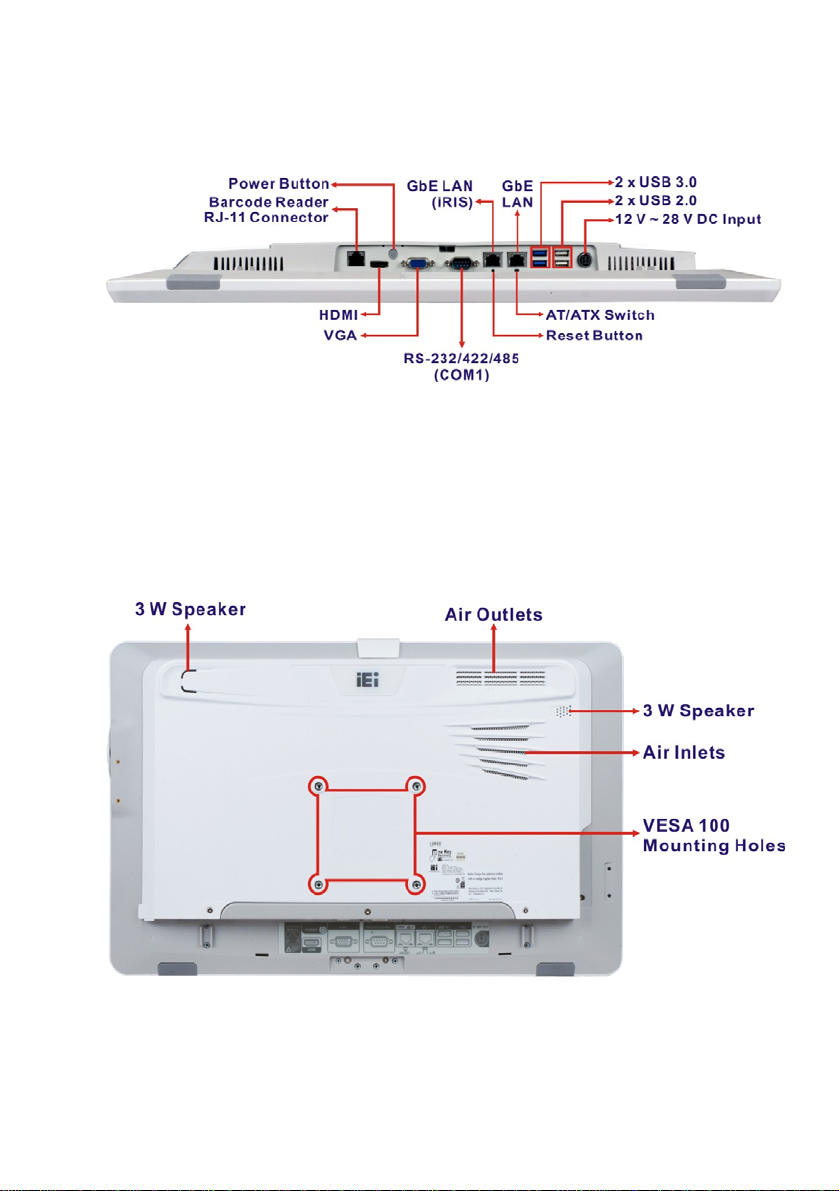

Bottom Panel

Rear Panel

System Specifications

Specification POC-W22A-H81

CPU Intel®Pentium®G3320TE (dual-core, 2.3 GHz, TDP 35 W)

Intel®Core™ i3-4330TE (dual-core, 2.4 GHz, TDP 35 W)

Intel®Core™ i5-4570TE (dual-core, 2.7 GHz, TDP 35 W)

Chipset Intel®H81

Memory Two 204-pin 1600/1333 MHz dual-channel DDR3 SO-DIMM

slots preinstalled with two 2 GB SDRAM (system max. 16

GB)

Storage One PCIe Mini card slot for mSATA module installation (ATO)

One 2.5” SATA HDD bay

Auto-dimming Built-in ambient light sensor for panel brightness

adjustment

LCD and Touchscreen

LCD Size 21.5" (16:9)

Max. Resolution 1920 (W) x 1080 (H)

Brightness (cd/m2) 250

Contrast Ratio 1000:1

LCD Color 16.7M

Pixel Pitch (mm) 0.24825 (H) x 0.24825 (V)

Viewing Angle (H-V) 170° / 160°

Backlight MTBF 30,000 hrs

Backlight LED

Touchscreen Projected capacitive type with USB interface

Surface Hardness 6H

Network Connection

Wireless One pre-installed wireless LAN module (half-size PCIe Mini

card) supports 802.11a/b/g/n/ac

LAN Dual GbE connector

Audio

Audio Realtek ALC892 HD Audio codec

Internal Speaker Two 3 W speakers

Camera 2-megapixel with auto focus and digital microphone

Optional Features

Battery Optional 3550 mAH, 54 W internal Li-Ion battery with LED

indicator

RFID Reader Optional Mifare 13.56 MHz card reader (with LED indicator)

Connectors

I/O Ports 1 x 12 V ~ 28 V DC input jack

1 x Barcode reader connector (RJ-11)

1 x HDMI connector

1 x RS-232/422/485 serial port (DB-9 connector)

2 x GbE LAN (RJ-45 connector)

2 x USB 3.0 connectors

4 x USB 2.0 connectors

1 x VGA connector

Buttons, Switches and Indicators

Backlit Touch Buttons Six touch buttons (LCD on/off, brightness up, brightness

down, volume up, volume down, lock/unlock touch function)

Buttons & Switches 1 x Power button

1 x AT/ATX switch

1 x Reset button

LED Indicators 2-light battery status LED indicator (optional)

RFID LED indicator (optional)

Physical

Construction Material PC+ABS plastic with anti-bacterial material

VESA Mount 100 mm x 100 mm

Dimensions (W x H x D)

542.5 mm x 349.5 mm x 52 mm

Net Weight 7.3 kg

Environment Temperature

-20ºC ~ 60ºC

Humidity 10% ~ 95% (non-condensing)

Transportation/Storage

Pressure 700 hPa ~ 1060 hPa

Temperature

0ºC ~ 40ºC

Humidity 10% ~ 95% (non-condensing)

Operating

Pressure 700 hPa ~ 1060 hPa

System MTBF 12,503 hrs

Vibration 1G

Shock Operating Shock: 5G peak acceleration (11ms duration)

Non-Operating Shock: 15G peak acceleration (11ms

duration)

IP Level IP 65 compliant front panel

Safety/EMC CE, FCC class B part 18, UL 60601-1, EN 60601-1

Power

Power Supply 120 W medical-grade power adapter (FSP PMP120-13-2)

Input: 100 V AC ~ 240 V AC, 47 Hz ~ 63 Hz, 1.4 A ~ 0.6 A

Output: 120 W Max., 19 V 6.32 A

Power Requirement 19 V DC (bundled with the FSP PMP120-13-20 medical

grade adapter)

UPS Battery

An optional UPS battery can be assembled to order to provide backup

power for up to 30 minutes in case of a power interruption. The battery LED

indicator is located on the front panel.

CAUTION:

The following precautions should be followed when using the battery:

Do not use battery power to boot up the POC-W22A-H81.

Charge the battery with a voltage higher than 16.8 V.

Charging time (from 30% to 100%):

oSystem off: 3 hours

oSystem on: 2 hours

Risk of explosion if battery is replaced by an incorrect type. Only

certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local

regulations.

Installation Precautions

When installing the medical panel PC, please follow the precautions listed

below:

Manufacturer authorization: Do not modify this equipment

without authorization of manufacturer.

Certified Engineers: Only certified engineers should install and

modify the hardware settings.

Power turned off: When installing the medical panel PC, make

sure the power is off. Failing to turn off the power may cause

severe injury to the body and/or damage to the system.

Anti-static Discharge: If a user open the rear panel of the medical

panel PC, to configure the jumpers or plug in added peripheral

devices, ground themselves first and wear an anti-static wristband.

Mounting the System – Wall Mount

WARNING:

Use suitable mounting apparatus and be sure to secure the screws of

the mounting apparatus tightly to avoid risk of injury.

To mount the medical panel PC onto the wall, please follow the steps

below.

Step 1: Select the location on the wall for the wall-mounting bracket.

Step 2: Carefully mark the locations of the four screw holes in the bracket

on the wall.

Step 3: Drill four pilot holes at the marked locations on the wall for the

bracket retention screws.

Step 4: Align the wall-mounting bracket screw holes with the pilot holes.

Step 5: Secure the mounting-bracket to the wall by inserting the retention

screws into the four pilot holes and tightening them.

Step 6: Insert the four monitor mounting screws provided in the wall mount

kit into the four screw holes on the real panel of the medical panel

PC and tighten until the screw shank is secured against the rear

panel.

WARNING:

Please use the M4 screws provided in the wall mount kit for the rear

panel. If the screw is missing, the thread depth of the replacement screw

should be not more than 4 mm.

Step 7: Align the mounting screws on the monitor rear panel with the

mounting holes on the bracket.

Step 8: Carefully insert the screws through the holes and gently pull the

monitor downwards until the monitor rests securely in the slotted

holes. Ensure that all four of the mounting screws fit snugly into

their respective slotted holes.

NOTE:

In the diagram below the bracket is already installed on the wall.
