IEI Technology PCISA-9652 User manual



 !""#$$%&'()#*!'%

+&'%$,%-./%0"



PCISA-9652

Quick Installation Guide

Version 1.0

Jul. 31, 2008

Package Contents:

PCISA-9652 package includes the following items:

1 x PCISA-9652 single board computer

1 x mini jumper pack

1 x ATA 66/100 flat cable

1 x LPT/RS-232 cable

2 x SATA cable

1 x SATA power cable

1 x USB cable

1 x Utility CD

1 x QIG (Quick Installation Guide)

Specifications:

CPU: Socket P Intel® Core™2 Duo, Core™ Duo, Core™ Solo,

Celeron® M Mobile processor with a 533MHz or 800MHz

System Chipset: Intel® GME965+ ICH8M-E

BIOS: AMI Flash BIOS

System memory: One 240-pin 2GB(max.) 533/667 MHz DDR2

SDRAM DIMM supported

Ethernet: Dual Intel® 82573L PCIe GbE

I/O Interface:

1 x RS-232

1 x RS-232/422/485

1 x LPT

1 x FDD

1 x 6-pin header for KB/MS

3 x SATA II with RAID 0/1 function

1 x IDE

6 x USB 2.0 (2 on bracket, 4 on board by header)

1 x Infrared

Super I/O: ITE IT8712F

Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output

SSD: CF Type II

Display interface:

Integrated in GME965 (Mobile Intel® GMA X3100) support

Intel® Clear Video Technology

Display Output:

HDTV-out support 1080i (max.) Resolution

24-bit Dual channel LVDS

Analog CRT

Audio: Supports 7.1 channel HD Audio via AC-KIT883HD

Watchdog Timer: Software programmable supports 1~255 sec.

system reset

Power Supply: AT/ATX Power

Power Consumption:

5V@ 7.72 A , 12V@ 0.139A (2.0GHz Intel® Core™2 Duo T7300

processor with 667MHZ 1GB DDR2 DIMM) 3D Mark 2001SE

Temperature: 0 ~ 60°C (32 ~ 140°F)

Ordering Information:

PCISA-9652-R10:

Half-size PCI and ISA SBC with Intel® Mobile Core™2 Duo/Celeron ® M

CPU at FSB 800/533MHz,GME965 and ICH8M-E,dual PCIe GbE,3

SATAII,24-bit Dual Channel LVDS output,USB2.0

AC-KIT883HD-R10:

7.1 Channel HD Audio kit with Realtek ALC883 support dual audio

streams

HDTVCABLESET-01:

HDTV Cable set with S-Video/ Composite/ Component interface

32200-000058-RS: 2.0mm to 2.54mm 34-pin FDD Cable w/o Bracket

19800-000075-RS: KB/MS cable with bracket

CF-479B-RS: CPU Cooler

Jumpers setting and Connectors:

Table of Jumpers and Connectors

LABEL FUNCTION

J_CMOS1 CMOS state setting

J_VLVDS1 LCD Voltage Selector

JCF1 CF Card master (slave) Setup

J_LCD_TYPE1 LVDS Panel Resolution Selection

JP2 COM2 RS232



RS422/485 Selection

LAN1

LAN2 RJ45 LAN Connector

USB_C4,USB_C5 USB Port Connectors

USB01,USB23 Internal USB Connectors

KB_MS1 PS/2 MOUSE & KEYBOARD Connector

VGA1 VGA 15-pin Female Connector

COM1 RS-232 Connectors

COM2 RS-232/422/485 Connectors

J_AUDIO1 Audio HDA Connector

S_ATA1

S_ATA2

S_ATA3

Serial ATA Connectors

PIDE1 IDE Connectors

IR1 IrDA Infrared Interface Connector

JSPI1 Flash SPI ROM

TV1 TV Out Connector

INVERTER1 LVDS Panel Voltage Supply

LVDS1 LVDS Panel Connector

CPU_FAN1 CPU Fan Connector

DIO1 Digital I/O Connector

F_PANEL1 PWR & RST Buttons and Indicators

CF1 CF Card Connector

LPT1 Parallel Port Connector

FDD1 FDC Connector

CN1 SDVO Connector

PWR1 ATX Power In

BAT1 Battery connector

ATXCTL1 Backplane Power Connector

J_CMOS1 : Clear CMOS Setup

J_CMOS1

DESCRIPTION

1-2

(default)*

Keep CMOS Setup

(Normal Operation)

Short 2-3

Clear CMOS Setup

J_VLVDS1

: Set The Panel Voltage

J_LVDS1

DESCRIPTION

1-2

(default)*

Set The Voltage Level Of

Panel To VCC3(+3.3V)

Short 2-3

Set The Voltage Level Of

Panel To VCC(+5V)

JP2: Set The COM2

Port

Mode

JP2 DESCRIPTION

1-2

(default)

RS-232

3-4 RS-422

5-6 RS-485

JCF1

onfigure CF Card type

JCF1 DESCRIPTION

Open

(default) Slave

Short 1-2 Master

J_LCD_TYPE1

LVDS Panel Resolution

Selection

JP3 DISCRIPTION

Off 640 X 480 (18bit)

1-2 800 X 600 (18bit)

3-4 1024 X 768 (18bit)

1-2 & 3-4 1024 X 768 (24bit)

5-6 1024 X 768 (48bit)

1-2 & 5-6 1280 X 1024 (48bit)

3-4 & 5-6 1600 X 1200 (48bit)

1-2 & 3-4 &5-6

1280 X 768 (18bit)

7-8 1280 X 800 (18bit)

1-2 & 7-8 1366 X 768 (24bit)

3-4 & 7-8 1440 X 900 (36bit)

1-2 & 3-4 & 7-8

1440 X 900 (48bit)

5-6 & 7-8 1680 X 1050 (48bit)

1-2 & 5-6 & 7-8

1920 X 1080 (48bit)

3-4 & 5-6 & 7-8

1920 X 1200 (48bit)

USB01







USB23: Internal USB Connectors

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 VCC 2 GND

3 DATA- 4 DATA+

5 DATA+ 6 DATA-

7 GND 8 VCC

COM1: External Serial Port Connector

DESCRIPTION

1 DCD# 2 DSR#

3 RXD 4 RTS#

5 TXD 6 CTS#

7 DTR# 8 RI#

9 GND 10 GND

LVDS1: LVDS Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 GND 2 GND

3 A_Y0 4 A_Y0#

5 A_Y1 6 A_Y1#

7 A_Y2 8 A_Y2#

9 A_CK 10 A_CK#

11 A_Y3 12 A_Y3#

13 GND 14 GND

15 B_Y0 16 B_Y0#

17 B_Y1 18 B_Y1#

19 B_Y2 20 B_Y2#

21 B_CK 22 B_CK#

23 B_Y3 24 B_Y3#

25 GND 26 GND

27 VCC/VCC3 28 VCC/VCC3

29 VCC/VCC3 30 VCC/VCC3

COM2 : 14-Pin Serial Port Connector

DESCRIPTION

1 DCD# 2 DSR#

3 RXD 4 RTS#

5 TXD 6 CTS#

7 DTR# 8 RI#

9 GND 10

TX+ 12

TX-

RX+ 14

RX-

J_AUDIO1 : Audio Source Connector

PIN NO.

DESCRIPTION PIN NO.

DESCRIPTION

1 HDA_SYNC 2 HDA_BITCLK

3 HDA_SDOUT 4 SB_SPKR

5 HDA_SDIN0 6 HDA_RST#

7 VCC 8 GND

9 +12V 10 GND

IR1

: IrDA connector

DESCRIPTION

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

TV1: Video output for television

S-Video Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 GND 2 AGREEN_Y

3 GND 4 ARED_C

RCA Connector (only video signal)

5 GND 6 ABLUE_CVBS

KB_MS1

pin Keyboard

Connector

DESCRIPTION

1 VCC5_KBMS

2 Mouse DATA

3 Mouse CLK

4 Keyboard DATA

5 Keyboard CLK

6 GND

F_PANEL1 : External Switches and Indicators panel

DESCRIPTION

1 PWR_BTN+ 2

PWR_LED+

PWRBTN

3 PWR_BTN- 4

PWR_LED- Power LED

5 HDD_LED+ 6

RESET+

HDDLED

7 HDD_LED- 8

RESET- RESET

DIO1 : Digital Input / Output Connector

PIN NO.

DESCRIPTION PIN NO.

DESCRIPTION

1 GND 2 VCC

3 Output 3 4 Output 2

5 Output 1 6 Output 0

7 Input 3 8 Input 2

9 Input 1 10 Input 0

ATXCTL1

ATX Connector

PIN NO. DESCRIPTION

1 GND

2 PS_ON#

3 5VSB

JSPI1:FlashSPI ROM

PIN NO. DESCRIPTION

1 3.3V 2 GND

3 CS0# 4 CLK

5 SO0 6 SI

7 N/C 8 N/C

PWR1 : ATX POWER IN

PIN NO. DESCRIPTION

1 +12V

2 GND

3 GND

4 +5VS

CN1:SDVO CONNECTOR (optional)

PIN NO.

DESCRIPTION PIN NO.

DESCRIPTION

1 GND 2 SDVOC_CLK-

3 SDVOC_CLK+ 4 GND

5 SDVOC_GREEN-

6 SDVOC_GREEN+

7 GND 8 SDVOB_CLK-

9 SDVOB_CLK+ 10 GND

11 SDVOB_GREEN- 12 SDVOB_GREEN+

13 GND 14 SDVOC_INT+

15 SDVOC_INT+ 16 GND

17 SDVOB_INT+ 18 SDVOB_INT+

19 GND 20 SDVOC_BLUE-

21 SDVOC_BLUE+ 22 GND

23 SDVOC_RED- 24 SDVOC_RED+

25 GND 26 SDVOB_BLUE-

27 SDVOB_BLUE+ 28 GND

29 SDVOB_RED- 30 SDVOB_RED+

31 GND 32 SDVO1_STALL-

33 SDVO1_STALL+ 34 GND

35 SDVO_TVCLKIN- 36 SDVO_TVCLKIN+

37 GND 38 SDVO_CLK

39 SDVO_DATA 40 PCIRST

41 +5VS 42 +5VS

43 +5VS 44 N/C

45 N/C 46 GND

47 GND

CPU_FAN1 : CPU Fan

Connector

DESCRIPTION

1 Ground

2 +12V

3 Rotation Signal

4 Control

INVERTER1:

Panel Power Supply

DESCRIPTION

1 BRIGHTNESS

2 GND

3 +12V

4 GND

5 BL_EN

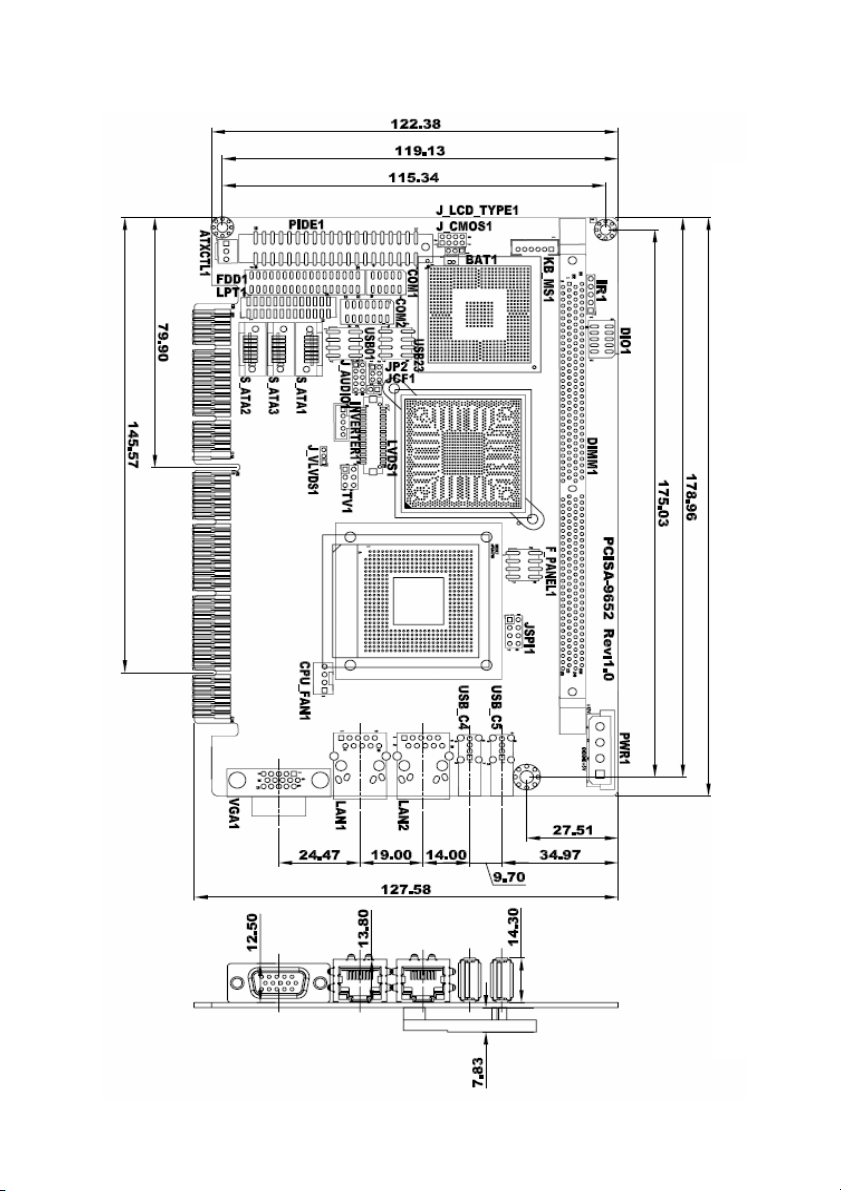

Board Layout: Jumper and Connector Locations
