IDTECH EconoScan II User manual

Ver. Oct 2011

Configuration Guide

Mar 2011

Mar 16, 2011

Add “Median Cut-off” function and default barcode ID table”

Mar 2011

Mar 29, 2011

Add “Continuous recognition/No Trigger” mode

Oct 2011

Oct 20, 2011

Add “Function key emulation barcode”

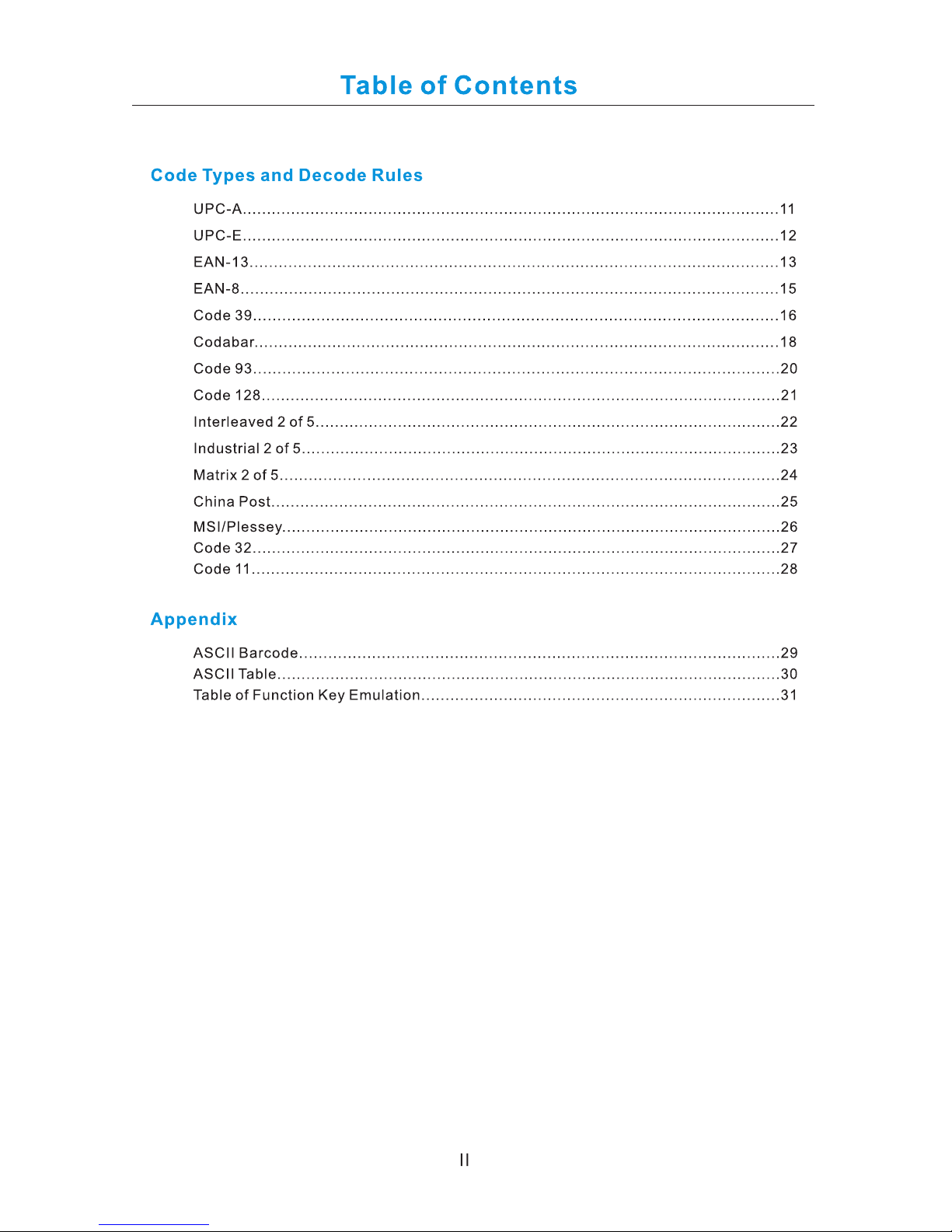

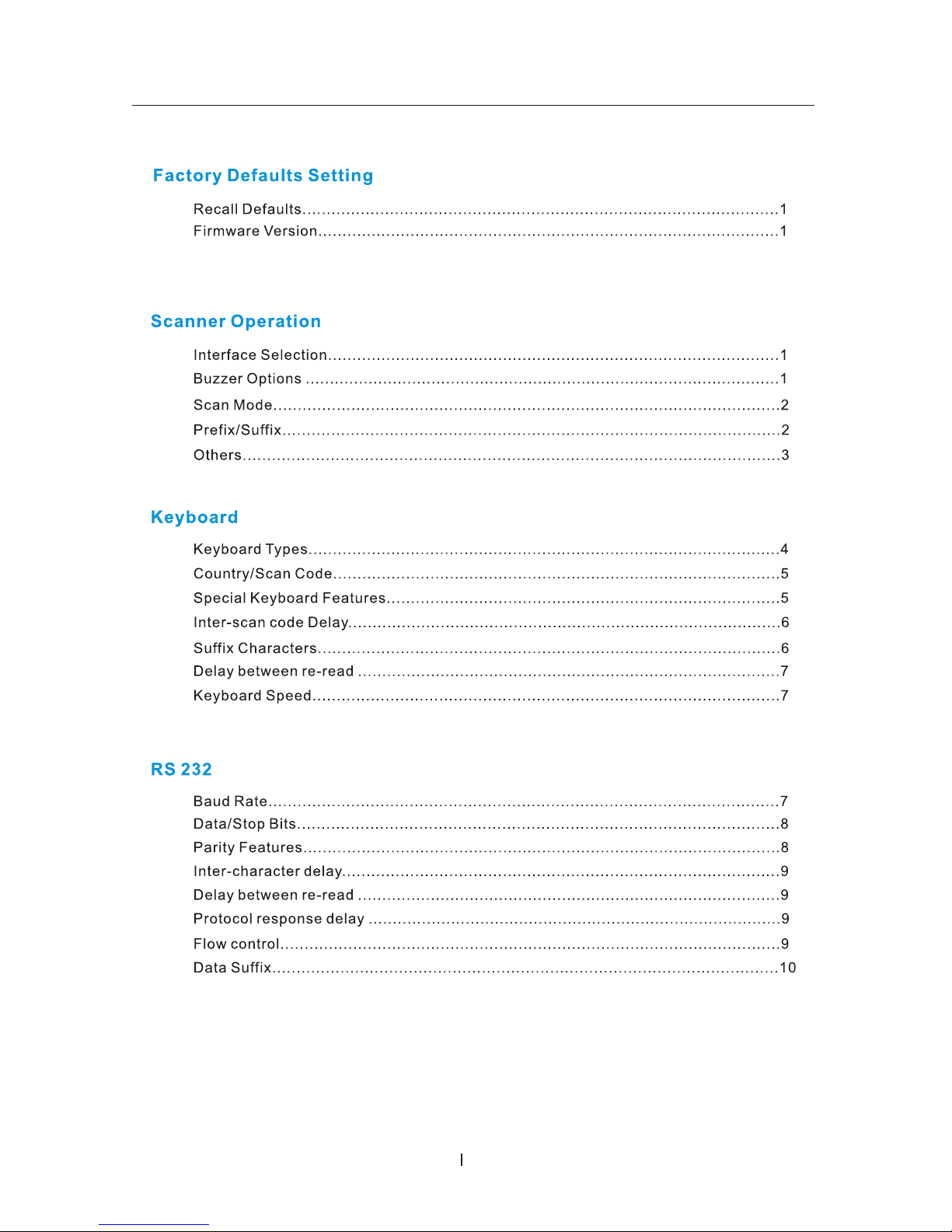

Table of Contents

Continuous recognition / Flash

Button switch mode

Turn OFF mode after identification (Default)

Continuous recognition

Test reading mode

Continuous recognition / LED on

Continuous recognition / Timeout off

Bar level setting

Bar = High <Default>

Bar = Low

Continuous recognition / No trigger

Set Prefix Characters

Set Suffix Characters

G1 Insert Character

G2 Insert Character

G1 Insert Character Location

G2 Insert Character Location

Prefix Barcode Data Suffix

Prefix / Suffix

Prefix /Suffix String

A max. of 10 ASCII characters could be added before or after the bar code data.

No action can be done if it is set to 0.

Format:

Instructions:

1.Read start of configuration

2.Read Set Prefix/Suffix label.

3.See table of ASCII code, find the desire characters by reading

Decimal Digits on Appendix (ASCII table).

4.Read the “Validate” label to complete this setting.

5.Read End of configuration code.

G1/G2 group of characters

Each group could add a max. of 10 ASCII characters. Characters can not be insert

when it is set to 0.

Instructions:

1.Read start of configuration

2.Read G1/G2 insert character

3.Find the desire characters by reading Appendix (ASCII table).

4.Read G1/G2 insert character location

5.Scan the desire location on Appendix (ASCII table).

6.Read the “Validate” label to complete this setting.

7.Repeat the same steps for G2.

8.Read End of configuration code.

Germany Keyboard
