ICP DAS USA M2M-711D Installation guide

TM

M2M-711D

FAQ

Version 1.00

Table of Contents

Q01: If I forget the M2M-711D’s Ethernet IP, how can I set and operate the

M2M-711D by web browser?..........................................................................................3

Q02: Client cannot connect to Server.......................................................................5

Q03: Server and Client can’t establish Com Port connection. .......................8

Q04: Can the M2M-711D operate in both Ad-Hoc and Infrastructure

modes simultaneously?..................................................................................................9

Q05: What to do if M2M-711D does not work in AP mode? .......................... 10

Q06: How to configure M2M-711D in Ad-Hoc mode and connect it by a PC?

................................................................................................................................................. 11

FAQ

Q01: If I forget the M2M-711D’s Ethernet IP, how can I

set and operate the M2M-711D by web browser?

A01：

(1) ：Please reset system.

(2) : In Ethernet mode, the Ethernet IP address will show again.

Display Ethernet IP address in Ethernet mode

(3) : In Wi-Fi/Ad Hoc mode, the Ethernet IP address will show again.

(4)：Init M2M-711D reference 2.3. Default value of Ethernet IP address

is 192.168.1.217

Q02: Client cannot connect to Server.

A02: Please follow the following steps to check that the network

configuration is correct.

Step 1: Check IP of Server and Client is the only. The IP is not the same

with the other network device.

Step 2: Please confirm the network configurations are correct. The

configurations include IP Address, Net Mask, Gateway and

DNS Server. If the configurations are all correct, it should

respond to the ping command from PC.

Check IP Config in Ethernet mode

Check IP Config in Wi-Fi mode

Step 3: Please confirm that the following settings are correct.

“Server IP” of Client is the same with “IP Address” of Server.

“Listen Port” of Server and “Communication Port” Client are

the same.

“Client Name” of Server and “Host Name” Client are the

same.

Client’s “Standard Config” page

Server’s “Standard Config” page

Q03: Server and Client can’t establish Com Port

connection.

A3: Please follow the steps to check below.

Step 1: Confirm client’s name is the same as server permission name

list.

Step 2: Confirm comport setting of server and client. Server comport

setting must the same setting as client.

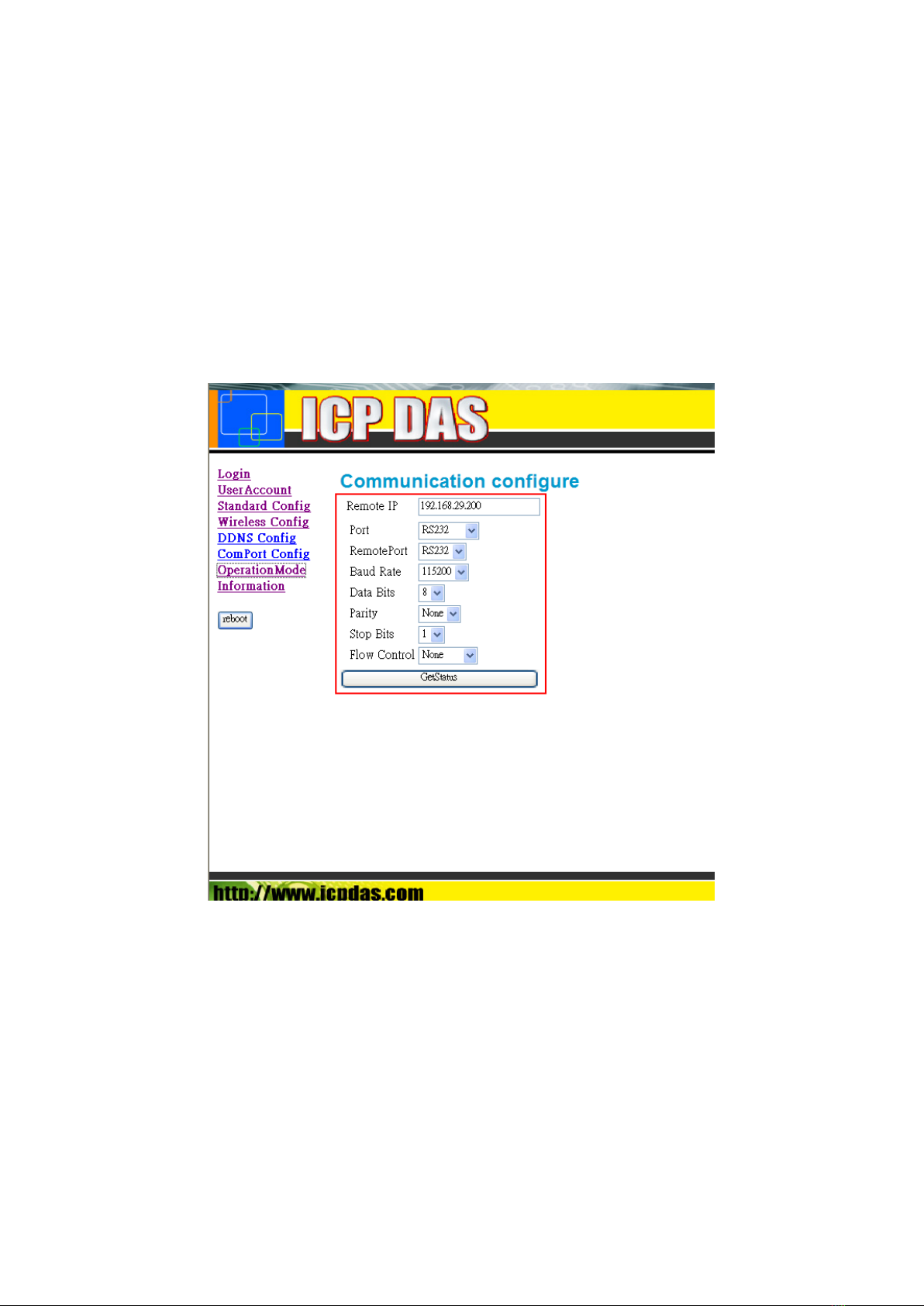

Comport setting of server

Comport setting of client

Step 3: Does the inspection wiring have the question?

Q04: Can the M2M-711D operate in both Ad-Hoc and

Infrastructure modes simultaneously?

A04:

M2M-711D can't operate in both AP and Ad-Hoc modes simultaneously.

Q05: What to do if M2M-711D does not work in AP

mode?

A05:

Follow these steps to check.

We suppose the VxServer IP= 192.168.100.100, M2M-711D Wi-Fi IP=

192.168.200.200, and Wi-Fi Mask=255.255.0.0.

Step1: Let other PC(via the company wireless network) does ping

"192.168.100.100"( VxServer IP).

And let VxServer in PC(via the company wireless network) does ping

"192.168.200.200"( IP of other PC).

The transmission structure as show.

Other PC(IP=192.168.200.200) <==> Wi-Fi AP(company wireless net) <==>

VxServer in PC (IP=192.168.100.100)

Step 2: M2M-711D replaces other PC. The network setting of M2M-711D must

be same the network setting of other PC.

( Note: Server IP must be "192.168.100.100" in “standard config” page of

M2M-711D.)

Step 3: Open VxServer and modify local IP="192.168.100.100". If it does

without any M2M-711D on line, please close the firewall of windows.

If these step does not fix the problem, please contact us.
