Icom IC-746PRO User manual
IC-746PRO
• Thank you for checking the interactive view of the
IC-746PRO.
– Use your mouse to navigate through the presentation by
clicking the desired control or function.

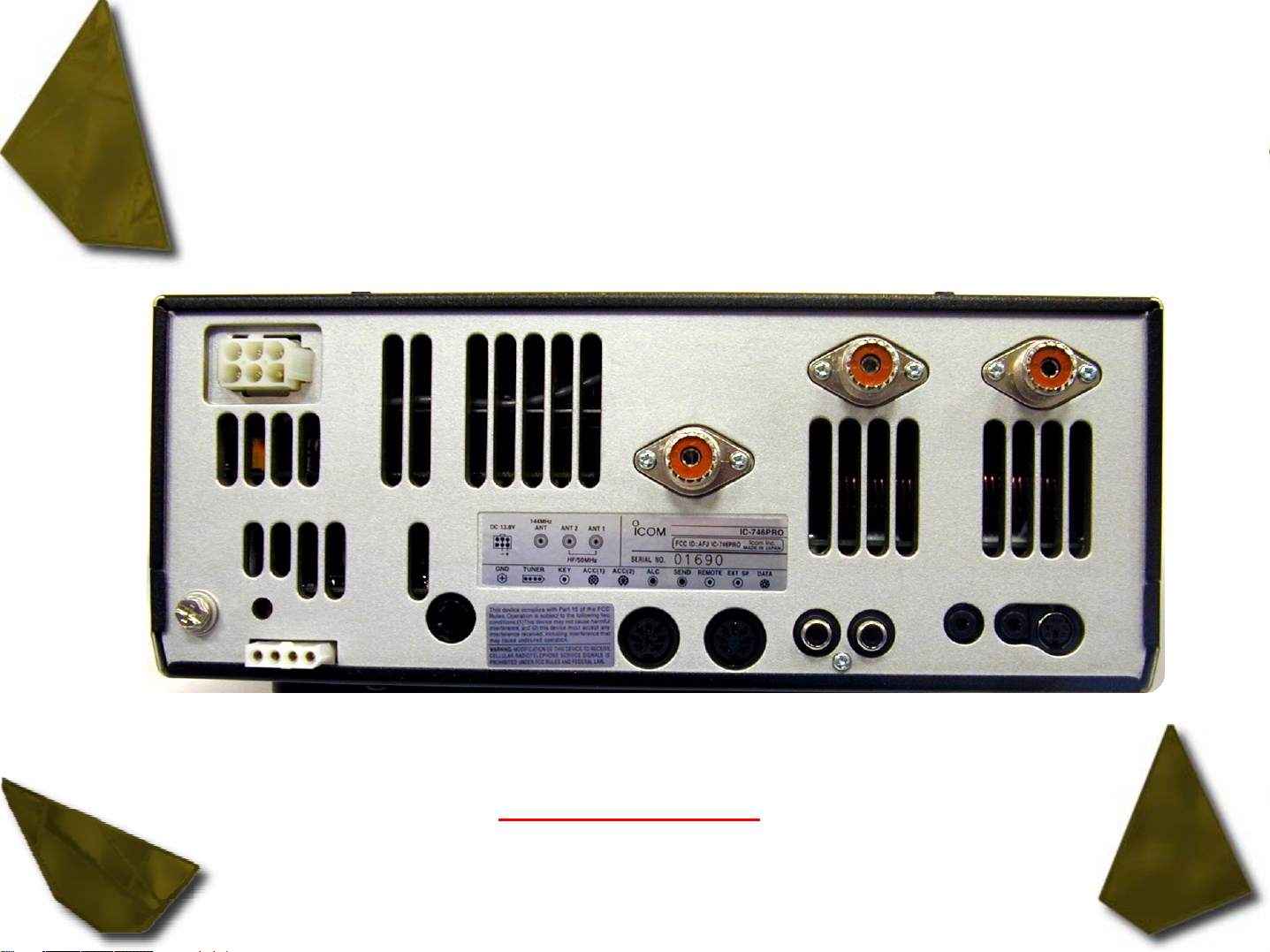

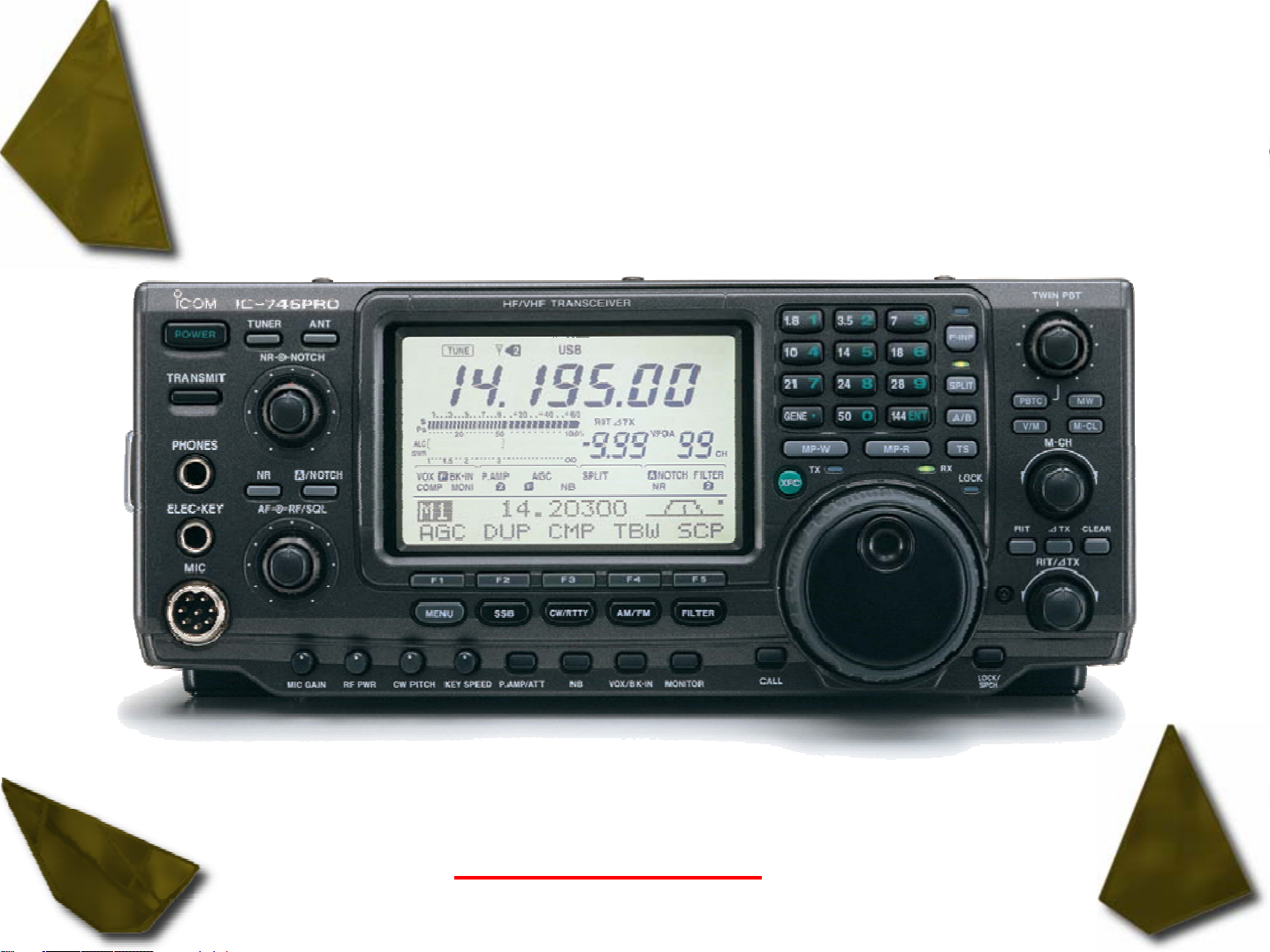

– To start this tour click either the Front Panel or Rear Panel
view.
– Use the arrow button at the bottom of each page to return
to the previous slide.

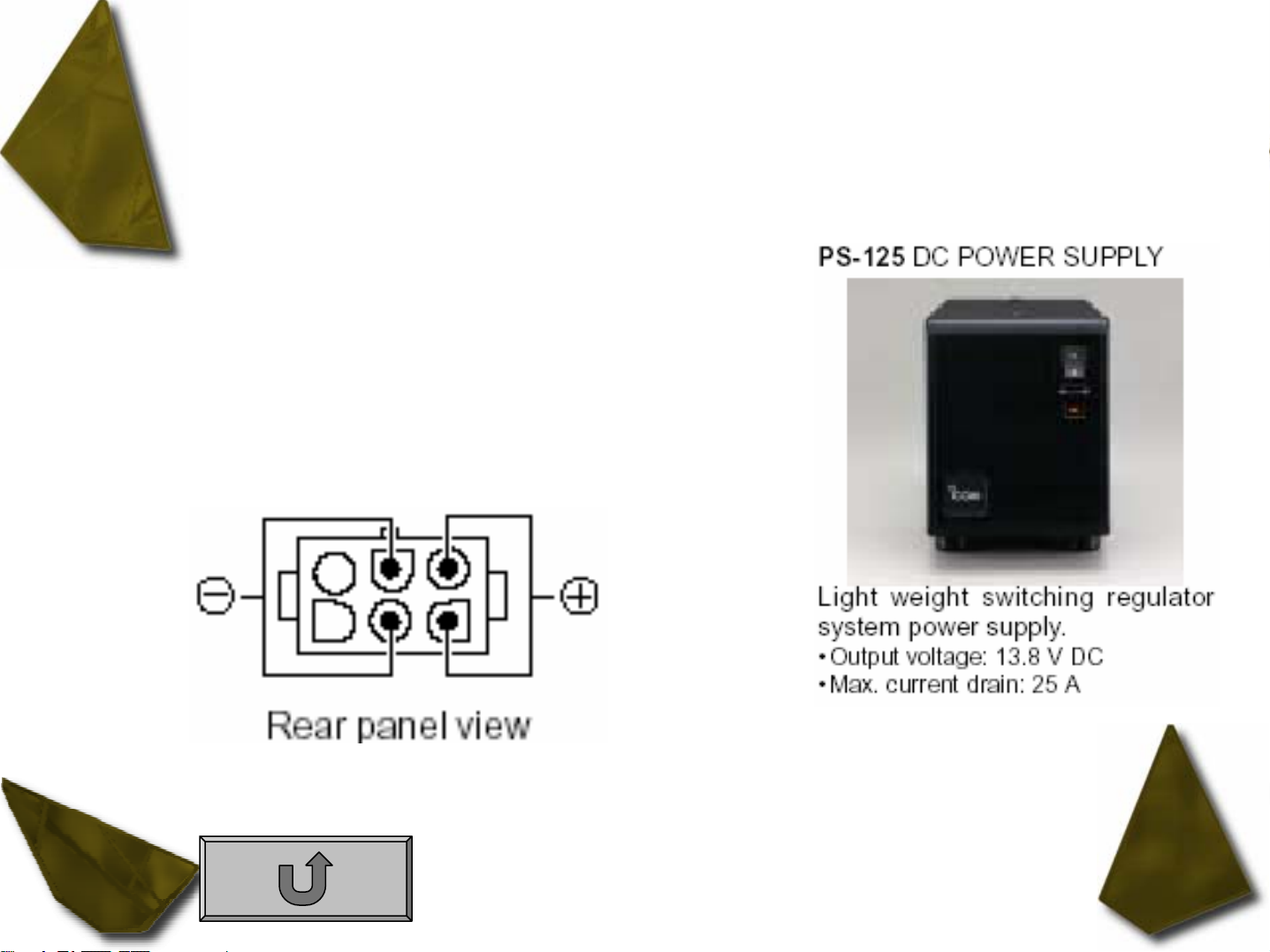

POWER Connector
• Accepts 13.8 V DC through the supplied DC
power cable (OPC-025D).
TX Indicator
• Lights red while transmitting.
RX Indicator
• Lights green while receiving a signal and
when the squelch is open.
Lock Indicator
• Lights when the dial lock function is activated.
• The dial lock function prevents accidental changes caused by
the tuning dial.
– Push [LOCK/SPCH] to turn the dial lock function ON and OFF.
– “LOCK” indicator lights while the dial lock function is activated.
– Lights while the dial lock function is activated.
Split Indicator
• Lights during split operation.
• Split frequency operation allows you to transmit and receive in the
same mode on two different frequencies.
• The split frequency operation is basically performed using 2
frequencies in VFO A and VFO B.
• [SPLIT] Lights during split operation
Frequency Input Indicator
• Lights during frequency input from the keypad is enable.
• The transceiver has a keypad for direct frequency.
– Push [F-INP].
• F-INP indicator lights
– Input the desired frequency.
– Input “•” (decimal point) between the MHz units and kHz units.
– Push [144 ENT] to enter the input frequency.
• To cancel the input, push [A/B] instead of [144 ENT].
– Lights when keypad input is activated.
POWER Switch
• Push momentarily to turn power ON.
– Turn the optional DC power supply ON in advance.
• Push for 1 sec. to turn power OFF.
