Ice-O-Matic ICE1606 Series Guide
ICE R SERIES CUBERS
SERVICE PARTS MANUAL
MODEL-ICE1606
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081296-01 Date 1/09
ICE1606 Service Parts
This parts list contains the service parts available for the ICE1606 icemakers.
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Exterior Page 2
Cabinet Interior Page 3
Refrigeration Page 4
Evaporator and Components Page 5
Control Box and Bin Switch Assembly Page 6
Water Pump/Float Assembly Page 7
Harvest Probe Assembly Page 8
Remote Condenser Page 9
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
ICE1606 Series Service Parts Exterior Panels
Item Part Item Part
No. Number Description No. Number Description
1NLA Front Panel S.S. 32101314-01 R.H Side Panel
1NLA Front Panel Plastic 42101314-02 L.H Side Panel
23021828-01 Top Cover 5NLA Back Panel
Page 2
ICE1606 Series Service Parts Cabinet Breakdown
Item Page
No. Number Description
4Page No. 4 Cabinet Base
5Page No. 5 Evaporator Assembly
6Page No. 6 Control Box and Bin Switch Assembly
7Page No. 7 Pump Assembly
8Page No. 8 Harvest Assist
Page 3

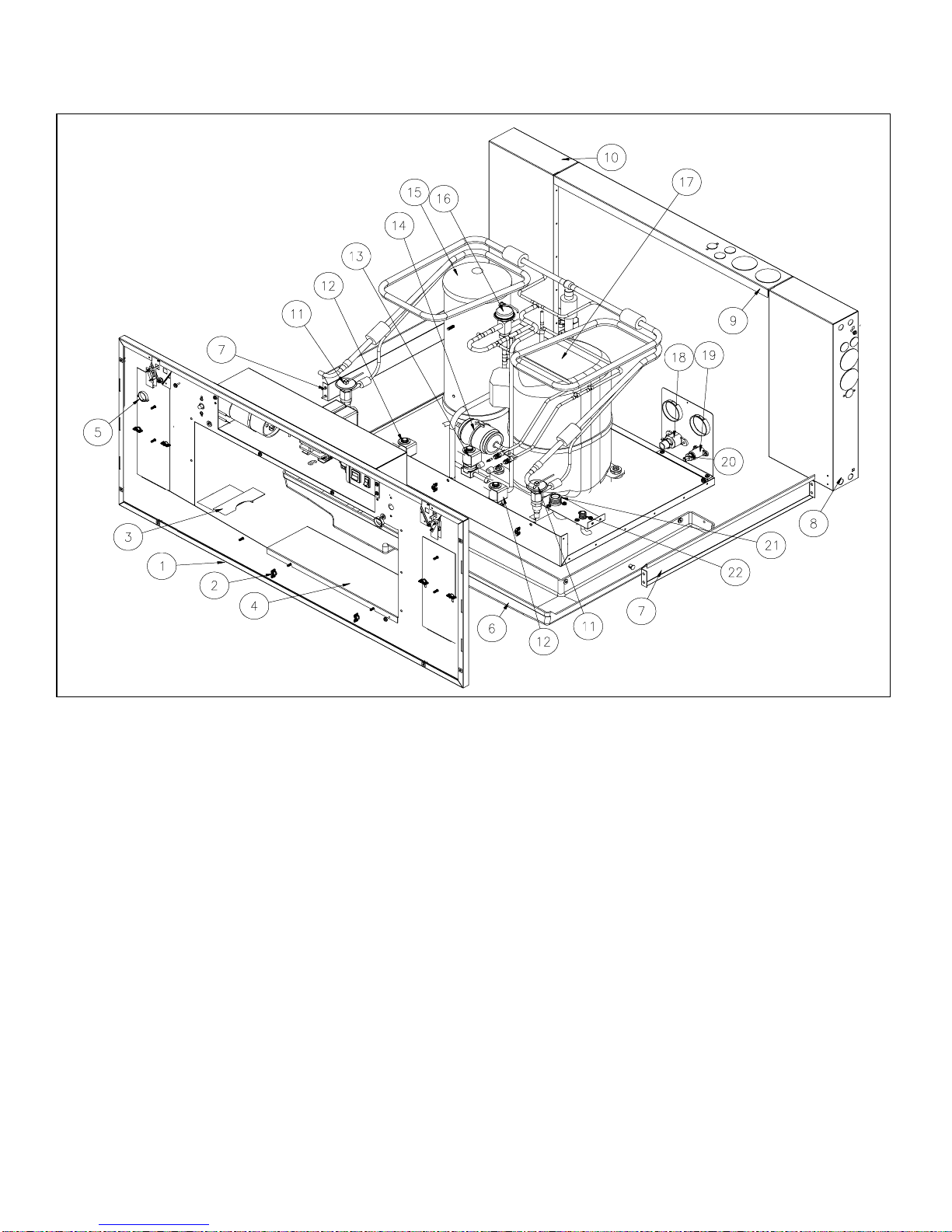

ICE1606 Series Service Parts Refrigeration System
Item Part Item Part
No. Number Description No. Number Description
1NLA Front Frame panel 13 9151123-02 Liquid Line Solenoid
29031161-01 Plastic Wing Nut 9151123-04 Liq. Line Sol. Coil
33012958-01 Water Pan Cover 14 9151004-03 Drier
43012942-01 Water Pan Cover 15 9151110-01 Receiver
59021010-04 Hose Clamp 16 9151027-02 Mixing Valve 192
69051476-01 Water Pan 17 9181108-11 Compressor
73012924-01 Ice Deflector 18 NLA Drain Fitting
8NLA Rear Frame RH 19 9091074-01 Drop Adapter
9NLA Rear Brace 20 9091083-02 Water Inlet Fitting
10 NLA Rear Frame LH 21 9091001-12 1/2" Coupling
11 9151006-08 Expansion Valve 22 9091001-11 3/8" Coupling
12 9151123-01 Hot Gas Valve
9151123-04 Hot Gas Valve Coil
Page 4
ICE1606 Series Service Parts Evaporator
Item Part Item Part
No. Number Description No. Number Description
12101355-04 Splash Curtain LH 89051001-09 Snap Bushing
22051147-82 Evaporator Left Side 92101355-03 Splash Curtain RH
32041338-02 Water Distribution Tube 10 2051148-82 Evaporator Right Side
42021567-02 NLA 11 2041338-01 Water Distribution Tube
59131381-02 NLA 12 NLA Frame Panel RH
69031122-01 Thumb Screw 13 NLA Insulation, Side Panel
79031004-19 Rubber Washer 14 9031046-01 #10-16 x 1/2 Screw
Page 5

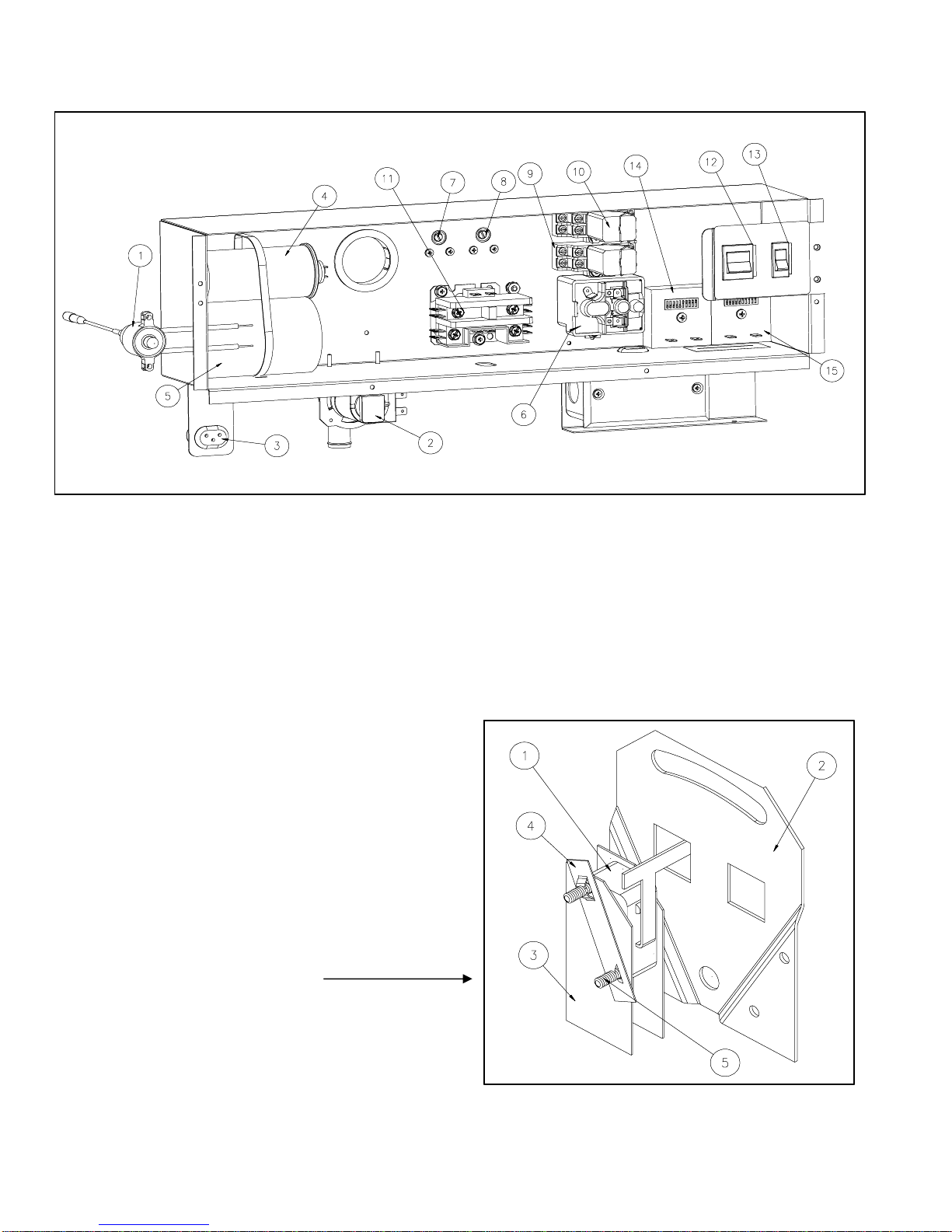

ICE1606 Series Service Parts Control Box and Bin Switch Assembly
Item Part Item Part
No. Number Description No. Number Description
19041051-04 High Pressure Control 99101083-01 Relay Socket
29041086-05 Purge Valve 10 9101084-02 Relay
39101218-10 Pump Cord 11 9101002-06 Contactor
49181009-20 Run Capacitor 12 9101195-01 On-Off-Ice Switch
59181003-21 Start Capacitor 13 9101139-03 Purge Switch
69101010-10 Potential Relay 14 9101148-01 Timer
79041094-01 Timer Initiate Control 15 9101148-01 Timer
89041040-01 Pump Down Control 16 9041087-04 High Temp Safety Not Shown
Item Part
No. Number Description
19101124-02 Limit Switch
23011781-01 Switch Bracket
33051145-01 Bin Switch Insulator
49031120-01 Speed Nut Plate
59031008-16 Machine Screw #4-40
Components are common to the Left Hand and
Right Hand Bin Switch Assemblies
Left Hand Assembly Shown
Page 6
ICE1606 Series Service Parts Water Pump/Float Assembly
Item Part
No. Number Description
13012957-01 Water Pump Bracket
29131111-01 Float Assembly
39161079-06 Water Pump
49091024-01 Barbed Tee
53032898-40 1/4 " ID Plastic Tubing- 40 Inches Long
63051210-40 1/4 " x 40" Long Insulation
79021010-04 Hose Clamp
89131026-02 Cap Plug
99051509-02 Purge/Pump Tube
10 9051507-02 Water Tube Evap Left
11 9051508-02 Water Tube Evap Right
Page 7
ICE1606 Series Service Parts Harvest Probe Assembly
Item Part Item Part
No. Number Description No. Number Description
1NLA Probe Motor Bracket 89031120-01 Speed Nut Plate
29051001-13 Snap Bushing 93051145-01 Insulation, Switch
39161031-01 Gear Motor 10 9031005-03 #10-32 Hex Nut
49131190-04 Clutch Assembly 11 9031119-01 Shoulder Screw
59131189-01 Probe Shaft 12 9031008-16 Pan Head Machine Screw
69051057-01 Connecting Rod 13 9031019-05 Self Tapping Screw
79101160-01 Cam Switch 14 9031003-03 Flat Washer
Page 8
ICE1606 Series Service Parts Remote Condenser ERC2661
Item Part Item Part
No. Number Description No. Number Description
13012795-01 Mounting Leg 79091001-11 Coupling-Bulkhead-3/8"
29131356-01 Fan Guard 83012806-01 Top Panel
39161110-02 Fan Motor 99091001-10 Coupling Half 1/2" w/port
49161110-92 Capacitor 10 9091001-08 Coupling Half 1/2"
59131356-01 Fan Blade 11 9091001-04 Coupling Half 3/8" w/port
69091001-12 Coupling-Bulkhead-1/2" 12 9091001-02 Coupling Half 3/8"
Lineset Couplings
9 10
12
11
Page 9
