Ice-O-Matic GEM0650A/W/R Guide
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081350-03 Date 10/08
SERVICE PARTS MANUAL
GEM0650A/W/R,GEM0956A/W/R and GEM1256A/W/R
GEM0655 Air
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081350-03 Date 1/07
GEM Series Service Parts Table Of Contents
This parts list contains the service parts available for the GEM Series icemakers listed below:
GEM0655-Air Cooled
GEM0650-Air Cooled, Water Cooled and Remote
GEM0956-Air Cooled, Water Cooled and Remote
GEM1256-Air Cooled, Water Cooled and Remote
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Air Cooled Page 4
Water Cooled Page 5
Remote Page 6
Down Chute/Water System Page 7
Gearmotor Page 8
Evaporator Page 9
Control Box Page 10
Remote Condenser Page 11
The GEM Series Service Manuals are available separately:
GEM Air Cooled and Water Cooled 9081350-01
GEM Remote 9081350-02
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
GEM Series Service Parts Cabinet
Item
No. GEM0655 GEM0650 GEM0956 Description
1 1011339-70 1011339-70 1011339-70 Top Panel Screw
2 1011380-192 1011380-192 1011380-192 Top Panel
3 1011380-196 1011380-196 1011380-196 Non-Louvered Side Panel
4 1011380-193 1011380-193 1011380-193 Right Side Frame Panel
5 1011351-34 1011351-34 1011351-34 Screw
6 1011380-191 1011380-191 1011380-191 Front Louvered Panel
7 1011380-09 1011380-09 1011380-09 Air Filter
8NL
A
NL
A
NL
A
Filter Clip
9 1011380-200 1011380-200 1011380-200 Front Brace
10 1011380-197 1011380-197 1011380-197 Control Box Support
11 1011380-167 1011380-167 1011380-167 Left Side Frame Panel
12 1011380-42 1011380-42 1011380-42 Screw
13 1011380-213 1011380-213 1011380-213 Rear Panel (Water Cooled Only)
14 1011380-211 1011380-211 1011380-211 Base
15 1011380-01 1011380-01 1011380-01 Catch (On Frame Panel)
16 1011380-88 1011380-88 1011380-88 Strike (On Front Panel)
Model Number
12
3
4
3
5
6
7, 8
9
1
0
11
12
13
14
15
16
Page 2
GEM Series Service Parts Cabinet
Item
No. GEM0650 GEM0956 GEM1256 Description
1 N/A N/A 1011339-70 Screw
2 N/A N/A 1011380-151 Top Panel
3 N/A N/A 1011380-194 Louvered Side Panel
4 N/A N/A 1011380-153 Right Side Frame Panel
5 N/A N/A 1011351-34 Screw
6 N/A N/A 1011380-152 Front Panel
7 N/A N/A 1011380-183 Air Filter
8N/
A
N/
A
1011380-154 Left Side Frame Panel
9 N/A N/A 1011380-155 Rear Panel-Remote
N/A N/A 1011380-156 Rear Panel-Air or Water Cooled
10 N/A N/A 1011380-214 Base
Model Number
5
12
3
3
4
6
7
8
9
1
1
10
Page 3
GEM Series Service Parts Air Cooled
Item
No. GEM0655 GEM0650 GEM0956 GEM1256 Description
1 1011380-136 1011380-136 1011380-121 1011380-120 Fan Blade
2 1011380-135 1011380-134 1011380-58 1011380-122 Fan Motor
3 1011380-228 1011380-228 1011380-04 1011380-20 Fan Bracket
4 1011380-210 1011380-210 1011380-190 1011380-207 Fan Shroud
5 1011380-206 1011380-206 1011380-206 N/A Fan Shroud Cover
6 1011380-133 1011380-133 1011380-126 1011380-132 Air Condenser
7 1011380-129 1011380-128 1011380-137 1011380-131 Compressor
8 1011380-130 1011380-125 Internal Internal Compressor Overload
9 1011380-117 1011380-117 1011380-117 1011380-117 Compressor Grommet
10 1011380-115 1011380-115 1011380-115 1011380-115 Compressor Grommet Sleeve
11 1011380-18 1011380-18 1011380-18 1011380-18 Drier
12 1011380-177 1011380-177 1011380-177 1011380-177 Expansion Valve Insulation Kit
13 1011380-51 1011380-51 1011380-51 1011380-50 Expansion Valve
14 1011380-94 1011380-94 1011380-94 1011380-94 Service Valve Body
15 1011380-95 1011380-95 1011380-95 1011380-95 Service Valve Core
16 1011380-96 1011380-96 1011380-96 1011380-96 Service Valve Cap
17 1011380-52 1011380-52 1011380-52 1011380-52 Hi Pressure Cut Out
18 1011380-53 1011380-53 1011380-53 1011380-53 Low Pressure Cut Out
Model Number
1
2
4
3
5
6
7
,
8
9
1
0
11 14
,
15
,
16
18
17
Evaporator See Page 9
Note: Pictures for reference onl
y
.
12
,
13
Page 4
GEM Series Service Parts Water Cooled
Item
No. GEM0650 GEM0956 GEM1256 Description
1 1011380-144 1011380-145 1011380-146 Water Cooled Condenser
2 1011380-51 1011380-51 1011380-51 Expansion Valve
3 1011380-177 1011380-177 1011380-177 Expansion Valve Insulation Kit
4 1011380-115 1011380-115 1011380-115 Compressor Grommet Sleeve
5 1011380-117 1011380-117 1011380-117 Grommet
6 1011380-94 1011380-94 1011380-94 Service Valve Body
7 1011380-95 1011380-95 1011380-95 Service Valve Core
8 1011380-96 1011380-96 1011380-96 Service Valve Cap
9 1011380-52 1011380-52 1011380-52 High Pressure Cut Out
10 1011380-49 1011380-49 1011380-49 Water Regulating Valve
11 1011380-149 1011380-201 1011380-201 Drain Assembly
12 1011380-128 1011380-137 1011380-131 Compressor
13 1011380-125 Internal Internal Compressor Overload
14 1011380-18 1011380-18 1011380-18 Drier
15 1011380-53 1011380-53 1011380-53 Low Pressure Cut Out
Model Number
1
2, 3
4
5
6, 7, 8
9
10
11
12, 13
14
15
Evaporator See Page 9
Page 5
GEM Series Service Parts Remote
Item
No. GEM0650 GEM0956 GEM1256 Description
1 1011380-61 1011380-63 1011380-62 Liquid Line Solenoid
2 1011380-92 1011380-92 1011380-92 Receiver
3 N/A 1011380-31 N/A Accumulator
4 1011380-52 1011380-52 1011380-52 High Pressure Cut Out
5 1011380-18 1011380-18 1011380-18 Drier
6 1011380-128 1011380-137 1011380-131 Compressor
7 1011380-125 Internal Internal Compressor Overload
8 1011380-60 1011380-59 1011380-59 Crankcase Heater-External
9 1011380-117 1011380-117 1011380-117 Grommet
10 1011380-115 1011380-115 1011380-115 Compressor Grommet Sleeve
11 1011380-47 1011380-47 1011380-47 Low Ambient Control
12 1011380-51 1011380-51 1011380-50 Expansion Valve
13 1011380-177 1011380-177 1011380-177 Expansion Valve Insulation Kit
14 1011380-53 1011380-53 1011380-53 Pump Down Control
15 1011380-57 1011380-58 N/A Fan Motor
16 1011380-124 1011380-124 N/A Fan Blade
17 1011380-94 1011380-94 1011380-94 Service Valve Body
18 1011380-95 1011380-95 1011380-95 Service Valve Core
19 1011380-96 1011380-96 1011380-96 Service Valve Cap
20 1011380-98 1011380-98 1011380-98 Quick Connect Fitting 3/8 Inch
21 1011380-97 1011380-97 1011380-97 Quick Connect Fitting 1/2 Inch
Model Number
1
2
34
2
0
5
6, 7
8
9
10
11
12
,
13
17, 18, 19
14
15
16
Evaporator See Page 9
21
Page 6
GEM Series Service Parts Down Chute/Water System
Item
No. GEM0655 GEM0650 GEM0956 GEM1256 Description
1 1011380-15 1011380-15 1011380-15 1011380-15 Float Assembly (Does Not Include Sensor)
2 1011380-16 1011380-16 1011380-16 1011380-16 Float Valve Only
3 1011380-78 1011380-78 1011380-78 1011380-78 Water Level Sensor
4 1011380-06 1011380-06 1011380-07 1011380-07 Ice Chute Lower
5 1011380-223 1011380-223 1011380-223 1011380-223 Bin Controls Assembly (Set of 2)
6 1011380-176 1011380-176 1011380-176 1011380-176 Chute Gasket
7 1011380-220 1011380-220 1011380-220 1011380-220 Evaporator Water Inlet Tube
8 1011380-84 1011380-84 1011380-84 1011380-84 Rubber Cap
9 1011380-03 1011380-03 1011380-03 1011380-03 Hose Clamp
10 1011380-25 1011380-25 1011380-25 1011380-26 Overflow Tube
11 1011380-23 1011380-23 1011380-23 1011380-23 Drain Fitting
12 1011351-71 1011351-71 1011351-71 1011351-71 Inlet Tubing (4 feet required)
13 1011351-31 1011351-31 1011351-31 1011351-31 Pal Nut
14 1011351-74 1011351-74 1011351-74 1011351-74 Water Inlet Fitting
15 1011351-75 1011351-75 1011351-75 1011351-75 Male Connector
16 1011380-185 1011380-185 1011380-185 1011380-185 Evaporator
17 1011380-27 1011380-27 1011380-27 1011380-27 Drip Pan
18 1011380-83 1011380-83 1011380-83 1011380-83 Drip Pan Gasket
19 1011380-85 1011380-85 1011380-85 1011380-85 Water Shed
20 1011380-178 1011380-178 1011380-178 1011380-178 Insulation Collar
21 1011380-179 1011380-179 1011380-179 1011380-179 Insulation Collar
Model Number
1
2
4
5
5
6
8
9
1
0
11
7
13
14
,
15
17
16
1
12
18
19
20 21
3
Page 7

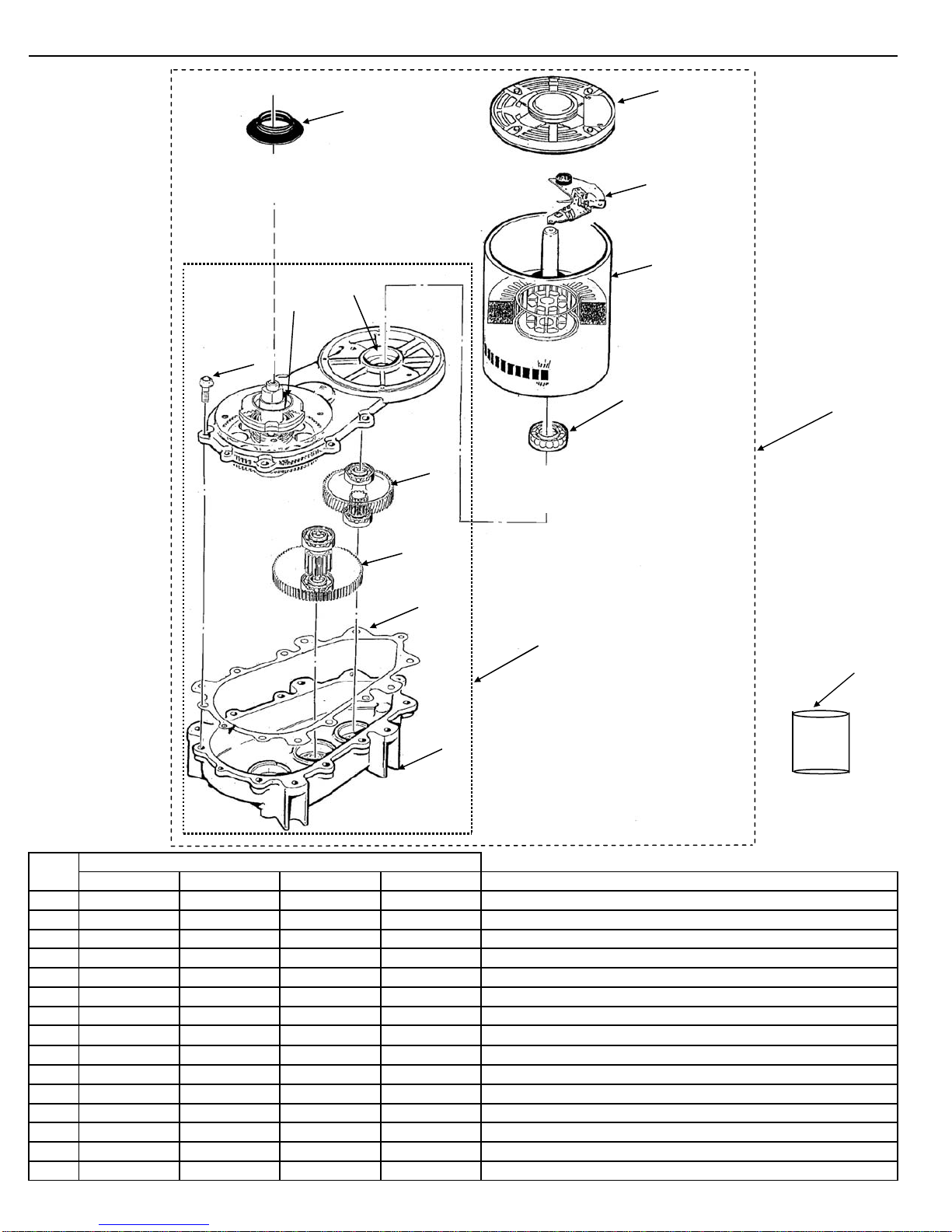

GEM Series Service Parts Gear Motor
Item
No. GEM0655GEM0650 GEM0956 GEM1256 Description
1 1011380-85 1011380-85 1011380-85 1011380-85 Water Shed
2 1011380-164 1011380-164 1011380-164 1011380-164 Gearcase Output Shaft Seal
3 N/A N/A N/A N/A End Bell
4 1011380-162 1011380-162 1011380-162 1011380-162 Bolt
5 1011380-159 1011380-159 1011380-159 1011380-159 Gearcase Cover (Cover, Shaft, Key, Gear and Bearing)
6 1011380-161 1011380-161 1011380-161 1011380-161 1st Gear and Bearings
7 1011380-160 1011380-160 1011380-160 1011380-160 2nd Gear and Bearings
8 1011380-158 1011380-158 1011380-158 1011380-158 Gasket
9 1011380-157 1011380-157 1011380-157 1011380-157 Gearcase
10 1011380-77 1011380-72 1011380-72 1011380-72 Start Switch-GE
11 1011380-69 1011380-67 1011380-68 1011380-68 Drive Motor
12 1011380-73 1011380-73 1011380-73 1011380-73 Rotor Bearing-GE
13 1011380-163 1011380-163 1011380-163 1011380-163 Oil
14 1011380-188 1011380-186 1011380-187 1011380-187 Complete Assembly
15 1011380-189 1011380-189 1011380-189 1011380-189 Gear Case Kit, No Motor
Model Number
14
3
2
4
5
6
7
8
1
10
11
ACME
OIL
9
13
15
12
Page 8
