Hyundai HCP9100 User manual

1

Gas-Powered Air Compressor

User Manual

2

©2011 Hyundai Power Equipment. All Rights Reserved.

Licensed by Hyundai Corporation, Korea.

HCP9100-0711-02

3

4

5

Thank you for purchasing this Hyundai Power Equipment Air

Compressor.

Please register this product in order to ensure warranty service

in the future.

This manual covers the safety, operation and maintenance

procedures for the HCP9100.

All information in this publication is based on the latest product

information available at the time of print.

Visit www.powerbyhyundai.com for manual updates and

operation notices.

No part of this publication may be reproduced without written

permission. Please keep this manual together with the Owners

Card. Contact Hyundai Power Equipment at the numbers listed

on the Owners Card if warranty service is required.

It is important that anyone operating this product read and

understand the manual prior to use.

6

Warranty Information

Warranty service, operation assistance and product support is provided by

Midland International Inc., a licensed manufacturer of Hyundai Power Equipment.

www.powerbyhyundai.com

TECHNICAL ASSISTANCE

1-855-706-8475

CUSTOMER SERVICE

1-877-528-3772 (toll-free)

SALES

1-503-534-3684

Component Certiﬁcations

This product contains components certied by the following agency:

7

TABLE OF CONTENTS

1.0 - OPERATION SAFETY

1.1 - Operation Safety 8

1.2 - Water Safety Guidelines 9

1.3 - Maintenance Safety 9

2.0 - COMPONENTS

2.1 - Identication 10

2.2 - Assembly 12

2.3 - Adjusting Pressure 15

3.0 - PRE-OPERATION INSPECTION

3.1 - Engine Oil Check 16

3.2 - Compressor Oil Check 17

3.3 - Fuel Level Check 17

3.4 - Air Filter Check 18

3.5 - Initial Inspection 19

3.6 - Pre-Start Checklist 19

3.7 - Initial Break-In Procedure 19

4.0 - OPERATION

4.1 - Starting the Air Compressor 20

4.2 - Stopping the Air Compressor 21

5.0 - MAINTENANCE

5.1 - Importance of Maintenance 22

5.2 - Maintenance Schedule 22

5.3 - General Inspection 23

5.4 - Air Filter Service 23

5.5 - Oil Maintenance 24

5.6 - Spark Plug Service 25

5.7 - Fuel Sediment Cup 26

5.8 - Handling and Storage 27

6.0 - TROUBLESHOOTING 28

7.0 - SPECIFICATIONS 30

WARRANTY 31

8

SAFETY

1.1 - Operation Safety

• Always perform a pre-operation check before starting the engine.

• Properly clean and maintain the equipment.

• Operate the Air Compressor according to instructions for safe and

dependable service.

• Read user manual carefully before operating this product! Failure to do

so may result in serious harm to the user and to the equipment.

• Never run in an enclosed area to avoid harm from exhaust emissions of

a poisonous carbon monoxide gas.

• Be careful not to touch the exhaust system, compressor pump or

discharge tubing during operation due to risk of burns.

• Pay attention to the warning labels. The engine exhaust system will

become heated during operation and remain hot immediately after the

engine is stopped.

• Gasoline is a highly ammable and explosive liquid. Refuel in a well

ventilated area with the engine stopped.

• Do not operate the compressor with the belt guard removed!

• Do not puncture or alter the air tanks in any way.

• When refueling the Air Compressor, keep it away from cigarettes, open

ames, smoke and/or sparks.

• Place at least 5 feet away from buildings or other equipment during

operation.

• Run on a level surface to avoid fuel spills.

• Do not operate this tool without proper training.

• Keep children, pets and machinery with rotating parts away during

operation.

• Do not operate in rain or snow.

• Do not allow any moisture to come in contact with the engine case.

• Do not touch the spark plug while the engine is operating or shortly after

the engine has been shut down

9

1.2 - Water Safety Guidelines

• Keep all protective components in place - do not remove guards or

shields from any part of the engine

• Use caution near the engine - do not soak or expose the casing to a

constant ow of water

• Do not operate while wearing open-toed shoes

1.3 - Maintenance Safety

• After any maintenance is performed, wash hands immediately using

soap and clean water because repeated exposure to lubricant may

cause skin irritation.

• Do not clean the lter element with ammable liquids like gasoline

because explosion may occur.

• Turn off the engine set before performing any maintenance. Doing so

may result in severe personal injury or death.

• Allow the engine to cool down before performing any maintenance.

• Always wear safety glasses when cleaning the engine with air.

• Use rubber gloves when coming into contact with engine oil.

• Always stop the engine before removing the oil ller cap.

• Only qualied maintenance personnel with knowledge of fuels,

electricity, and machinery hazards should perform maintenance

procedures.

10

2 - COMPONENTS AND ASSEMBLY

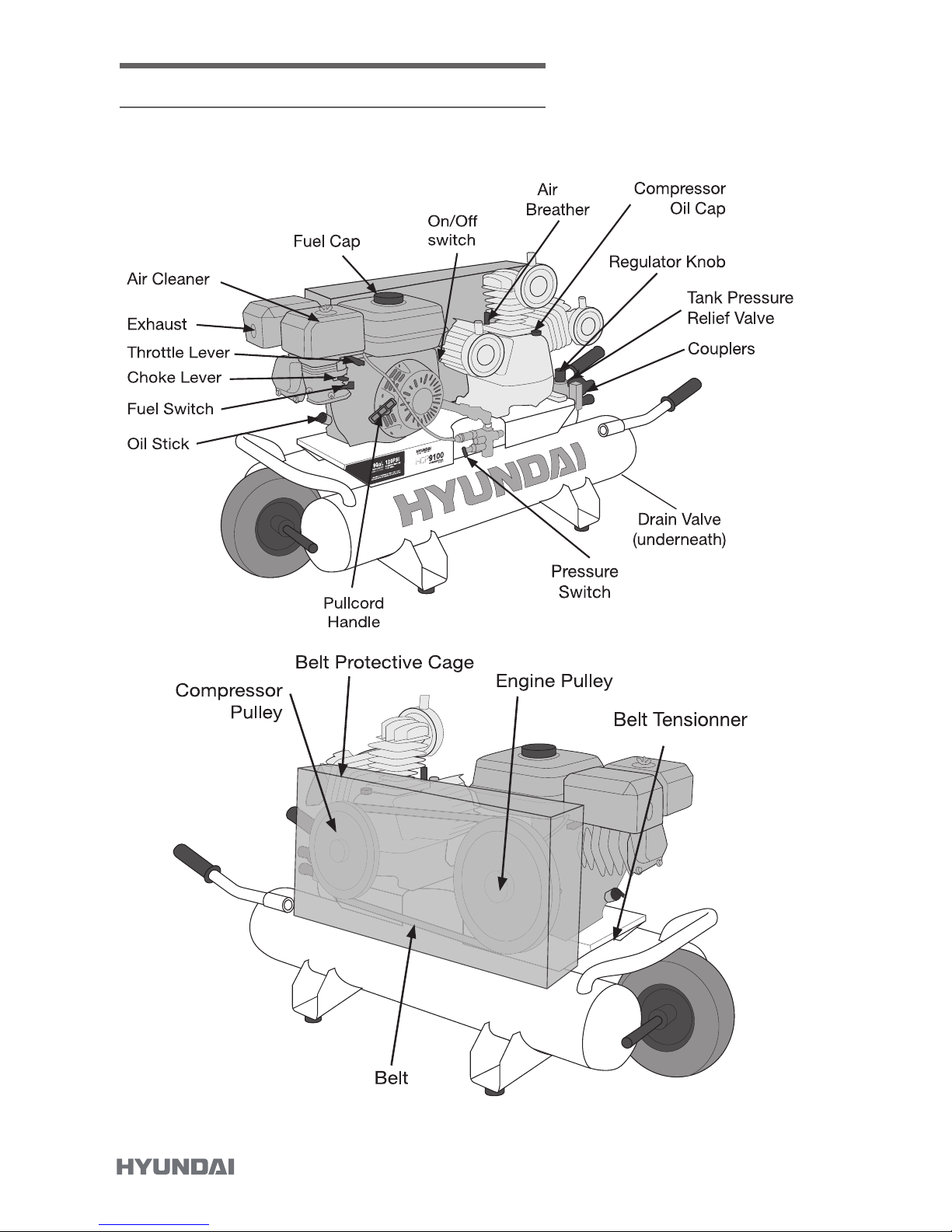

2.1 - Identiﬁcation of Components
