Powermax30/30 XP Field Service Bulletin 805330 Revision 2 3

Air Filter/Regulator and Pressure Switch Replacement

Introduction

Purpose

This Field Service Bulletin describes the necessary steps to replace the air filter/regulator and pressure switch assembly

on Powermax30 power supplies.

This kit contains separate air inlet fittings for the Powermax30 and the Powermax30 XP. The fittings for the

Powermax30 XP will not work on the Powermax30 because they are too large to fit through the rear panel.

Powermax30 XP systems: Complete instructions for installing this repair kit are included in the Powermax30 XP

Service Manual (808150). To download the Service Manual, go to www.hypertherm.com and click the “Downloads

library” link.

Tools and materials needed

Assorted Phillips®and TORX®screwdrivers

1/2 inch wrench or adjustable wrench (CSA models only)

19 mm wrench or adjustable wrench (CE models only)

Thread sealant

WARNING!

ELECTRIC SHOCK CAN KILL

Disconnect electrical power before performing any maintenance.

See the Safety and Compliance Manual (80669C) for more safety

precautions.

CAUTION!

Never use PTFE tape on any joint preparation. Use only a liquid or paste thread sealant on male

threads.

4Powermax30/30 XP Field Service Bulletin 805330 Revision 2

Air Filter/Regulator and Pressure Switch Replacement

228106 Kit contents

The brass hex adapter fitting in this kit (015846) is not used in the Powermax30.

Before you begin

The gas supply hoses mentioned in the following procedures use push-to-connect fittings:

Part number Description Quantity

011116 Air filter/regulator 1

005112 Pressure switch 1

015530 Brass elbow fitting 1

015603 Brass “T” fitting 1

015691 1/8 NPT x 6 mm push-to-connect fitting 1

104704 Tubing: 6.35 mm OD x 4.23 mm ID poly, 4.75 in. 1

015618 Brass pipe fitting (Powermax30 only) 1

015550 Brass coupler (Powermax30 only) 1

015846 Brass hex adapter fitting (Powermax30 XP only) 1

Push-to-Connect

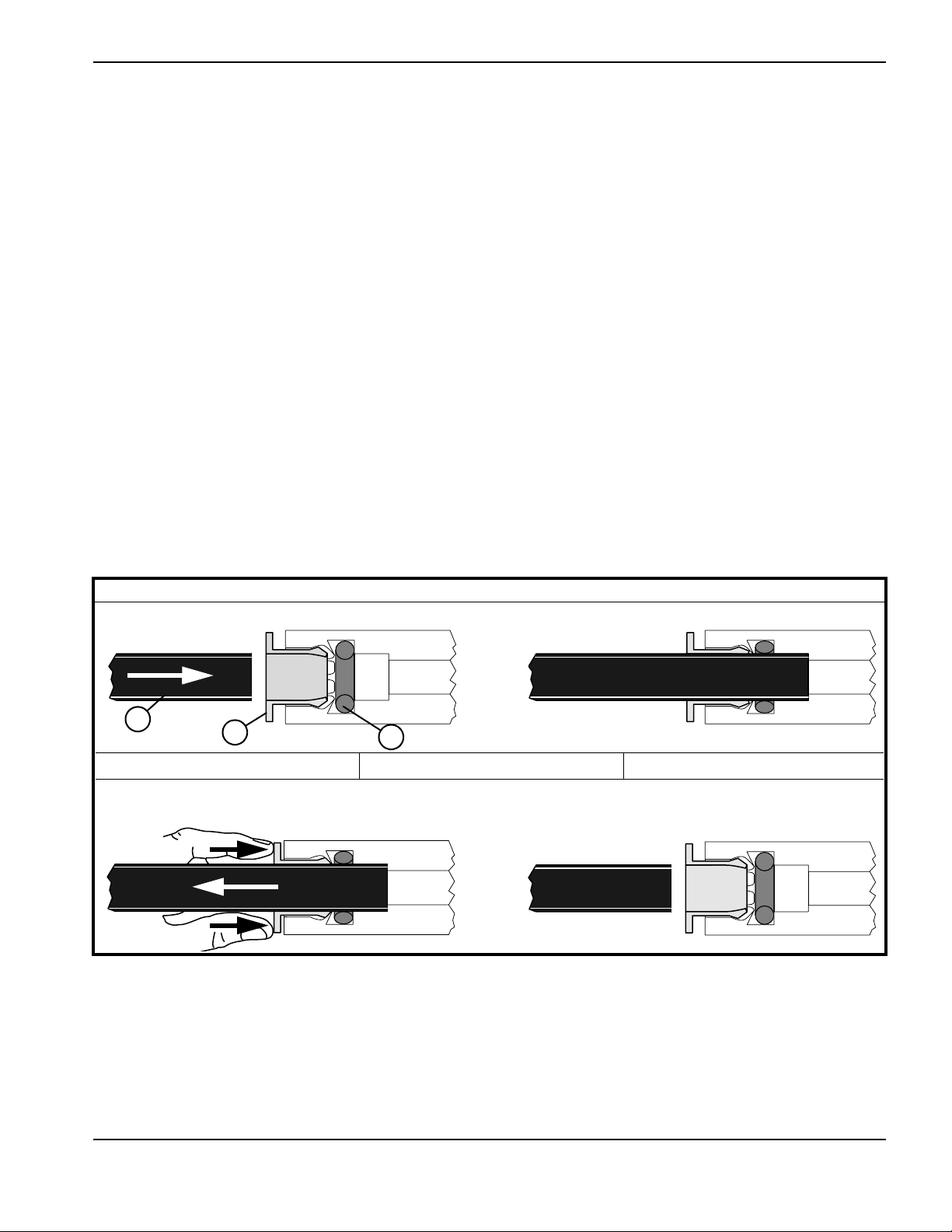

To connect, push the hose into the fitting until it stops. Pull on the hose to verify that it is secure.

To release, push the fitting collet toward the fitting, and pull the hose away from the fitting.

123

1Hose 2Collet 3O-ring

Powermax30/30 XP Field Service Bulletin 805330 Revision 2 5

Air Filter/Regulator and Pressure Switch Replacement

Replace the air filter/regulator and pressure switch

1. Set the power switch to OFF (O), disconnect the power cord from the power source, and disconnect the gas supply.

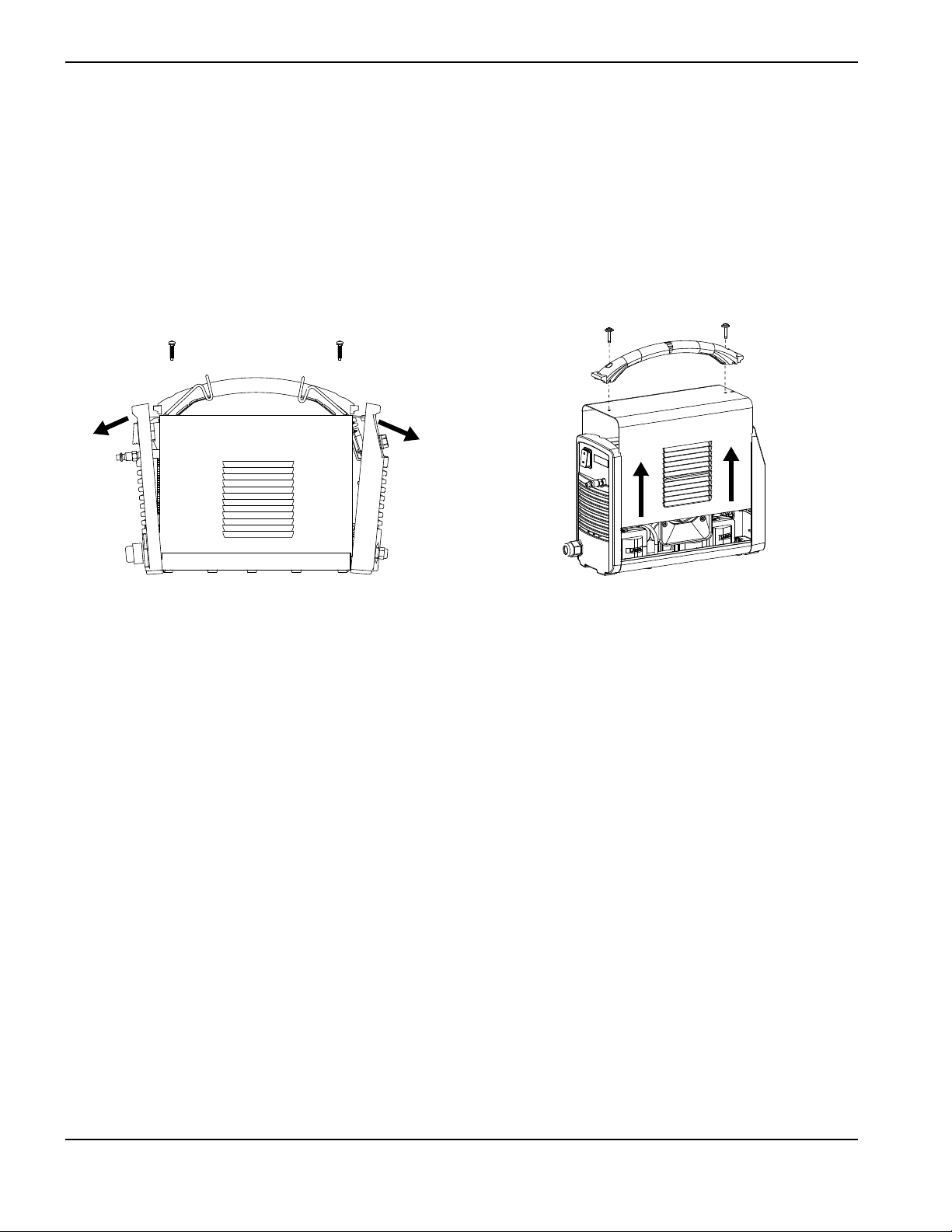

2. Remove the 2 screws from the handle on the top of the power supply.

3. Slightly tip the front and rear panels away from the power supply so that you can get the edges of the handle out from

underneath them. Remove the handle, and set it and the 2 screws aside.

4. Lift the cover off the power supply.

5. Grip the air filter/regulator with your right hand to hold it steady. With your left hand:

CSA models: Use a 1/2 inch wrench to remove the air fitting from the rear of the power supply.

CE models: Use a 19 mm wrench to remove the air fitting adapter from the rear of the power supply.

6. Disconnect the drain hose from the hole in the bottom of the power supply’s base.

7. Disconnect the red and black wires from the pins on the pressure switch.

8. Push-to-disconnect the gas supply hose from the air filter/regulator’s brass “T” fitting.

6Powermax30/30 XP Field Service Bulletin 805330 Revision 2

Air Filter/Regulator and Pressure Switch Replacement

9. Disconnect the ground wire that is attached to the clip on the air filter/regulator’s brass “T” fitting. Set the clip aside.

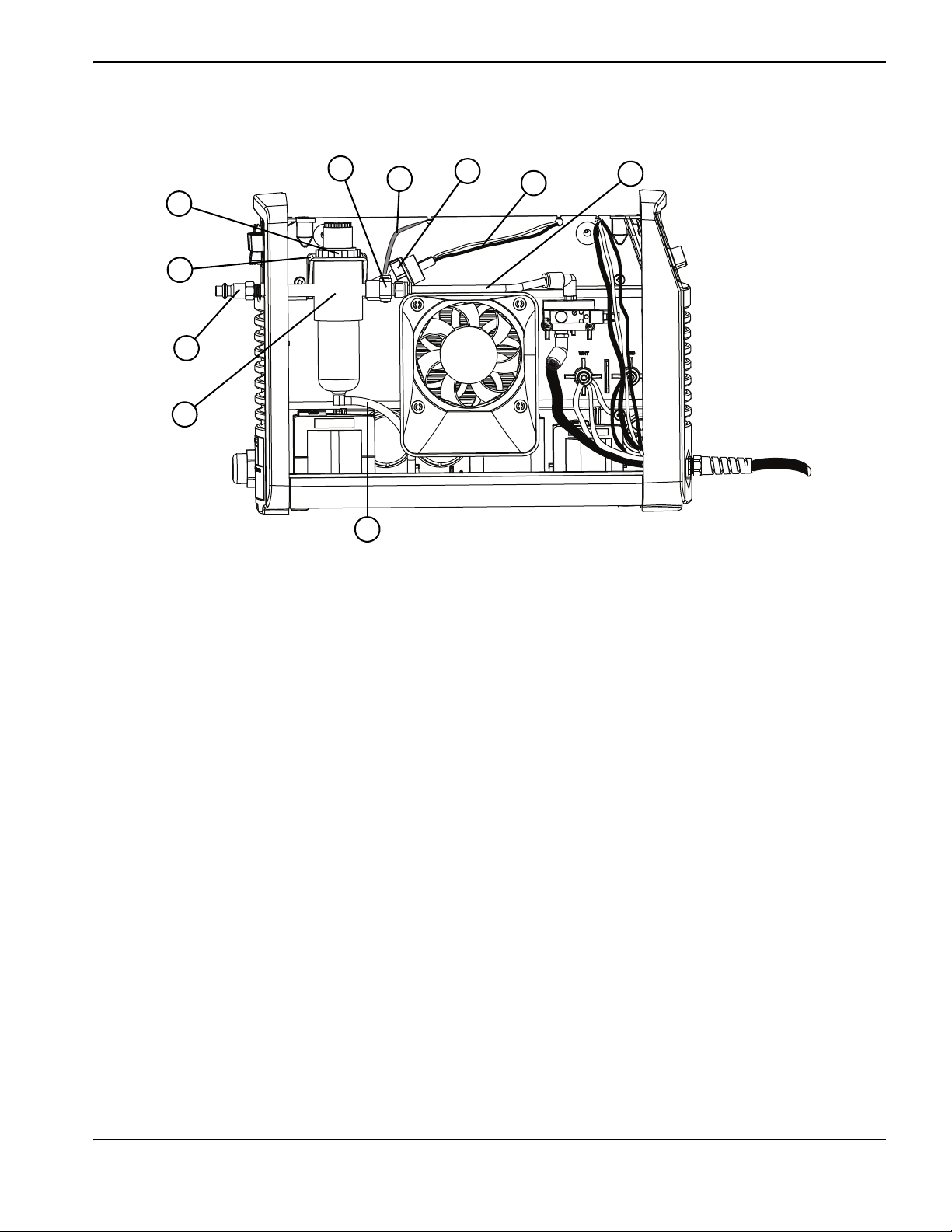

1Retainer nut

2Bracket

3Air fitting

4Air filter/regulator

5Drain hose

6Gas supply hose

7Red and black pressure switch wires

8Pressure switch

9Ground wire

10 Brass “T” fitting with ground clip

Powermax30/30 XP Field Service Bulletin 805330 Revision 2 7

Air Filter/Regulator and Pressure Switch Replacement

10. Unscrew the retainer nut that holds the air filter/regulator in the bracket.

11 . Tip the bottom of the air filter/regulator and pressure switch assembly away from the power supply, and slide the

assembly out of the bracket. Gently tilt the top of the rear panel away from the power supply as you remove the

assembly, if needed.

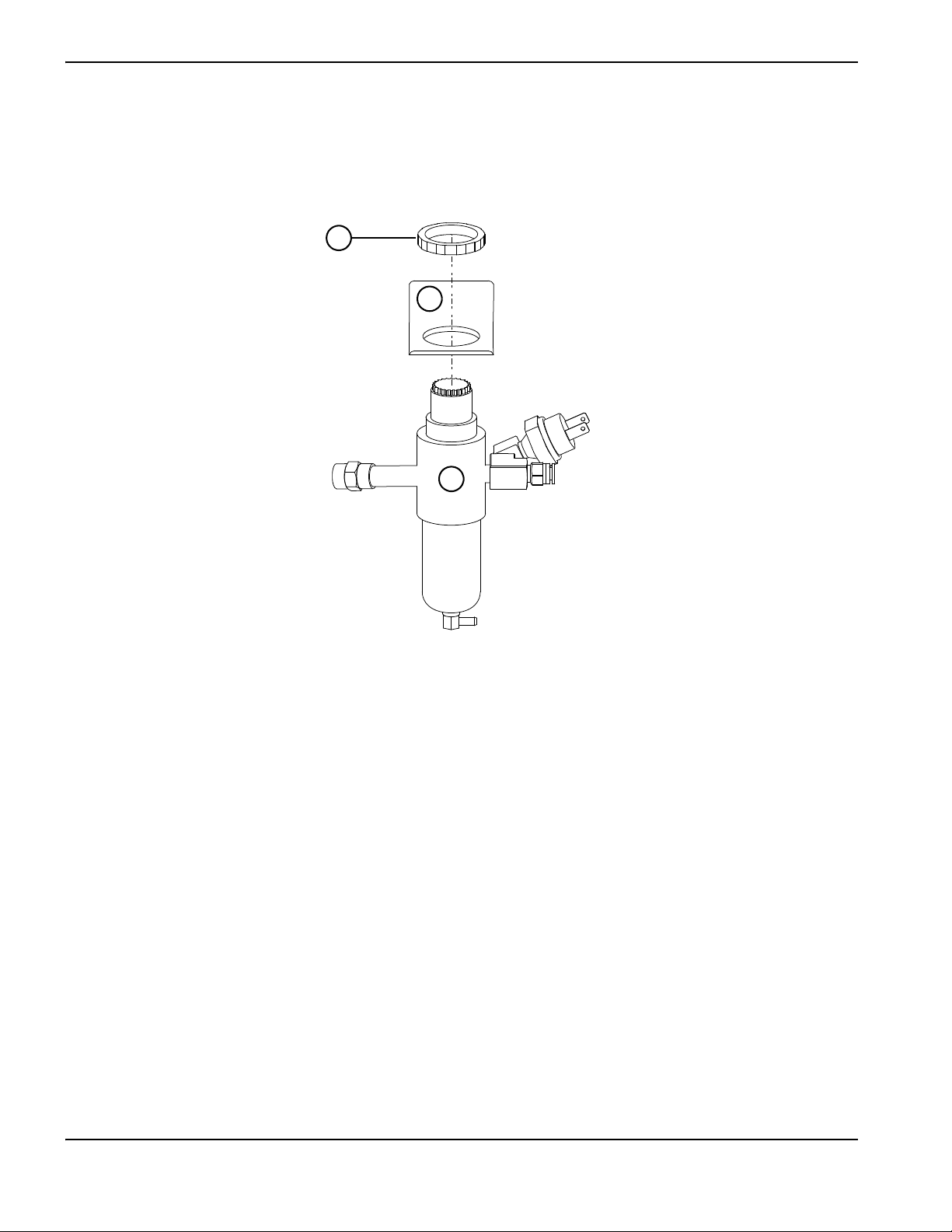

1Retainer nut

2Center panel bracket

3Air filter/regulator

8Powermax30/30 XP Field Service Bulletin 805330 Revision 2

Air Filter/Regulator and Pressure Switch Replacement

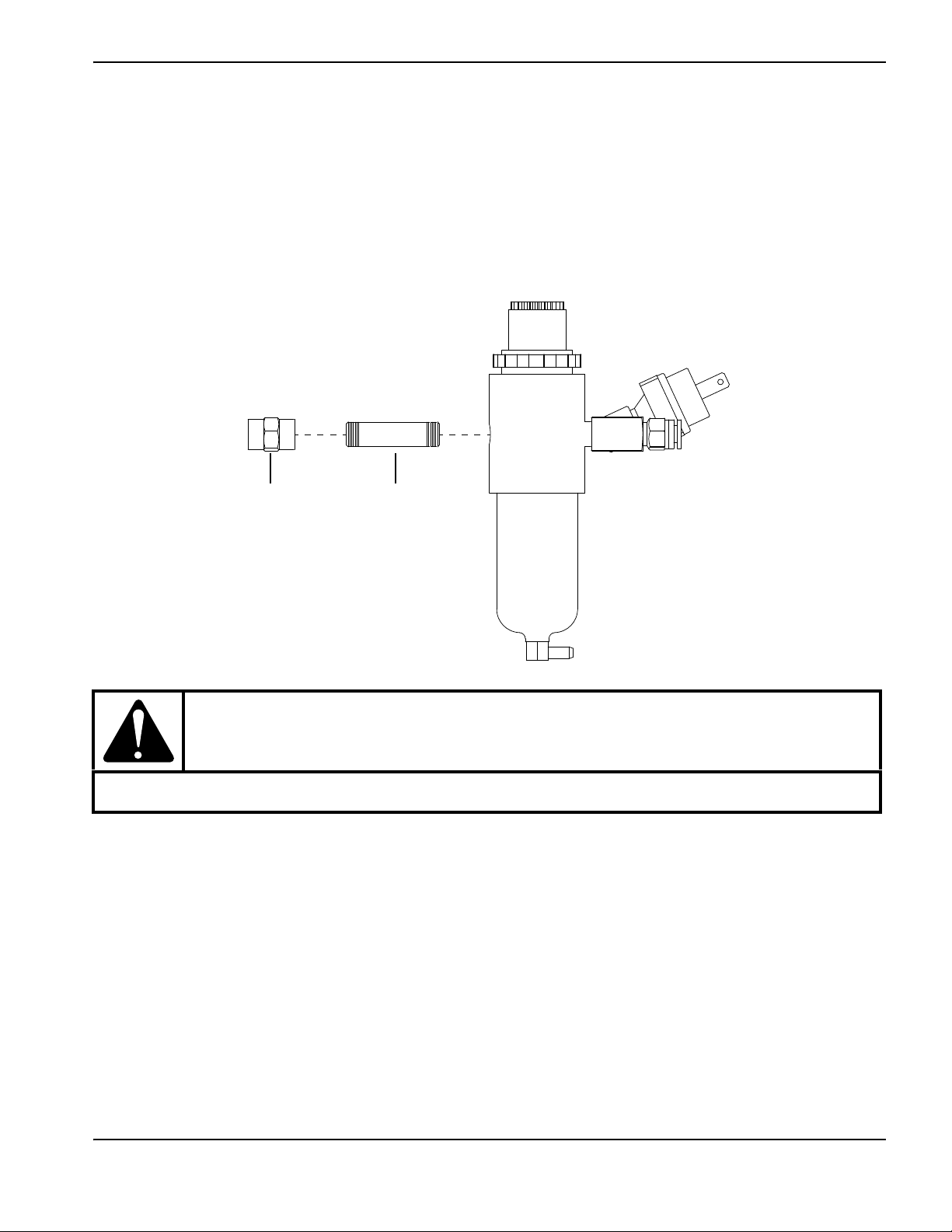

12. Locate the new brass coupler (015550) and pipe fitting (015618) in the kit.

13. Lightly apply thread sealant to the threads on one end of the pipe fitting, and screw the coupler onto that end of the

pipe fitting.

14. Apply a small drop of thread sealant to the threads on the other end of the pipe fitting, and screw that end of the

fitting into the side of the air filter/regulator.

If applied too heavily, excess amounts of thread sealant can contaminate the gas line.

CAUTION!

The regulator is pre-set at the factory. Do not adjust this setting.

Coupler Pipe fitting

Powermax30/30 XP Field Service Bulletin 805330 Revision 2 9

Air Filter/Regulator and Pressure Switch Replacement

15. Position the new air filter/regulator and pressure switch assembly in the center panel bracket. Hand-tighten the

retainer nut plus a quarter turn.

Do not to overtighten the retainer nut.

16. Route the drain hose through the hole in the base of the power supply.

17. Press the black wire’s connector onto the pressure switch pin that is nearest the center panel; press the red wire’s

connector onto the pressure switch pin that is furthest from the center panel.

18. Push-to-connect the gas supply hose to the fitting on the new air filter/regulator.

19. Reconnect the ground wire to the air filter’s “T” fitting using the clip you removed in step 9 on page 6.

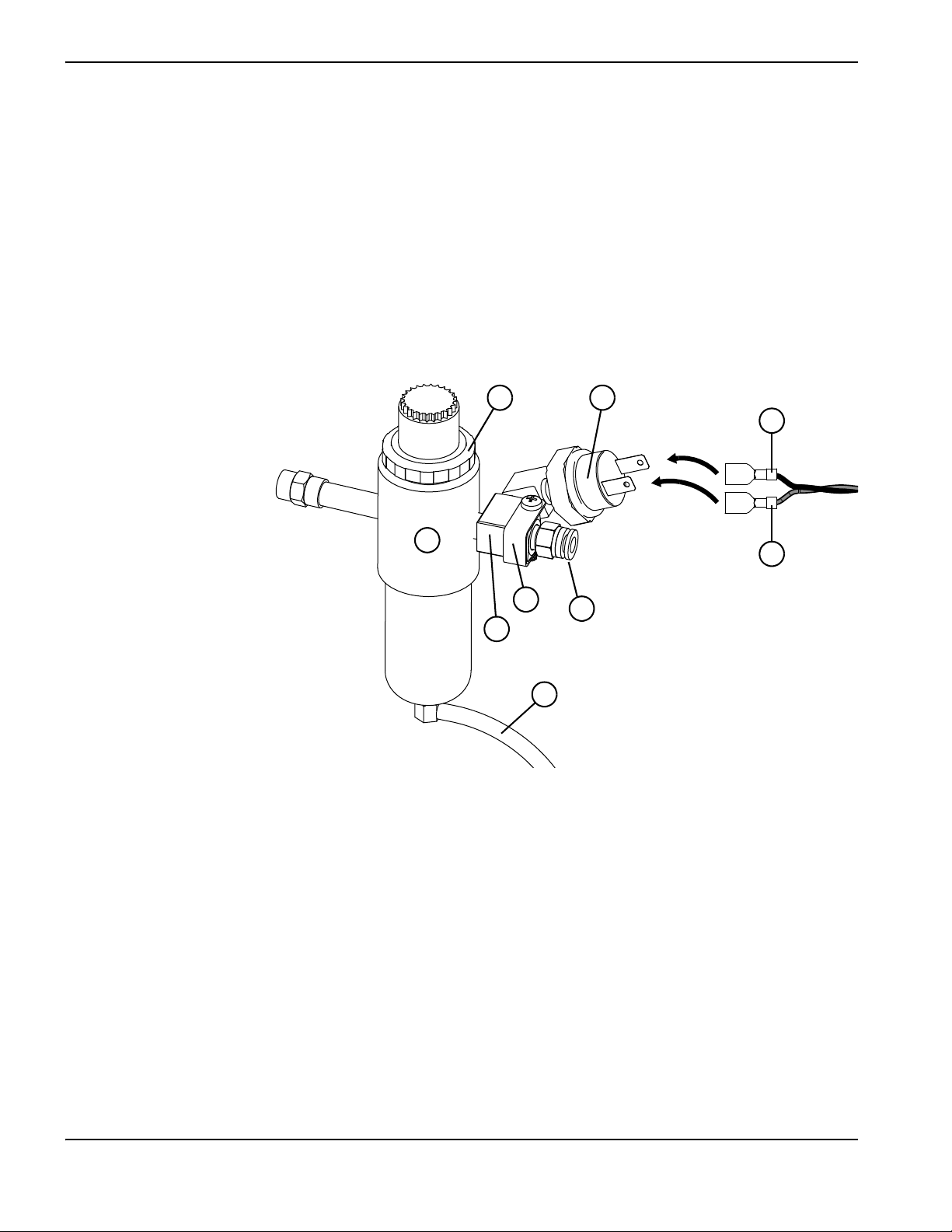

1Air filter/regulator assembly

2Drain hose

3Brass “T” fitting

4Ground wire clip

5Push-to-connect fitting for gas supply hose

6Red wire

7Black wire

8Pressure switch

9Retainer nut

10 Powermax30/30 XP Field Service Bulletin 805330 Revision 2

Air Filter/Regulator and Pressure Switch Replacement

20. Reconnect the air fitting, then reconnect the gas supply and check for leaks at each fitting and hose connection point

on the air filter/regulator assembly.

21. Being careful not to pinch any wires, slide the cover onto the power supply.

22. Position the handle over the holes in the top of the cover. Reinstall the 2 screws that attach the cover and handle.

23. Reconnect the gas supply and power cord, and set the power switch to ON (I).

CAUTION!

Gas supply pressures not within the specifications in the Specifications section of your system’s

manual can cause poor cut quality, poor consumable life, and operational problems.

If the purity level of the gas is too low, or if there are leaks in the supply hoses or connections:

Cut speeds can decrease

Cut quality can deteriorate

Cutting thickness capability can decrease

Consumables life can be shortened
