HYD1045 (05/15/2021)2

TABLE OF CONTENTS

INTRODUCTION

Safety Instructions .............................................................................................................................................................................. 3

Installation And Operation....................................................................................................................................................................4

Common Parts List

HYD1045 (05/15/2021) 3

SAFETY INSTRUCTIONS

SAFETY SYMBOLS

This is the safety alert symbol. When you see this symbol on your

pump or in this manual, look for one of the following signal words and be

aler t to the potential for personal injur y:

HYD1045 (05/15/2021)4

INSTALLATION AND OPERATION

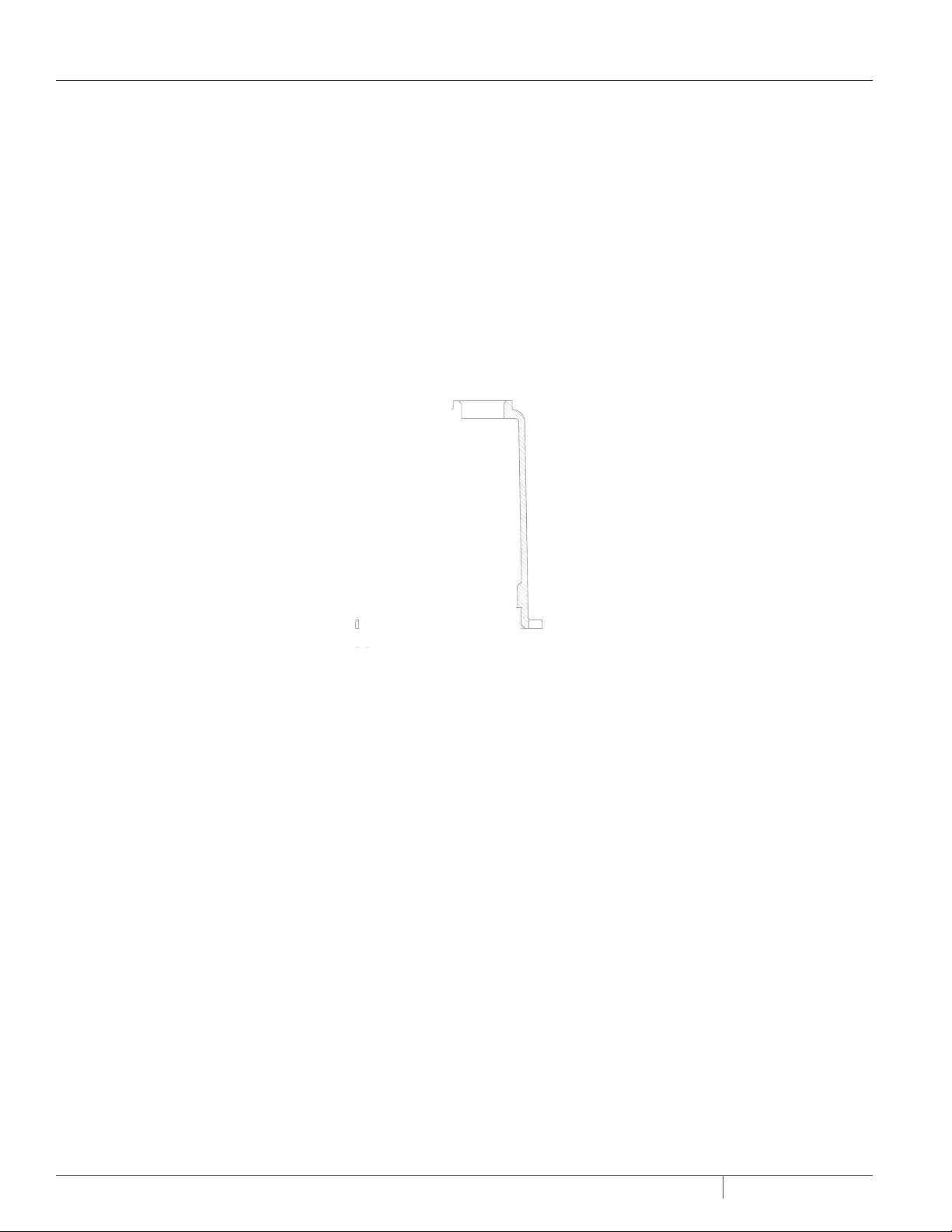

INSTALLING PUMP IN SUMP

HYD1045 (05/15/2021) 5

INSTALLATION AND OPERATION

PUMP MAINTENANCE

As the motors are oil filled, no lubrication or other maintenance

is required.

If the heat sensor and seal failure are hooked up properly, no

attention is necessary as long as the seal failure indicator light

doesn’t come on. To ensure continuity of the seal sensor leads, a

test light is provided on intrinsically safe Hydromatic® panels as

standard equipment. Pump should be checked every quarter for

corrosion and wear.

If cord openings from sump to control panel are

open, gases from sump could enter panel and an explosive

condition could exist. Seal openings!

REPLACING CORDS:

The power cord and heat sensor/seal failure cord are potted into

the connection box cap, forming the cord and cap assembly.

If cords require replacement due to damage or cords being too

short, cord and cap assembly must be replaced as a complete

assembly from the factory. Check pump for proper rotation

before returning to normal service.

HYD1045 (05/15/2021)6

COMMON PARTS LIST

HYD1045 (05/15/2021) 7

COMMON PARTS LIST

ITEM ENGINEERING NO. DESCRIPTION Q T Y.

1

28139B000 230 V 1 Phase Motor Assembly 1

28139B001 200 V 3 Phase Motor Assembly 1

28139B002 230/460 V 3 Phase Motor Assembly 1

28139B004 575 V 3 Phase Motor Assembly 1

28139B003 200 V 1 Phase Motor Assembly 1

2

28228B000 Imp1s ÒXs Ðsr8521

HYD1045 (05/15/2021)

HYD1045 (05/15/2021)

INTENTIONALLY LEFT LANK
