Hussmann IMPACT Elite E5 User manual

P/N 0453529A

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 12W Fan Assembly (1)

Fan Motor, Evaporator

0047000 Standard (120V, 60Hz)

0439053 Energy Efficient Fan (120V, 60Hz)

0436515 Export (230V, 50 Hz)

0315470 Fan Blade,

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0466234 Ballast, Electronic

2 lamps (4)

D. 0466235 Ballast, Electronic

3 lamps (4)

D. 0466236 Ballast, Electronic

4 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Note: Changed items have been underlined.

Data Sheet Set

P/N 0453529A

NSF®Certified

October 2005

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

4 ft 6 ft 8 ft 12 ft

General

(A)

Case Length (without ends or partitions) 48 1/8(1222) 72 1/8 (1832) 96 1/4(2445) 144 3/8(3667)

Maximum O/S dimension back to front (with bumper) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181)

Back of case to front of front panel 34 1/2 (876) 34 1/2 (876) 34 1/2 (876) 34 1/2 (876)

Back of case to O/S edge of front skid rail 29 3/8 (746) 29 3/8 (746) 29 3/8 (746) 29 3/8 (746)

Width of skid rail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 1 3/8(34) 1 3/8(34) 1 3/8(34) 1 3/8(34)

Distance between edges of

external support and center support NA 28 1/2 (724) 40 1/2 (1029) 40 1/2 (1029)

Distance between edges of center supports NA NA NA 44 (1118)

Stub-up area between front skid rail and front panel 5 3/4 (146) 5 3/4 (146) 5 3/4 (146) 5 3/4 (146)

Electrical Service (Electrical Field Wiring connection point)

(B)

Length of electrical raceway 18 3/8 (467) 18 3/8 (467) 37 (940) 37 (940)

(C)

RH End of case to center of farthest knockout 36 5/8 (930) 60 3/4 (1543) 84 3/4 (2153) 132 3/4 (3372)

Back of case to center of end knockout 29 5/8 (752) 29 5/8 (752) 29 5/8 (752) 29 5/8 (752)

(D)

RH End of case to RH end of raceway 27 5/8 (702) 51 5/8 (1311) 57 1/4 (1454) 105 1/8 (2670)

(E)

LH End of case to LH end of raceway 2 1/8 (54) 2 1/8 (54) 2 (51) 2 1/4 (57)

Waste Outlet

(F)

RH End of case to the center of waste outlet 24 1/4 (616) 24 1/4 (616) 24 1/2 (622) 72 1/4 (1834)

LH End of case to the center of waste outlet 23 7/8 (606) 47 7/8 (1216) 71 3/4 (1822) 72 1/8 (1832)

Back O/S of case to center of waste outlet 27 5/8 (702) 27 5/8 (702) 27 5/8 (702) 27 5/8 (702)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 3/4 (781) 30 3/4 (781) 30 3/4 (781) 30 3/4 (781)

RH end of case to center of refrigeration outlet 8 3/8 (213) 8 3/8 (213) 8 3/8 (213) 8 3/8 (213)

2 of 7 E5 Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views

Dimensions shown as inches and (mm).

09-2005

34 1/2

(876)

83/8(213)

Electrical Service

29 5/8

(752)

Waste Outlet

Front

27 5/8

(702)

30 3/4

(781) 46 1/2

(1181)

Water Seal

Delicatessen

Precut & Packaged

Produce

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75 (°F)

and 55% R.H.

Discharge Air (°F) 29

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/ft* E5

Parallel 1375

Conventional 1500

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

Frequency (hr) 6

Defrost Water 8.1 lb/ft/day

(± 15% based on case configuration and

product loading).

OFFTIME E5

Temp Term (°F) 48

Failsafe (minutes) 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** E5

Temp 14°F / 4°F

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** E5

4 ft 1.4

6 ft 2.1

8 ft 2.7

12 ft 3.9

***This is an average for all refrigerant types

actual refrigerant charge may vary by

approximately half a pound.

Length (in.) Added to Lineup by Each

End or Insulated Partition 1

3 of 7

P/N 0453529A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

FAN

Refrigeration

Outlet

15 3/4

(400)

25 3/8

(645)

(1854)

4 1/4

(108)

(305)

(559)

46 1/2

(1181)

(305)

27 5/8

(702)

(787)

30 3/4

(781)

34 1/2

(876)

52 1/4

(1327)

Impact Elite E5

Delicatessen

Precut & Packaged Produce

Elite Specialty Merchandiser Multi-deck, 5 Display Levels

Dimensions shown as in. & (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

See Page 7 for

shelf arrangement.

4 of 7 E5 Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact Elite E5

Delicatessen

Precut & Packaged Produce

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans — 12W 1223

Number of Fans — 12W (Export) 1223

(Export: 230V 50 hz shown)

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Fans

Standard (120V 60Hz) 0.70 1.40 1.40 2.10 50 100 100 150

Energy Efficient (120V 60 Hz) 0.40 0.80 0.80 1.20 22 44 44 66

Export (230V 50Hz) 0.40 0.80 0.80 1.20 57 114 114 172

Cycling Anti-sweat Heaters NA

Minimu Circuit Ampacity

With Standard Fans (120V 60Hz) 0.90 1.60 1.60 2.30

With Energy Efficient Fans (120V 60 Hz) 0.60 1.00 1.72 2.48

With Export Fans (230V 50Hz) 0.60 1.00 1.72 2.48

Maximum Over Current Protection 20 20 20 20

Export (230V 50Hz) 15 15 15 15

Electric Defrost Heaters (208V 1Ph) NA

Standard Lighting

2 Rows Canopy 0.51 1.02 1.02 1.54 59 118 118 170

Optional Lighting

1 Row Rail Lights 0.51 0.51 0.51 0.77 59 59 59 85

1 Row Ledge Lights 0.51 0.51 0.51 0.77 59 59 59 85

Optional Shelf Lighting

1 Row of Shelves 0.51 0.51 0.51 0.77 29 59 59 85

2 Rows of Shelves 0.51 1.02 1.02 1.54 59 118 118 170

3 Rows of Shelves 1.02 1.53 1.53 2.31 85 177 177 255

4 Rows of Shelves 1.53 2.04 2.04 3.08 118 236 236 340

5 Rows of Shelves 2.04 2.55 2.55 3.85 236 295 295 425

5 of 7

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

= Case GROUND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

P/N 0453529A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Optional Lighting: 1 Row Ledge or 1 Row Rail

Light Circuits

Standard Lighting 2 Rows Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

555

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

6 of 7 E5 Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Load Limit

18 in.

16 in.

14 in.

12 in.

45°

30°

Recommended

Angle

Shelf

Size

22 in.

10°

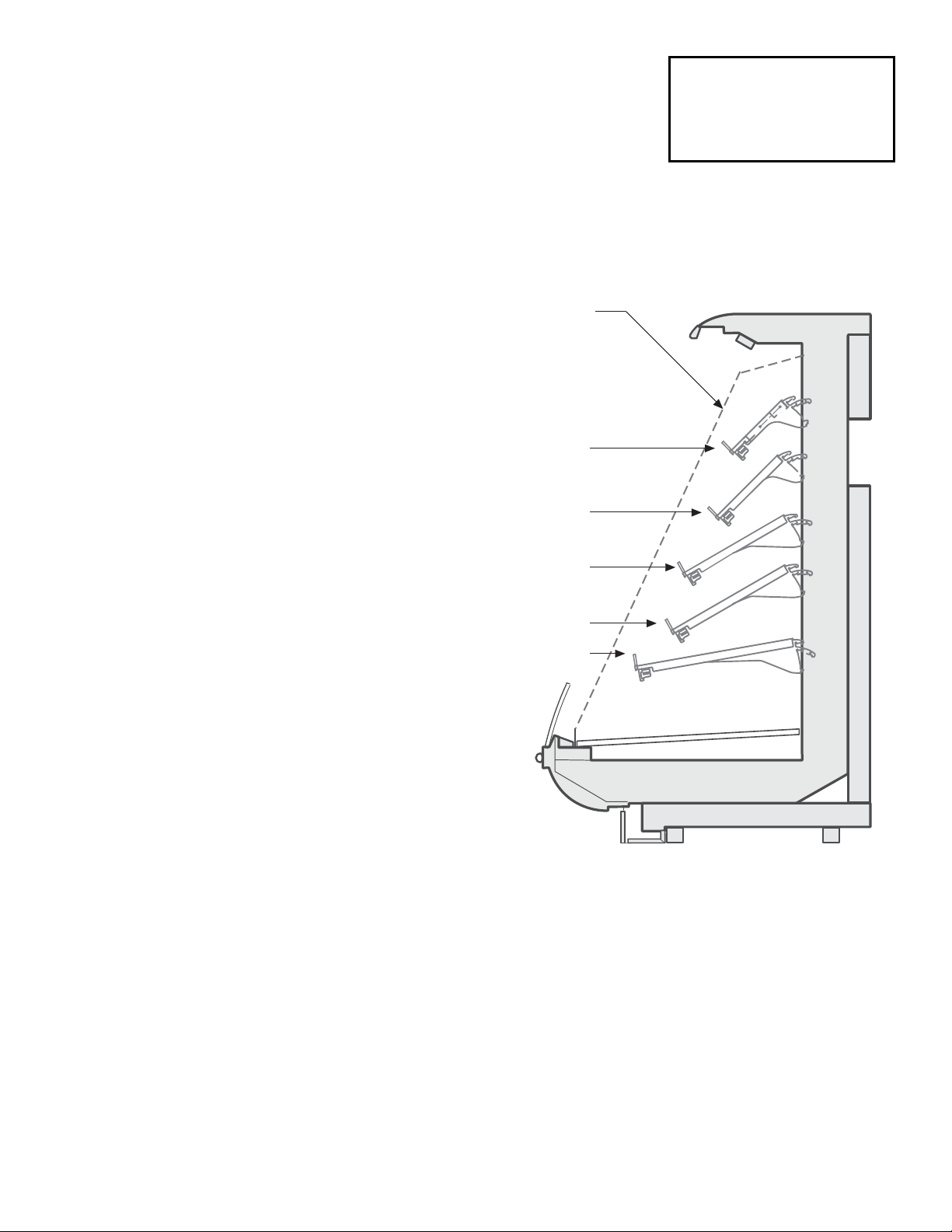

SHELF CONFIGURATION

This merchandiser is designed for five

shelves.

This illustration shows recommended

shelf depth and shelf angle for the five

locations.

It is critical to case performance that no

product, shelf or stop extend beyond the

load limit, as shown in this illustration.

This configuration supports the air

curtain and provides optimal case

performance.

Check with Hussmann engineering

before using a different configuration.

Impact Elite E5

Delicatessen

Precut & Packaged Produce

7 of 7

P/N 0453529A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
