Husqvarna ST 268EP/96191003803 Setup guide

532 44 37-35 Rev. 1

ILLUSTRATED PARTS LIST

MODEL NUMBER ST 268EP

PRODUCT NUMBER 961 91 00-38

MFG. ID. NUMBER 96191003803

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

2 (EXPLODED)

18 19

31 31

01.07.026-E

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

1 532 18 41-05 IMPELLER

2 532 42 71-48 GEARBOX ASSEMBLY

3 532 18 89-09 BEARING

4 532 42 71-46 IMPELLER PULLEY

5 532 44 24-38 DISCHARGE BASE

6 532 18 40-95 CORNER BRACKET

7 532 19 21-99 CLEAN OUT TOOL

8 532 40 54-00 TOOL CLIP

9 873 80 04-00 NUT 1/4-20

10 874 78 04-26 SCREW 1/4-20 X .625

11 532 42 79-42 NUT 5/16-18

12 532 16 31-83 SCREW 5/16-18 X .625

13 532 42 71-45 IMPELLER HUB

14 532 42 71-54 IMPELLER SLEEVE

15 873 90 06-00 NUT 3/8-16

16 532 18 03-55 CARRIAGE BOLT

17 532 19 41-89 SCREW 13-16 X .625

18 532 40 77-60 PLUG

19 532 42 73-02 GEARBOX COVER RH

20 532 42 73-45 GASKET

21 532 40 77-70 SEAL

22 532 40 77-62 BEARING

23 532 17 46-97 THRUST WASHER 1.00

24 532 40 77-63 WORM GEAR

25 532 40 77-64 AUGER SHAFT

26 532 18 92-82 SQUARE KEY

27 532 40 77-58 BEARING

28 532 17 46-83 THRUST WASHER

29 532 42 71-47 IMPELLER SHAFT

30 532 18 42-05 ROLL PIN

31 532 17 46-81 THRUST WASHER

32 532 17 46-84 THRUST BEARING

33 532 40 77-69 BEARING

34 532 40 77-68 O-RING

35 532 40 77-67 SCREW 5/16-18 X .750

36 532 42 73-17 GEARBOX COVER LH

37 532 19 20-90 SHEAR BOLT

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

3 (5x)

4 (5x)

01.07.022-C

1 532 42 95-87 AUGER HOUSING

2 532 40 77-27 SCRAPER BAR

3 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625

4 532 15 53-77 NUT 5/16−18

01.07.015-A

1 532 42 69-57 AUGER ASSEMBLY 27 LH

2 532 42 69-58 AUGER ASSEMBLY 27 RH

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

01.11.002-B

1 532 40 78-34 SKID PLATE

2 872 27 05-06 CARRIAGE BOLT 5/16−18 X .750

3 532 75 11-53 NUT 5/16−18

01.07.025-D

1 532 18 81-70 PLASTIC RETAINER

2 532 43 06-91 AUGER BALL BEARING

3 532 17 95-82 SCREW 5/16-18 x 1.00

4 874 78 04-26 SCREW 1/4-20 x .625

5 873 80 04-00 NUT 1/4-20

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

KEY PART

NO. NO. DESCRIPTION

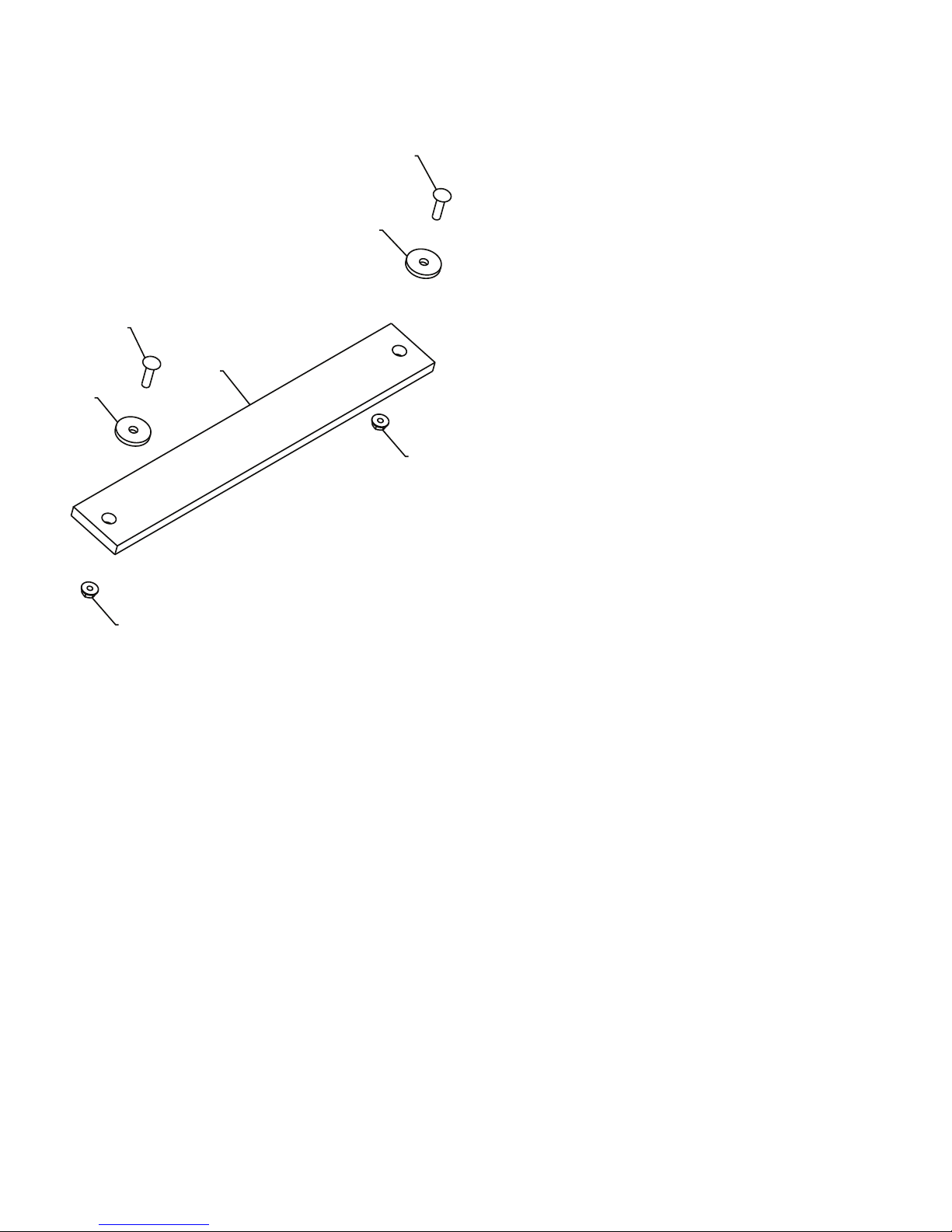

01.17.002-B

1 532 18 25-15 WEIGHT BAR

2 872 11 05-10 CARRIAGE BOLT 5/16−18 X 1.25

3 532 75 11-53 NUT 5/16−18

4 819 11 22-06 WASHER

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

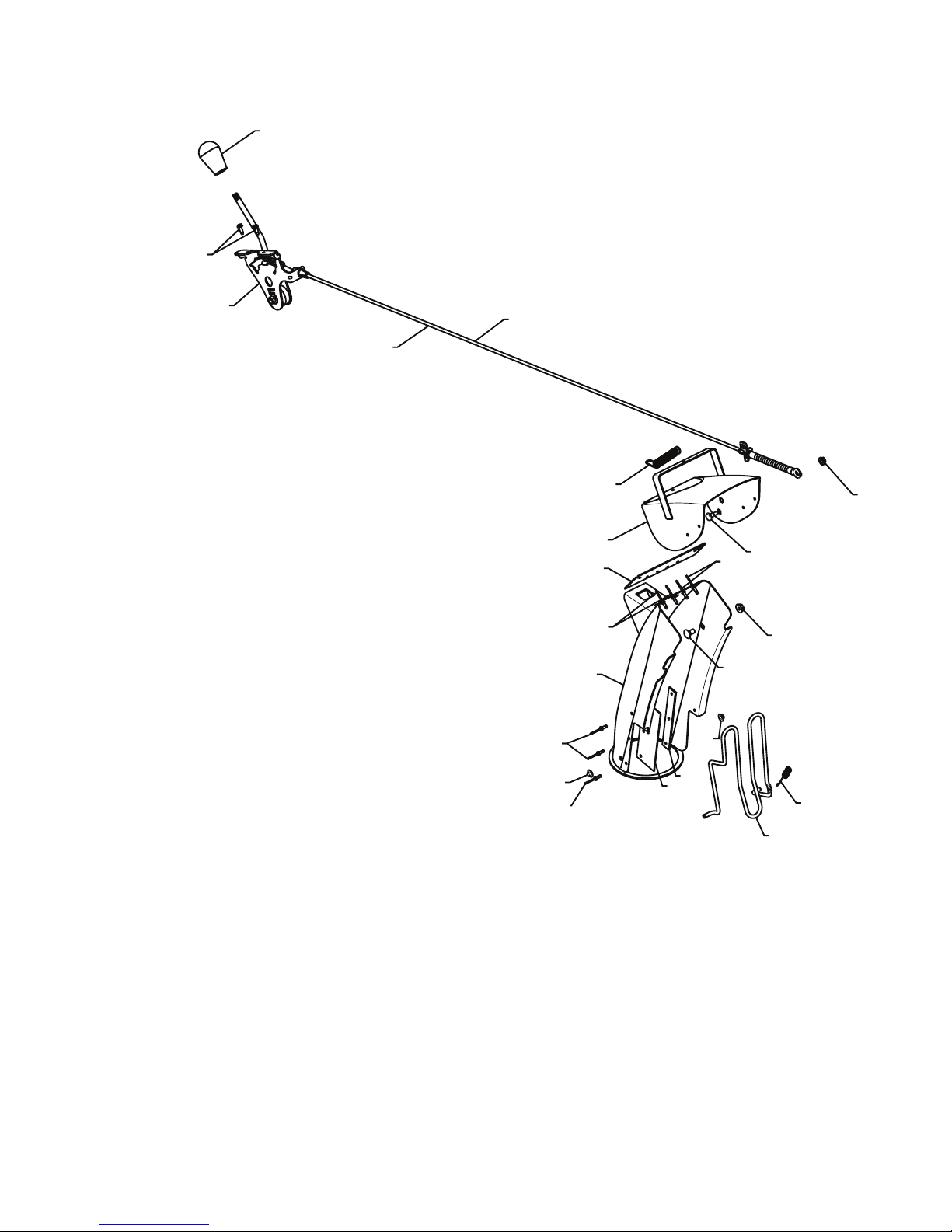

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

*10

*11

*12

*13

*14

01.09.028-A

1 532 44 40-41 CHUTE WELDMENT

2 532 18 41-13 DEFLECTOR WELDMENT

3 532 42 06-73 DEFLECTOR CONTROL ASSEMBLY

4 532 42 03-25 DEFLECTOR SEAL

5 532 41 42-80 KNOB BLACK

6 532 12 84-15 POP RIVET

7 817 50 10-10 SCREW 10-24 X .625

8 532 43 03-24 CHUTE SHOW SHIELD

9 532 42 17-28 SHIELD RETAINER STRAP

*10 532 17 98-29 SHOULDER BOLT 1/4-20 X .375

*11 532 19 17-30 NUT 1/4-20

*12 872 25 05-05 CARRIAGE BOLT 3/8-16 X .625

*13 532 75 11-53 NUT 5/16-18

*14 532 18 45-05 DEFLECTOR SPRING

15 532 42 06-79 (SERVICE PART) DEFLECTOR CONTROL

16 532 42 06-72 (SERVICE PART) DEFLECTOR CABLE BLACK

17 532 43 55-82 CHUTE GUARD

18 532 05 93-49 PUSH NUT

19 532 43 56-16 SPRING

NOTE:

1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

2. ITEMS 15 AND 16 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

01.09.009-A

1 532 42 11-38 SHIELD DEFLECTOR

2 532 42 32-47 STRAP

3 532 18 22-27 SCREW 8-32 X .50

4 532 18 22-28 NUT 8-32

01.14.011-A

1 532 42 11-38 SHIELD DEFLECTOR

2 532 42 32-47 STRAP

3 532 18 22-27 SCREW 8-32 X .50

4 532 18 22-28 NUT 8-32

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

*4 *5

01.09.010-B

KEY PART

NO. NO. DESCRIPTION

1 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY

2 817 50 10-10 SCREW 10-24 X .625

*3 532 42 06-78 ROTATOR HEAD

*4 532 40 59-32 ROTATOR PIVOT BRACKET

*5 532 42 06-75 PULLEY PIVOT

*6 532 42 82-73 CABLE ASSEMBLY ADJUSTABLE GRAY

*7 532 42 83-10 CABLE ASSEMBLY HEAT SHIELD GRAY

NOTES:

1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

01.15.017-A

1 532 43 86-29 STEER CABLE

2 874 04 10-24 SCREW 10−24 X 1.50

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS HANDLES

SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38

01.08.012-E

1 532 41 55-39 CONTROL PANEL

2 532 42 91-50 CONTROL LEVER LH

3 532 42 91-51 CONTROL LEVER RH

4 532 41 55-46 TRACTION ROD ARM

5 532 42 90-98 IMPELLER ROD ARM

6 532 41 26-77 INTERLOCK ROD

7 532 42 16-13 SPACER

8 532 16 96-75 RETAINER

9 817 06 04-10 SCREW 1/4-20 X .62

10 532 41 42-80 KNOB BLACK

11 532 41 42-81 KNOB RED

12 532 17 88-99 HANDLE KNOB

13 819 13 13-16 WASHER 3/8

14 872 12 06-18 CARRIAGE BOLT 3/8-16 X 2.25
