Husky 38964 User manual
AllProductslimitedtoVehicleTowRating;seeVehicleOwnersManual
Seewww.huskytow.comforWarrantyInformation/TechSupport.©2014HuskyTowingProducts
August13,2014‐Rev1Page‐1
CLAMP-ON SWAY CONTROL
BALL MOUNT Part # 38964
Assembly, Installation, Operation and Maintenance Instructions
Dealer / Installer: Provide a copy of these Instructions to the end user of this product. These
Instructions provide important operating and safety information for proper
usage of this product. Demonstrate the proper use of the product with the
end user. Have the end user demonstrate that they understand the proper use
of the product.
End User: Read and follow all instructions included in this manual. Ask your Dealer /
Installer for assistance if you do not understand the proper use of the product.
Never remove any decals from the product.
PARTS INCLUDED
# DESCRIPTION QTY # DESCRIPTION QTY
1 BALL PLATE ASSEMBLY 1 4 3/8”-16 NUT 4
2 BACKING PLATE 1 5 3/8” WASHER 4
3 3/8”-16 X 3-1/2” HEX BOLT 4
1
2
3
4
5
TRAILER FRAME
Tools Needed
9/16” WRENCH & SOCKET
TORQUE WRENCH
IMPORTANT: THIS PRODUCT IS ONLY INTENDED FOR USE WITH 2” TO 2-3/4” TRAILER FRAMES.
AllProductslimitedtoVehicleTowRating;seeVehicleOwnersManual
Seewww.huskytow.comforWarrantyInformation/TechSupport.©2014HuskyTowingProducts
August13,2014‐Rev1Page‐2
1: Assemble ball plate assembly (#1) and backing plate (#2) with the two 3/8” hex bolts
(#3) and two 3/8” lock nuts (#4) in the upper two holes in both plates. See Fig. 1
2: Position the assembly over the trailer frame and place it so that the ball is the correct
distance from the hitch sway control ball. See Fig. 2A. See sway control instructions for the
correct distance. For the Husky Friction Sway Controls part # 34715 & 37498; measure 24"
from the center of the coupler ball socket down the side of the frame to the center of the
ball on the ball plate assembly (#1). See Fig. 2B.
FIG. 2A
FIG. 2B
FIG. 1
24”
AllProductslimitedtoVehicleTowRating;seeVehicleOwnersManual
Seewww.huskytow.comforWarrantyInformation/TechSupport.©2014HuskyTowingProducts
August13,2014‐Rev1Page‐3

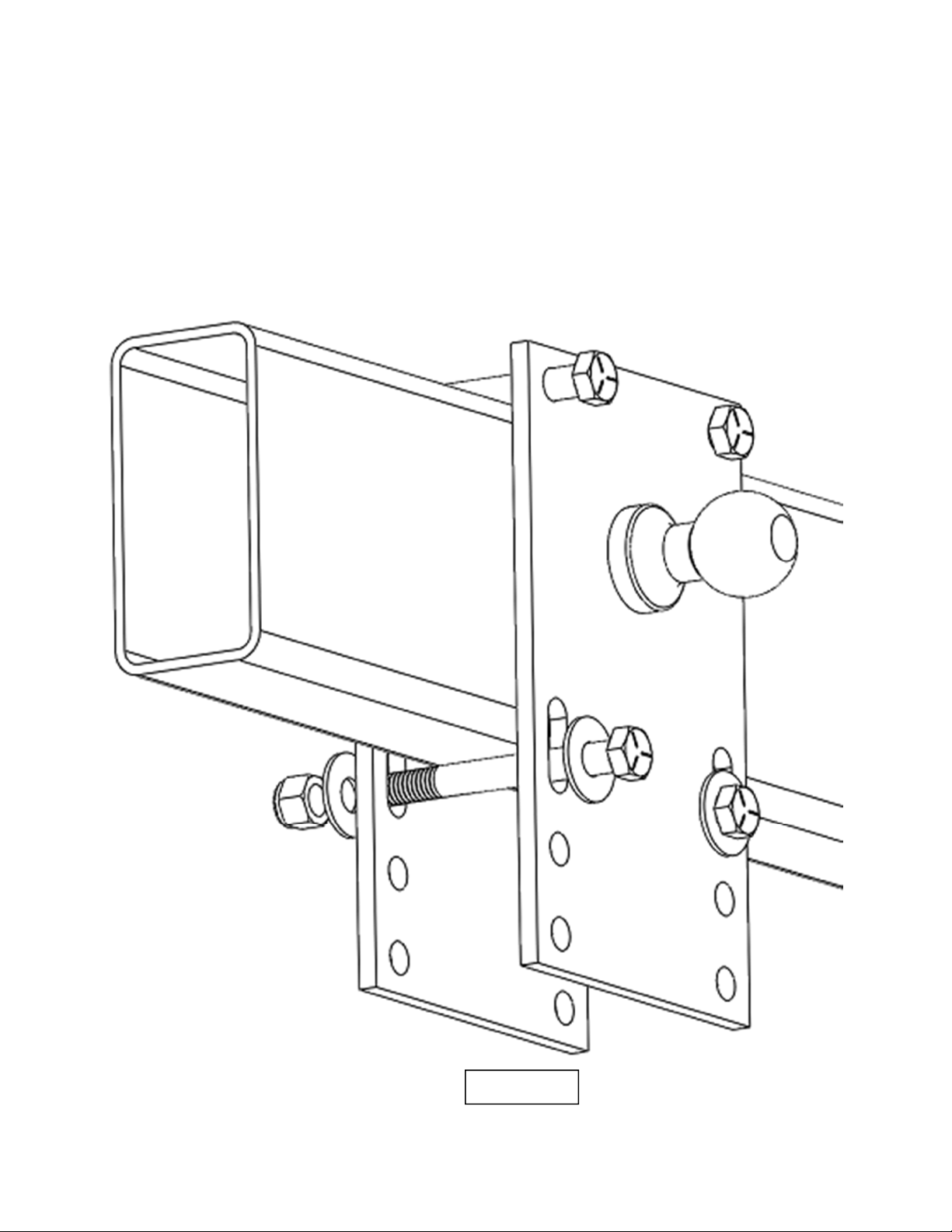

3: Insert the remaining two 3/8” hex bolts (#3) and two 3/8” lock nuts (#4) through lower
holes or slots. The 3/8” hex bolts MUST be placed as close to the bottom of the trailer
frame as possible. See Fig. 3.
PLACE THE 3/8” FLAT WASHERS (#5) UNDER THE HEAD OF THE 3/8” HEX BOLTS
(#3)AND 3/8” LOCK NUTS WHEN THE SLOTS IN THE BALL PLATE ASSEMBLY (#1)
AND THE BACKING PLATE (#2) ARE USED. See Fig. 3.
4:Tighten ALL 3/8” hardware to 30 ft. lbs.
FIG. 3
