Hunter Solaris 21685 User manual
Solaris Ceiling Fan
Owner’s Manual
Product:
Trademark:
Quantity:
Electrical Rating:
Ceiling Fan
Revolutions
1 Piece
120 V ~ 60 Hz 140 W
44276-01 r021813
200
Models 21685 21687 21688 21689
44276-01 02/18/2013
2
You have chosen the best. Your new Revolutions ceiling fan will provide you with
many years of comfort and satisfaction.
44276-01 02/18/2013
3
u
.
44276-01 02/18/2013
4

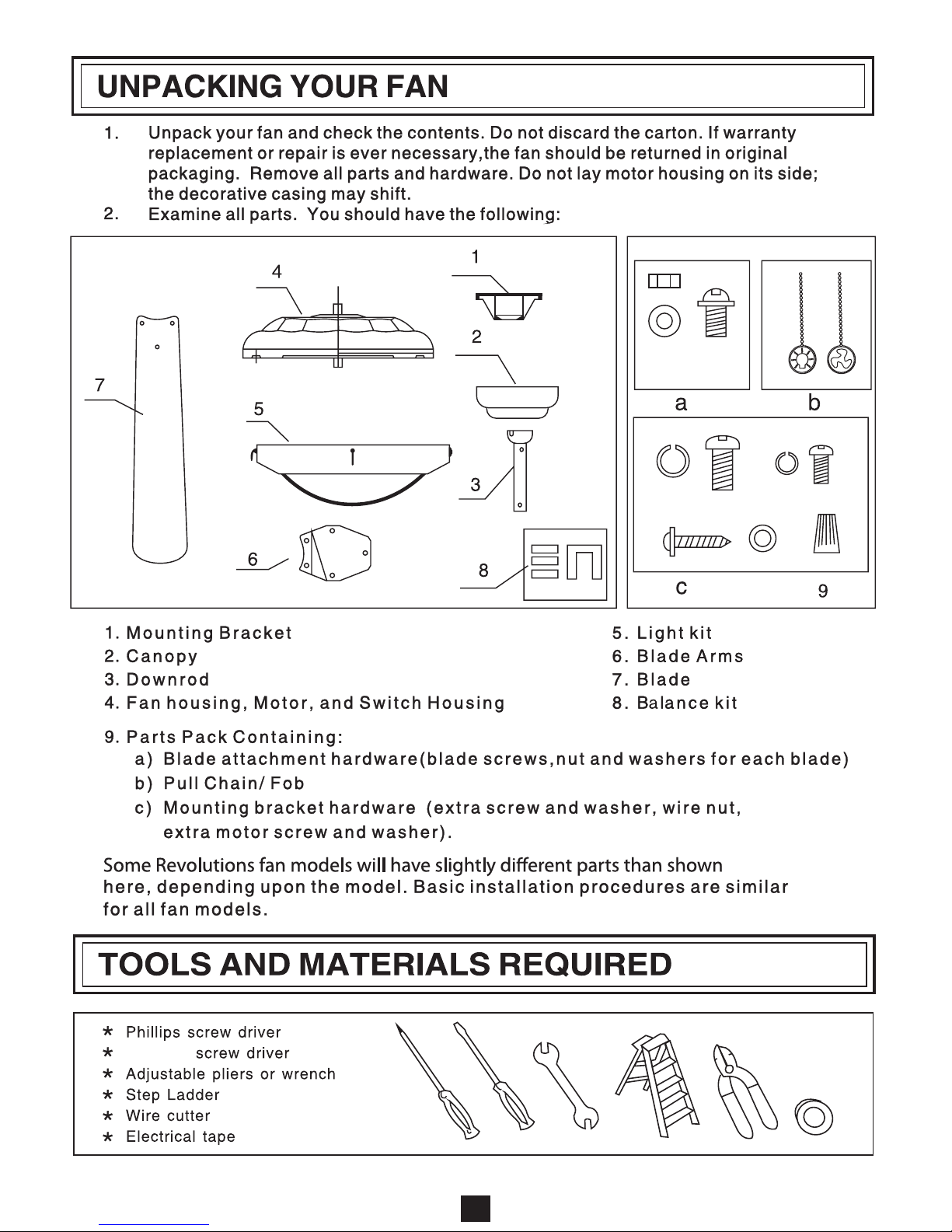

Flat Head
44276-01 02/18/2013
5
.
.
METHOD A
Attach mounting bracket to outlet box using screws provided with the outlet box (Fig. 5a) Install rubber washers in
between the ceiling and mounting bracket to reduce vibration.
44276-01 02/18/2013
6
Slide the canopy onto the downrod (Fig. 6). Thread the power leads from the fan through the
canopy and downrod. Take care not to pull excessively on power wires. Damage and loose
connections could result from any abnormal pressure on these wires. Set downrod into yoke.
Rotate until the holes match. Be careful not to damage wiring. Insert connector pin through the
holes (Fig. 6A and 6B). Secure the pin by inserting the stop pin through the connector pin.
1.
44276-01 02/18/2013
7
2.
3.
4.
5.
6.
2.
1.
3.
4.
5.
6.

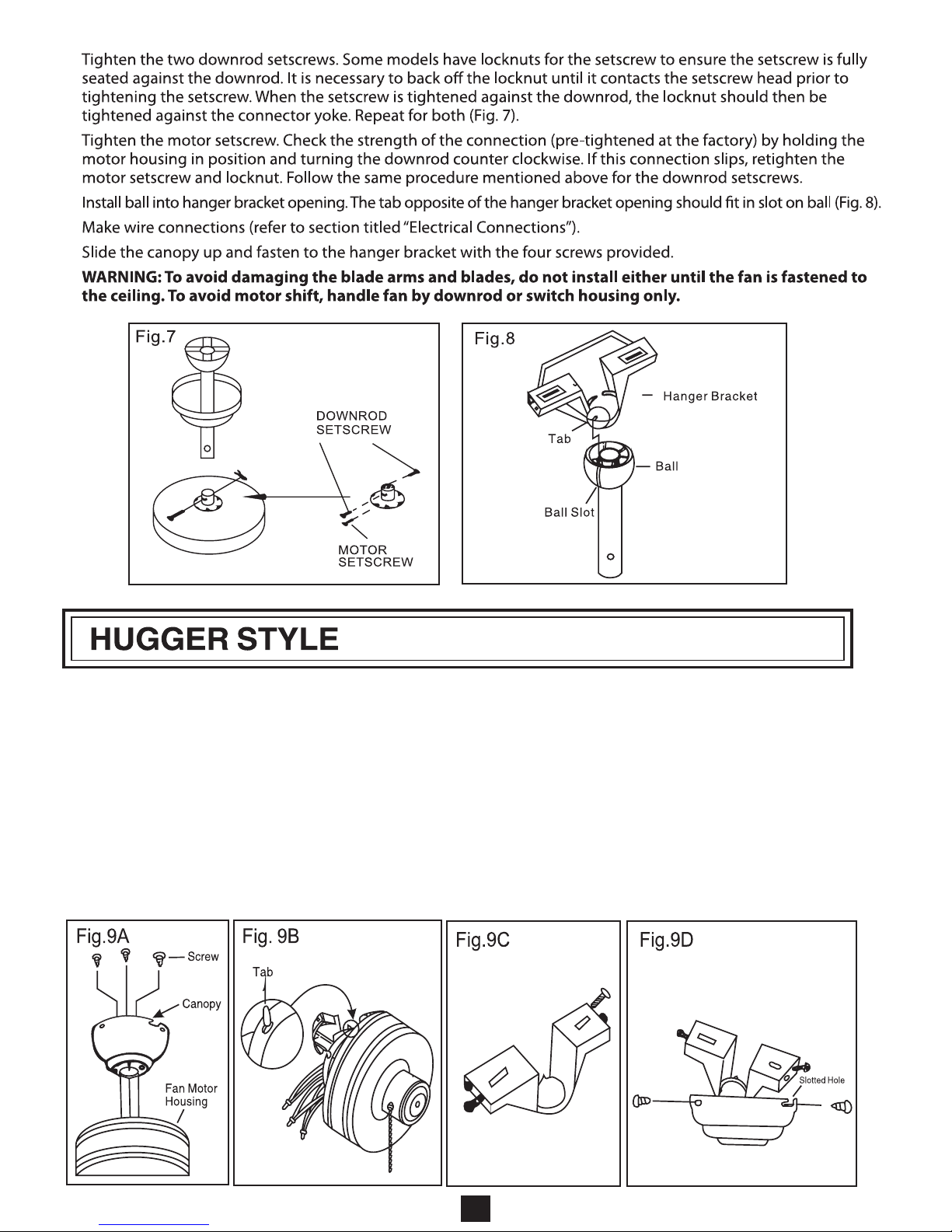

Fasten the canopy directly to the top of the fan motor housing with the three screws provided. (The downrod and
ball are not used for this installation). (Fig. 9A) If a metal ring washer with three holes is provided, use it to install
the canopy.
Hang the canopy (with the fan motor housing attached) from the tab on the hanger bracket (Fig. 9B). This will
allow you to make the electrical connections without having to hold the fan up.
Make the wire connections (refer to section titled “Electrical Connections”).
Put two screws in the hanger bracket, leaving them partially out (Fig. 9C).
Place the canopy up on the hanger bracket by inserting the slotted opening of the canopy on the screws (Fig. 9D).
Insert the remaining screws through the remaining canopy holes and tighten all four screws.
WARNING: Failure to completely tighten the screws in step 1 could result in fan loosening and possibly falling.
44276-01 02/18/2013
8
44276-01 02/18/2013
9
Attach the blue wire plug from the fan to the black wire plug from the light kit. Attach the white wire
plug from the fan to the white wire plug from the light kit. Attach the light kit to the switch housing using
three small screws provided (Fig. 12).
Install light bulbs (not included). Slide fan pull chain through hole in glass bowl and metal cap (Fig. 12B).
44276-01 02/18/2013
10
