Installation Manual

Model: 50812 Matte Nickel

50810 Matte Black

50811 Matte Fresh White

Fan weight ±2 lbs: 15.4 lbs (7.0 kg)

Presto

PG3913 r062420

HUNTER - PRESTO - CEILING FAN

INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad

Ladder

9/64” Drill BitDrill

Screwdriver

Pliers Wire Strippers

OPTIONAL

Congratulations on purchasing your new Hunter®ceiling fan!

Here are the tools you’ll need to complete your installation:

The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This

instruction manual contains complete instructions for installing and operating your fan. We are proud of our work and

appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

We are here to help!

This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction

Manual, keep your smartphone or tablet nearby. We have added video links to help you through the more technical

sections. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone

support at 1.888.830.1326 or visit us at HunterFan.com.

WARNING

This product conforms to UL Standard 507.

READ and SAVE These Instructions

Warning

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the

mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you

cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

Caution

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

If mounting to a support structure, you will also need these tools.

HUNTER - PRESTO - CEILING FAN

INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad

1886

Do not discard the hardware bags or mix parts from

different bags. Make note of the symbol printed on

each hardware bag. The symbols can be used to

identify the appropriate hardware for each step.

We recommend that you pull everything out of the box and lay it out. We have

grouped the drawn components below with the hardware you’ll need for those

parts. The screws below are drawn to scale to make it easier to identify what

piece of hardware is needed to install each component.

For installing the hanger bracket and wiring the fan

For installing the canopy

Canopy Canopy Screw

Ceiling Bracket

Wood Screw

Wire Nut

Washer

BAG

Hunter Pro Tip:

Find a part that is missing or damaged?

Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

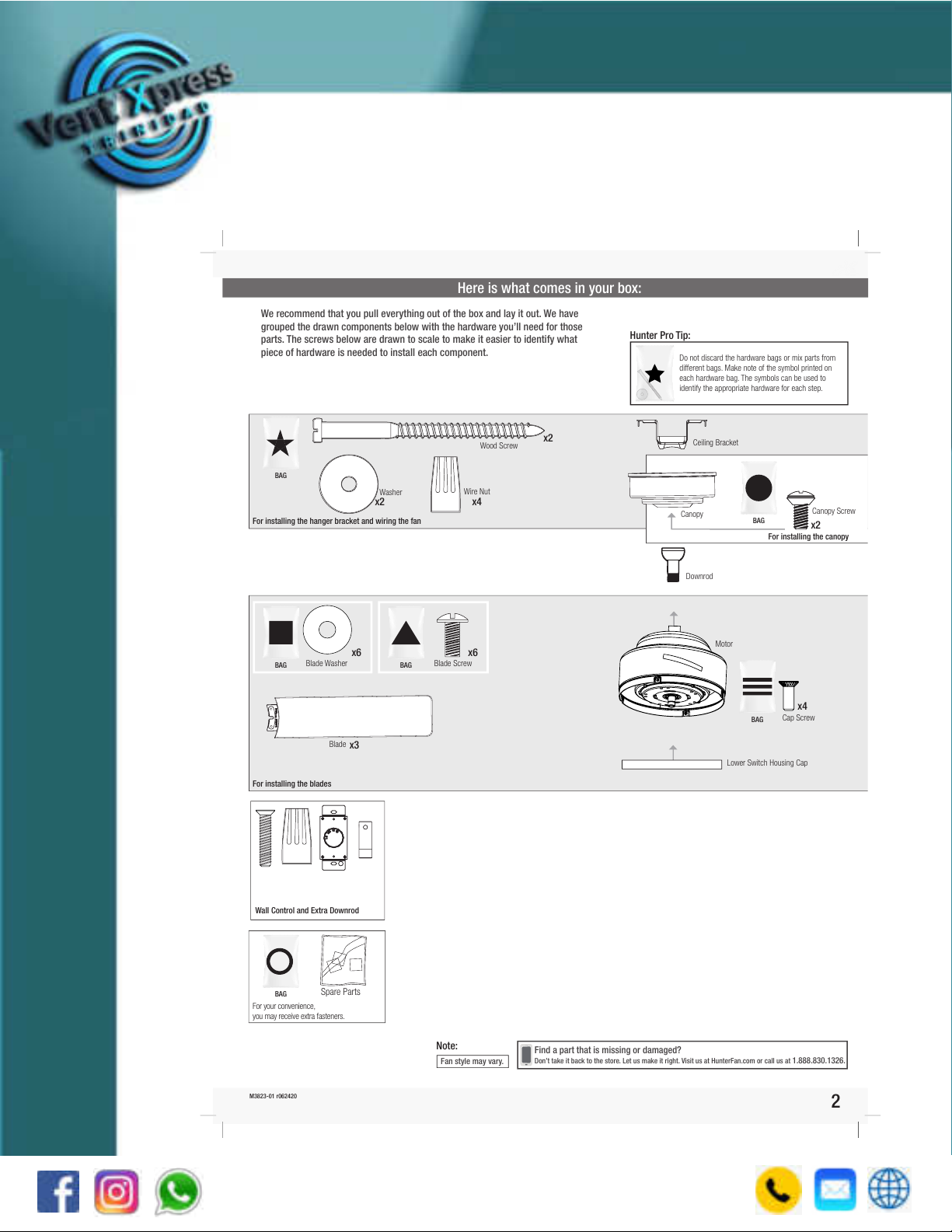

Here is what comes in your box:

BAG

x6 x6

For installing the blades

Lower Switch Housing Cap

Blade ScrewBlade Washer

BAG BAG

Spare Parts

For your convenience,

you may receive extra fasteners.

BAG

Cap Screw

BAG

Downrod

Motor

M3823-01 r062420

Blade

Wall Control and Extra Downrod

Fan style may vary.

Note:

HUNTER - PRESTO - CEILING FAN

INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad

1886

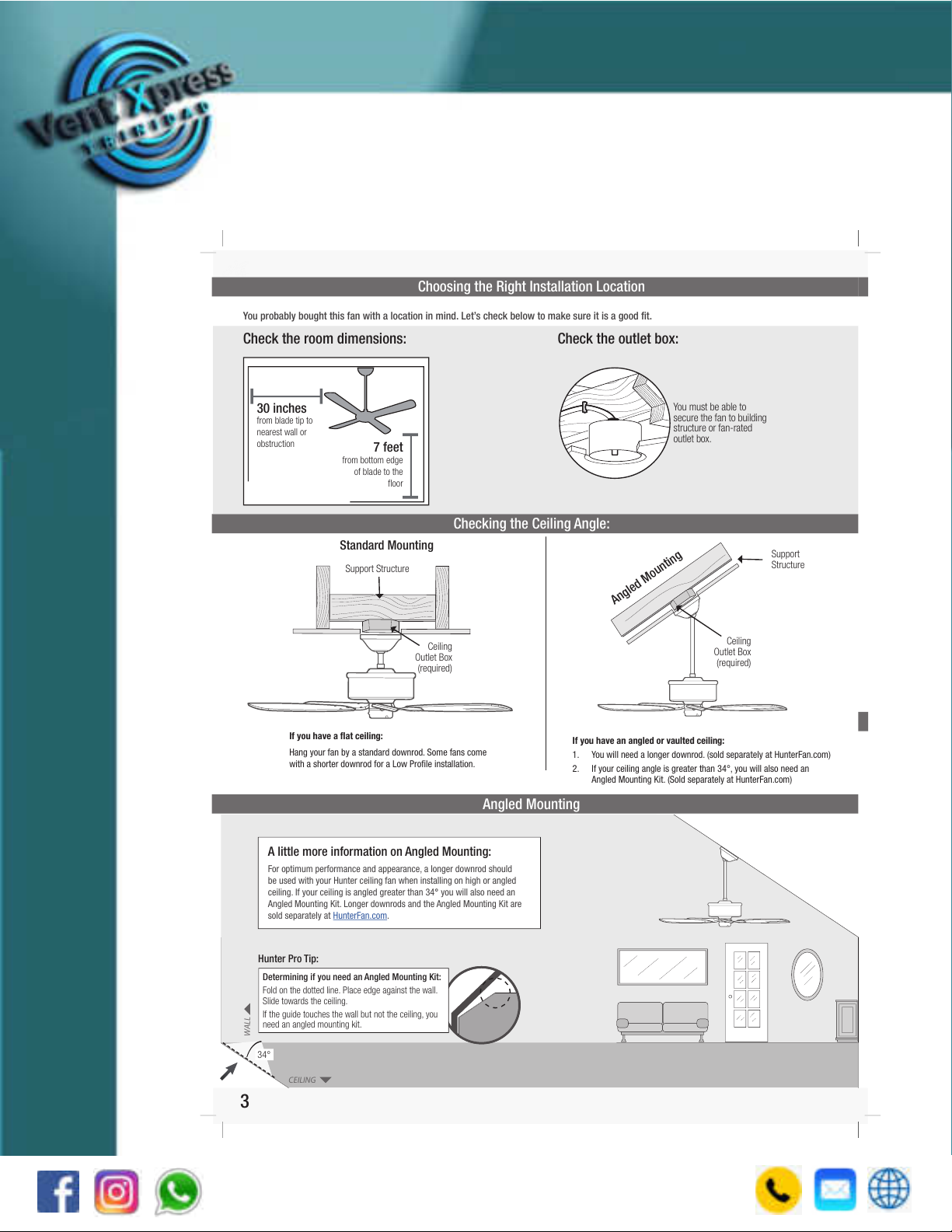

Choosing the Right Installation Location

Checking the Ceiling Angle:

Angled Mounting

You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.

If you have an angled or vaulted ceiling:

1. You will need a longer downrod. (sold separately at HunterFan.com)

2. If your ceiling angle is greater than 34°, you will also need an

Angled Mounting Kit. (Sold separately at HunterFan.com)

Check the room dimensions: Check the outlet box:

You must be able to

secure the fan to building

structure or fan-rated

outlet box.

30 inches

from blade tip to

nearest wall or

obstruction 7 feet

from bottom edge

of blade to the

oor

Support

Structure

Ceiling

Outlet Box

(required)

Angled Mounting

If you have a at ceiling:

Hang your fan by a standard downrod. Some fans come

with a shorter downrod for a Low Prole installation.

Support Structure

Ceiling

Outlet Box

(required)

Standard Mounting

A little more information on Angled Mounting:

For optimum performance and appearance, a longer downrod should

be used with your Hunter ceiling fan when installing on high or angled

ceiling. If your ceiling is angled greater than 34°you will also need an

Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are

sold separately at HunterFan.com.

Determining if you need an Angled Mounting Kit:

Fold on the dotted line. Place edge against the wall.

Slide towards the ceiling.

If the guide touches the wall but not the ceiling, you

need an angled mounting kit.

Hunter Pro Tip:

CEILING

WALL

34°

HUNTER - PRESTO - CEILING FAN

INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad

1886

Installing the Ceiling Bracket

Use wood screws and

washers (included) when

securing to support structure

with approved electrical

outlet box. Drill 9/64” pilot

holes in support structure

to aid in securing ceiling

bracket with hardware found

in the hardware bag.

Use machine screws

(provided with outlet box)

and washers when securing

to existing ceiling fan-rated

outlet box. Make sure it is

securely installed and is

acceptable for fan support of

31.8 kg (70 lbs) or less.

Option 2:

Wood Screws

Option 1:

Machine Screws

OFF

Turn Power

Do this rst!

The machine screws are the ones

that came with your outlet box.

Hunter Pro Tip:

For angled ceilings,

point opening

toward peak.

ANGLED

MOUNTINGTIP

BAG

Wood Screw

Washer

You have two options for installation. Pick which one works best for your location. Remove any existing

bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.

Installing the Downrod

Follow below if you are using the downrod that came pre-assembled in your box. Need to

install a longer or shorter downrod? Check out the guide at the end of this manual.

8”

3/8”

(not to scale)

Pass all wires to one side of horizontal

bar in downrod assembly. Hand tighten

the downrod (at least 4–5 full turns)

until it stops. Trim the wires coming

from the fan so that 8-inches remain

coming from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

STEP

Hunter Pro Tip:

The ground wire attached to the

downrod is approximately 8 inches.

Remove the pre-installed

setscrew so that the

downrod can be inserted.

WARNING

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• ALWAYS tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

each time you change fan direction.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Glass Wall Control

WARNING

To avoid possible electrical shock, before

installing your fan, disconnect the power by

turning off the circuit breakers to the outlet

box associated with the wall switch location.

HUNTER - PRESTO - CEILING FAN

INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad

1886

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Wall Control

Hanging the Fan

Progress Check:

Your fan should look like this.

Place the downrod ball into

the slot in the ceiling bracket.

NOTICE

To prevent damage to fan,

ALWAYS lift holding either the

fan housing or the downrod.

Fan style may vary.

Note:

HUNTER - PRESTO - CEILING FAN

INSTALLATION GUIDE
