Hunter Baseball 23252 Manual

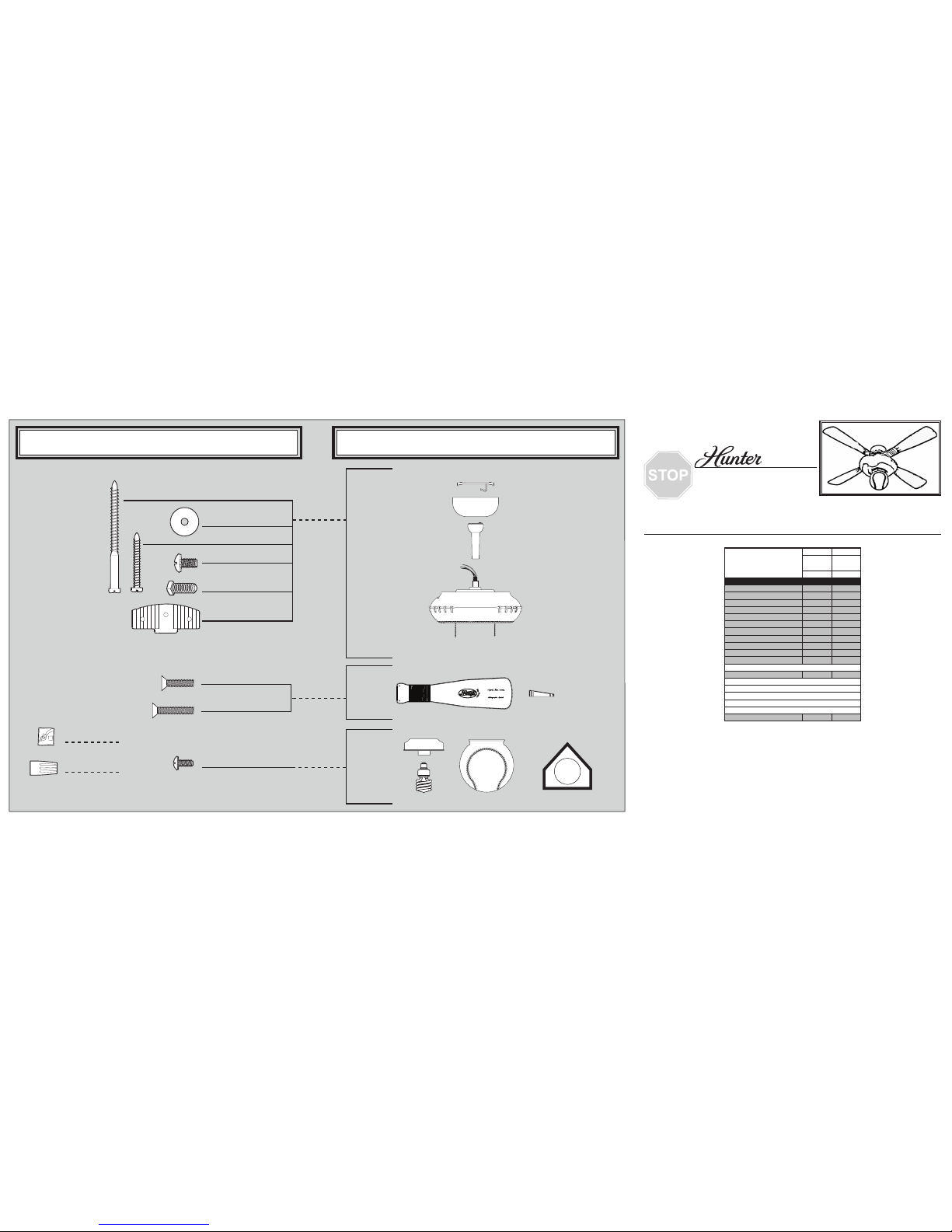

PARTS GUIDE

Using this Parts Guide, make sure all

parts are included in the box.

If parts are missing, DO NOT RETURN

THIS ITEM TO THE STORE, call 888-830-1326 for assistance.

THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULLASSEMBLY INSTRUCTIONS.

Using this Parts Guide, make sure all

parts are included in the box.

If parts are missing, DO NOT RETURN

THIS ITEM TO THE STORE, call 888-830-1326 for assistance.

THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULLASSEMBLY INSTRUCTIONS.

Parts List

Model # 23252

Asm. Dwg. # 92595-01

Finish Tan

Item Name Qnty Part #

*Canopy Assembly

Ceiling Plate 1 83877-01

Canopy 1 83878-01

Hanger Ball / Downrod Assembly 1 83875-01

Setscrew 1 03009-02

Ceiling Decal 1 84140-00

Blade 4 84109-01

Mounting Screw, #1/4-20x1.06 4 63994-01

Mounting Screw, #1/4-20x1.38 4 63994-02

Mounting Block 4 73837-01

Globe Fitter 1 73040-01

Globe/Shade 1 84110-01

Hardware Kit 1 92595-00-850

Canopy Screw

Wood Screw 1.5”

Wood Screw 3”

Flat Washer

Screw, Machine, 6-32

Balancing Kit 1 07570-01

Fan Parts

(Not Drawn to Scale)

Hardware

(Drawn to Scale)

Hanger

Bracket

Assembly

Blade

Assembly

Switch

Housing

Assembly

Screw,

Machine, 6-32

Canopy Screw

Mounting Isolator

Mounting Screw,

#1/4-20x1.06

Setscrew

Flat Washer

Mounting Screw,

#1/4-20x1.62

3” Wood Screw

Balancing

Kit

Wire

Connector

1.5” Wood Screw

x 2

x 4

x 3

x 2

x 1

x 4

x 3

x 1

x 4

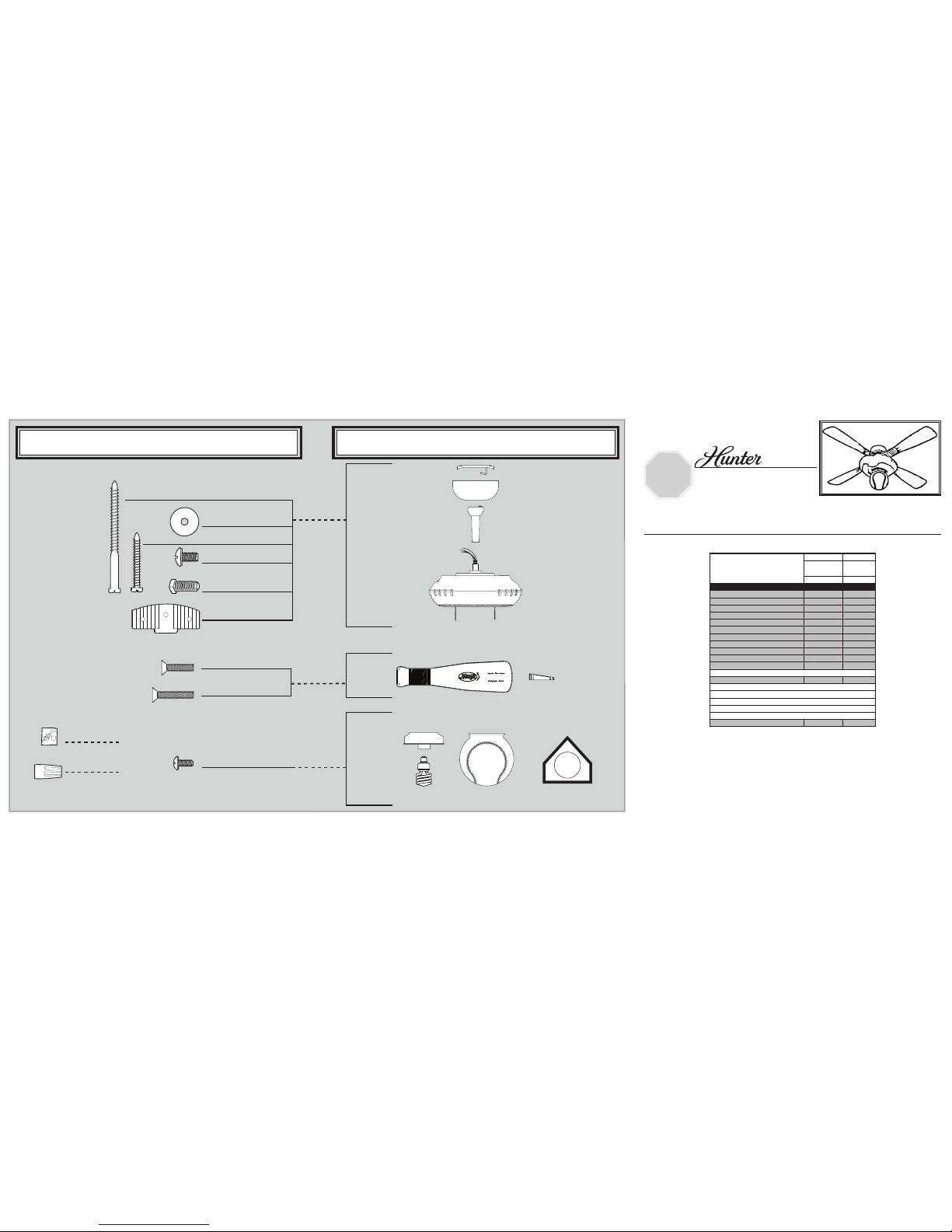

Materiales

(no dibujados a escala)

Piezas del ventilador

(no dibujadas a escala)

GUÍA DE PIEZAS

PARADA

Consulte esta Guía de partes para

asegurarse de que todas las partes

estén incluidas en la caja.

Si falta alguna parte, NO DEVUELVA ESTE PRODUCTO A LA TIENDA. Solicite ayuda al

888-830-1326. ESTAGUÍA DE PARTES SOLAMENTE ES REFERENCIAL. CONSULTE LAS

INSTRUCCIONES COMPLETAS DE ENSAMBLAJE EN ELMANUALDE INSTALACIÓN

PARADA

Lista de piezas

No. del modelo 23252

No. del dibujo de

ensamblaje 92595-01

Acabado Acabado

Nombre del ítem Cantidad No. de la pieza

*Conjunto de la campana

Placa de techo 1 83877-01

Campana 1 83878-01

Bola de suspensión / Conjunto de varilla 1 83875-01

Tornillo prisionero 1 03009-02

Calcomanía de techo 1 84140-00

Paleta 4 84109-01

Tornillo de montaje, #1/4-20x1.06 4 63994-01

Tornillo de montaje, #1/4-20x1.06 4 63994-02

Bloque de montaje 4 73837-01

Accesorio de pantalla 1 73040-01

Globo / Pantalla 1 84110-01

Kit de materiales 1 92595-00-850

Tornillo, de campana

Tornillo, de madera

Arandela, plana

Tornillo, mecánico, 6-32

Kit de equilibrado 1 07570-01

Conjunto del

soporte de

suspensión

de conjunto

de paleta

Conjunto del

interruptor

Tornillo

mecánico, 6-32

Tornillo prisionero

Tornillo de campana

Arandela plana

3” Tornillo de madera

Kit de

equilibrado

Empalme

plástico

1.5” Tornillo

de madera

Tornillo

mecánico, 6-32

x 2

x 4

x 2

x 1

x 4

x 1

x 4

Aislador de montaje

Tornillo de montaje,

#1/4-20x1.06

Tornillo de montaje,

#1/4-20x1.62

x 2

x 4

x 3
