Hunter 99183 User manual

Compatible with:

2xxxx Types A - Z

51000-58999 fan series

59500-59999 fan series

Select Casablanca Fans

Model 99183

MA011-01 • 09/26/13

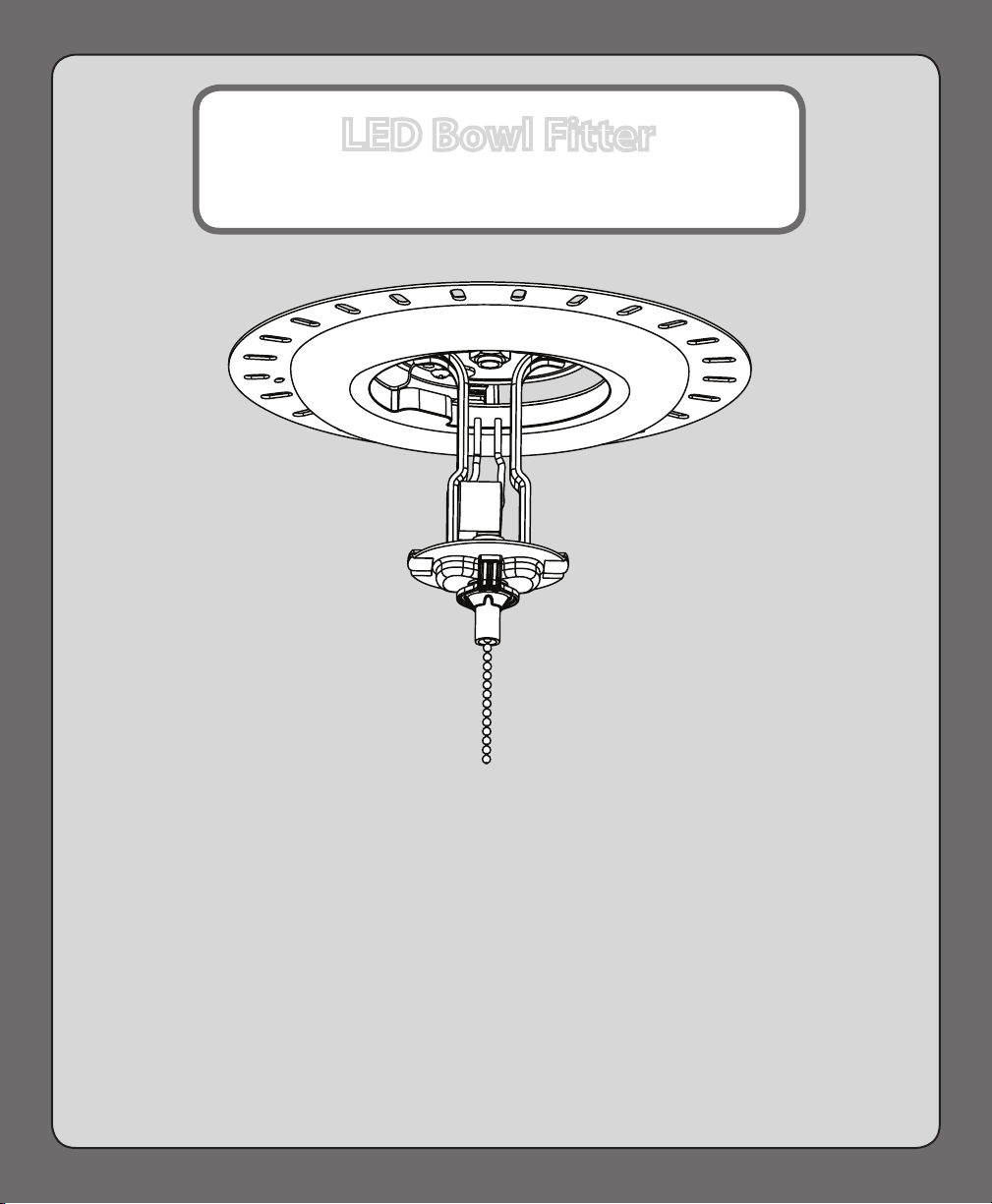

LED Bowl FitterLED Bowl Fitter

Installation Manual

MA011-01 • 09/26/13

1.888.830.1326

Your light kit is compatible with most ceiling fans. The light kit will attach to the fan’s

switch housing. Begin on page 3 where you will choose the type of switch housing that

most closely resembles the one on your fan. From there, you will be directed to the set of

assembly instructions that are appropriate for installing the light kit to your fan.

Read entire installation instructions carefully before

beginning installation and save these instructions.

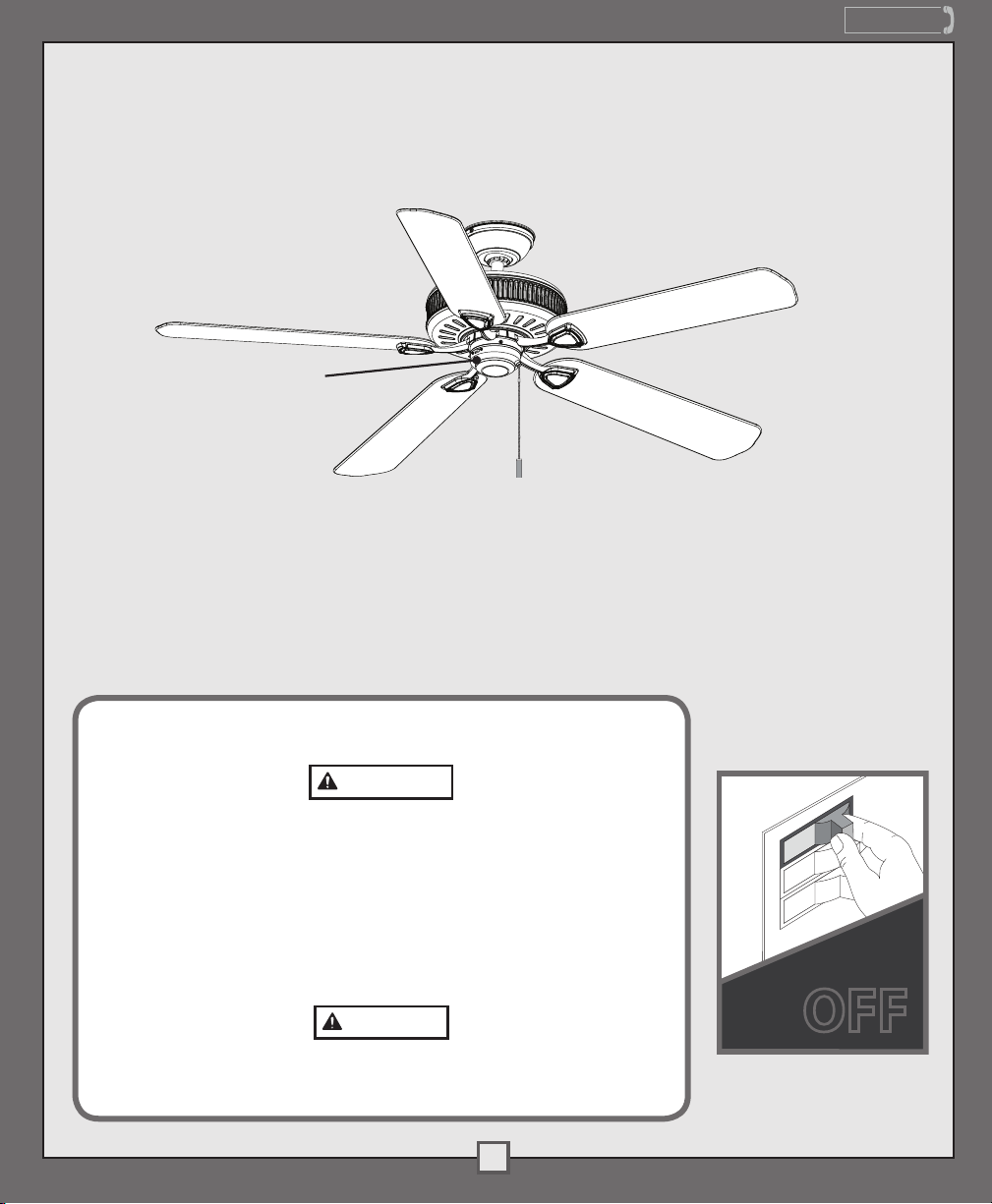

BEFORE YOU BEGIN

Switch

Housing

READ AND SAVE THESE INSTRUCTIONS

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal injury,

mount fan directly from building structure and/or an outlet box marked

acceptable for fan support of 70 lbs. (31.8 kg) and use the mounting screws

provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your

fan, disconnect the power by turning off the circuit breakers to the outlet

box and associated wall switch location. If you cannot lock the circuit

breakers in the off position, securely fasten a prominent warning device,

such as a tag, to the service panel.

c.1 - All wiring must be in accordance with national and local electrical codes

ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

CAUTIONS

Turn Power

OFF

MA011-01 • 09/26/13

1.888.830.1326

If your fan’s switch housing cap resembles

this one, remove the whole switch

housing by removing the switch housing

screws with a Phillips head screwdriver.

Remove the two cap screws from the

inside of the switch housing. Reinstall

the switch housing. Tighten the switch

housing screws. Then follow the TYPE-A

ASSEMBLY INSTRUCTIONS on pages 4-5.

If your fan’s switch housing cap

resembles this one, remove the cap

screws with a Phillips head screwdriver.

Then follow the TYPE-A ASSEMBLY

INSTRUCTIONS on pages 4-5.

Switch

Housing

Cap

Screw

WHICH ASSEMBLY METHOD WILL I USE?

Switch

Housing

Cap

Switch

Housing

Screw

If your fan’s switch housing cap resembles

this one, remove the whole switch

housing by removing the switch housing

screws with a Phillips head screwdriver.

Remove the plug button using a standard

screwdriver. Then follow the TYPE-C

ASSEMBLY INSTRUCTIONS on pages 8-9.

Switch

Housing

Screw

Plug

Button

If your fan’s switch housing cap

resembles this one, remove the whole

switch housing by removing the switch

housing screws with a Phillips head

screwdriver. Remove the plug button.

Then follow the TYPE-B ASSEMBLY

INSTRUCTIONS on pages 6-7.

Switch

Housing

Screw

Plug

Button

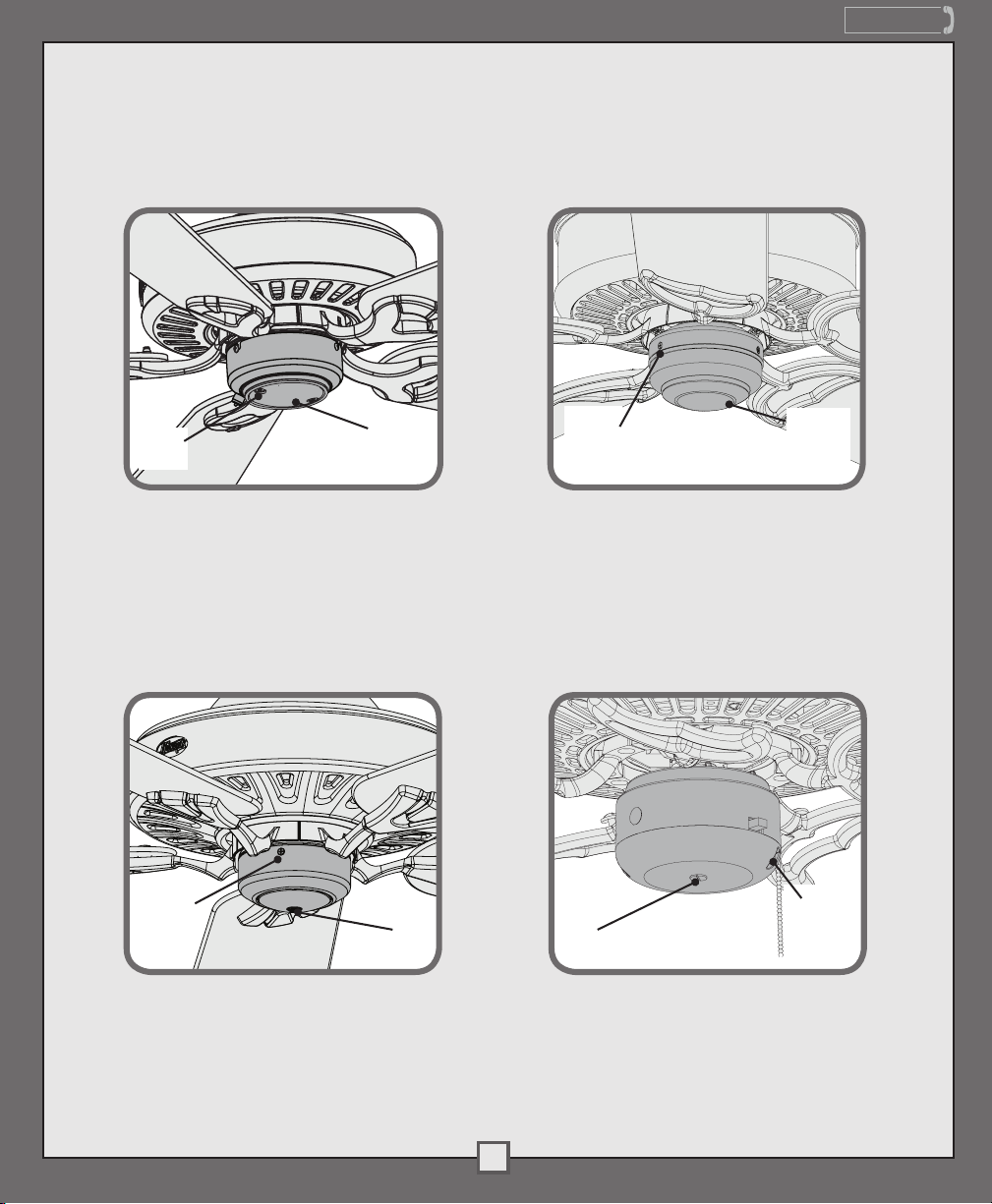

Choose one of the four images below that most closely resembles the switch

housing on your fan; then follow the instructions under the image.

MA011-01 • 09/26/13

1.888.830.1326

Using the single pin connectors, connect

the black or blue wire from the fan to the

black wire from the light kit. Connect the

white wire from the fan to the white wire

from the light kit.

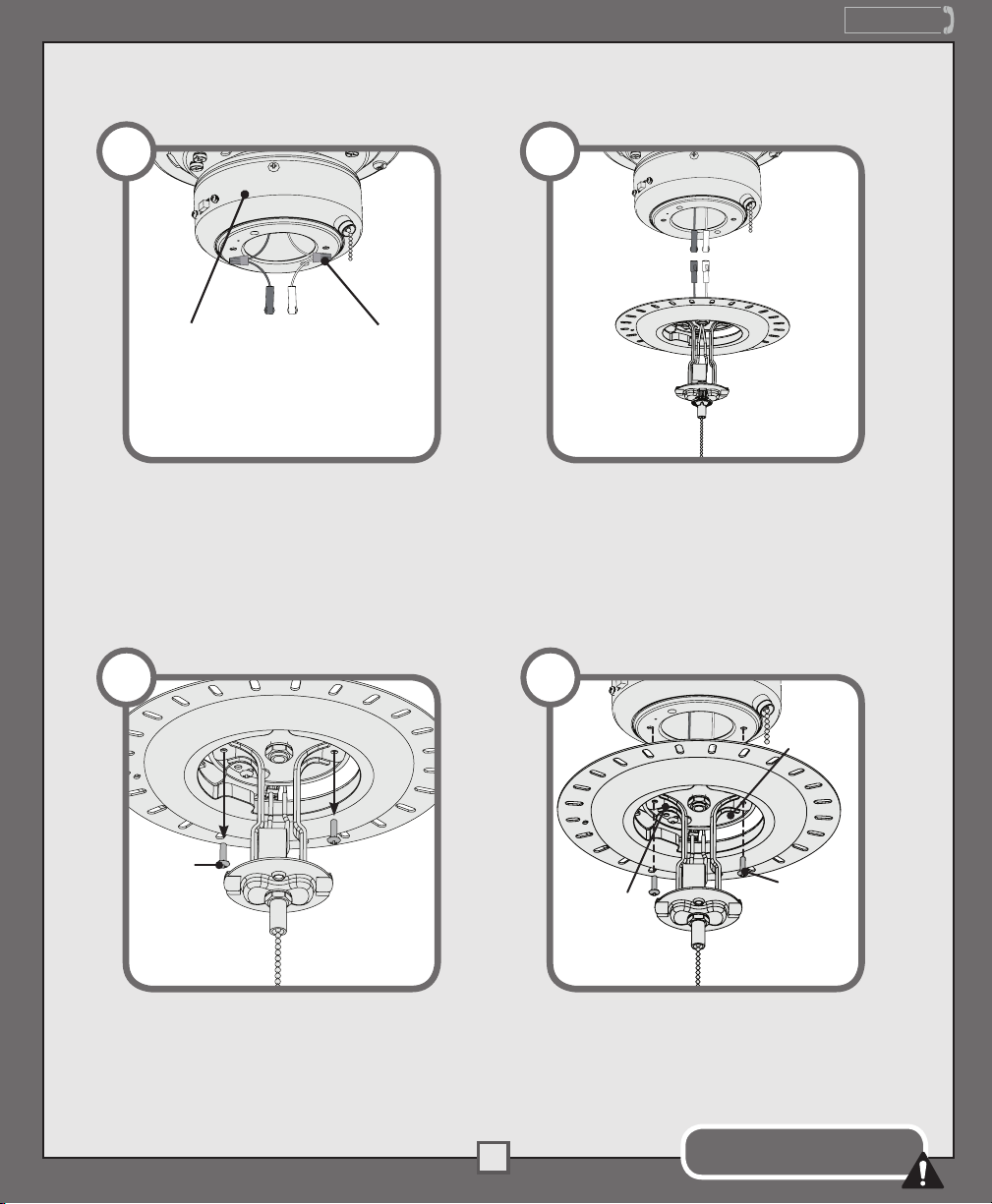

TYPE-A ASSEMBLY INSTRUCTIONS

Do not allow the light kit to hang

only by the wire connections!

If your fan does not have pin connectors on

the wires coming from the switch housing,

install the wiring harness provided. Using

the provided wire connectors connect the

white wire from the fan to the white wire

from the wire harness and connect the

black or blue wire from the fan to the black

wire from the wire harness.

Wire

Connector

Switch

Housing

1 2

Attach the light kit to the switch housing

by re-installing the light kit screws

through the xture and light kit cap into

the switch housing.

Light Kit

Screw

Remove the light kit screws attaching the

light kit cap to the light xture.

Light Kit

Screw

Light

Fixture

Light Kit

Cap

MA011-01 • 09/26/13

1.888.830.1326

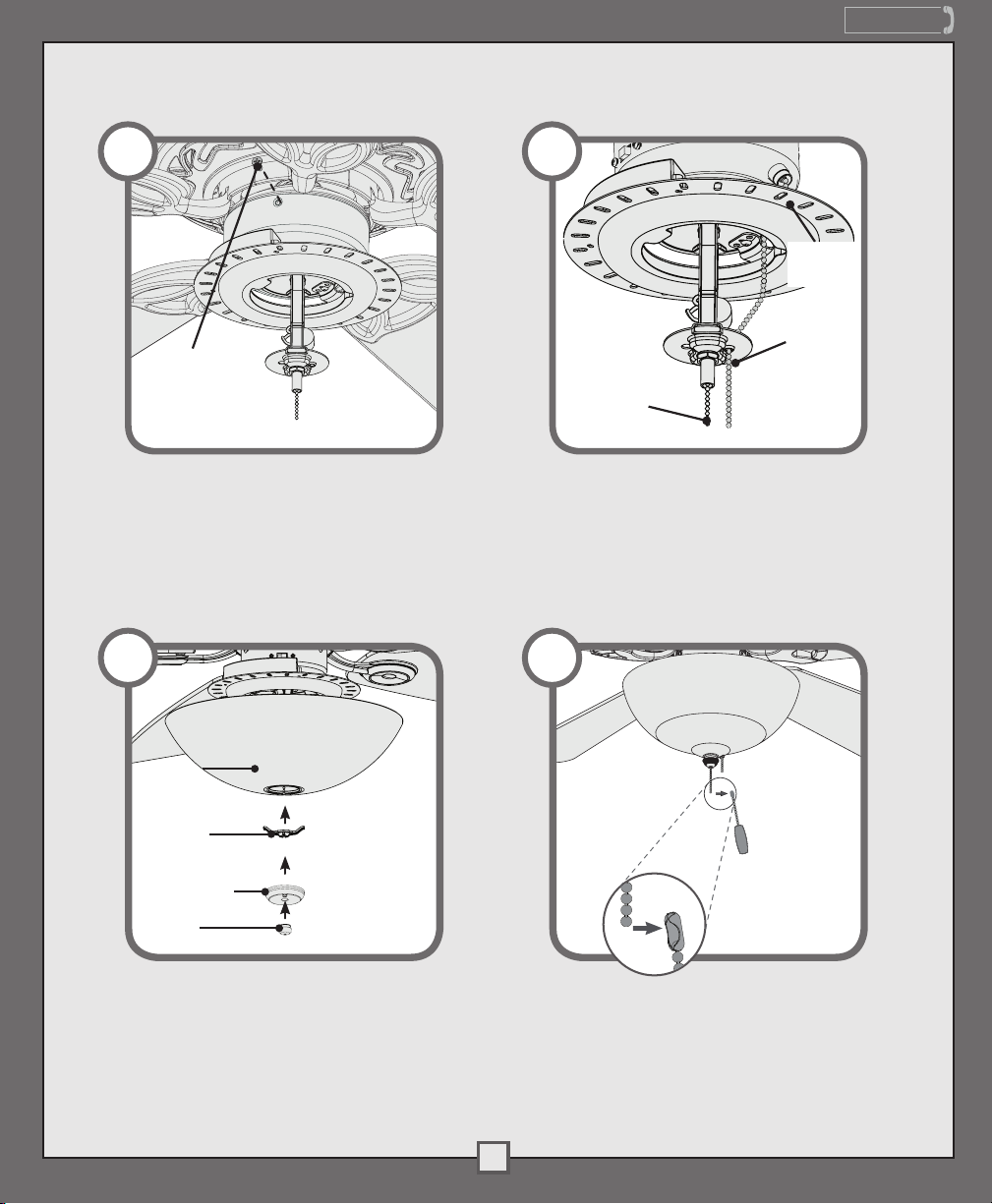

Installing the Pull chain pendant -

Attach the pull chain pendants to the

end of the short chains coming from the

switch housing and the light kit. Turn on

power. Your installation is complete!

Installing the globe - Press the globe

(sold separately) and globe keeper ush

against the metal plate. Thread the light

pull chain through the hole in the center

of the nial cap and thread the fan pull

chain through the hole in the side of the

cap. Finally, thread only the light pull

chain through the hole in the nial and

screw the nial onto the threaded rod.

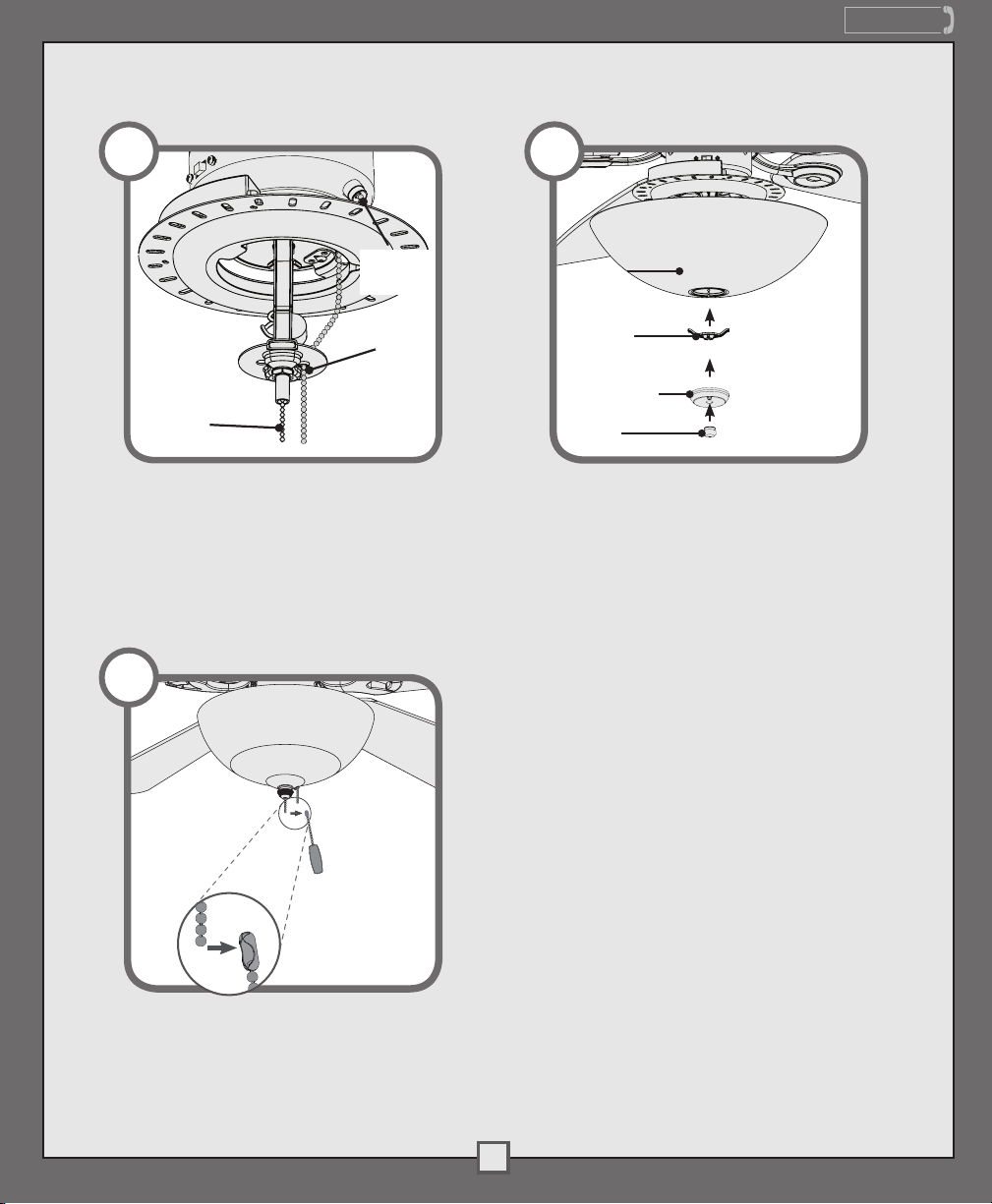

TYPE-A ASSEMBLY INSTRUCTIONS (CONTINUED)

Globe

Keeper

Finial Cap

Finial

If necessary, attach the extension chain

provided to the fan pull chain coming

from the switch housing. Then feed the

end of the extension chain through the

grommeted hole in the light kit.

Grommeted

Hole

Light Pull

Chain

Fan Pull

Chain

MA011-01 • 09/26/13

1.888.830.1326

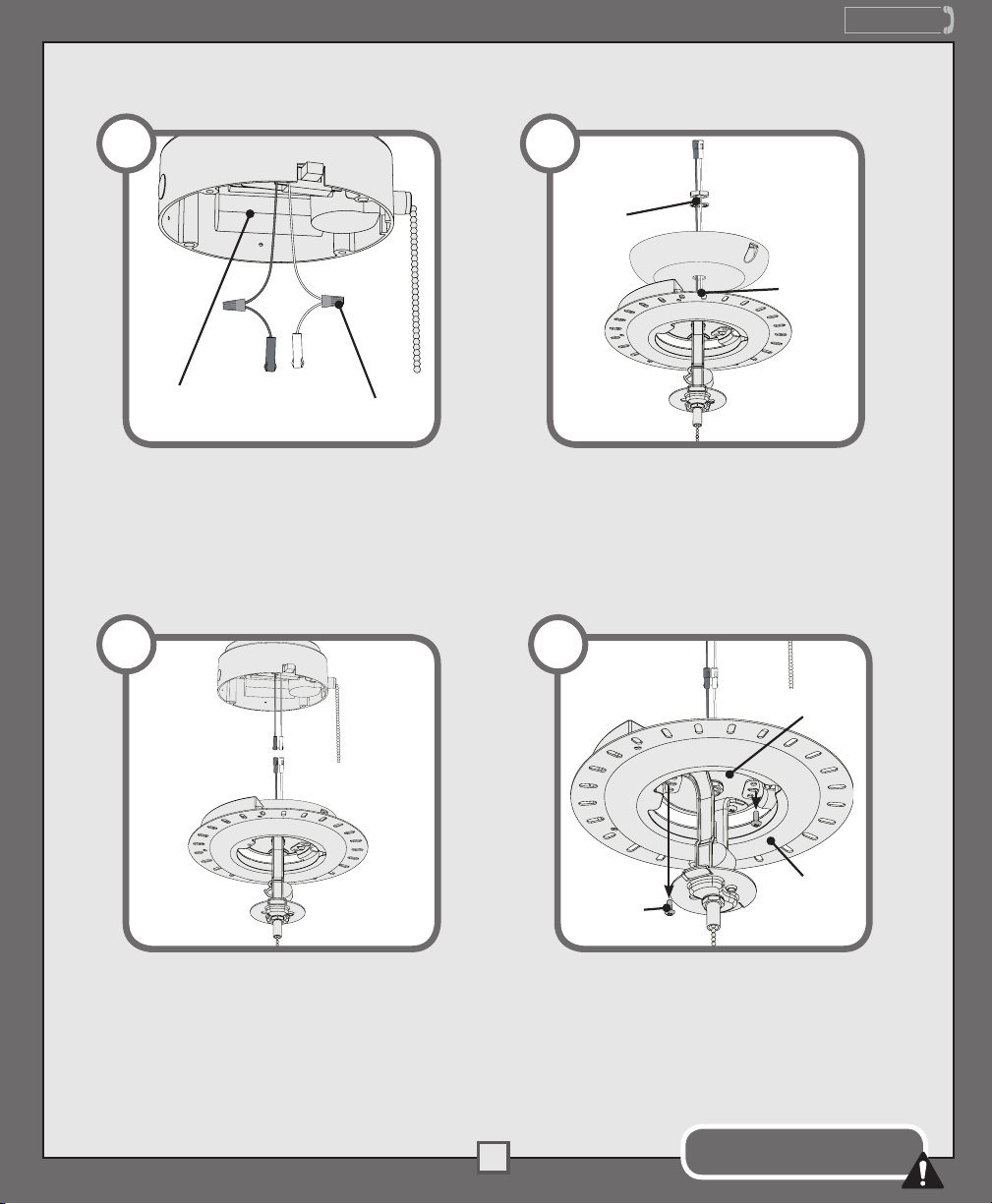

TYPE-B ASSEMBLY INSTRUCTIONS

If your fan does not have pin connectors on

the wires coming from the switch housing,

install the wiring harness provided. Using

the provided wire connectors connect the

white wire from the fan to the white wire

from the wire harness and connect the

black or blue wire from the fan to the black

wire from the wire harness.

Wire

Connector

Switch

Housing

Do not allow the light kit to hang

only by the wire connections!

Light Kit

Screw

1 2

Using the single pin connectors, connect

the black or blue wire from the fan to the

black wire from the light kit. Connect the

white wire from the fan to the white wire

from the light kit.

Feed the light kit wires through the

center hole in the switch housing. Then

attach the switch housing to the light kit

by installing the light kit screws through

the light xture and light kit cap and into

the bottom of the switch housing.

BadWolf

Light Kit

Screw

Switch

Housing

Remove the light kit screws attaching the

light kit cap to the light xture.

MA011-01 • 09/26/13

1.888.830.1326

TYPE-B ASSEMBLY INSTRUCTIONS (CONTINUED)

Installing the pull chain pendant -

Attach the pull chain pendants to the

end of the short chains coming from the

switch housing and the light kit. Turn

power on. Your installation is complete.

If necessary, attach the extension chain

provided to the fan pull chain coming

from the switch housing. Then feed the

end of the extension chain through the

grommeted hole in the light kit.

Grommeted

Hole

Light Pull

Chain

Fan Pull

Chain

Lift the light kit assembly up so that the

screw holes in the lower switch housing

line up with the holes in the upper switch

housing. Install the switch housing

screws and tighten securely.

Switch

Housing

Screw

Installing the globe - Press the globe (sold

separately) and globe keeper ush against

the metal plate. Thread the light pull chain

through the hole in the center of the nial cap

and thread the fan pull chain through the hole

in the side of the cap. Finally, thread only the

light pull chain through the hole in the nial

and screw the nial onto the threaded rod.

Globe

Keeper

Finial Cap

Finial

MA011-01 • 09/26/13

1.888.830.1326

Using the single pin connectors, connect

the black or blue wire from the fan to the

black wire from the light kit. Connect the

white wire from the fan to the white wire

from the light kit.

Feed the wires through the switch

housing cap, washer, and nut. Then

install the switch housing cap by twisting

clockwise onto the threaded rod. Install

the washer and nut onto threaded rod

and tighten securely.

Threaded

Rod

Washer

and Nut

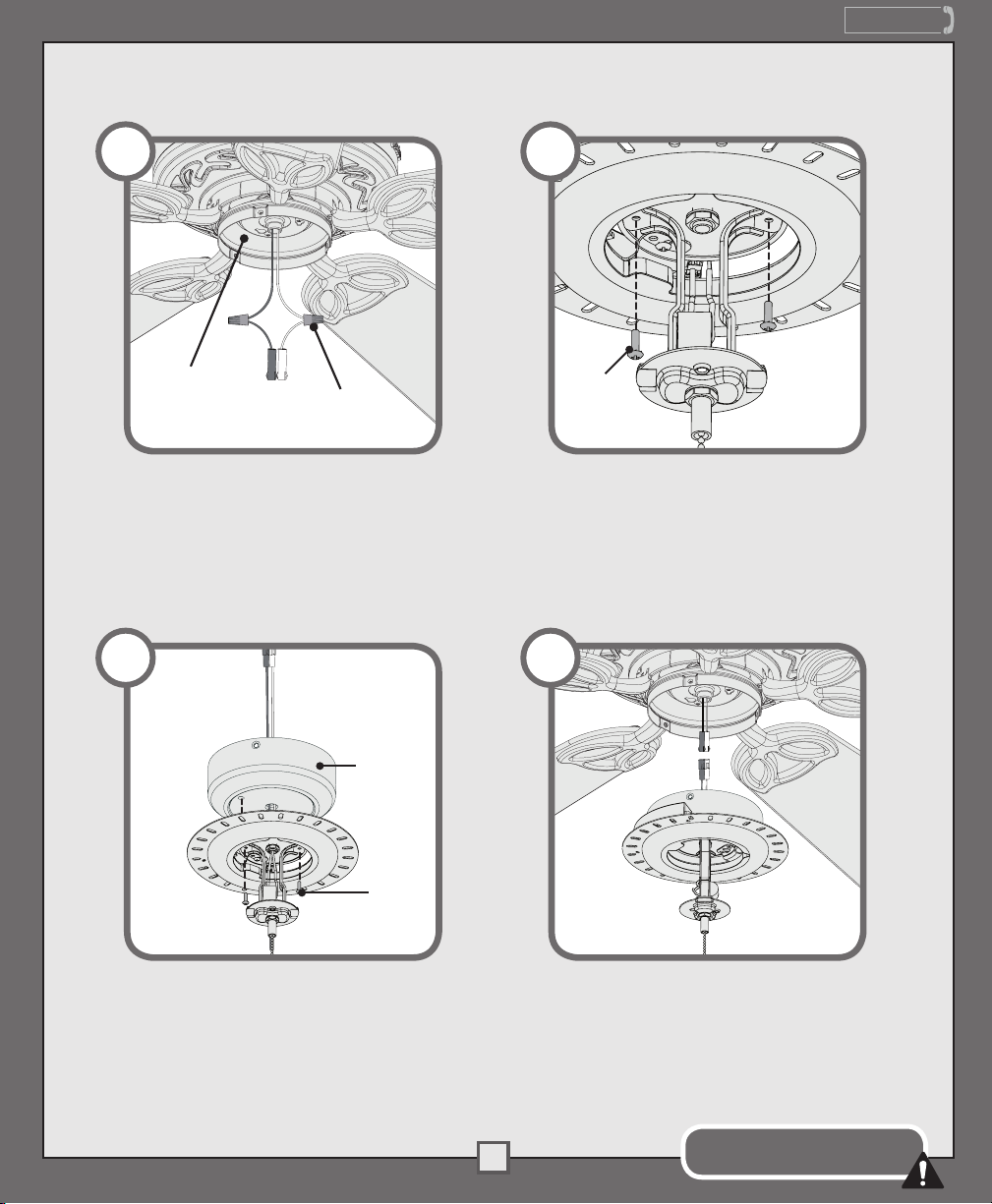

TYPE-C ASSEMBLY INSTRUCTIONS

If your fan does not have pin connectors on

the wires coming from the switch housing,

install the wiring harness provided. Using

the provided wire connectors connect the

white wire from the fan to the white wire

from the wire harness and connect the

black or blue wire from the fan to the black

wire from the wire harness.

Wire

Connector

Switch

Housing

Do not allow the light kit to hang

only by the wire connections!

1 2

Remove the screws attaching the LED

ring to the light kit cap. Do not discard the

screws.

Screws

Light Kit

Cap

LED Ring

MA011-01 • 09/26/13

1.888.830.1326

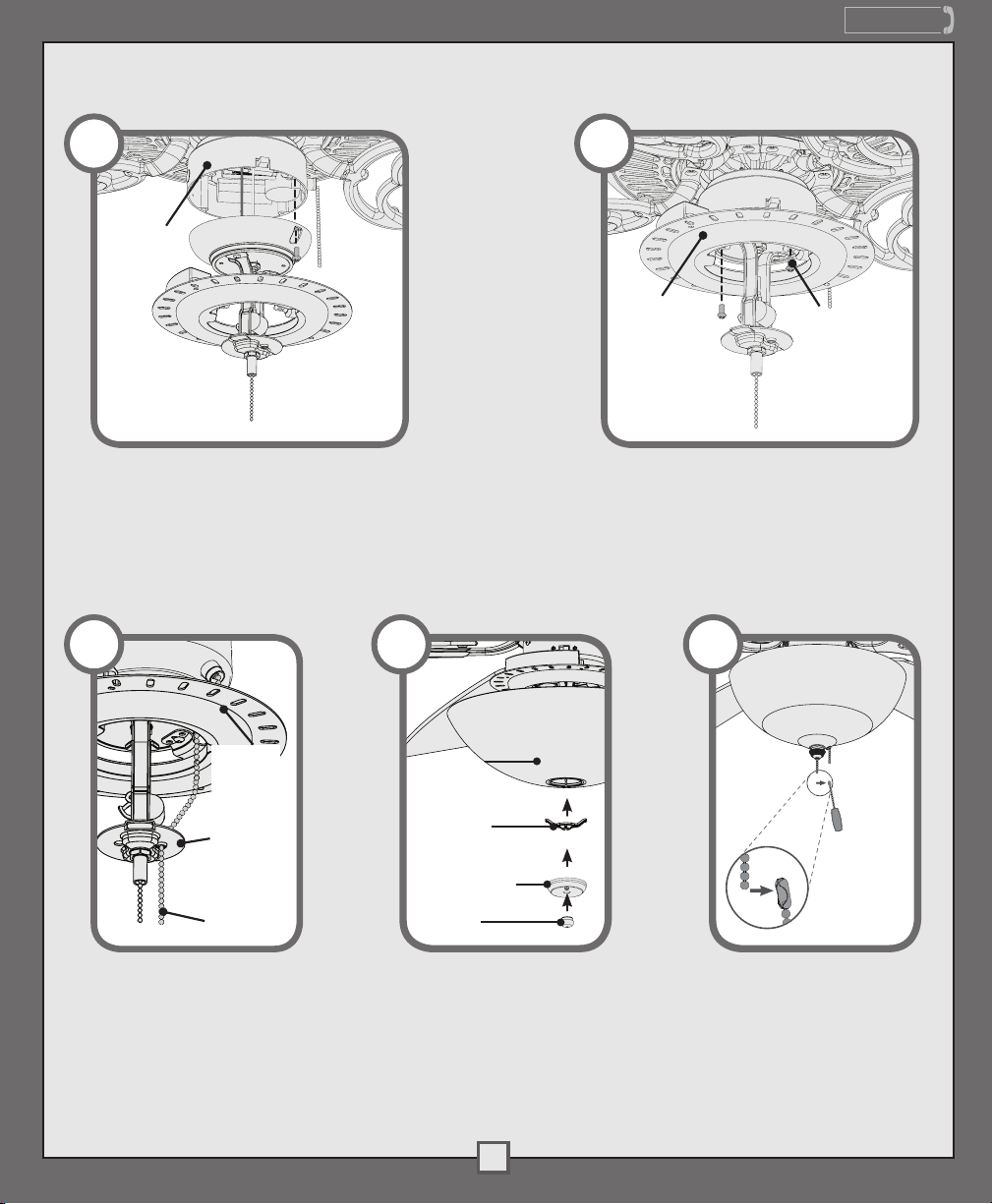

TYPE-C ASSEMBLY INSTRUCTIONS (CONTINUED)

If necessary, attach the

extension chain provided

to the fan pull chain

coming from the switch

housing. Then feed the

end of the extension chain

through the grommeted

hole in the light kit.

Grommeted

Hole

Light Pull

Chain

Fan Pull

Chain

Lift the light kit assembly up so that the

screw holes in the lower switch housing

line up with the holes in the upper switch

housing. Install the switch housing

screws and tighten securely.

Upper

Switch

Housing

Installing the pull chain

pendant - Attach the pull

chain pendants to the end

of the short chains coming

from the switch housing

and the light kit. Turn

power on. Your installation

is complete.

Installing the globe - Press the globe (sold

separately) and globe keeper ush against

the metal plate. Thread the light pull chain

through the hole in the center of the nial cap

and thread the fan pull chain through the hole

in the side of the cap. Finally, thread only the

light pull chain through the hole in the nial

and screw the nial onto the threaded rod.

Globe

Keeper

Finial Cap

Finial

Install the screws removed in Step 4

through the LED Ring and into the light

kit cap.

LED

Ring

Screws

MA011-01 • 09/26/13

1.888.830.1326

ONE YEAR WARRANTY

This product is warranted to the original purchaser by Casablanca Fan Company/

Hunter Fan Company against defects in material and workmanship for one (1)

year from date of purchase. During the warranty period, we will repair or, at our

option, replace a defective product at no charge. For information on how to obtain

service, contact the Casablanca/Hunter Service Department by calling our toll-

free number at 888-830-1326. Damage to the product caused by mishandling,

improper installation or modication is not covered by this warranty. This warranty

is given in lieu of all other warranties expressed or implied. Some states do not allow

limitations of time on an implied warranty, therefore the above limitations may not

apply in every case. This warranty states specic legal rights which may vary from

state to state.

TROUBLESHOOTING

Lights don’t come on.

• Make sure that the bulbs are properly installed.

• Make sure power switch is on.

• Pull the pull chain to make sure it is on.

• Check the circuit breaker to ensure the power is turned on.

• Check the pin connections in the light kit.

• Refer to the fan manual for locating the fan’s wiring. Verify that the light and power

wires are correctly connected to the ceiling and the light kit.

If you have problems installing or operating your light kit, do not return this product

to the dealer. Call our Consumer Affairs Hotline.

888-830-1326

Table of contents

Other Hunter Fan manuals

Hunter

Hunter 99363 User manual

Hunter

Hunter 28419 Manual

Hunter

Hunter 42805 User manual

Hunter

Hunter 20177 Instruction manual

Hunter

Hunter 23869 Instruction Manual

Hunter

Hunter 45003-01 Instruction manual

Hunter

Hunter Aerodyne User manual

Hunter

Hunter F Instruction manual

Hunter

Hunter 28425 Manual

Hunter

Hunter Type 3 Models Service manual

Hunter

Hunter Hunter Ceiling fans User manual

Hunter

Hunter 20714 Instruction manual

Hunter

Hunter 50580 User manual

Hunter

Hunter MB011 User manual

Hunter

Hunter 42834-01 Instruction manual

Hunter

Hunter 41225-01 Instruction manual

Hunter

Hunter Type T series Instruction manual

Hunter

Hunter Type 2 Series Service manual

Hunter

Hunter Quiet Breeze User manual

Hunter

Hunter Original User manual

Hunter

Hunter Sea Air 53061 User manual

Hunter

Hunter HERITAGE fan User manual

Hunter

Hunter 21361 Manual

Hunter

Hunter 42887-01 Instruction manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual

Litex Industries

Litex Industries E-CGL52CB5C1 installation guide

Lindab

Lindab LTDF installation instructions
