Hunter 20510 Manual
Fan Parts
(Not Drawn to Scale)

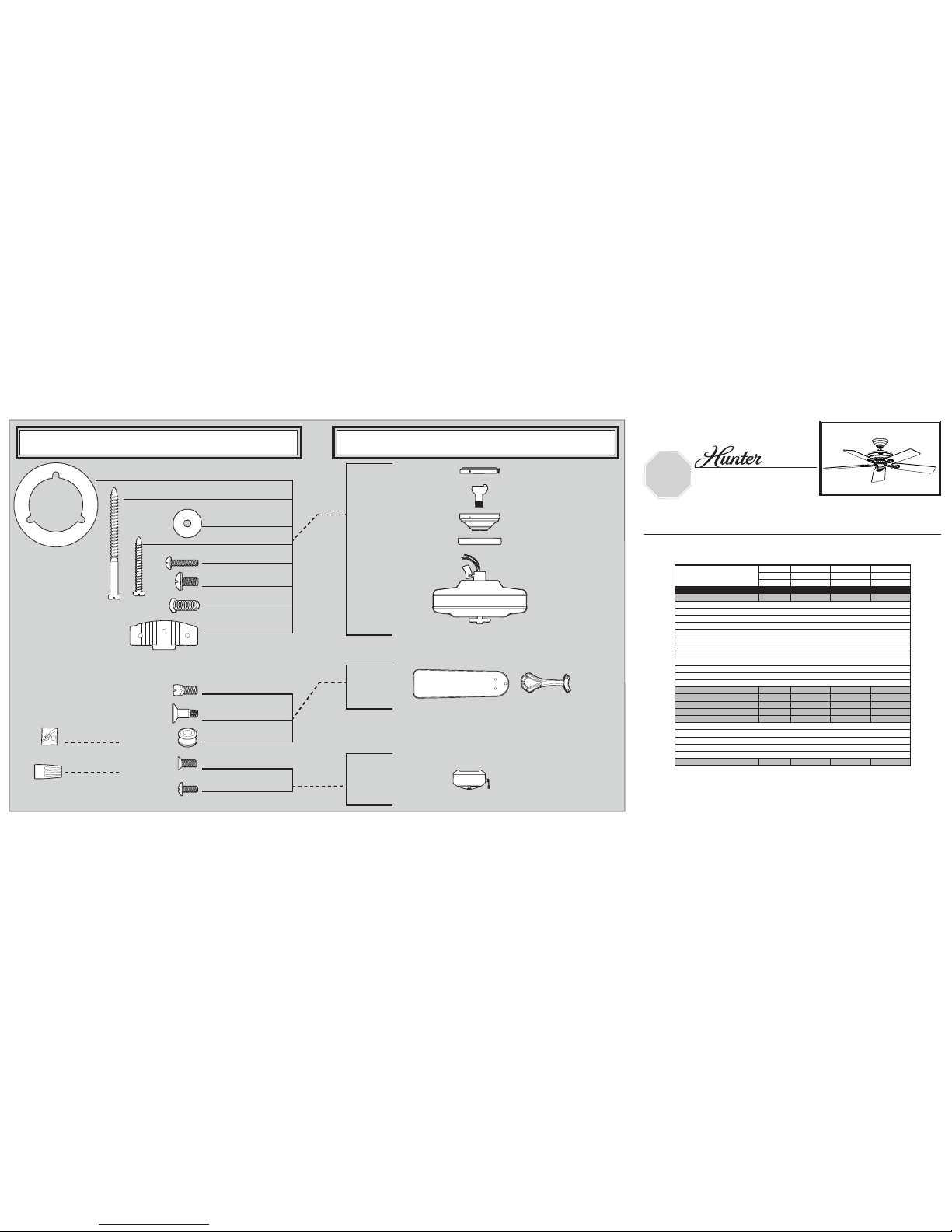

PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULLASSEMBLY INSTRUCTIONS.
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-577 01-14-2011 • ©2011
Part List
Model # 20510 20516 20511
Asm. Dwg. # 92890-01 92890-04 92890-06
Finish Antique Brass White Antique Pewter
Item Name Qnty Part # Part # Part #
*Hanging System Kit 1 96760-05 96760-03 96760-14
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Low Prole Washer
Screw, Wood
Screw, Wood
Flat Washer
Isolator
Locking Screw
Canopy Screw
Set Screw
Switch/Housing Assembly 1 99808-05 99808-03 99808-14
Blade Iron Set 1 92805-05 92805-05 92805-05
Blade Set 1 G0677-28 G0677-26 G0677-21
Blade Iron Armature Screw 11 63755-05 63755-05 63755-05
*Hardware Kit 1 92890-00-860 92890-00-863 92890-00-865
Rubber Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 65666-01 65666-01 65666-01
Hardware
(Drawn to Scale)
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Locking Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Canopy Screw
Flat Washer
Screw, Blade
Assembly
3” Wood Screw
Low Prole
Washer
Balancing
Kit
Wire
Connector
1.5” Wood Screw
Blade
Grommet
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 11
x 4
x 16
x 3
x 3
x 1
x 4
x 16
Materiales
(no dibujados a escala)
Piezas del ventilador
(no dibujadas a escala)
GUÍA DE PIEZAS
GUÍA DE PIEZAS
PARADA
Consulte esta Guía de partes para
asegurarse de que todas las partes
estén incluidas en la caja.
Si falta alguna parte, NO DEVUELVA ESTE PRODUCTO A LA TIENDA. Solicite ayuda al
888-830-1326. ESTAGUÍA DE PARTES SOLAMENTE ES REFERENCIAL. CONSULTE LAS
INSTRUCCIONES COMPLETAS DE ENSAMBLAJE EN ELMANUALDE INSTALACIÓN
ALTO
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-577 01-14-2011 • ©2011
Part List
Model # 20510 20516 20511
Asm. Dwg. # 92890-01 92890-04 92890-06
Finish Antique Brass White Antique Pewter
Item Name Qnty Part # Part # Part #
*Hanging System Kit 1 96760-05 96760-03 96760-14
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Low Prole Washer
Screw, Wood
Screw, Wood
Flat Washer
Isolator
Locking Screw
Canopy Screw
Set Screw
Switch/Housing Assembly 1 99808-05 99808-03 99808-14
Blade Iron Set 1 92805-05 92805-05 92805-05
Blade Set 1 G0677-28 G0677-26 G0677-21
Blade Iron Armature Screw 11 63755-05 63755-05 63755-05
*Hardware Kit 1 92890-00-860 92890-00-863 92890-00-865
Rubber Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 65666-01 65666-01 65666-01
Conjunto del
soporte de
suspensión
de conjunto
de paleta
Conjunto del
interruptor
Tornillo, del conjunto
de la caja del interruptor
Tornillo
mecánico, 6-32
Tornillo de jación
Tornillo prisionero
Tornillo de armadura
de soporte de paleta
Tornillo de campana
Arandela plana
Tornillo, de conjunto
de paleta
3” Tornillo de madera
Roseta de perl bajo
Kit de
equilibrado
Empalme
plástico
1.5” Tornillo
de madera
Arandela de caucho de
paleta
Tornillo
mecánico, 6-32
x 1
x 2
x 4
x 2
x 3
x 4
x 1
x 11
x 16
x 3
x 3
x 1
x 4
x 16
x 4 Aislador de montaje
