Huawei V100R001 Technical specifications

Product Description

HUAWEI E5776s-32 Mobile WiFi

V100R001

Issue 01

Date 2012-07-25

HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 2 of 20

Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service.

Please feel free to contact our local office or company headquarters.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: [email protected]

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 3 of 20

About This Document

Summary

This document provides information about the major functions, supported services

and system architecture.

The following table lists the contents of this document.

Chapter Details

1 Overview The supported network modes, basic services and functions,

and the appearance of the product.

2 Features The supported features and technical specifications of the

product.

3 Services and Applications The services and applications of the product.

4 System Architecture The architecture of the product.

5 Packing List The items contained in the package of the product.

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 4 of 20

History

Issue Details Date

01 First release. 2012-07-25

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 5 of 20

Contents

1 Overview..........................................................................................................................6

2 Features...........................................................................................................................8

2.1 Main Features .................................................................................................................................. 8

2.2 Optional Features............................................................................................................................. 9

2.3 Technical Specifications ................................................................................................................... 9

2.3.1 Hardware ................................................................................................................................. 9

2.3.2 Software................................................................................................................................. 10

3 Services and Applications ...........................................................................................13

3.1 Data Service................................................................................................................................... 13

3.1.1 Wireless Modem.................................................................................................................... 13

3.1.2 USB Modem .......................................................................................................................... 14

3.1.3 LTE/3G/Wi-Fi Auto Offload (Optional) ................................................................................... 14

3.2 SMS................................................................................................................................................ 15

3.3 Sharing Data Stored on the microSD card..................................................................................... 15

4 System Architecture .....................................................................................................16

4.1 System Architecture ....................................................................................................................... 16

4.2 Functional Modules ........................................................................................................................ 17

5 Packing List...................................................................................................................18

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 6 of 20

1 Overview

HUAWEI E5776s-32 Mobile WiFi (hereinafter referred to as the E5776s-32) is a

high-speed packet access mobile hotspot. It is a multi-mode wireless terminal for

SOHO (Small Office and Home Office) and business professionals. It supports:

LTE: FDD 2600/2100/1800/900/800 MHz

DC-HSPA+/HSPA+/HSPA/UMTS: 2100/1900/900/850 MHz

EDGE/GPRS/GSM: 1900/1800/900/850 MHz

The E5776s-32 supports the following standards:

Long Term Evolution (LTE)

Dual Carrier High Speed Packet Access Plus (DC-HSPA+)

High Speed Packet Access Plus (HSPA+)

High Speed Uplink Packet Access (HSUPA)

High Speed Downlink Packet Access (HSDPA)

Universal Mobile Telecommunications System (UMTS)

Enhanced Data rates for Global Evolution (EDGE)

General Packet Radio Service (GPRS)

Global System for Mobile communications (GSM)

The E5776s-32 provides the following services:

High-speed LTE packet data service of up to 150 Mbit/s

High-speed DC-HSPA+ packet data service of up to 43.2 Mbit/s

High-speed HSPA+ packet data service of up to 21.6 Mbit/s

High-speed HSPA (HSUPA/HSDPA)/UMTS packet data service of up to 14.4

Mbit/s

EDGE/GPRS packet data service of up to 236.8 kbit/s

Short Message Service (SMS)

You can connect the E5776s-32 with the Wi-Fi, or connect the E5776s-32 with the

USB interface of a computer. In the service area of the

LTE/DC-HSPA+/HSPA+/HSPA/UMTS or EDGE/GPRS/GSM network, you can surf the

Internet and send/receive messages/emails cordlessly. The E5776s-32 is fast, reliable,

and easy to operate. Thus, mobile users can experience many new features and

services with the E5776s-32. These features and services will enable a large number

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 7 of 20

of users to use the E5776s-32 and the average revenue per user (ARPU) of operators

will increase substantially.

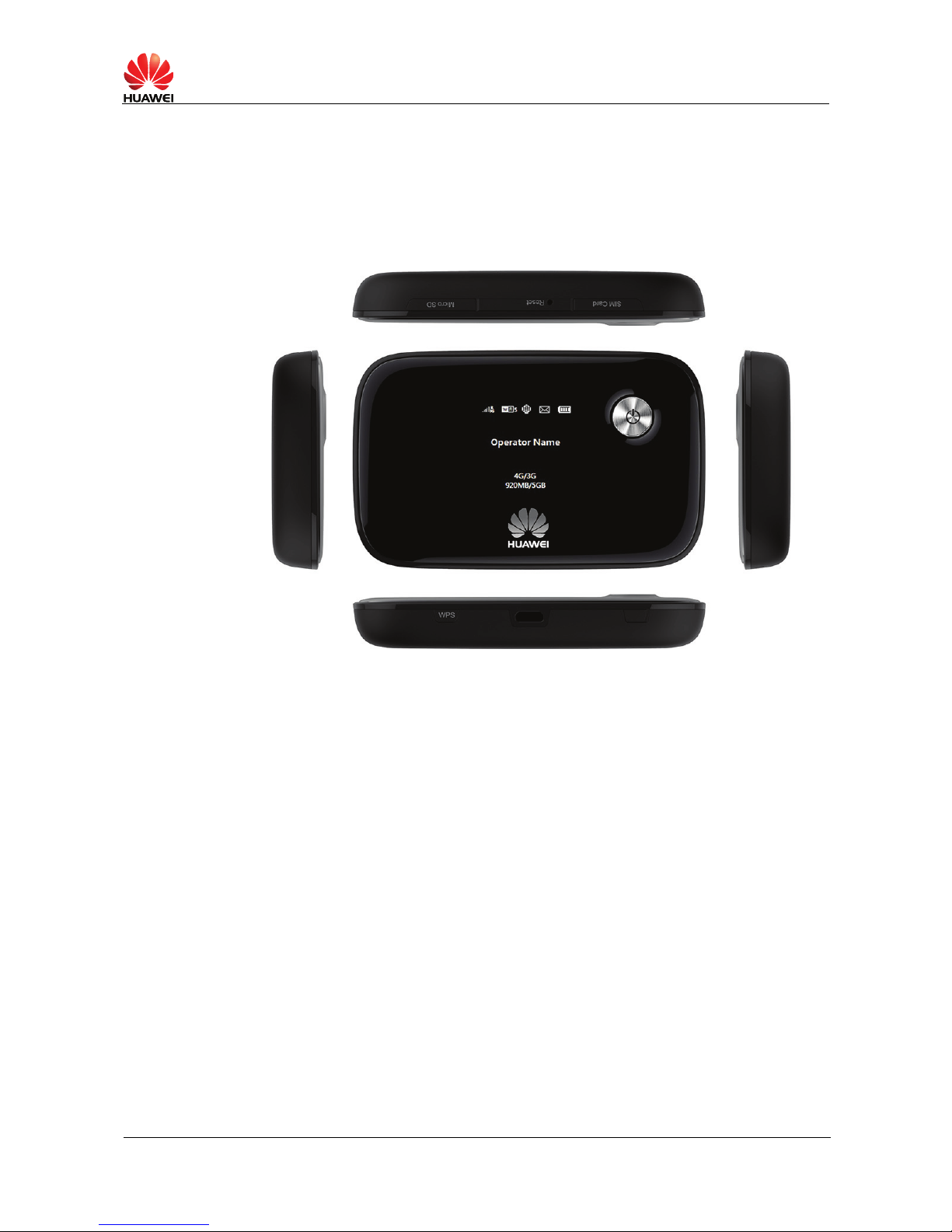

Figure 1-1 shows the profile of the E5776s-32.

Figure 1-1 E5776s-32 profile

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 8 of 20

2 Features

2.1 Main Features

The E5776s-32 mainly supports the following features:

LTE (DL) data service of up to 150 Mbit/s

LTE (UL) data service of up to 50 Mbit/s

DC-HSPA+ (DL) data service of up to 43.2 Mbit/s

DC-HSPA+ (UL) data service of up to 5.76 Mbit/s

HSPA+ (DL) data service of up to 21.6 Mbit/s

HSPA+ (UL) data service of up to 5.76 Mbit/s

HSDPA (DL) data service of up to 14.4 Mbit/s

HSUPA (UL) data service of up to 5.76 Mbit/s

UMTS data service of up to 384 kbit/s

EDGE data service of up to 236.8 kbit/s

GPRS data service of up to 85.6 kbit/s

PS domain data service based on LTE and UMTS

SMS

Sharing Data Stored on the microSD card

Wi-Fi

WPS

Fast boot

Plug and Play (PnP)

IPv6 /IPv4 dual stack

Display current SSID and Wi-Fi key on the screen

Built-in DHCP Server, DNS RELAY and NAT

Online software upgrade

Traffic statistic

Standard Micro USB interface

TFT-LCD screen

Windows XP, Windows Vista, Windows 7, MAC OS X 10.5, 10.6 and 10.7

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 9 of 20

2.2 Optional Features

Optional features refer to features that are not supported by the standard version or are

disabled by default. These features can be customized according to operator or

customer requirements. The E5776s-32's optional features is as follows:

LTE/3G/Wi-Fi auto offload

2.3 Technical Specifications

2.3.1 Hardware

Table 2-1 lists the hardware specifications.

Table 2-1 Hardware specifications

Item Specifications

Technical

standard

WAN: LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

WLAN: IEEE 802.11b/g/n

Operating

frequency

LTE: FDD 2600/2100/1800/900/800 MHz

DC-HSPA+/HSPA+/HSPA/UMTS: 2100/1900/900/850 MHz

EDGE/GPRS/GSM: 1900/1800/900/850 MHz

WLAN: 2400–2452 MHz

Internal memory 256 MB flash and 128 MB Memory

Maximum

transmitter

power

LTE: Conform to Power Class 3 Definition

UMTS: Conform to Power Class 3 Definition

WLAN 802.11b: 11 dBm

802.11g: 10 dBm

802.11n: 8 dBm

Receiver

sensitivity

LTE: Confirm to 3GPP Requirements

UMTS: Confirm to 3GPP Requirements

WLAN 802.11b: -76 dBm@11 Mbit/s

WLAN 802.11g: -65 dBm@54 Mbit/s

WLAN 802.11n: -64 dBm@65 Mbit/s

WLAN speed 802.11b: Up to 11 Mbit/s

802.11g: Up to 54 Mbit/s

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 10 of 20

Item Specifications

802.11n HT20: Support MCS0–MCS7; Up to 72.2 Mbit/s.

Support MCS8–MCS15; Up to 144.4 Mbit/s.

HT40: Support MCS0–MCS7; Up to 150 Mbit/s.

Support MCS8–MCS15; Up to 300 Mbit/s.

Maximum power

consumption

5 W

Power supply AC: 100–240 V

DC: 5 V, 2 A

Battery Type: Li (rechargeable and non-removable)

Capacity: 3.7 V, 3000 mAh

Maximum working time: 10 hours (depending on the network)

Maximum standby time: 500 hours (depending on the network)

External

interfaces

USB interface: Micro USB

Standard microSD card interface

SIM card: standard 6-pin SIM card interface

External main diversity antenna interface

Screen TFT-LCD

key-press Power switch, WPS switch, Reset switch

Antenna Built-in LTE/UMTS/GSM main diversity antenna

Built-in LTE/UMTS diversity antenna

Built-in WLAN antenna

Dimensions

(D × W × H)

106.4 mm×66.0 mm×15.5 mm

Weight < 150 g (including the battery)

Temperature Operating: 0℃to +35℃

Storage: -20℃to +60℃

Humidity 5% to 95% (non-condensing)

2.3.2 Software

Table 2-2 lists the software specifications.
