Huawei LTE CPE E5172 User manual

Thank you for purchasing the CPE. This CPE brings you a high speed

wireless network connection.

This document will help you understand your CPE so you can start using it right away. Please read this

document carefully before using your CPE.

For detailed information about the functions and configurations of the CPE, refer to the online help on the web

management page that comes with the CPE.

Note:

You must install Adobe Reader version 6.0 or higher to read the online help.

Packing List

The following items are included in your CPE package. If any items are missing or damaged, please contact

your local dealer. If any of the optional accessories are not included in the package, you can contact an

authorized dealer to purchase them separately.

Item Quantity

LTE CPE 1

Power adapter 1

Quick Start Guide 1

Safety Information 1

Network cable 1

Battery (optional) 1

External antenna (optional) 1

Getting to Know Your CPE

Note:

The CPE function descriptions and illustrations in this document are for your reference only. The product

you have purchased may vary.

○

1Power indicator

Steady blue: The device is powered on. The power adapter is in use and working properly, or the power

adapter is not in use but the battery level is high.

Alternating blue and pink: The device is powered on. The power adapter is not in use or not working

properly, and the battery level is low.

Steady pink: The device is malfunctioning.

Note:

If your device malfunctions, power it off. Wait at least 15 minutes before you power it on again. If the

problem persists, contact your dealer.

Off: The device is powered off.

○

2WLAN indicator

On: WLAN function enabled

Blinking: Transmitting data through WLAN

Off: WLAN function disabled

○

3WPS indicator

On: WPS function enabled

Blinking: WPS interconnection verification is in progress. This process should not take longer than 2

minutes.

Off: WPS function disabled

○

4LAN indicator

On: The port is connected to a device.

Blinking: Data is being transmitted through the port.

Off: No device is connected to the port.

○

5Voice indicator

On: Off-hook condition

Blinking: Incoming call

Off: On-hook condition

○

6Signal indicator

On: Indicates network signal strength. Full light indicates strong signal.

Off: No network signal.

○

7WLAN button

Press and hold for more than 2 seconds to enable or disable the WLAN function.

○

8Reset button

Press and hold for more than 2 seconds to restore the device to its factory settings.

Note:

Restoring the default settings of the CPE will override all the previous settings.

○

9WPS button

After the WPS function is enabled, press and hold this button for more than 2 seconds to initiate WPS

interconnection.

○

10 External antenna port

Connect to an external antenna.

○

11 Power button

Press this button to power the device on or off.

○

12 Power port

Connect to the device's power adapter.

○

13 LAN port

Connect to computers, switches, or other network devices.

○

14 TEL port

Connect to a phone.

○

15 USIM card slot

Accommodate a USIM card.

○

16 Battery compartment

Install the battery.

○

17 Battery port

Insert the battery connection cable.

○

18 Back cover

Note:

On: An indicator is on.

Blinking: An indicator turns on and off at regular intervals.

Off: An indicator is off.

All indicators except the power indicator are blinking: The device is being upgraded or is restarting. To

avoid damage to the device, do not power off during this process.

Getting Started

Installing the USIM Card and the Battery

Install the USIM card and the battery according to the illustration.

Note:

Do not remove the USIM card when it is in use. Doing so will affect the performance of your CPE and

data stored on the USIM card may be lost.

The CPE automatically charges its battery when connected to a power source.

The battery is an optional accessory. If it is not included in the package, you may contact an authorized

dealer to buy a battery compatible with the CPE.

Connecting to a Power Adapter

Install the power adapter according to the illustration.

Note:

Only use power adapters compatible with the CPE and provided by a designated manufacturer. Use of

an incompatible power adapter or one from an unknown manufacturer may cause the CPE to

malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or

implied, on the product.

The CPE's power adapter model is HW-120100XYW, HW-120200XYW, HKA01212010-XY, or

HKA02412020-XY. X and Y represent letters or numbers that vary by region. For details about the

specific adapter model, contact an authorized dealer.

Connecting a Device to the CPE

Before connecting the device, please read the safety information carefully.

Note:

During thunderstorms and rainy weather, turn off and disconnect the device.

Use a standard or authorized external antenna to avoid device malfunctions.

Selecting the Installation Environment

Obstacles such as concrete and wooden walls will affect the transmission of the network signal. It is

recommended that when you install devices you choose an open space and ensure that there are no

obstructions between the computer and the device.

Keep the device away from equipment that generates strong magnetic and electric fields, for instance

microwaves, refrigerators, and satellite receivers.

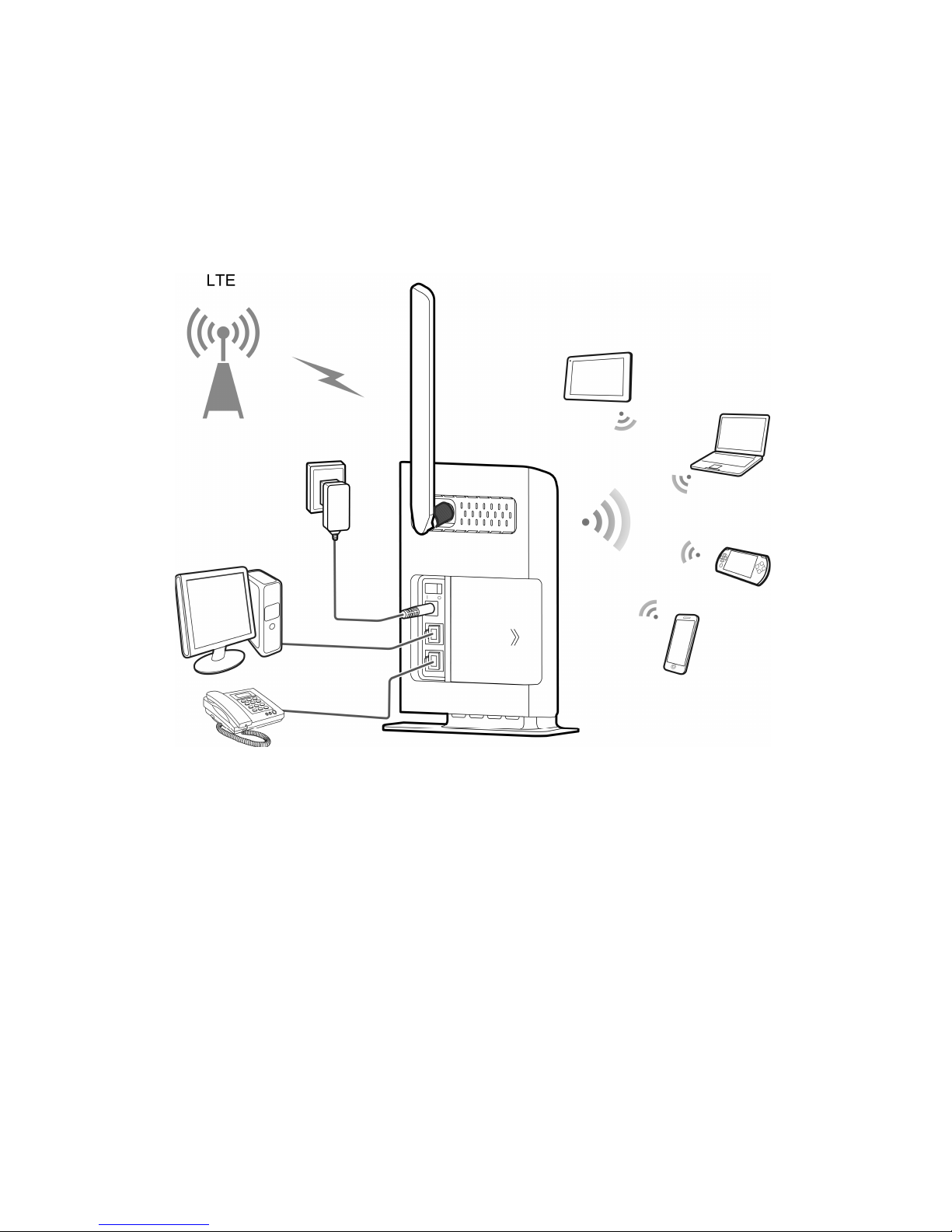

Cable Connection

When connecting, use the power adapter that came as a set with the product. When finished, press the power

button to turn on the device.

The connection cable illustration is for reference only.

When the device is in use, you can alter its position or orientation to improve signal reception. The signal

strength light indicates the received signal strength.

Logging In to the Web Management Page

The web-based configuration utility can be used for initial device installation, parameter configuration, and

function management through the browser.

The Windows XP operating system and Internet Explorer 7.0 are used as an example. Ensure that the device is

connected to the computer. Follow these steps to log in to the web management page:

1. Connect device cables.

2. Configure the computer's IP address so that the IP addresses of the computer and the device are in the

same network segment.

Note:

The device's default IP address is 192.168.1.1, the subnet mask is 255.255.255.0.

It is recommended that you use the automatically obtained IP addresses for the computer and domain

name system (DNS) server. If you manually configure the computer IP address, you must set the DNS

server IP address to the device IP address. Otherwise, you will fail to log in to the web management

page.

3. Open the browser, and enter http://192.168.1.1 in the address box.

4. Enter the user name and password to log in to the web management page.

Note:

The default user name is admin.

The default password is admin.

LTE is a trademark of ETSI.

Version: V100R001_01Part Number: 31010***
