Huawei S1700-8G-AC User manual

Install the device on a worktable.

安装设备到工作台。

Mark the screw locations on the wall according to

the holes on the back of device.

根据设备后面板上的挂孔，用记号笔标记螺钉位置。

Rev: 02

膨胀套

Screw Ancrotron

膨胀套

Screw Ancrotron

技术支持

快速安装指南以及简易使用说明书

Service and Support

Installing the Device on a Worktable

安装设备到工作台

Tool List

工具参考

S1700-8G-AC以太网交换机

S1700-8G-AC Ethernet Switch

User Manual & Installation Quick Start

Crosshead screwdriver

十字螺丝刀

羊角锤

Claw hammer

Marker pen

记号笔

电源适配器

Power adapter

Installing the Device on a Wall

安装设备到墙面

M6螺钉

M6 screw

Accessories

(S1700-8*-AC)

设备附件介绍(

S1700-8G-AC

）

Percussion drill(φ8 Drill bit)

冲击钻（φ8钻头）

φ8 Drill bit

φ8钻头

90。

Install the Screw Ancrotron.

安装膨胀套。

●To prevent injuries, check that there is no electrical wire at the locations to be drilled before drilling holes in the wall.

●

Flammable and explosive items under the device is prohibited. Leave more than 100 mm of space around the device for proper heat dissipation.

在墙上打孔时，必须确认打孔处没有墙电，避免造成人身伤害。

设备下方禁止摆放易燃易爆物品，距离设备100mm范围内不能有异物挡住。

4

Install the screws.

安装螺钉。

Connect the power adapter.

连接电源适配器

Install the device on the wall.

安装设备到墙面。

● Do not power on the device before device installation and cabling are completed.

●The S1700-8G-AC can use only DC power supply.

●The power input of S1700-8G-AC is 12V/0.5A.

● 严禁在设备安装和布线完成前向设备供电。

●S1700-8G-AC只支持附带的电源适配器。

● S1700-8G-AC电源输入为12V/0.5A。

Connecting Power Adapter

连接电源适配器

12V0.5A

12V 0.5A

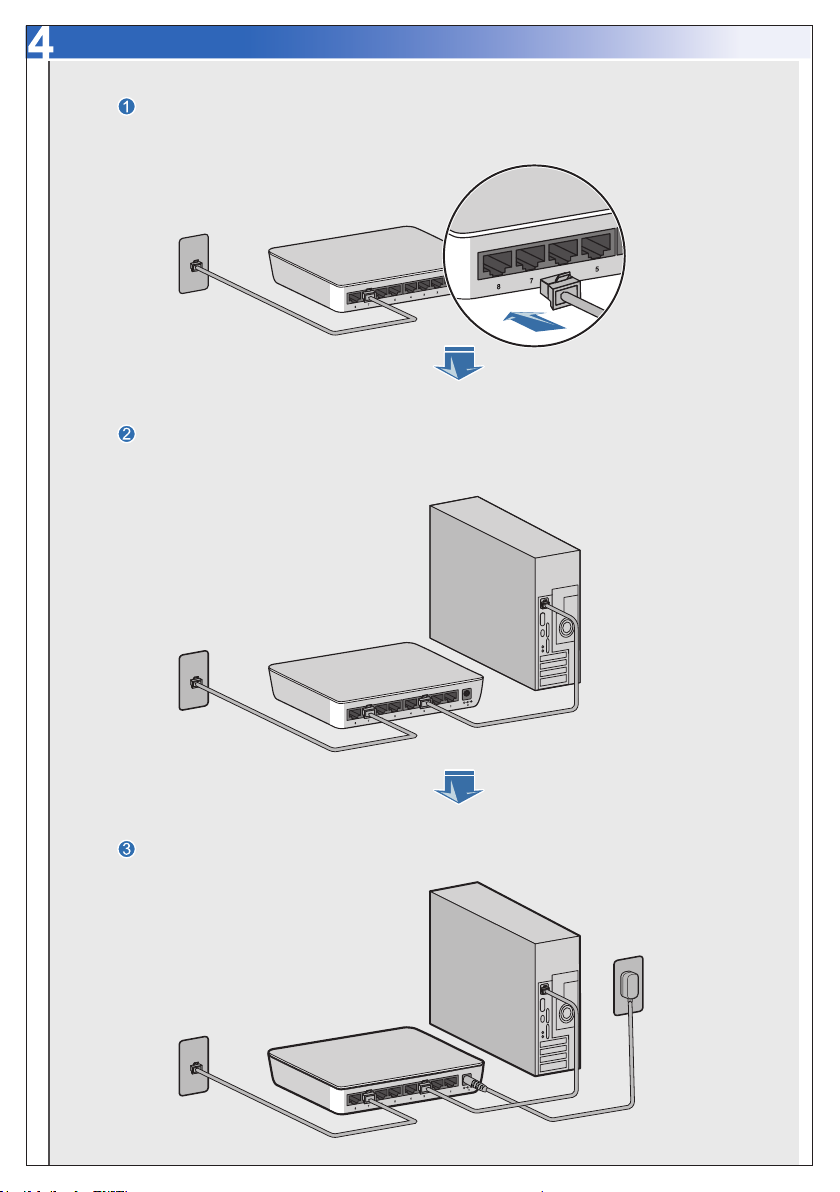

设备连接到网络接口。

Connect the device to network interface.

设备连接到计算机。

Connect the device to the computer.

设备上电。

Power on the device.

Laying out Cables

布放线缆

12V 0.5A

LED Indicator

LED状态

LED Condition

状态

Description

描述

PWR On Green

绿色常亮

On Green

绿色常亮

Internal power is operating normally.

设备正常上电。

Off

熄灭

Power off.

设备未上电。

1-8 Port

Blinking Green

绿色闪烁

The port has a valid 1000Mbps link.

Blinking indicates activity.

闪烁表示正在传输数据。

On Yellow

黄色常亮

Blinking Yellow

黄色闪烁

The port has a valid 10/100Mbps link.

Blinking indicates activity.

闪烁表示正在传输数据。

Off

熄灭

No link.

无效连接。

端口建立了1000Mb连接。

端口建立了10/100Mb连接。

●

After the device is powered on, the PWR LED is on. the port LED status is as shown in below.

●

设备上电后，PWR电源指示灯亮，端口LED灯状态如下图所示。

PWR LED

电源指示灯

Ports LED

端口指示灯

Powering on the System

上电检查
