HUANUO HNDS7 User manual
Monitor Desk Mount
Instruction Manual V2.0
English --------------------------------- 01-11
Deutsch --------------------------------- 12-21
Français --------------------------------- 22-31
Español --------------------------------- 32-41
Italiano --------------------------------- 42-51
日本語 --------------------------------- 52-61
Model: HNDS7
Thank you for choosing this HUANUO product! At HUANUO
we strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others at www.huanuoav.com/reviews if you are
satisfied. Should you have any issues, please don't hesitate to
contact us at
Technical Support:
(US/CA)1-800-556-0533 Mon-Fri 8am - 8pm(PST) (USA)
(CAN)
(US/CA)44-808-196-3874 Mon-Fri 2pm - 10pm(UTC)
Other Info:
[email protected](US/CA)
[email protected](DE/UK/FR/IT/ES/NL/SE/AU/PL)
Website:
www.huanuoav.com

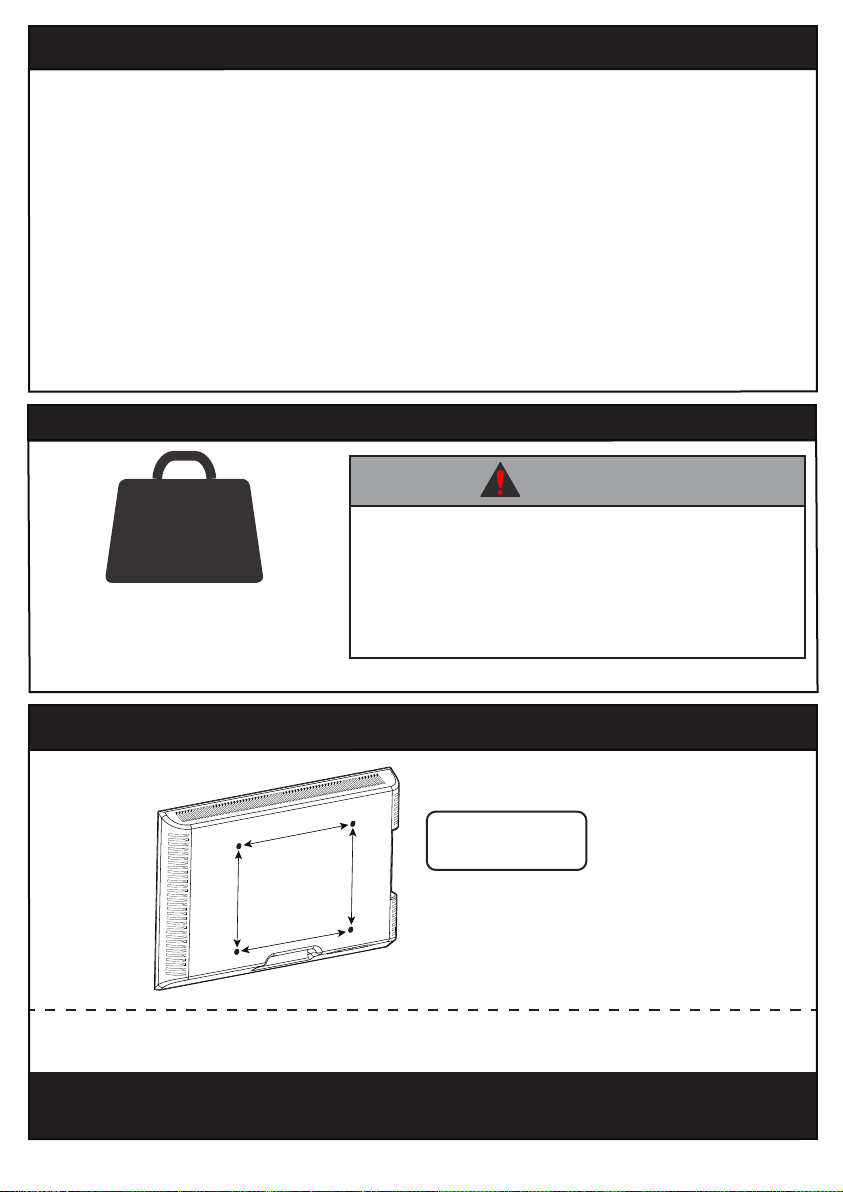

Check the VESA Pattern of Your Monitor beforeYouBegin the Installation
IMPORTANT SAFETY INFORMATION
If this desk mount is NOT compatible, please contact customer service at
[email protected] to find a compatible product.
If your monitor VESA is greater than 100x100 mm/4x4 in. or less than
VESA 75x75mm/3x3in., this mount is NOT compatible.
Weight Restrictions
4.4-26.4 lbs.
(2-12 kg)
WARNING
If your monitor weighs more,
this mount is NOT compatible.
MAX:100
mm/4 in.
MAX:100
mm/4 in.
MAX:100
mm/4 in.
100 mm ≈ 4 in.
75 mm ≈ 3 in.
Minimum VESA pattern:
75mm/3 in.(W)x75mm/3 in.(H)
• Please carefully read all instructions before attempting installation. If you do not under-
stand the instructions or have any concerns or questions, please contact our customer
• CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this manual. Do
not exceed weight capacity. We are not liable for damage or injury caused by improper
mounting, incorrect assembly or inappropriate use.
• This product contains a high pressure gas spring, fire and percussion prohibited.
Also it is strictly prohibited to dismantle without professionals. Please return to the
manufacturer or hand over to professional agencies if the product is abandoned.
• The desk must be capable of supporting three times the weight of the total load
(the mount, the monitor and all accessories weight). Don't use the product on
particle board.
DO NOT exceed the maximum weight indicated.
This mounting system is intended for use only
within the maximum weights indicated. Use with
products heavier than the maximum weights
indicated may result in failure of the mount and its
accessories, causing possible damage and or injury.
01
360°
360°
Clamp Mounting
Grommet Mounting
Product Features
02
Warning!
Do not adjust tension without monitor.
1. Ensure monitor has been attached to the mount.
2. Read your monitor box or manual to find out monitor net weight.
3. Ensure the net weight of monitor (including accessories) is between
4.4~26.4 Ibs (2-12 kg).
Clockwise to reduce
tension(carry less weight)
Counter-clockwise to increase
tension(carry more weight)
TENSION ADJUSTMENT SHOULD BE DONE ONLY
AFTER MOUNT INSTALLATION
Adjustment Sign
03
05 X1
Base
D
Butterfly Nut/Grommet Bolt x 1
03 X2
C-Clamp Part
04 X2
C-Clamp Part
E
Locking Plate x1
07 X1
USB Line
Bolt x 6
M6x12mm
C
Pressure Plate x 1
H
I
M4x10mm
Bolt (x3)
Supplied Parts and Hardware for Step 1
Supplied Parts and Hardware
Warning:This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and und amaged. Do not use
damaged or defective parts. lf you require replacement parts, contact our
• Please note: Not all hardware included in this package will be used.
F
5/32 in.(4mm)
Medium Allen Key
Tools Needed (Not lncluded)
Phillips Screwdriver
Electric Drill
(Optional)
Drill Bit
(Optional)
0.4 in.(10mm) - 1.1 in.(27mm)
04
1. Install the Base
A. For Clamp Mounting
03
C
05
05
F
02 X2
Arm Extender
01 X2
Arm
M8x38mm
Bolt (x2)
G
Washer (x2)
φ16xφ8.2x1.5mm
06 X2
Monitor Plate 13/64 in.(5mm)
Large Allen Key
F
07
Warning:
Ensure bolts are
secured firmly.
04
03
Supplied Parts and Hardware for Step 2
Supplied Parts and Hardware for Step 3
Supplied Parts and Hardware for Step 4
Supplied Hardware for Step 5 and 7
1/8 in.(3mm)
Small Allen Key
F
13/64 in.(5mm) Large Allen Key
F
Medium Allen Key
05 ボルトM4x12mm
Bolt (x8)
A
M4x30mm
Bolt (x8)
B-1
L13mm
Spacer (x8)
B-2
B. For Grommet Mounting
Ensure nut is
secured firmly.
D
E
D
03
04
OR
07
0.4 in.~3.5 in.
(10~90mm)
Warning:
Ensure bolt is
secured firmly.
If there is no grommet hole on your desk, position the base [05] on the mounting
surface and mark the hole. Drill a hole using the drill bit in a diameter of 0.4 in.(10mm)
- 1.1 in.(27mm) at the marked position through the mounting surface.
06
F
G
06
01
Attach the monitor plate [06] from the
sides of the top end of arm [01], then
secure the monitor plate using bolt and
washer [G]
Do not over-tighten set the
screw [M] in order not to
affect the rotation of the arm.
2. Install the Arms
3. Install the Monitor Plates
F
02
01
M
M
M
Small Allen Key
F
M
Small Allen Key
Large Allen Key
07
5. Adjust Gas Spring Tension
Be sure to keep the arm in
horizontal position during
adjustment. Or else, it would be
difficult to adjust the mount or
damage the mount.
75 mm ≈ 3 in.
100 mm ≈ 4 in.
4-1 Choose Proper Bolts 4-2 Install Monitors to the Arms
10.1-0.2in.(3-5mm) spacing left
100x100mm
75x75mm
A
Phillips
Screwdriver
[Not Included]
Flat back monitor
Curved back monitor
4. Attach Monitors to the Arms
100x100mm
75x75mm
B-1
B-2
The tension is preset at
8.8-11 LBS(4-5kg). After
hanging the monitor to
the mount, please release
the monitor slowly to
prevent it from falling
suddenly.
08
1. If the monitor can stay at the desired height by
itself, no adjustment needed.
2. If the monitor rises up, press the arm to keep it in
horizontal position and then use the 13/64 in. (5mm)
Alley key [F] to turn the bolts clockwise("-" direc-
tion) to reduce tension of the arm only until the
monitor can stay at the desired height by itself.
3. If the monitor falls down, lift the arm to keep it in
horizontal position and then use the 13/64 in. (5mm)
Alley key [F] to turn the bolts counter-clockwise("+"
direction) to increase tension of the arm only until
the monitor can stay at the desired height by itself.
4. Special situation: If the gas pressure is in mini-
mum torque tension and monitor is 2kg, the monitor
can not be hovered at your desired position freely
and please wind the set screw(see Fig. ①) in "+"
direction with the wrench "E" to fix the monitor in
place.
6. Rotation Restriction
Non-proper usage directions Proper usage directions
1 rotation ≈ 1 lb
F
Large Allen Key
09
Fig. ①
