1

1-866-468-5767 or 201-928-0222 International Point of Sale

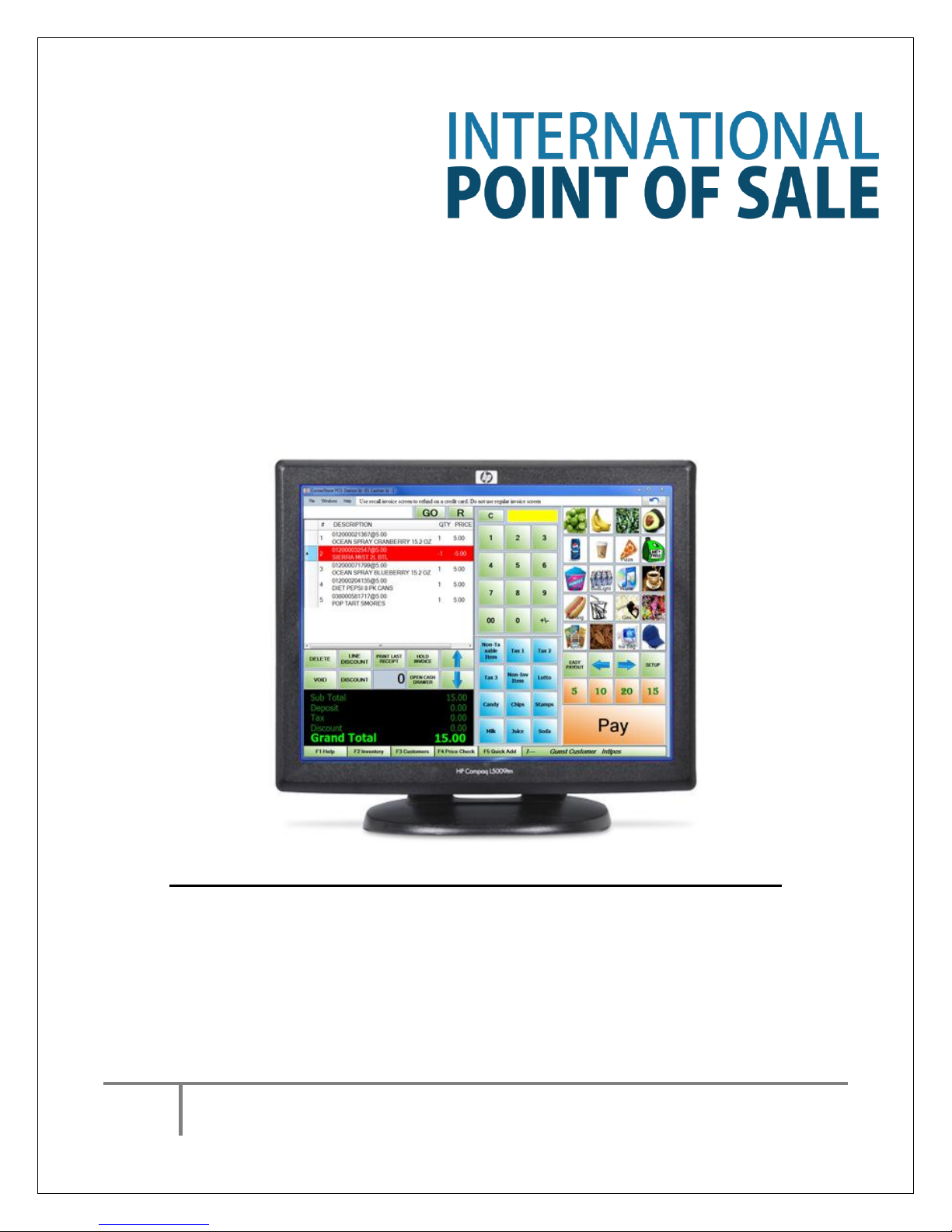

Installation instructions for the HP

Touch screen monitor LP5006tm with Corner Store POS

Corner Store POS supports HP Touch screen monitors. This document

will detail the process of installing the correct drivers for the touch

screen and then setting up the touch screen in Corner Store POS.

2

1-866-468-5767 or 201-928-0222 International Point of Sale

Installing Appropriate Drivers.

NOTE: Make sure that touch screen monitor and the computer is connected.

1. The HP L5006tm touchscreen monitor driver can be downloaded at

http://cornerstorepos.com/downloads/hardware/HP_L5006tm.zip

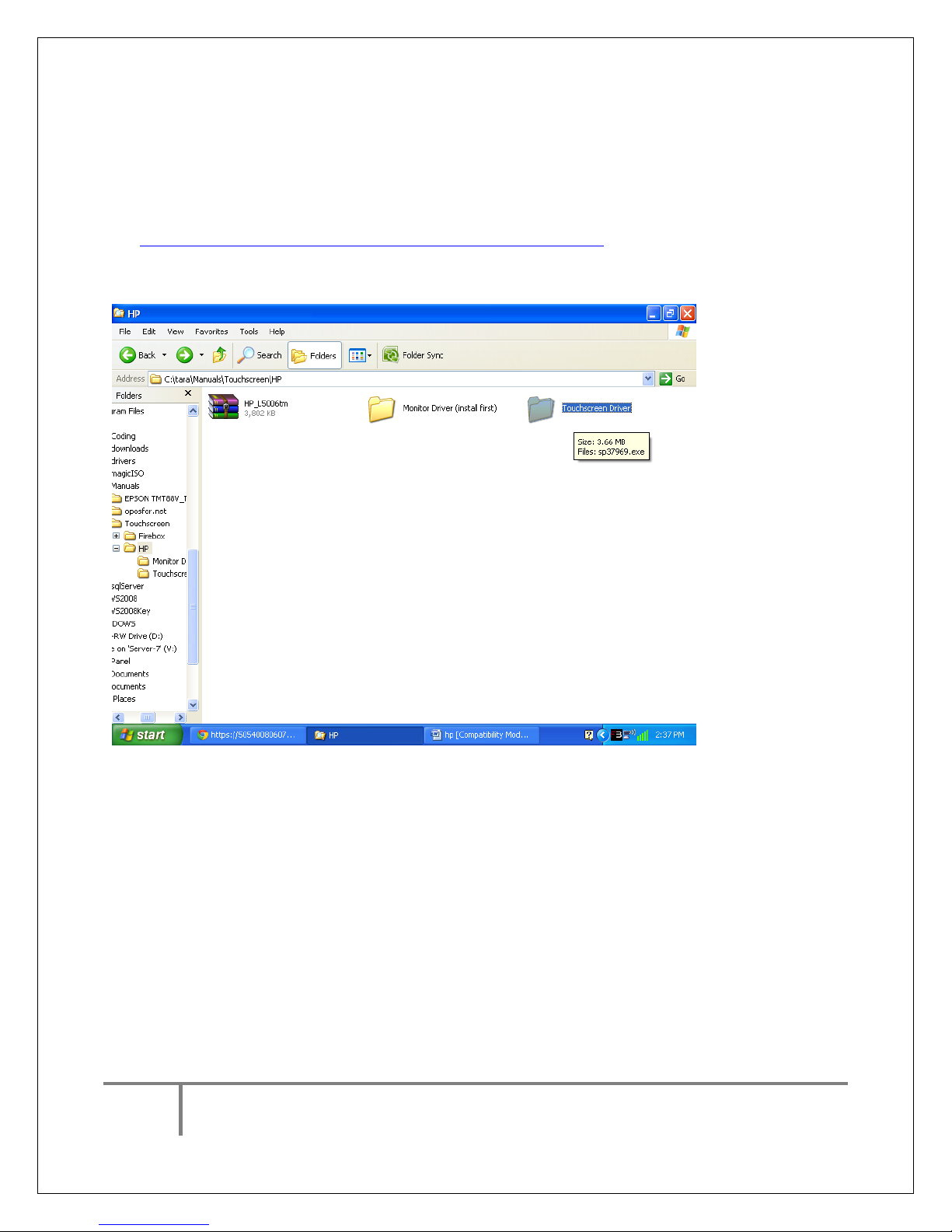

2. Unzip the file and click on the ‘Touchscreen’driver folder.

3

1-866-468-5767 or 201-928-0222 International Point of Sale

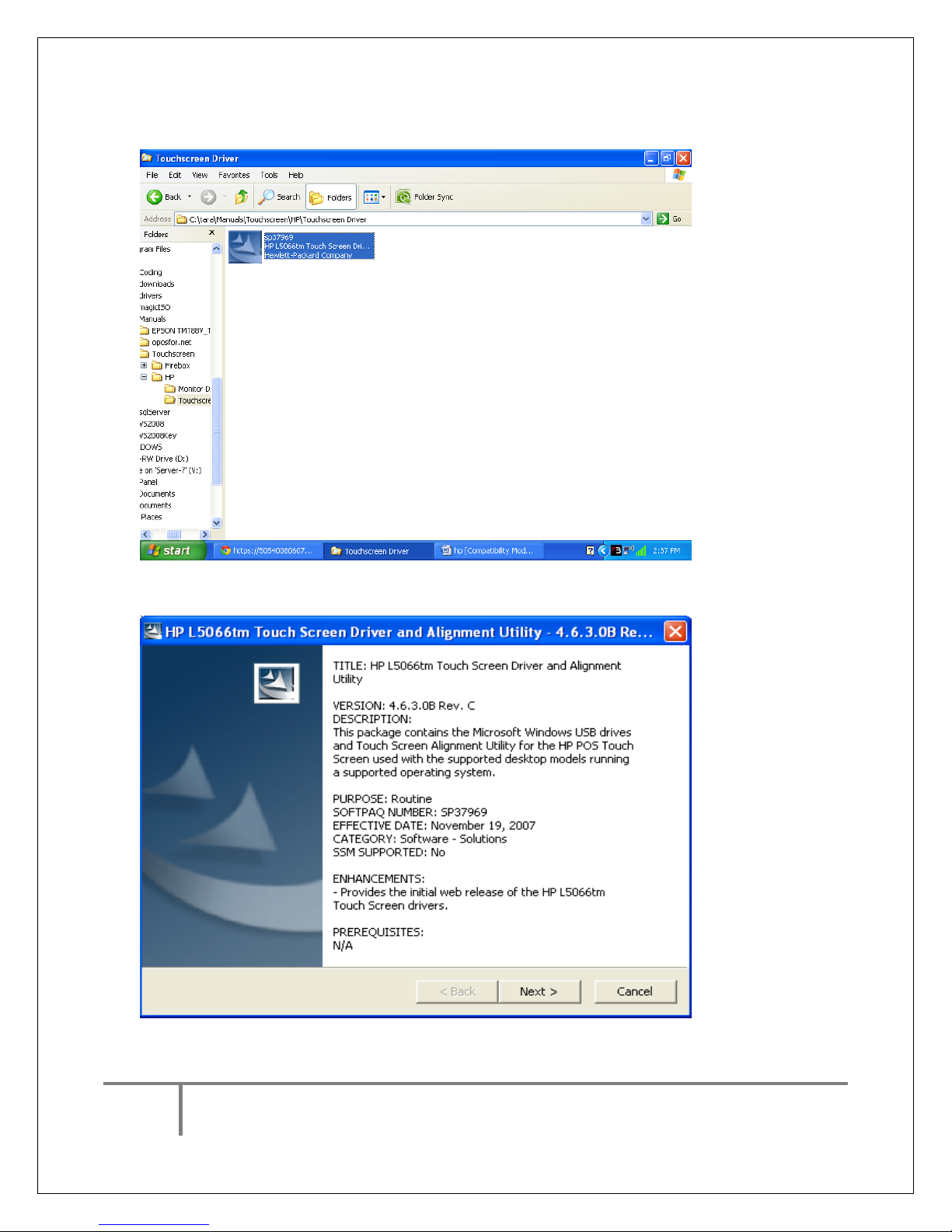

3. Click on the set up file.

4. At the initial screen, click on ‘Next’.

4

1-866-468-5767 or 201-928-0222 International Point of Sale

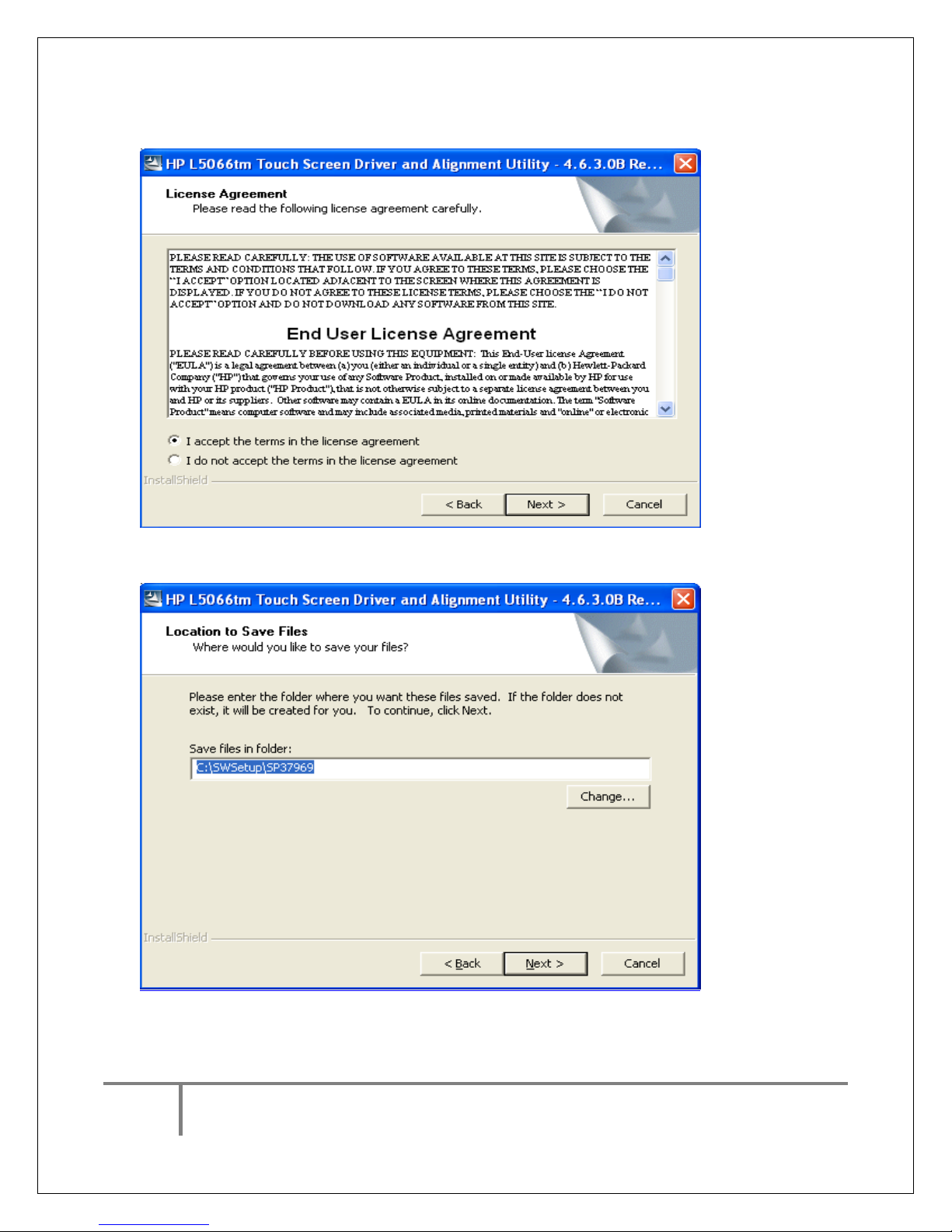

5. Select the option, ‘I accept the terms in the license agreement’. And, then click on ‘Next’.

6. Now, click on ’Next’.

5

1-866-468-5767 or 201-928-0222 International Point of Sale

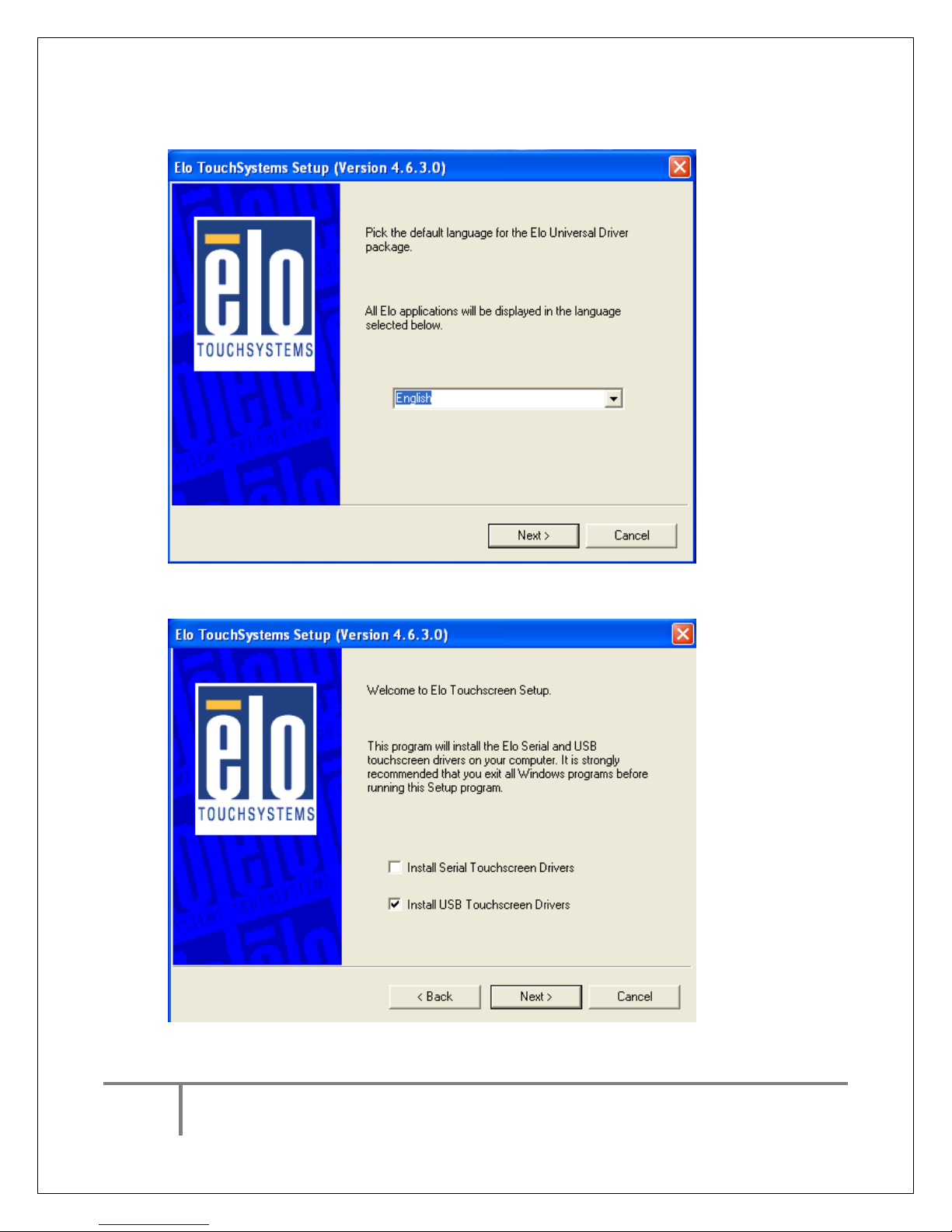

7. Select the language to display the application in English. Click on ‘Next’.

8. Select Install USB Touchscreen Drivers. And, then select Next.

6

1-866-468-5767 or 201-928-0222 International Point of Sale

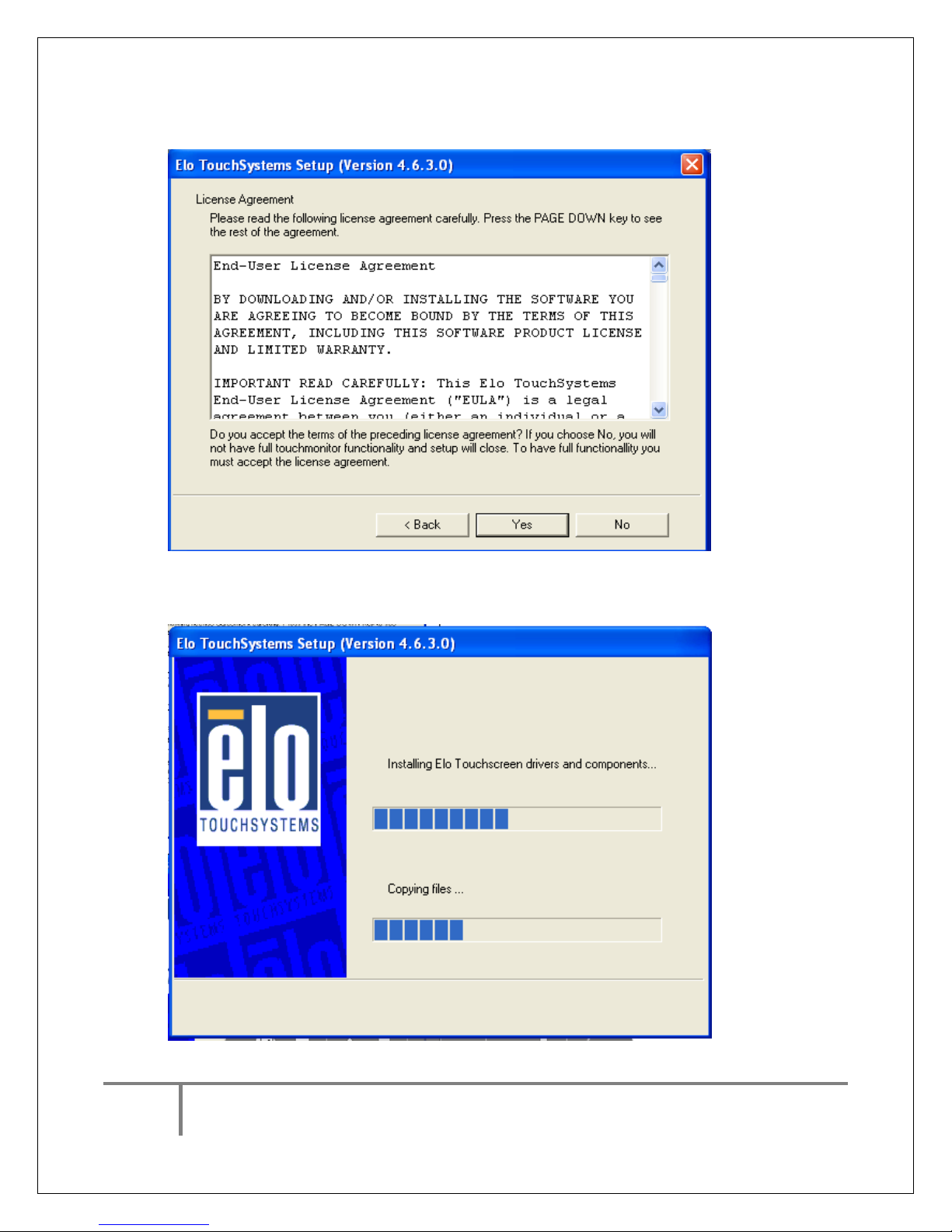

9. Select Yes.

10. Installing the touch screen monitors.

7

1-866-468-5767 or 201-928-0222 International Point of Sale

11. The drivers will then be installed. Select Calibrate Touchscreen monitors. Select Finish.

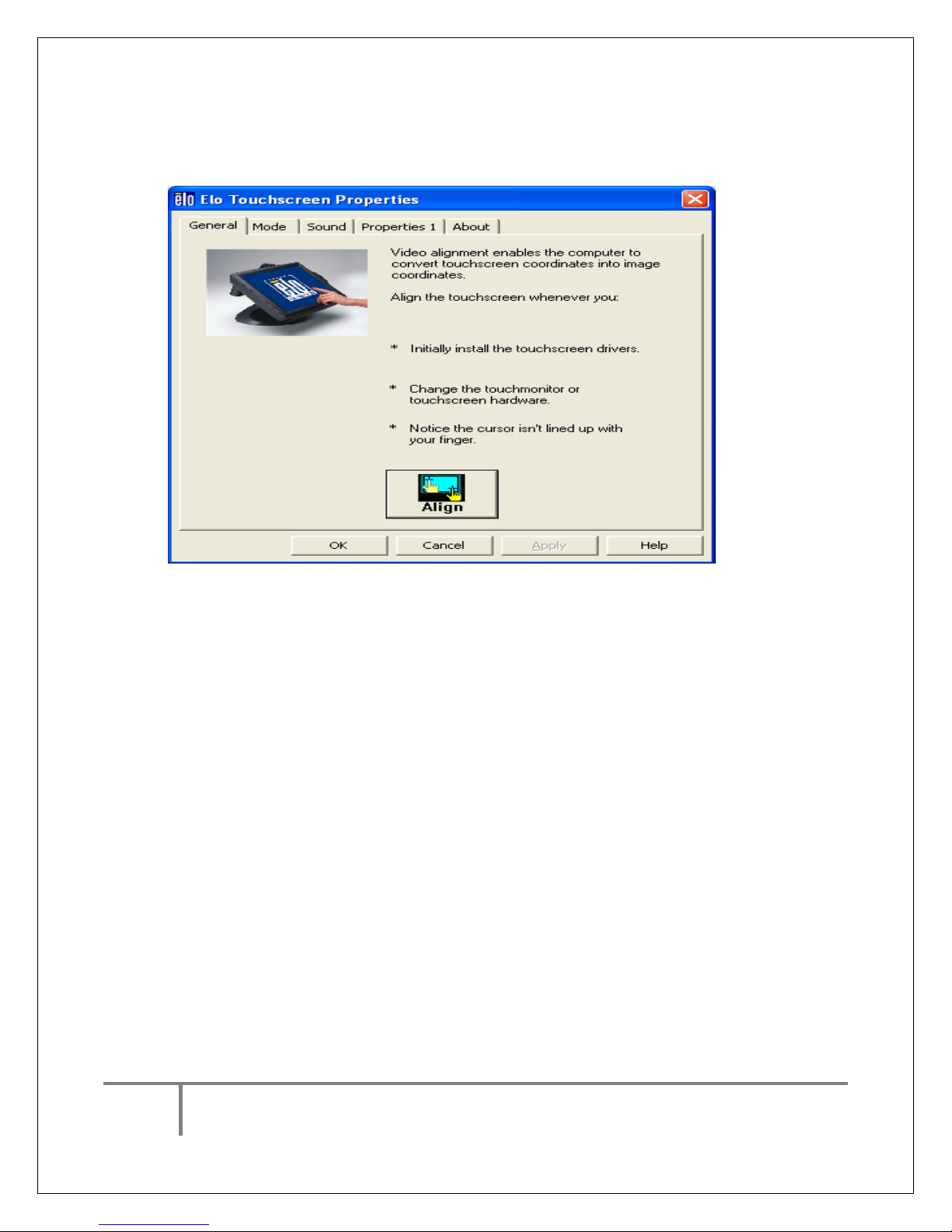

12. After the installation has completed you should see the EloTouchscreen Properties window.

13. Select Align.

8

1-866-468-5767 or 201-928-0222 International Point of Sale

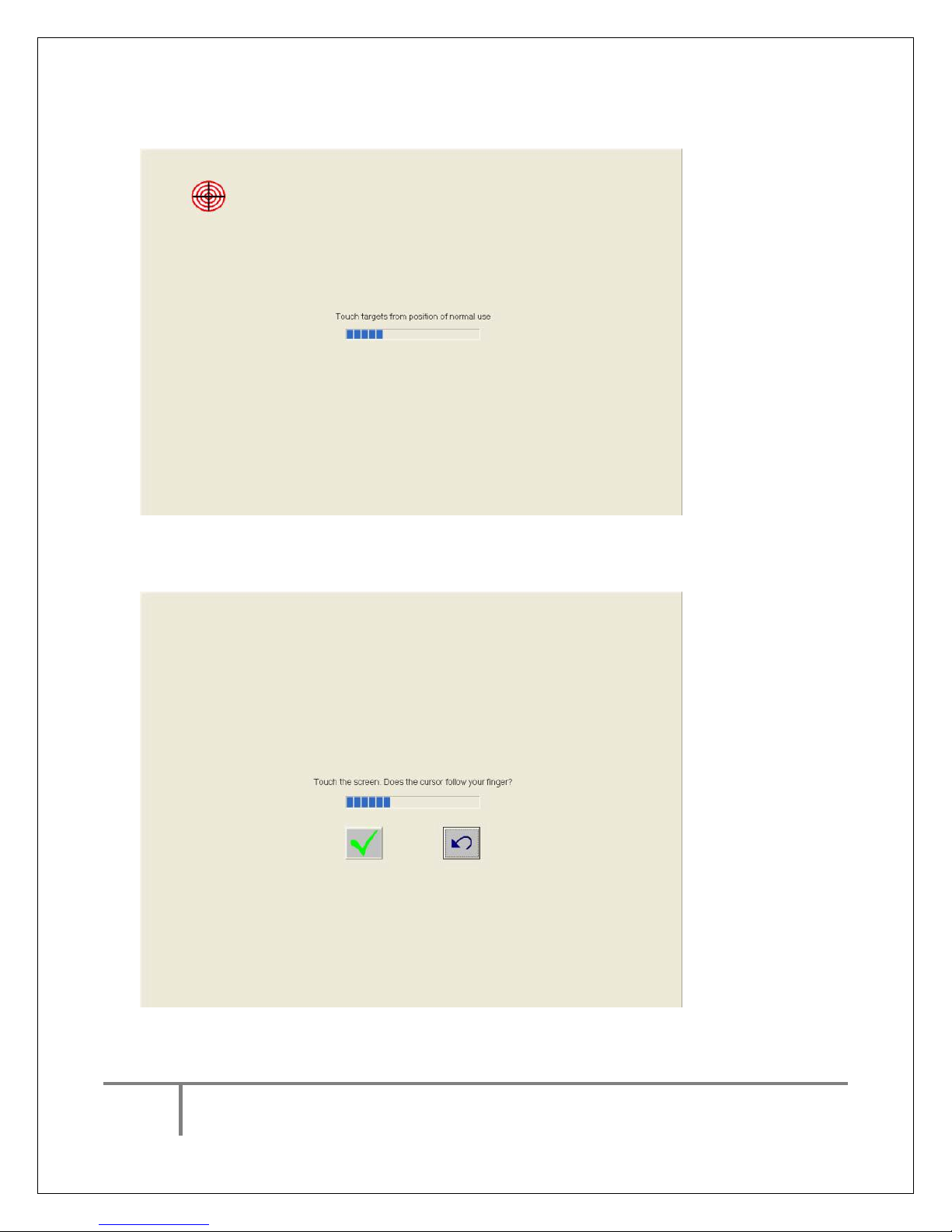

14. You will see a series of targets (red spot). Touch the spot with your finger.

15. Move your finger around the screen, if the cursor follows your finger then select the green check box.

Note: if the cursor does not follow your finger then hit the redo button (blue arrow).

16. After successful calibration restart your computer and it is ready to work.
