Repairing HP Pavilion ZD7000 Speakers

How to get remove/replace the speakers.

Note: This is one of the more difficult fixes. Make sure to keep track of your screws and everything you

remove from the device as you take them out. Not doing so may cause worse problems than faulty

speakers.

In order to do this, it would be wise to keep a tray with several compartments and some sticky notes to

separate and label screws from specific locations on the device as you remove them.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 1 of 10

Step 1 - Battery

Begin by turning the laptop over so that you can see

the bottom of the computer.

Step 2

Slide the battery release switch to the right while

simultaneously lifting up the battery.

Step 3 - Fans

Loosen these 8 philips screws.

Remove plate.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 2 of 10

Step 4

Remove the 9 philips screws from the plate covering

the fans.

Disconnect the wire attached to the smaller fan from

the motherboard.

Remove the metal plate.

Step 5

Pull the fan out of the plate but do not

detach it from the board.

Remove the metal plate.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 3 of 10

Step 6

Disconnect the wire attached to the smaller fan from

the motherboard.

Remove the small fan.

Step 7

Remove the 4 spring loaded screws.

Step 8

Disconnect the wire attached to the large

fan from the motherboard BEFORE taking

the fan out.

Slide the fan compartment out by pulling it down and

then left simultaneously.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 4 of 10

Step 9 - Motherboard

Remove the screws connecting the screen to the

keyboard.

Step 10

You can now carefully pry the keyboard off.

However, do NOT do so yet. There are still

wires connecting the 2 components together.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 5 of 10

Step 11

Disconnect the 3 ribbon cables attached to the

motherboard.

The wire ribbons are removed by snapping

out the small latches on the sides of the

connection components. The ribbons should

slide out with ease.

See images 2 and 3 for a closer look.

Step 12

Remove the screws from the motherboard.

There are many different sizes and types of screws

here. Make sure you are keeping track of where they all

belong.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 6 of 10

Step 13

Disconnect the wires, belonging to the speakers, from

the motherboard.

Step 14

Remove CD-Rom By simply sliding it out.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 7 of 10

Step 15

Pry the frame off the laptop outwards while

simultaneously lifting the motherboard out of it.

Go slowly on every side instead of focusing

on only one corner.

Step 16

You can now carefully remove the entire Motherboard.

Note: Unless you plan on replacing it,

handle the motherboard with care. This is

the heart of your computer. Any damage will

cause a system failure.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 8 of 10

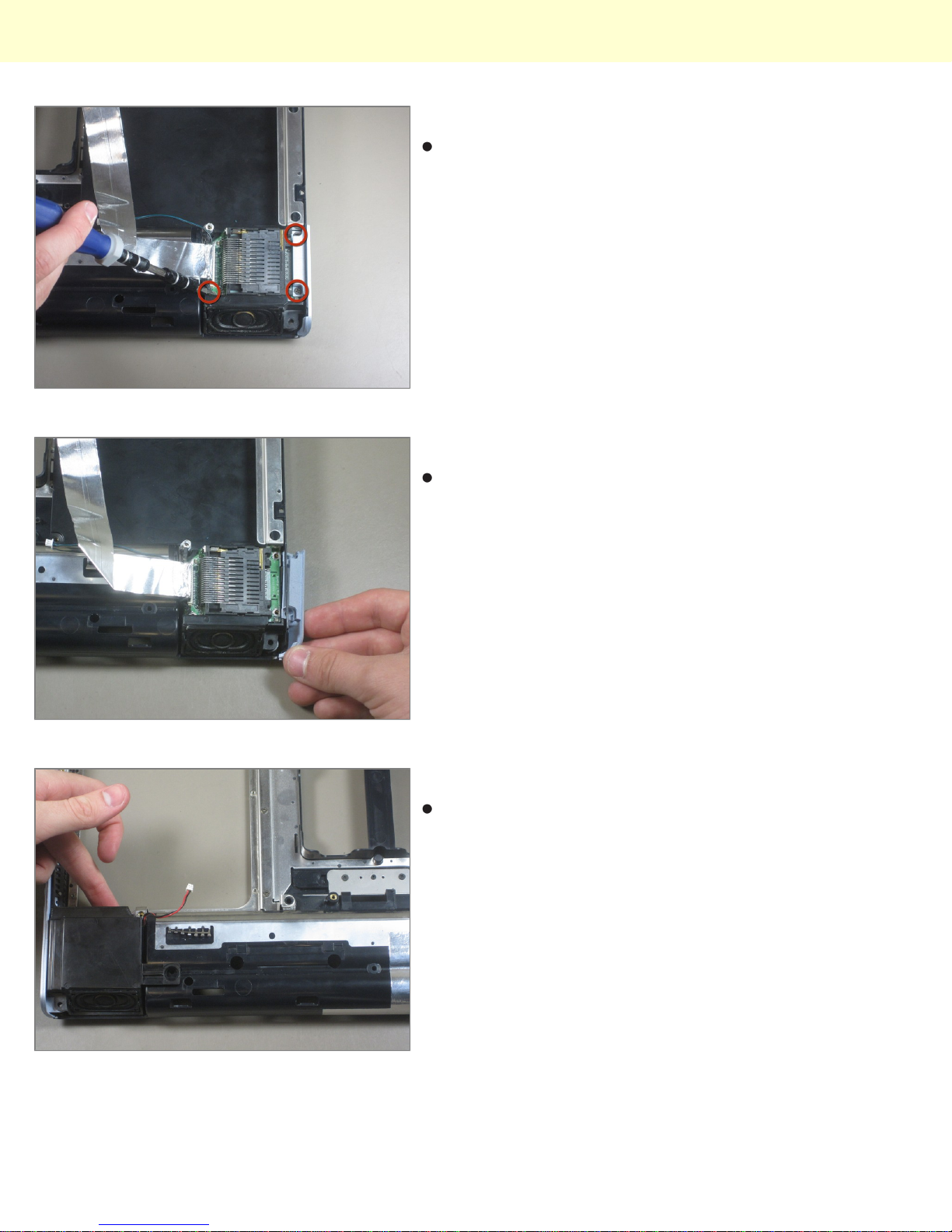

Step 17 - Speakers

Remove the 3 screws connecting the spearker.

Step 18

Detach the plastic piece holding the speaker in.

Step 19

To remove the second speaker simply lift it up and out.

Repairing HP Pavilion ZD7000 Speakers

© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 9 of 10

To reassemble your device, follow these instructions in reverse order.

This document was last generated on Dec 14, 2010.
