HP Compaq tc4400 User manual

Tablet PC Tour

Document Part Number: 419466-001

January 2007

This guide explains the computer hardware features.

Tablet PC Tour ii

Contents

1 Components

Top components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Pointing devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Buttons and reader . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Hotkey quick reference . . . . . . . . . . . . . . . . . . . . . . . 1–8

Pen-activated buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Display components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

Front components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12

Rear components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–13

Right-side components. . . . . . . . . . . . . . . . . . . . . . . . . . 1–14

Left-side components . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15

Bottom components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–17

Wireless antennae. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–19

Pen components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20

Additional hardware components . . . . . . . . . . . . . . . . . 1–21

Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–22

2 Specifications

Operating environment. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Rated input power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Index

Tablet PC Tour 1–1

Components

This chapter explains the hardware features of the computer.

To see a list of hardware installed in the computer:

1. Select Start > Computer > System properties.

2. In the left pane, click Device Manager.

You can also add hardware or modify your device configurations

using Device Manager.

✎Components included with the computer may vary by region

and by model. The illustrations in this chapter identify the

standard external features included in most computer models.

1–2 Tablet PC Tour

Components

Top components

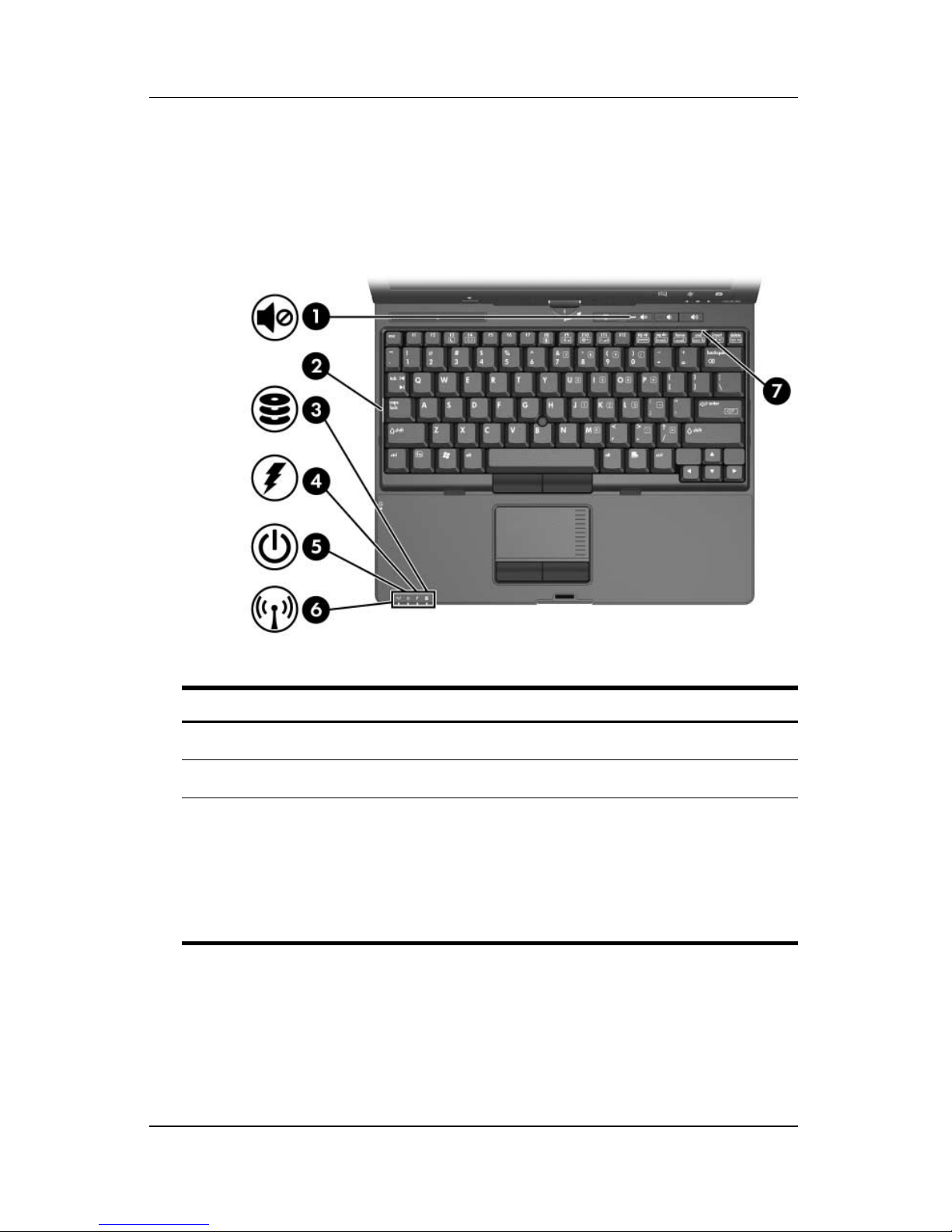

Lights

Component Description

1Volume mute light On: Computer sound is turned off.

2Caps lock light On: Caps lock is on.

3Drive light ■Blinking green: The hard drive is

being accessed.

■Amber: HP Mobile Data Protection

3D with accelerometer software has

temporarily parked the internal hard

drive.

(Continued)

Components

Tablet PC Tour 1–3

4Battery light Amber: A battery pack is charging.

Green: A battery pack is close to full

charge capacity.

Blinking amber: A battery pack that is

the only available power source has

reached a low battery level. When the

battery reaches a critical battery level,

the battery light begins blinking rapidly.

Off: If the computer is plugged into an

external power source, the light is

turned off when all batteries in the

computer are fully charged. If the

computer is not plugged into an

external power source, the light

stays off until the battery reaches a low

battery level.

5Power light Green: The computer is on.

Blinking green: The computer is in the

Sleep state.

Off: The computer is off or in

Hibernation.

6Wireless light On: An integrated wireless device,

such as a wireless local area network

(WLAN) device and/or a Bluetooth®

device, is turned on.

7Num lock light On: Num lock is on or the embedded

numeric keypad is enabled.

Component Description

1–4 Tablet PC Tour

Components

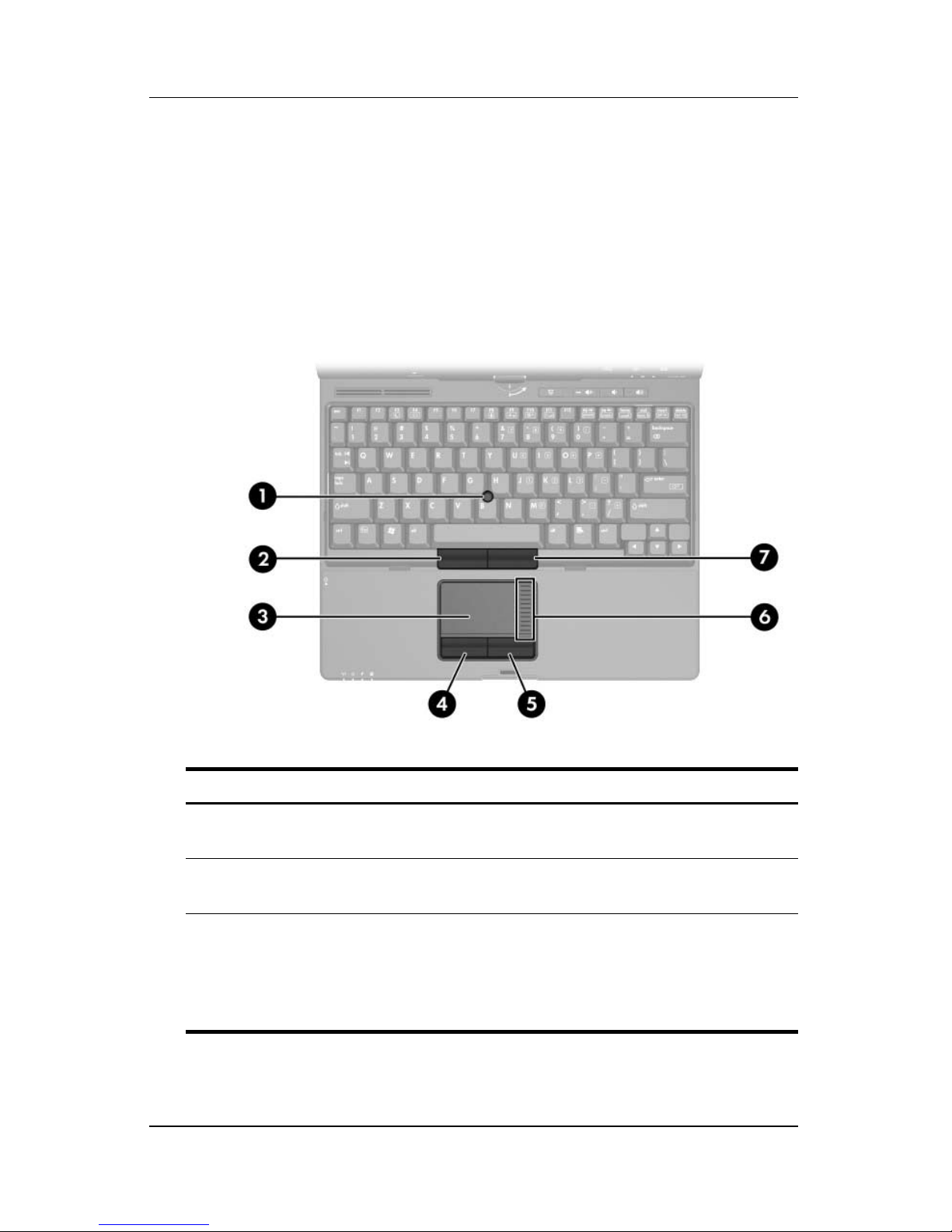

Pointing devices

Touchpad

The pointing stick and TouchPad controls can be used

interchangeably. The following illustration and table describe the

computer pointing devices, which vary by model.

Component Description

1Pointing stick Moves the pointer and selects or

activates items on the screen.

2Left pointing stick button Functions like the left button on an

external mouse.

3TouchPad* Moves the pointer and selects or

activates items on the screen. Can be

set to perform other mouse functions,

such as scrolling, selecting, and

double-clicking.

(Continued)

Components

Tablet PC Tour 1–5

4Left TouchPad button* Functions like the left button on an

external mouse.

5Right TouchPad button* Functions like the right button on an

external mouse.

6TouchPad scroll zone* Scrolls up or down.

7Right pointing stick button Functions like the right button on an

external mouse.

*This table describes default settings. To view and change Touch Pad

preferences, select Start > Control Panel > Hardware and Sound >

Mouse.

Component Description

1–6 Tablet PC Tour

Components

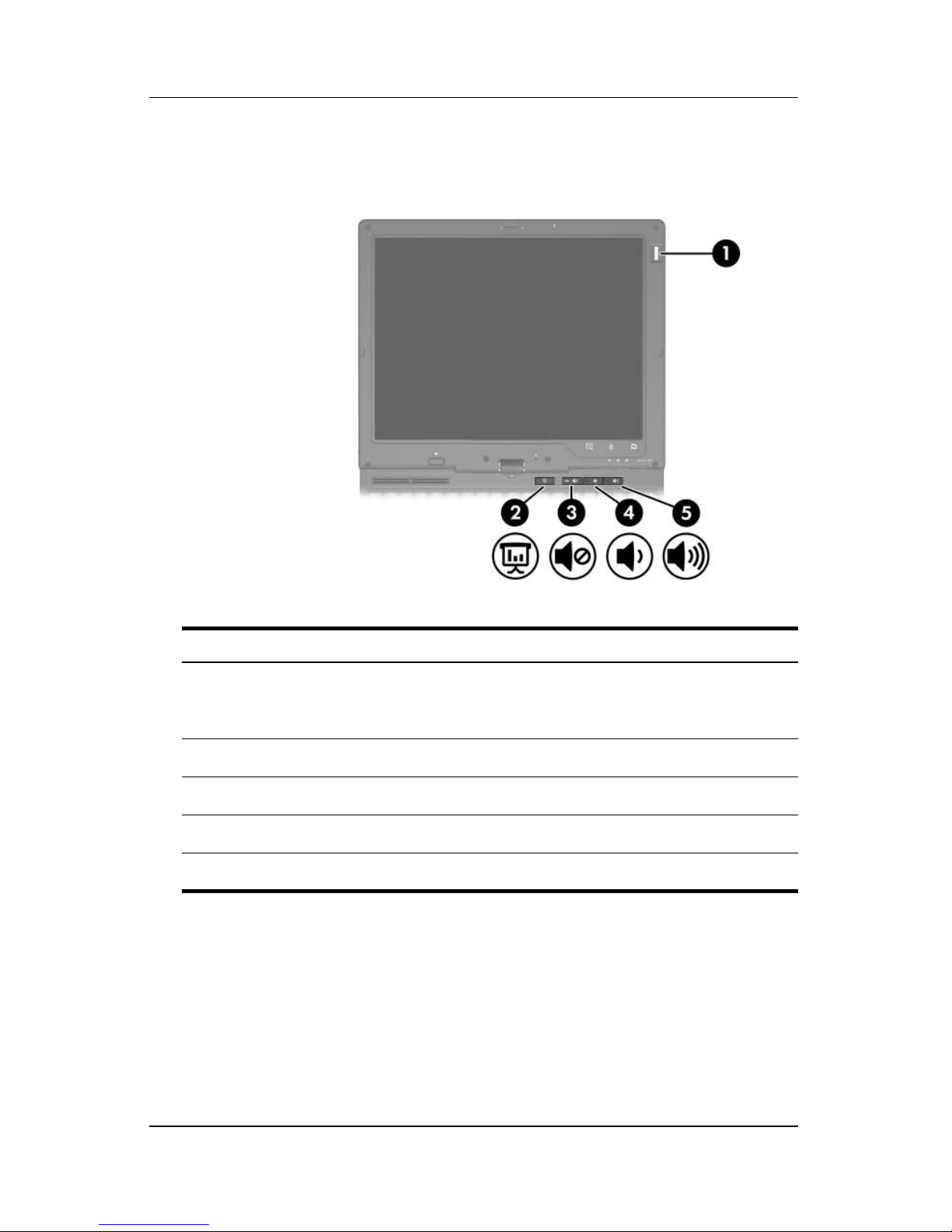

Buttons and reader

Component Description

1Fingerprint reader Allows a fingerprint logon to

Windows®, instead of a password

logon.

2Presentation button Starts the Presentation feature.

3Volume mute button Mutes and restores computer sound.

4Volume down button Decreases computer sound.

5Volume up button Increases computer sound.

Components

Tablet PC Tour 1–7

Keys

Component Description

1Function keys (6) Execute frequently used system

functions when pressed in combination

with the fn key.

✎Refer to the table in “Hotkey quick reference” for a description of

each hotkey.

2fn key Executes frequently used system

functions when pressed in combination

with a function key or the esc key.

3Windows logo key Displays the Windows Start menu.

4Windows applications key Displays a shortcut menu for items

beneath the pointer.

5Embedded numeric keypad

keys (15)

Can be used like the keys on an

external numeric keypad.

1–8 Tablet PC Tour

Components

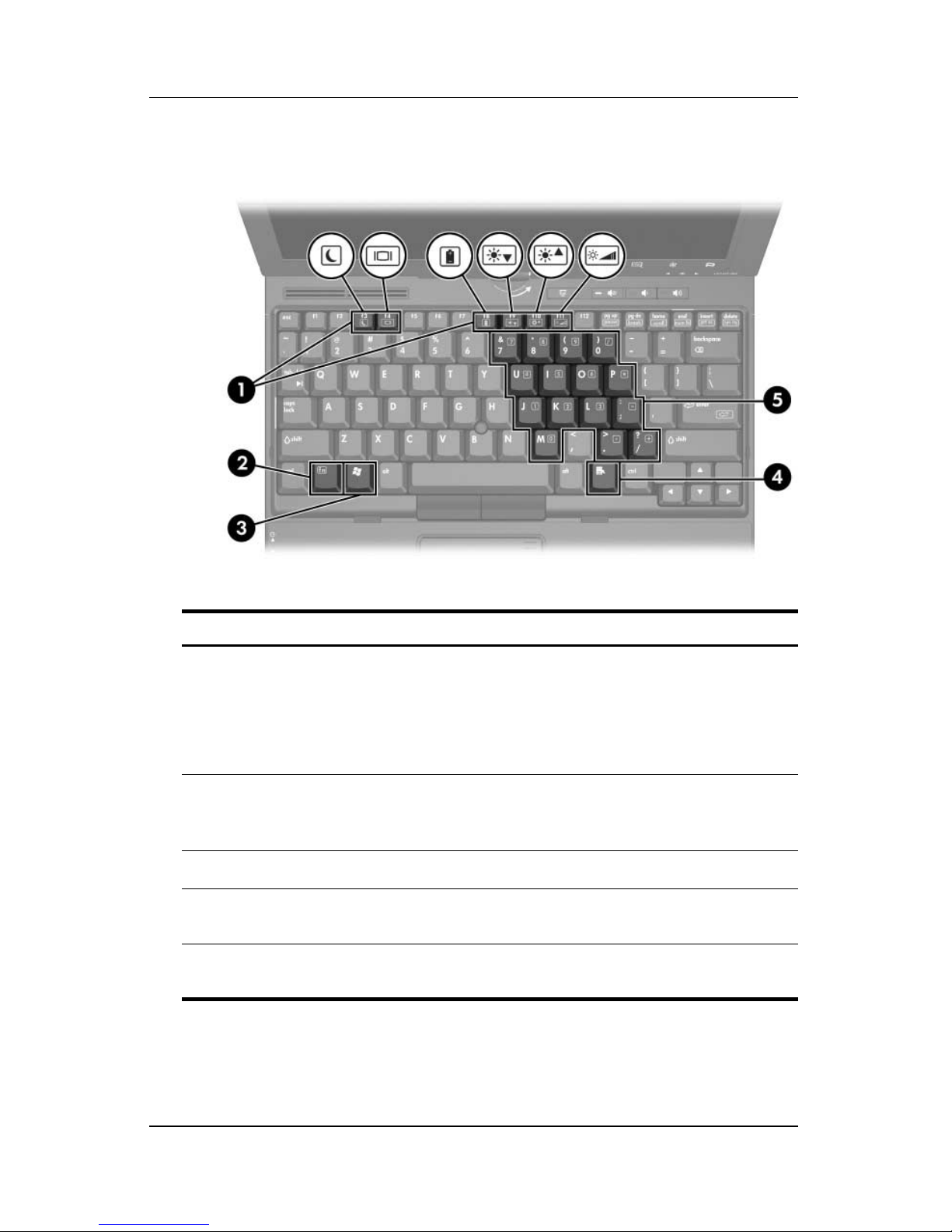

Hotkey quick reference

To perform this function Press

Initiate Sleep fn+f3

Exit Sleep Slide the Power switch toward

the front of the computer.

Alternate between computer display and

external display

fn+f4

Display battery information fn+f8

Clear battery information fn+f8

Decrease screen brightness fn+f9

Increase screen brightness fn+f10

Display system information fn+esc

Clear system information esc or click OK
