HP Compaq Presario Manual
1-98 Volume Two
Presario 1200
System/Processor Boards Assembly Spare Part System
Processor Board w/ 32 MB 356877-001 1234, 35, 36,
37, 38, 40,
42, 50, 52
Processor Board w/ 32 MB 330938-001 1230
Processor Board w/ 32 MB
SDRAM 142646-001 1272, 73, 74,
75
System Board 586/200GXM,
Processor 203716-001 1220,
1220ES
System Board 586/180GXM,
Processor 203718-001 1215
System Board, I/O w/ 1M w/ 64
MB LVD 50M102D83-S0 173539-001 1200XL
System Board, I/O w/ 1M w/ 64
MB TFT 50M102D81-S0 169608-001 1200XL
System Board, I/O w/ 32 MB
SDRAM 102246-001 1255, 60, 66,
67
System Board, I/O w/ 512K
Cache w/ 32 MB HPA 50M102D79-S0 169606-001 1200XL
System Board, I/O w/ 512K
Cache w/ 32 MB RAM 158793-001 1246, 47
System Board, I/O w/ 512K
Cache w/ 64 MB HPA 50M102D80-S0 169607-001 1200XL
System Board, I/O w/ 512K
Cache w/ 64 MB RAM 158794-001 1246, 77, 78
System Board w/ 32 MB
SDRAM w/o FMDM 102247-001 1255, 60, 66,
67
System Board w/ Cache, w/o
Processor 293785-001 1207, 10
System Board, w/o Processor 203731-001 1220
System Board, w/o Processor 327715-001 1215
Configuration Code System Board
Spare Part Model
BQH2 293785-001 1210
BQH3 293785-001 1207
BQH4 293785-001 1207
BQH5 293785-001 1207
BVL2 203716-001 1220
BVL4 203716-001 1220
BXN2 203731-001 1215
BY44 330938-001 1230
BY86 356877-001 1235
BY87 356877-001 1238
BY88 356877-001 1237
BY8B 356877-001 1235
BY8H 356877-001 1234
BY8K 356877-001 1236
BYG2 356877-001 1240
BYG3 356877-001 1240
BYG4 356877-001 1242
BYG5 356877-001 1240
CF42 356877-001 1252
CF43 356877-001 1250
Continued
Volume Two 1-99
Presario 1200
Configuration Code System Board
Spare Part Model
CFK2 102246-001 1255
CFK3 102246-001 1255
CFK4 102246-001 1255
CFK5 102246-001 1260
CFK6 102246-001 1255
CFK7 102246-001 1260
CFK8 102246-001 1266
CFKB 102246-001 1267
CFKC 102246-001 1260
CFKD 102246-001 1260
CLR3 142646-001 1275
CLR4 142646-001 1273
CLR5 142646-001 1272
CLR7 142646-001 1275
CLR8 142646-001 1274
CLRG 142646-001 1275
CTS1 158793-001 1246
CTS3 158794-001 1277
CTS6 158793-001 1246
CTS7 158794-001 1278
CTS9 158793-001 1247
CTSD 158794-001 1277
DCH1 169607-001 1200XL
DCH2 169608-001
173539-001 1200XL
DCH3 169608-001
173539-001 1200XL
DCH5 169607-001 1200XL
DCH6 169608-001
173539-001 1200XL
DCH7 173539-001 1200XL
Microprocessors Assembly Spare Part System
233 GXM Processor 330937-001 1230
586/200 GXM w/ Processor
Board 203734-001 1220, 1220ES
686/150 w/ Heat Sink 293828-001 1207, 10
686/180 GXM 203718-001 1215
686/266 MMX Processor 332216-001 1234, 35, 36, 37,
38
K6/300 Processor 356886-001 1250, 52
K6II/333 Processor 400442-001 1255, 60, 66, 67
K6II/366 Processor 142647-001 1272, 73, 74, 75
K6II/400 Processor, AMD,
2.2V 134079-001 1246, 47
K6II/433 Processor, AMD 158851-001 1277, 1278
K6II/450 Processor, 2.1V 50M102D42-S0 159548-001 1200XL
K6II/475 Processor, 2V 50M102D44-S0 161064-001 1200XL
K6II/500 Processor, 2.1V 50M102D82-S0 173534-001 1200XL
P/266 MAX Processor 356885-001 1240, 42
1-100 Volume Two
Presario 1200
Memory Modules/Boards Spare Part System
16 MB Memory, SODIMM 293726-001 All
32 MB Memory, SODIMM 293727-001 All
64 MB Memory, SODIMM 332208-001 All
Hard Drives Assembly Spare Part System
1.4 GB, IDE 293779-001 1207, 10
1.4 GB, IDE 203740-001 1215
2.1 GB, IDE 298764-001 1220
2.1 GB, IDE 330933-001 1230
3.2 GB, IDE 330968-001 1230
4.0 GB, IDE 330969-001 1260, 66, 67
4.3 GB, IDE 144410-001 1246, 47, 72, 74,
75, 77, 78
4.8 GB, IDE 50M101D81-S0 142310-001 1246, 77, 78, 79;
1200XL
5.0 GB 50M102D77-S0 169609-001 1200XL
6.0 GB 50M101Z23-S0 170087-001 1200XL
6.4 GB, IDE 347548-001 1250, 60, 66
6.4 GB, IDE 142651-001 1273
Diskette Drives Assembly Spare Part System
1.44 MB 293784-001 All
1.44 MB 330947-001 1230, 34, 35, 36,
37, 38, 40, 42,
50, 52, 55, 60,
66, 67
1.44 MB 50M101D99-S0 141847-001 1246, 47, 72, 73,
74, 75, 77, 78;
1200XL
CD-ROM Assembly Spare Part System
6X DVD-ROM, 1C 50M102D76-S0 169799-001 1200XL
14X Max 203741-001 1215
14X Max CD-ROM (Black) 297657-001 1207, 10
20X Max CD-ROM 203736-001 1220
24X CD-ROM 330934-001 1230, 34, 35, 36,
37, 38, 40, 42,
50, 52
24X CD-ROM 386891-001 1255, 60, 66, 67
24X Max CD-ROM, IDE, 2C 50M101D78-S0 142307-001 1246, 47, 77, 78;
1200XL
24X CD-ROM, 2C 142650-001 1272, 73, 74, 75
Cables Assembly Spare Part System
Flat Panel, Cable to
Interface Board 50M102D15-S0 152186-001 1246, 77, 78, 79;
1200XL
Misc. Cable Kit 293759-001 All
Misc. Cable Kit 203714-001 1215, 20, 20ES
Misc. Cable Kit 293759-001 All
Misc. Cable Kit 50M101F23-S0 330946-001 1230, 34, 35, 36,
37, 38, 40, 42,
46, 47, 50, 52,
55, 60, 66, 67,
72, 73, 74, 75,
77, 78, 79;
1200XL
Volume Two 1-101
Presario 1200
Miscellaneous Internal Assembly Spare Part System
Audio Board w/ Jacks –
Lite 293756-001 1207, 10
Fan 346863-001 1234, 35, 36, 37, 38,
40, 42, 50, 52, 55,
60, 66, 67
Fan 293747-001 All
Fan 102249-001 1272, 73, 74, 75
Fan, 5500 rpm 50M102D35-S0 158801-001 1246, 47, 77, 78, 79;
1200XL
Fan, 7000 rpm 50M102D34-S0 158800-001 1246, 47, 77, 78, 79;
1200XL
Heat Spreader, 2000 50M102D36-S0 158802-001 1246, 47, 77, 78, 79;
1200XL
LCD Interface Board w/
Header 293746-001 All
Voltage Converter
Board 293748-001 All
Voltage Converter
Board 330962-001 1230
Voltage Converter
Board, 3C 50M101F43-S0 352891-001 1234, 35, 36, 37, 38,
40, 42, 46, 47, 50,
52, 55, 60, 66, 67,
1272, 73, 74, 75, 77,
78, 79; 1200XL
Miscellaneous
External Assembly Spare Part System
AC Adapter 50M101P23-S0 298239-001 All (new smaller
size)
AC Adapter 293787-001 All
Base Enclosure 50M102D32-S0 158798-001 1246, 47, 77, 78;
1200XL
CPU Cover, Upper 203739-001 1215, 1220
CPU Cover w/ Cable &
Power Switch 293739-001 All
CPU Cover w/ Power
Switch 330963-001 1255, 60, 66, 67
CPU Cover w/ Power
Switch 50M102D33-S0 158799-001 1200XL
Hardware Kit, Misc. 50M101F37-S0 346853-001 1234, 35, 36, 37, 38,
40, 46, 47, 50, 52,
55, 60, 66, 67, 1272,
73, 74, 75, 77, 78,
79; 1200XL
Keyboard 102250-001 1260
Keyboard 141706-XXX 1246, 47, 72, 73, 74,
75, 77, 78, 79
Keyboard 50M102D58-S0 171003-001 1200XL
Keyboard - ARAB 50M102D66-S0 171003-171 1200XL
Keyboard - BEL 50M102D74-S0 171003-381 1200XL
Keyboard - BR 50M102D86-S0 171003-201 1200XL
Keyboard - DK 50M102D59-S0 171003-081 1200XL
Keyboard - FCAN 50M102D73-S0 171003-121 1200XL
Keyboard - FR 50M102D60-S0 171003-051 1200XL
Keyboard - IT 50M102D62-S0 171003-061 1200XL
Keyboard - JP 50M102D71-S0 171003-291 1200XL Continued
1-102 Volume Two
Presario 1200
Miscellaneous
External Assembly Spare Part System
Keyboard - LA 50M102D65-S0 171003-161 1200XL
Keyboard - NL 50M102D72-S0 171003-331 1200XL
Keyboard - NO 50M102D63-S0 171003-091 1200XL
Keyboard - UK 50M102D68-S0 171003-031 1200XL
Keyboard - PT 50M102D69-S0 171003-131 1200XL
Keyboard - SE 50M102D67-S0 171003-101 1200XL
Keyboard - SG 50M102D64-S0 171003-AF1 1200XL
Keyboard - TW 50M102D70-S0 171003-AB3 1200XL
Keyboard - UK 50M102D68-S0 171003-031 1200XL
Keyboard, US 293776-001 1210, 1620
Keyboard, US 330956-001 1230, 34, 35, 36, 37,
38, 40, 50, 52
Modem, 33.6+Data/Fax 298958-002 298974-002 1215, 20, 07
Modem, 56.6+Data/Fax 292306-002 292311-001 1220, 10, 07
Modem, 56K Data/Fax 138657-001 1215, 20, 30
Modem, 56K Data/Fax 292306-001 138610-001 1230, 34, 40, 42, 55,
60
Modem, 56K Data/Fax
w/o SRAM 138659-001 1235, 36, 37, 38, 40,
50, 52, 55, 60, 66,
67, 72, 73, 74, 75
Modem, K-56K
Data/Fax w/o SRAM 50M101D48-S0 400445-001 1246, 47, 77, 78;
1200XL
Modem, K-56K
Data/Fax w/o SRAM -
International
50M102D02-S0 143848-001 1200XL
Palm Rest w/ Board &
Cables 293716-001 All
Palm Rest 203737-001 1215, 1220
Palm Rest 330965-001 1230
Palm Rest 352888-001 1234, 35, 36, 37, 38,
40, 42, 50, 52
Palm Rest w/
Touchpad/Button Board 387540-001 1255, 60, 66, 67
Palm Rest w/
Touchpad/Button Board 50M101D96-S0 142653-001 1272, 73, 74, 75;
1200XL
Palm Rest w/
Touchpad/Button Board 50M101D95-S0 142654-001 1200XL
Palm Rest w/
Touchpad/Button Board
w/o Soft Paint
161416-001 1278
Plastic Kit,
Miscellaneous 50M102D01-S0 142657-001 1246, 47, 77, 78;
1200XL
Port Replicator 102270-001 1270
Speakers, Left and
Right 293757-001 1215, 1220
Speakers, Left and
Right 293782-001 All ex 1207, 10
Speakers, Lite 293883-001 1207, 10
Speakers, w/ Enclosure
and Cable 330960-001 1230
Speakers, w/ Enclosure
and Cable 352889-001 1234, 35, 36, 37, 38,
40, 42, 50, 52, 55,
60, 66, 67
Speakers, w/ Enclosure
and Cable 50M102D06-S0 148108-001 1246, 47, 1272, 73,
74, 75, 77, 78;
1200XL
Volume Two 1-103
Presario 1200
Modem Cables Spare Part
APD 137256-001
Brazil 137256-001
Canada 137256-001
Hong Kong 137256-001
Japan 137256-001
Latin America 137256-001
Switzerland 304398-111
Taiwan 137256-001
United Kingdom 165224-031
US 137256-001
Modem Cable/Adapters Cable Spare Part
APD 304398-371
Australia 304398-011
Belgium 304398-181
France 304398-051
Germany 304398-041
Netherlands 304398-331
New Zealand 304398-011
Sweden 304398-101
United Kingdom 304398-031
Video Assembly Spare Part System
Display Assy , 11.3”DSTN 293781-001 1207
Display Panel, 12.1”DSTN 50M102D24-S0 158795-001 1277, 78, 79;
1200XL
Display Assy, 12.1”HC 332209-001 1220 (BVL4)
Display Assy, 12.1”HPA 203735-001 1220 (BVL2),
1215
Display Assy, 12.1”HPA 330939-001 1230, 34, 35,
38, 40
Display Assy, 12.1”HPA 142648-001 1272, 73, 74, 75
Display Assy, 12.1”STN-Lite 293881-001 1210
Display Assy, 12.1”TFT 352890-001 1235, 36, 37,
40, 42, 50, 52,
60, 66, 67
Display Assy, 12.1”TFT 50M102D84-S0 173540-001 1200XL
Display Panel, 12.1”HPA II 102248-001 1255
Display Panel, 12.1”
TFT/LVDS 159038-001 1246, 77, 78,
79,
Display Assy, 13.0”HPA 142649-001 1275
Display Panel, 13.0”DSTN 50M102D25-S0 158796-001 1246, 78, 79;
1200XL
Display Panel, 13.3”
TFT/LVDS 50M102D85-S0 173665-001 1200XL
Display, Status w/ Cables 293737-001 All
ROM Information Spare Part System
ROMPaq 261922-001 All
1-104 Volume Two
Presario 1200
Power Supply/Battery Assembly Spare Part System
Battery Pack, E.D. NiMH 330935-001 1230, 34, 35, 40
Battery Pack, E.D. NiMH,
Enhanced 50M101D26-S0 388648-001 1246, 55, 72, 73,
74, 75, 77, 78, 79;
1200XL
Battery Pack, Li-Ion,
Enhanced 50M101X13-S0 138184-001 1200XL
Battery, Li-Ion 292560-001 All
Battery, Li-Ion 330936-001 1234, 35, 36, 37,
38, 40, 42, 50, 52
Battery, Li-Ion, Enhanced 388647-001 1246, 47, 55, 60,
66, 67, 75, 77, 78,
79
Battery, NiMH 293861-001 All
Clock/Battery 117099-001 All
Volume Two 1-105
Presario 1200
PRESARIO 1207, 1210, 1215, 1220, 1220ES, 1230

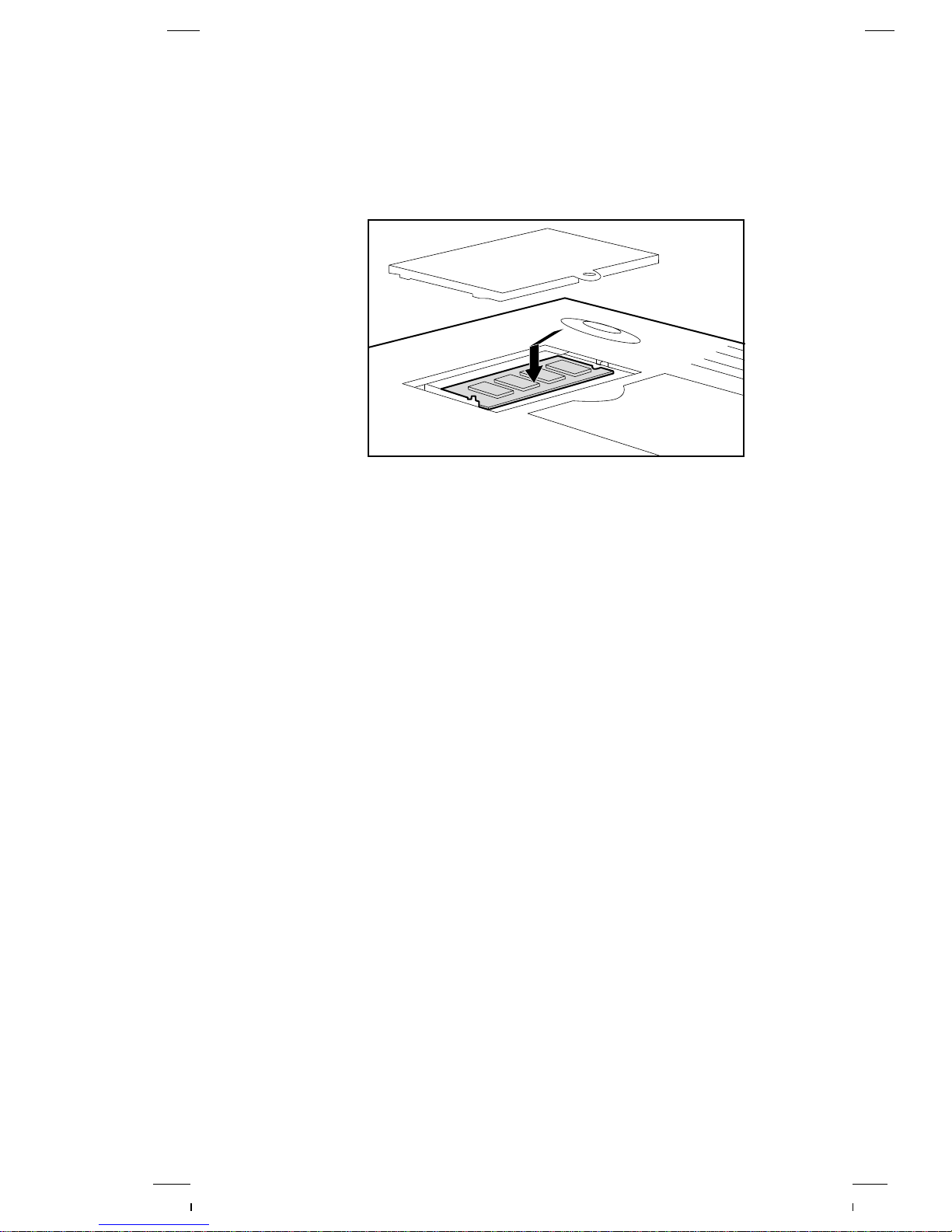

MEMORY UPGRADE CHART
16-MB MEMORY MODULE, SODIMM - OPTION PN 293820-001
ADD ANY ONE OF THE FOLLOWING
MEMORY MODULES:
MAXIMUM MEMORY IS 96 MB
32-MB MEMORY MODULE, SODIMM - OPTION PN 293821-001
64-MB MEMORY MODULE, SODIMM - OPTION PN 293822-001
1-106 Volume Two
Presario 1200
PRESARIO 1234, 35, 36, 37, 38, 40, 42, 50, 52
MEMORY UPGRADE CHART
16-MB MEMORY MODULE - OPTION PN 293820-001
ADD ANY ONE OF THE FOLLOWING
MEMORY MODULES:
32-MB MEMORY MODULE - OPTION PN 293821-001
64-MB MEMORY MODULE - OPTION PN 293822-001
MAXIMUM MEMORY IS 96 MB
Volume Two 1-107
Presario 1200
PRESARIO 1255, 60
MEMORY UPGRADE CHART
ADD ANY ONE OF THE FOLLOWING MEMORY BOARDS
32-MB SDRAM OPTION PN 293821-002
64-MB SDRAM OPTION PN 293822-002
128-MB SDRAM OPTION PN 401040-B21
Other manuals for Compaq Presario
307
This manual suits for next models
154
Other HP Laptop manuals
HP
HP 17-ab200na User manual
HP
HP PAVILLION ZD7000 Manual
HP
HP OmniBook 2000 User manual
HP
HP Presario CQ40-600 - Notebook PC User manual
HP
HP Omen series Manual
HP
HP Compaq Presario Manual
HP
HP TOUCHSMART TM2 User manual
HP
HP Compaq Presario X6000 Series Assembly instructions
HP
HP Chromebook 11-2200 Manual
HP
HP Pavilion dv1000 Mounting instructions
HP
HP Dv5-1010us - Pavilion - Core 2 Duo GHz User manual
HP
HP Pavilion DV6-6115 Manual
HP
HP Pavilion XF315 User manual
HP
HP 17-x Series Manual
HP
HP Pavilion Notebook PC 17 Installation instructions
HP
HP Dv7-2270us - Pavilion Entertainment - Core 2 Quad... User manual
HP
HP Dv7-2040us - Pavilion Entertainment - Core 2 Quad... Manual
HP
HP Compaq 8710w User manual
HP
HP ProBook 450 G1 Manual
HP
HP ProBook 450 G10 Manual
