HP Z210 Series User manual
CRU Dataport DX115 kit installation
Introduction
This document describes how to install the CRU Dataport DX115® removable media kit in an HP
computer. The DX115 kit lets you install removable media in your computer.
Kit contents
●Warranty information
●DX115 unit (case, drive carrier, and lock key)
●Installation document
●SATA or SAS cable
●Five M3 screws
●Five 6-32 screw
●Tape label
Before you begin
To view QuickSpecs and determine the compatibility of this product with your HP computer, see
http://www.hp.com/go/productbulletin.
© 2006–2010 Hewlett-Packard Development Company, L.P. Microsoft, Windows,
and Windows Vista are U.S. registered trademarks of Microsoft Corporation.
Printed in the U.S.
ENWW Introduction 1
Warnings and cautions
WARNING! Any surface or area of the equipment marked with this symbol indicates the
presence of a hot surface or hot component. If this surface is contacted, the potential for injury exists.
To reduce the risk of injury from a hot component, enable the surface to cool before touching.
WARNING! Any surface or area of the equipment marked with this symbol indicates the
presence of an electrical shock hazard. To reduce the risk of injury from electrical shock, do not open
any enclosed area marked with this symbol.
WARNING! To reduce the risk of electric shock or damage to your equipment:
— Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
— Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
— Disconnect power from the equipment by unplugging the power cord from the electrical outlet.
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes
proper computer setup, posture, health, and work habits for computer users, and provides important
electrical and mechanical safety information. This guide is located at http://www.hp.com/ergo and on
the documentation CD (if one is included with the product).
WARNING! If a product is shipped in packaging marked with this symbol, , the product must
always be lifted by two persons to avoid personal injury due to product weight.
CAUTION: Static electricity can damage the electronic components of the computer. Before
beginning these procedures, be sure you discharge static electricity by briefly touching a grounded
metal object.
CAUTION: To prevent damage to the computer, observe the following Electrostatic Discharge
(ESD) precautions while performing the system parts removal and replacement procedures:
— Work on a static-free mat.
— Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your
body to the ground.
— Create a common ground for the equipment you are working on by connecting the static-free mat,
static strap, and peripheral units to that piece of equipment.
NOTE: HP accessories are for use in HP computer products. They have been extensively tested for
reliability and are manufactured to high quality standards.
Step 1—Preparing for component installation
NOTE: Computer models vary. All illustrations are examples only.
2 CRU Dataport DX115 kit installation ENWW
Accessing the internal components of the computer
1. If you need help preparing the computer for this installation, consult the removal and
replacement procedures in the service guide for your computer at http://www.hp.com/support/
manuals.
2. Power down the computer, and then disconnect the power cord.
3. Power down all external devices, and then disconnect them from the computer.
4. Remove the side access panel.
Step 2—Installing the DX115 case into the optical drive
bay
See the steps for the applicable computer model in the following sections.
CAUTION: Insert or remove the carrier (with a disk drive) only when the workstation is shut down.
Other procedures may result in system hangs, data loss, or even drive damage. The component
supplier’s user guide describes a procedure for inserting or removing the carrier (with drive) while the
workstation is booted and then powering the drive via the power switch on the enclosure. Microsoft
Windows XP and Windows Vista do not support this action.
NOTE: The CRU Dataport DX115 does not fit in all optical drive bays. It is longer than most optical
drives. Choose the optical bay for the CRU Dataport DX115 which best fits your computer
configuration.

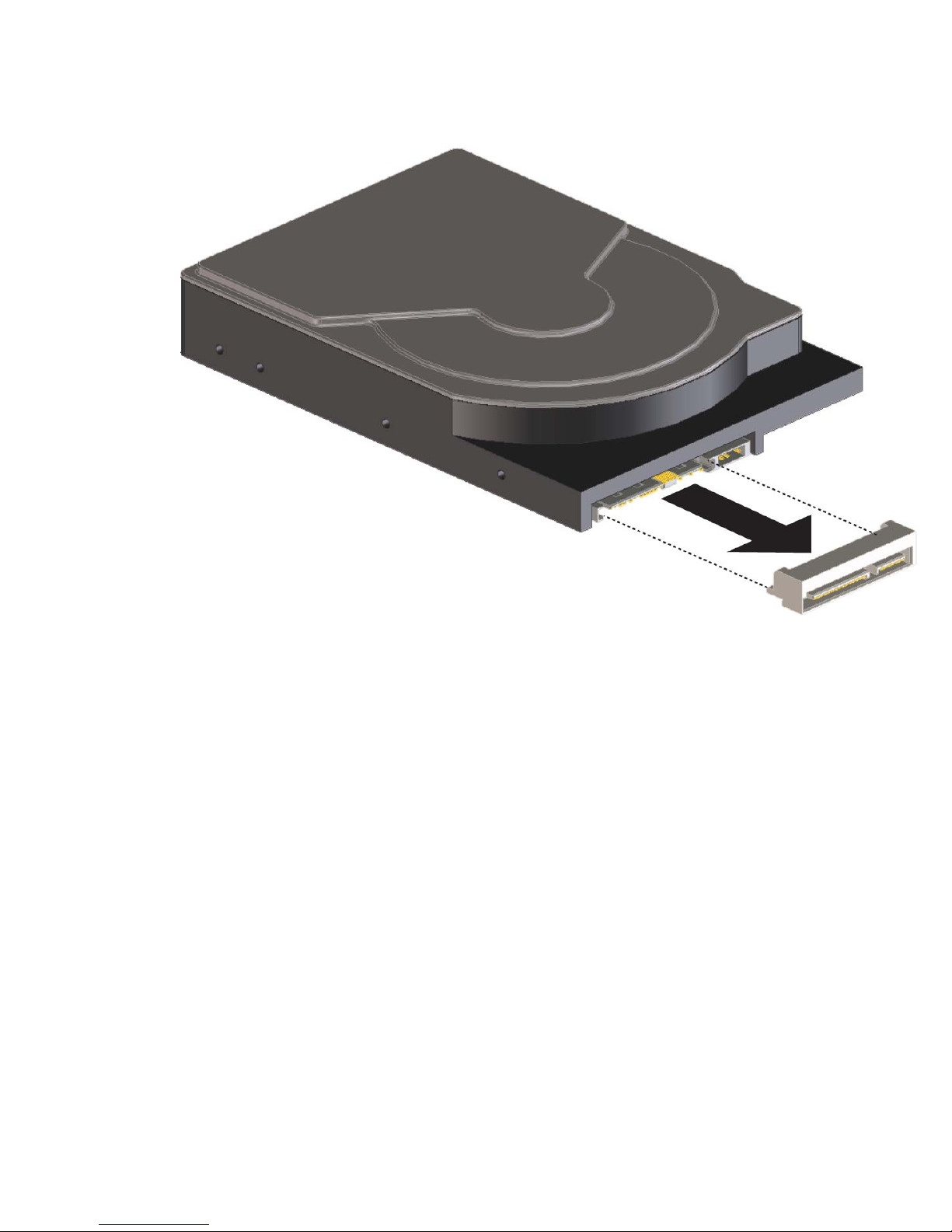

CAUTION: HP computer SAS disk drives are configured with a SAS to SATA adapter. To ensure
proper connection, remove the adapter before continuing with installation, as shown in the figure
below.
ENWW Step 2—Installing the DX115 case into the optical drive bay 3
Figure 1 Removing the SAS to SATA adapter
4 CRU Dataport DX115 kit installation ENWW
HP Z200 SFF computer
To install a DX115 case in a Z200 SFF computer:
1. Remove the front bezel:
a. If necessary, remove the bezel security screw, located beside the middle bezel release tab.
Figure 2 Removing the bezel security screw
b. Lift the release tabs (1), and then rotate the front bezel off the chassis (2).
Figure 3 Removing the front bezel
ENWW Step 2—Installing the DX115 case into the optical drive bay 5

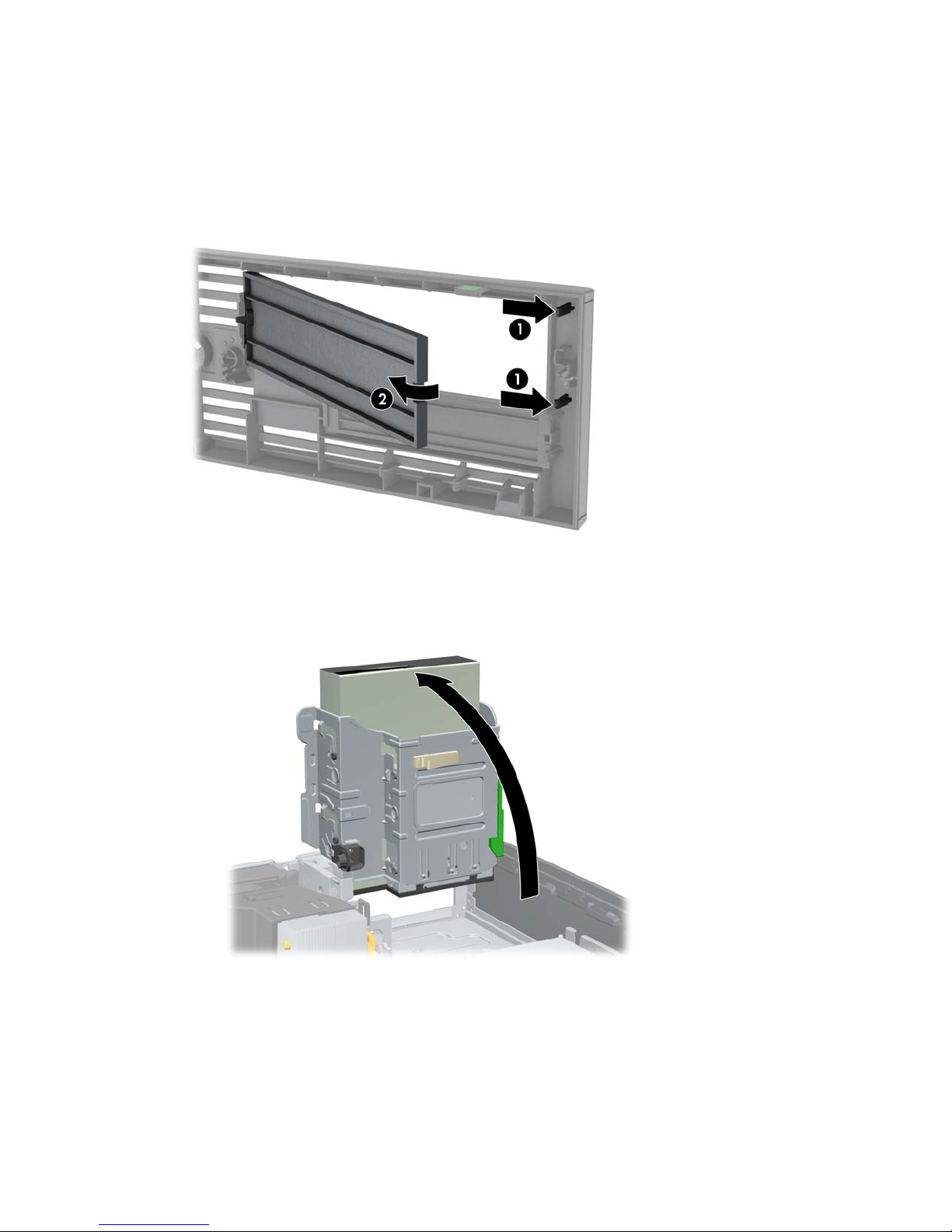

2. If necessary, remove the optical disk drive blank from the bezel:
a. On the inside of the bezel, push the two retaining tabs toward the outer edge of the bezel
(1)
b. Slide the bezel blank back away from the bezel and to the left to remove it (2).
Figure 4 Removing the bezel blank
3. If an existing optical disk drive is present, remove it:
a. Rotate the drive cage to its upright position.
Figure 5 Rotating the drive cage up
6 CRU Dataport DX115 kit installation ENWW

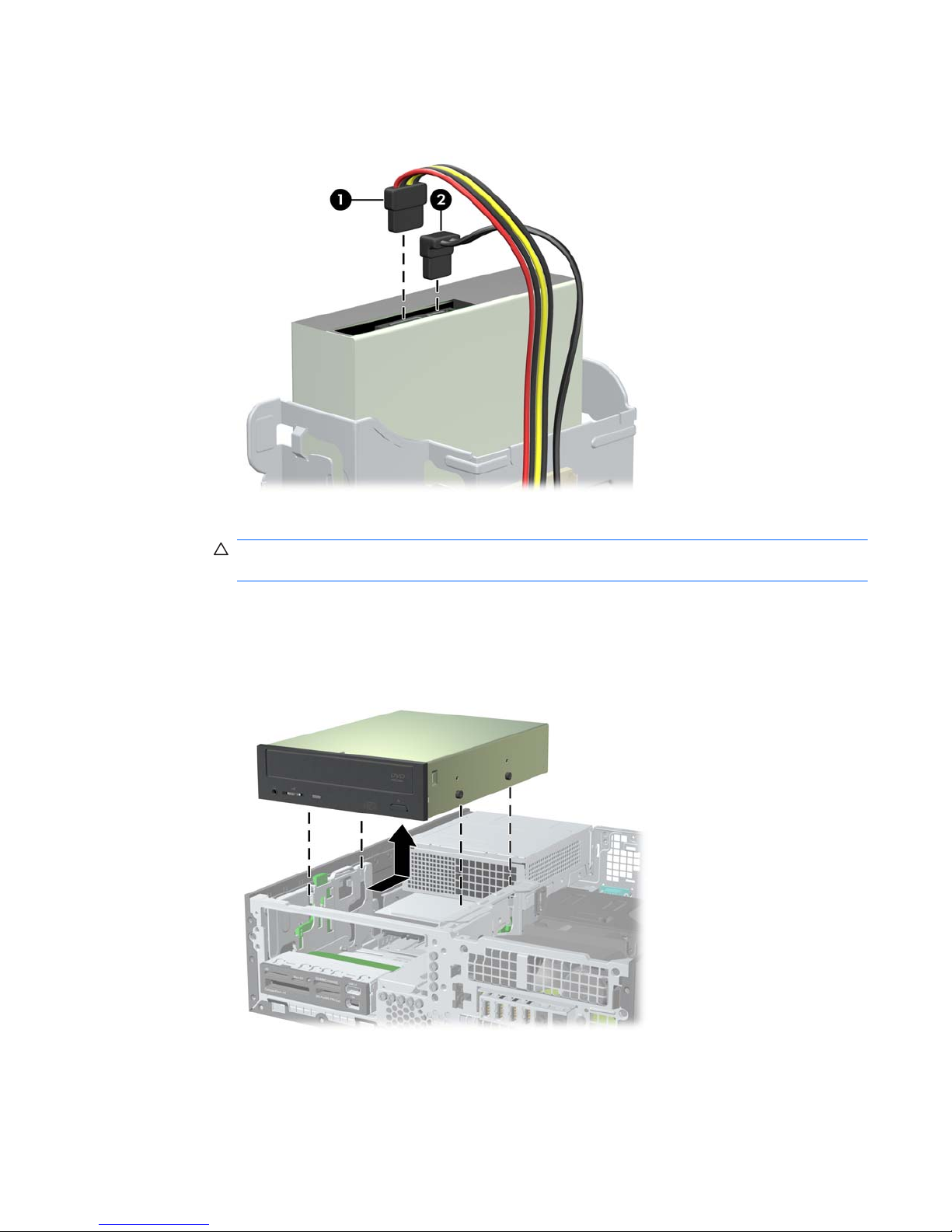

b. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
Figure 6 Removing the cables
c. Rotate the drive cage back down to its normal position.
CAUTION: Check clearances on the cables when you rotate the drive cage. The cage
may pinch the cables and damage them if they are not routed correctly.
d. Press down on the green drive retainer button located on the left side of the drive to
disengage the drive from the drive cage. While pressing the drive retainer button, slide the
drive back until it stops, then lift it up and out of the drive cage.
Figure 7 Removing the optical drive
ENWW Step 2—Installing the DX115 case into the optical drive bay 7
4. Remove and discard the counter-sunk shipping screw at the side of the DX115 case.
Figure 8 Removing the shipping screw
5. Install four (supplied) M3 x 5mm screws (black) in the lower four mounting holes of the DX115
case.
Figure 9 Installing the guide screws
6. Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive
toward the front of the computer until it locks into place.
Figure 10 Installing the DX115 unit
8 CRU Dataport DX115 kit installation ENWW

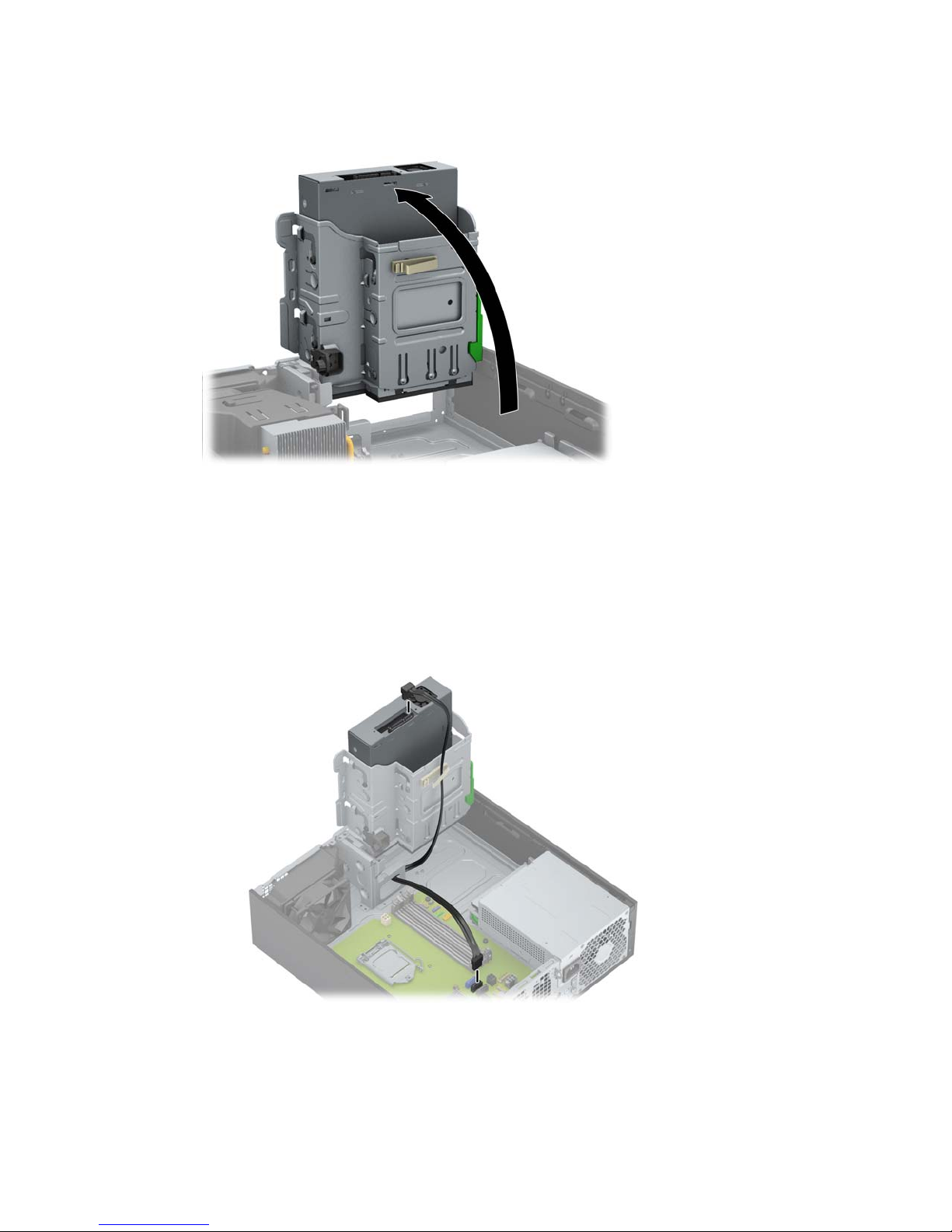

7. Rotate the drive cage to its upright position.
Figure 11 Rotating the drive cage up
8. If the cables are not already routed and attached to the system board:
a. Connect the SATA data cable to the system board connector labeled SATA1.
b. Route the data cable through the cable guides to keep the data cable from being pinched
by the drive cage when raising or lowering it. One guide is located on the bottom side of the
drive cage. The other is part of the chassis frame under the drive cage. Route the data
cable through these guides before connecting it to the optical drive.
Figure 12 Routing the drive cable
ENWW Step 2—Installing the DX115 case into the optical drive bay 9
9. Connect the power cable (1) and data cable (2) to the rear of the DX115 case.
Figure 13 Connecting the power and data cables
10. Carefully rotate the drive cage back down to its normal position.
CAUTION: Check clearances on the cables when you rotate the drive cage. The cage may
pinch the cables and damage them if they are not routed correctly.
HP Z200, Z400, and HP xw4000 computers
1. Remove the front bezel from the computer to access the optical bays.

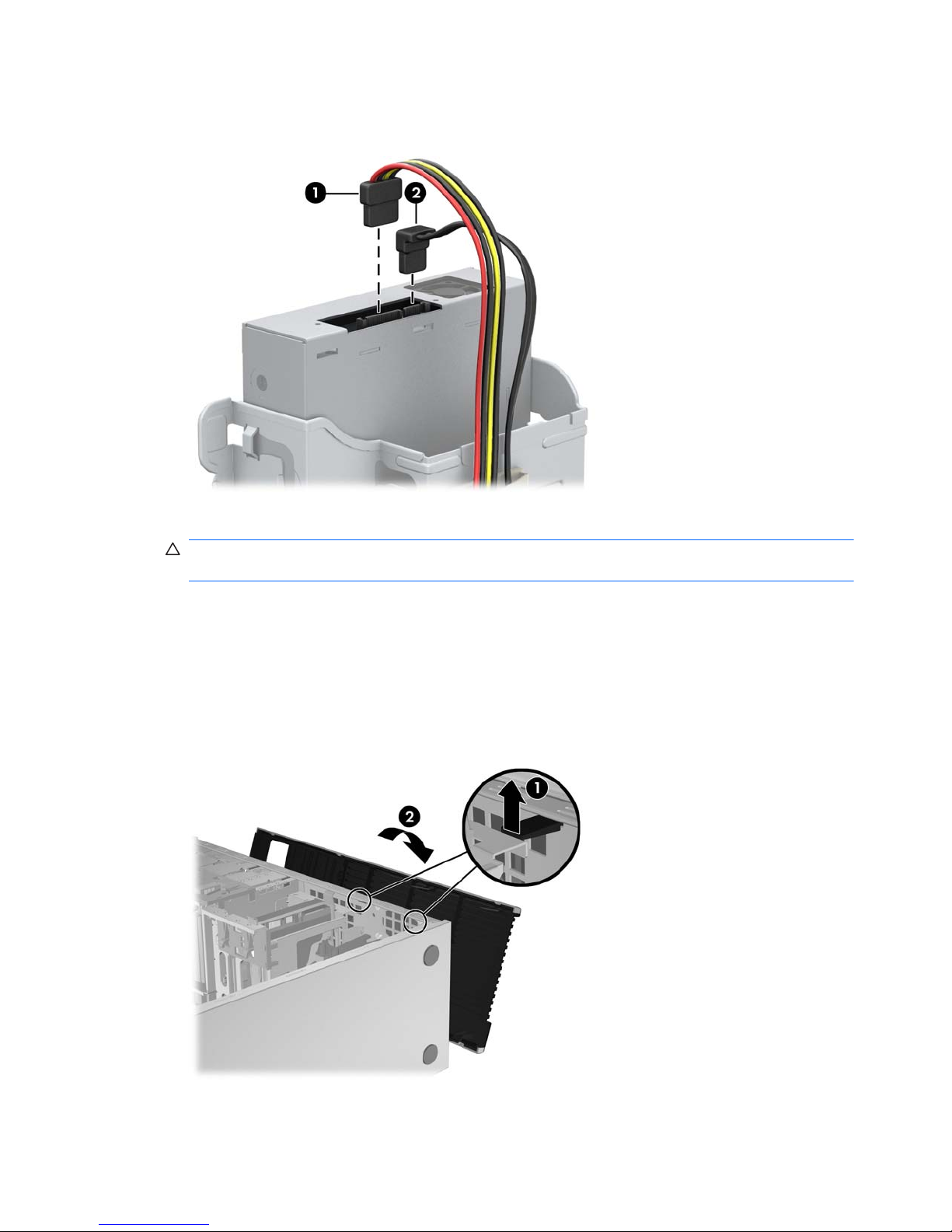

a. Lift the tab (1).
b. Pivot the bezel to disengage the lower edge (2).
Figure 14 Removing the front bezel
10 CRU Dataport DX115 kit installation ENWW
