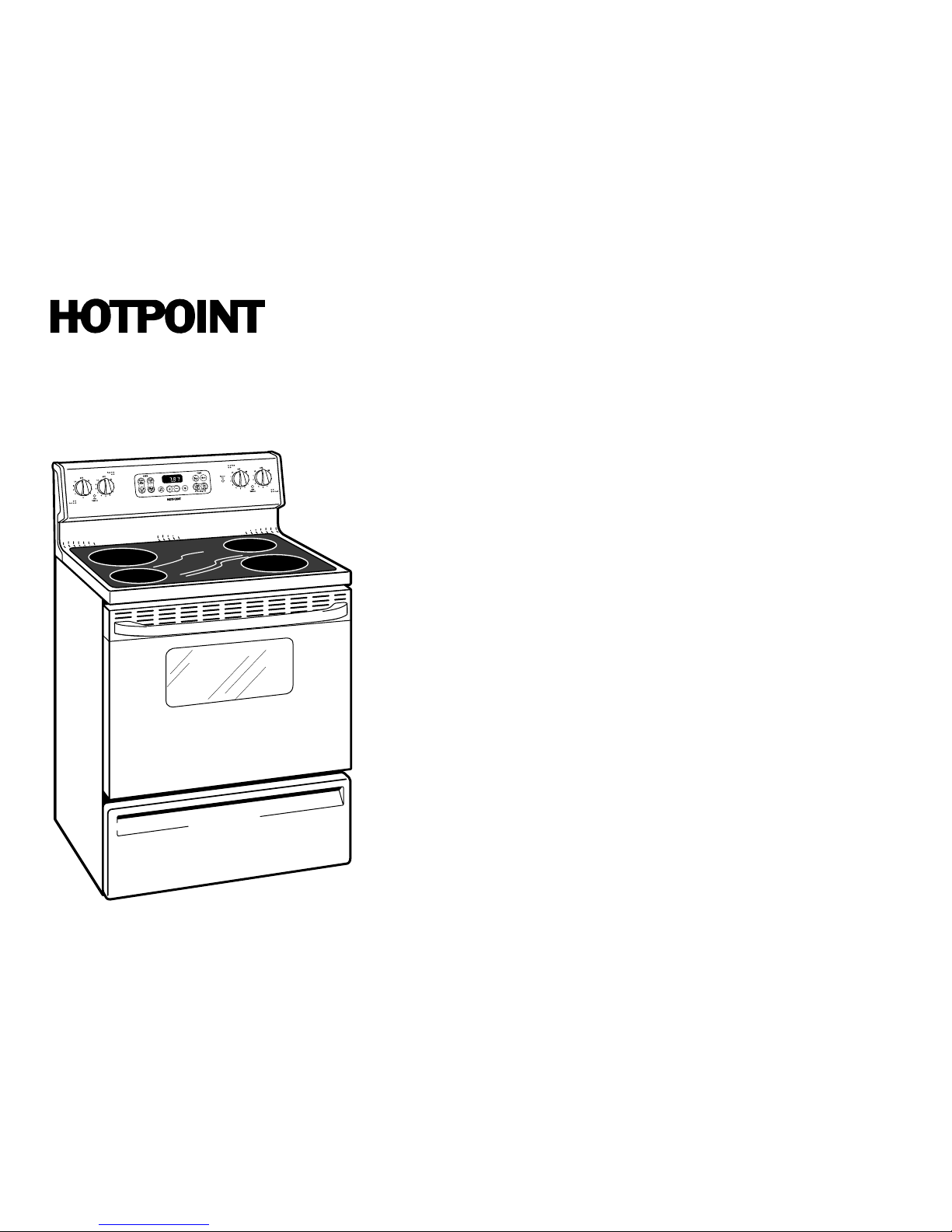

Hotpoint RB787BHBB - 30" Electric Range User instructions

Specification Revised 11/05

420487

RB787WH/CH/BH – Hotpoint 30" Free-Standing Electric Range

Dimensions (in inches)

Listed by

Underwriters

Laboratories

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is

an important, required step in

the installation of the range.

26-3/8*

46-3/8

1/4†

29-7/8

46-1/2

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

26-3/8*

46-3/8

1/4†

29-7/8

46-1/2

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

†Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires that new con-

struction (not existing) utilize a 4-conductor connection to an electric range.

Note: 30" Electric Ranges conform to U.L. requirements for 0" spacing from

walls below countertops. Allow 1-1/2" spacing from the side of the range to

adjacent vertical walls above the cooktop surface.

Receptacle Locations: Locally approved flexible service cord or conduit

must be used because terminals are not accessible after range installation.

See shaded area in drawing for location of electrical outlet box. Recommended

outlet locations allow range to be installed directly against rear wall.

Installation Information: Before installing, consult installation instructions

packed with product for current dimensional data.

KW Rating

240V 10.5

208V 7.9

Breaker Size

40 Amps†

* Dimension from wall to front of closed oven door.

Dimension from wall to the front of closed oven

door handle is 28-1/2".

†The range may be placed with

0" clearance (flush) at the back

wall and side walls if the range side

trims extend beyond the

cabinet fronts at least 1/4".

Self-Clean models only

Specification Revised 11/05

420487

RB787WH/CH/BH – Hotpoint 30" Free-Standing Electric Range

RB787WH/CH/BH

Features and Benefits

• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.

• Ceramic Glass Cooktop – A smooth cooktop surface makes cleaning quick and easy.

• Ribbon Heating Elements – Provide powerful heat beneath a smooth glass surface to

ensure even heat and fast warm-up times.

• Super-Large Oven Capacity – Provides an impressively large oven interior for cooking more

dishes and large meals at one time.

• Electronic Oven Controls – One-touch electronic pads are easy-to use and allow for simple

oven operation.

• Standard Window – Provides a convenient viewing area to check the progress of food.

• Frameless Glass Oven Door – Offers an easy-to-clean and stylish design that blends

seamlessly into existing cabinetry.

• Model RB787WHWW – White on white (white glass door and white patterned cooktop)

• Model RB787CHCC – Bisque on bisque (bisque glass door and bisque patterned cooktop)

• Model RB787BHBB – Black on black (black glass door and black patterned cooktop)
