Hotpoint HDA3600VBB User guide

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34" to 34-3/4"

Underside

of countertop

to floor

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

25-3/4

MAX.

21-1/2

3-1/4 4 (Adjustable)

34" MIN.

adj. to 35"

24-3/4

23-3/8

Electrical Rating

Voltage AC............................................... 120

Hertz........................................................ 60

Total connected load amperage............. 8.6

Calrod®heater watts max................... 500

For use on adequately wired 120-volt, 15-amp circuit

having 2-wire service with a separate ground wire.

This appliance must be grounded for safe operation.

Note: Dishwasher must not be installed more than

10 feet from sink for proper drainage. All plumbing

and electrical work must be in accordance with

local codes. Dishwasher includes drain hose and

leveling legs.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

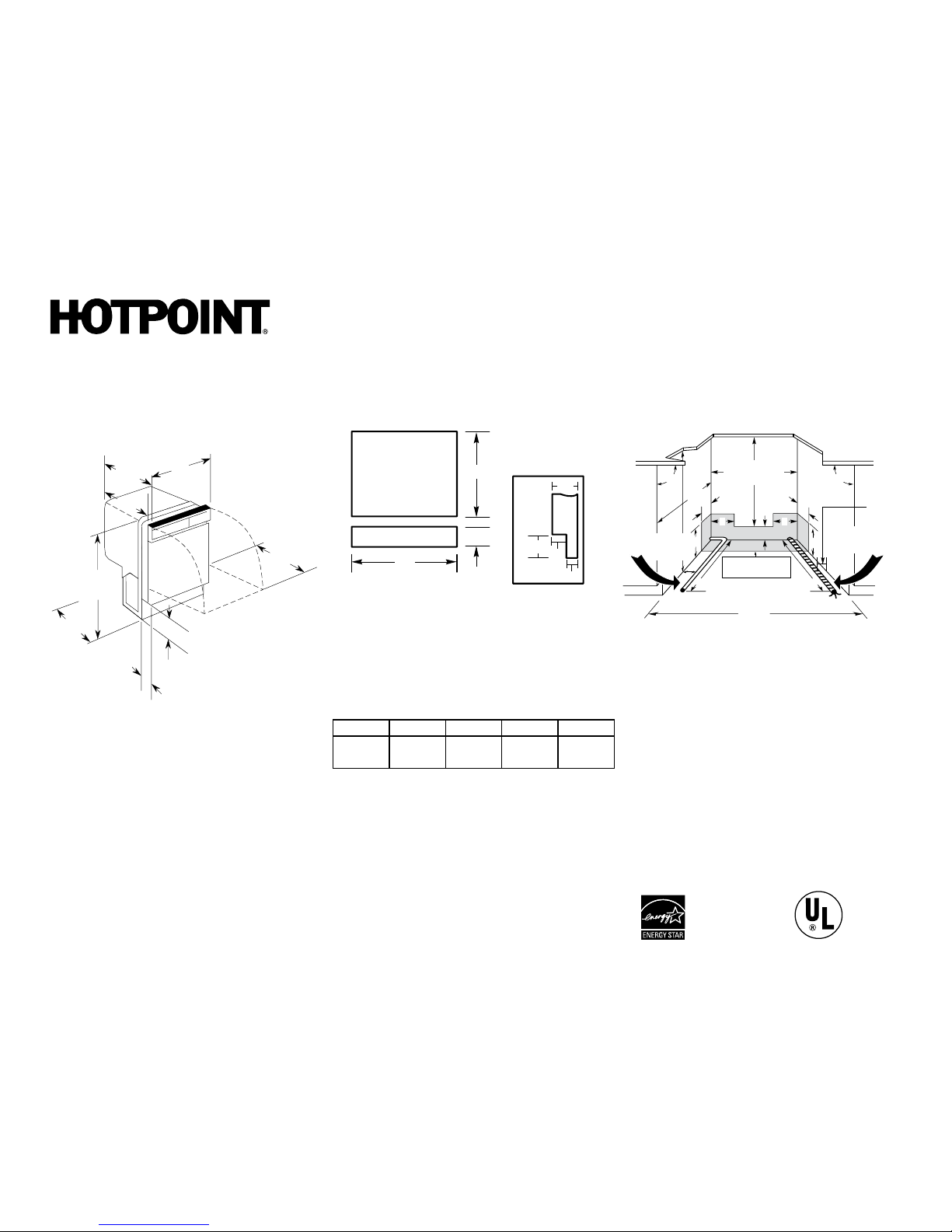

Dishwasher Dimensions (in inches)

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Listed by

Underwriters

Laboratories

HDA3600/3640V – Hotpoint Built-In Dishwasher

Specification Created 4/11

450161

Access insert

Panel Thickness

Door insert

Front

Panel

Dishwashers Installation

(Pub. 1-G003 pg. 131B) May 12, 1993

Wood Insert Cut-Out Dimensions (in inches)

GE/Hotpoint/RCA

1-1/2 1/2

When using GPF325

1/4" custom dishwasher

door and access panel kit.

When using GPF375

3/4" custom dishwasher

door and access panel kit.

1/4

3/4

Panel

Thickness

Kit A B C

GPF325 18-7/8" 23-9/16" 3-11/16" 1/4"

GPF375 18-15/16" 23-5/8"* 4-1/4" to

3-3/4"**

3/4"

* Bottom of panel must be notched 1-1/2" x 1/2" to clear across panel

** Adjustment required to match adjacent cabinet fronts due

to leveling leg adjustment, 4" nominal

Features and Benefits

• 5-level PowerScrub™ wash system with upper spray arm - Powerful wash cleans dishes

thoroughly with 2 precision wash arms

• Two-stage filtration with ExtraFine™filter - Extra filtration keeps water clean

• P i r a n h a ™hard food disposer - Grinds food into small particles that are washed away

• Hot PreWash option - Higher temperatures during the prewash cycle provide an

outstanding clean

• 61 dBA - motor runs quietly to keep kitchen peaceful

• Insulation blanket - Adds improved sound performance

• Water saver cycle - Great for quickly washing loads of everyday dishes or a quick load

of glasses

• Pots and Pans cycle - Removes difficult soils from cookware

• ENERGY STAR®Qualified - Meets or exceeds 2011 federal guidelines for energy efficiency for

year-round energy and money savings

• 5 cycles/3 options - Allows you to select the combination that best cleans your dishes

• Up to 12-place setting capacity racking - Provides flexibility to wash a variety of dishes at once

• Model HDA3600VWW – White on white

• Model HDA3600VBB – Black on black

• Model HDA3600VCC – Bisque on bisque

• Model HDA3640VSA – Silver metallic

HDA3440GSA

HDA3600/3640V – Hotpoint Built-In Dishwasher

Specification Created 4/11

450161
