HOSHIZAKI

MODULAR CRESCENT CUBER

K-0 JAN., 2000

MODEL

KML-350MAF

KML-350MWF

(FINAL) PARTS LIST

JULY 31, 2002

REVISED:

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000". o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1Each time a part is changed non-interchangeably,

in a year, this number advances.

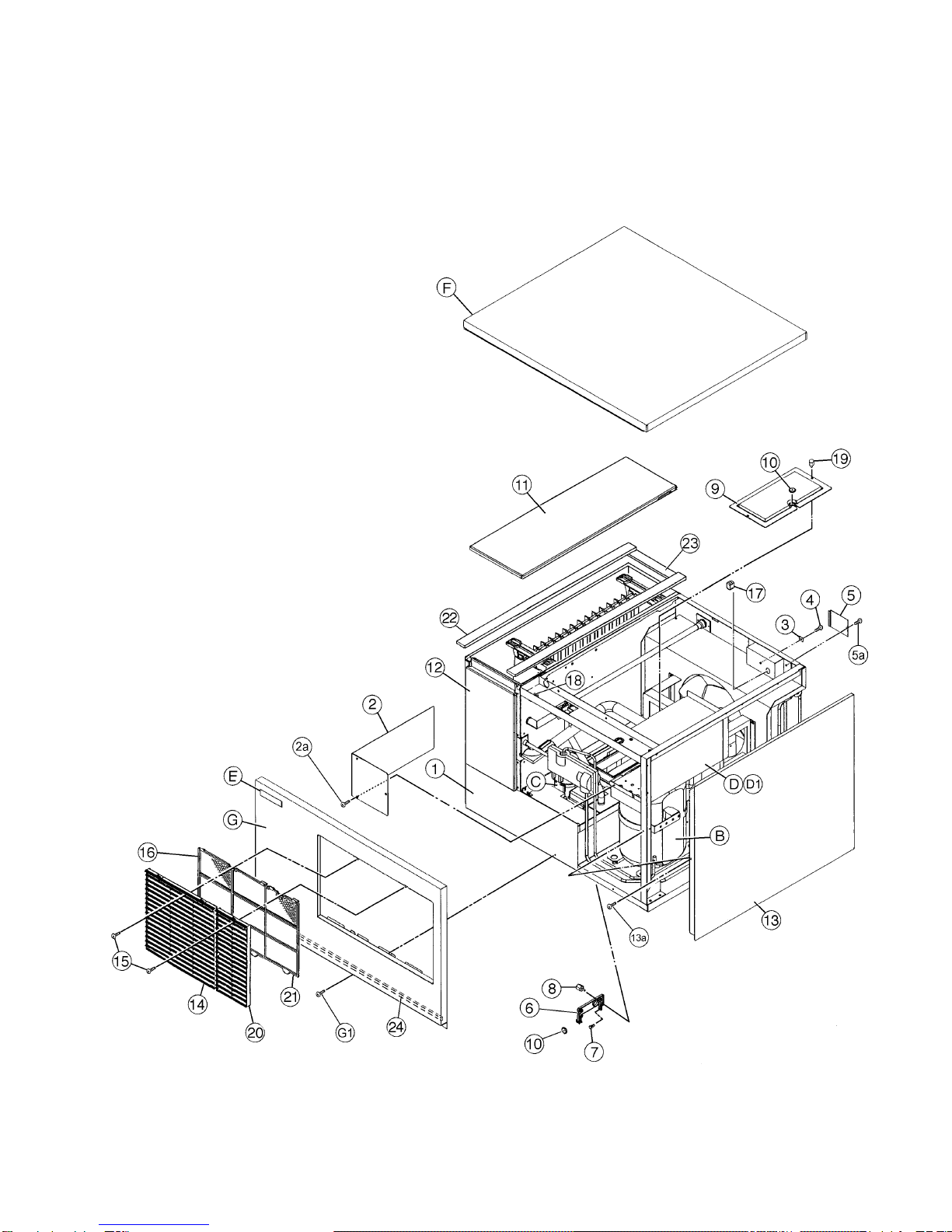

KML-350MAF A. ICE CUBER ASSEMBLY K-0

MODEL: KML-350MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0

B REFRIGERATION CIRCUIT - 1A0445A01 1

C WATER CIRCUIT - 1A0438A01 1

D CONT. BOX ASSEMBLY - 2A1519A03 1

D1 T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A1320A01 1

F TOP PANEL ASSEMBLY - 3A0674A01 1

G FRONT PANEL - 3A1273A01 1

G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

1 EVAP. CASE HS-1014 2A1449G01 1

2 CONT. BOX COVER GS 3A0594-01 1

2a T2 SCREW 4X8 7P31-0408 3

3 SQUARE WASHER BRASS 433537-02 1

4 SCREW - GROUNDING BRASS 433304-02 1

5 JUNCTION BOX COVER GS 433410-01 1

5a T2 SCREW 4X8 7P31-0408 1

6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1

7 SPACER PE 443545-01 1

8 THUMBSCREW SS, ABS 415949G03 2

9 BIN CONT. COVER GS 3A0664G01 1

10 CAPILLARY RING EP RUBBER 425307-01 2

11 TOP INSULATION PP 215730G01 1

12 FRONT INSULATION PP 2A0664G01 1

13 SIDE PANEL (R) SS 2A1456G01 1

13a T2 SCREW 4X8, SS 7P32-0408 1

14 LOUVER (B) ABS 103121-05 1

15 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 2

16 AIR FILTER (B) ABS 208283G03 1

17 BUSHING SR-34-2 420472-03 1

18 WIRE SADDLE VWS4238-C 4A0338-02 2

19 THUMBSCREW SS, ABS 415949G04 2

20 LOUVER (C) ABS 103122-03 1

MODEL: KML-350MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0

21 AIR FILTER (C) ABS 208284G01 1

22 GASKET L=655 4A0808L02 2

23 GASKET L=190 4A0808L02 1

24 GASKET L=762 4A0808L02 1

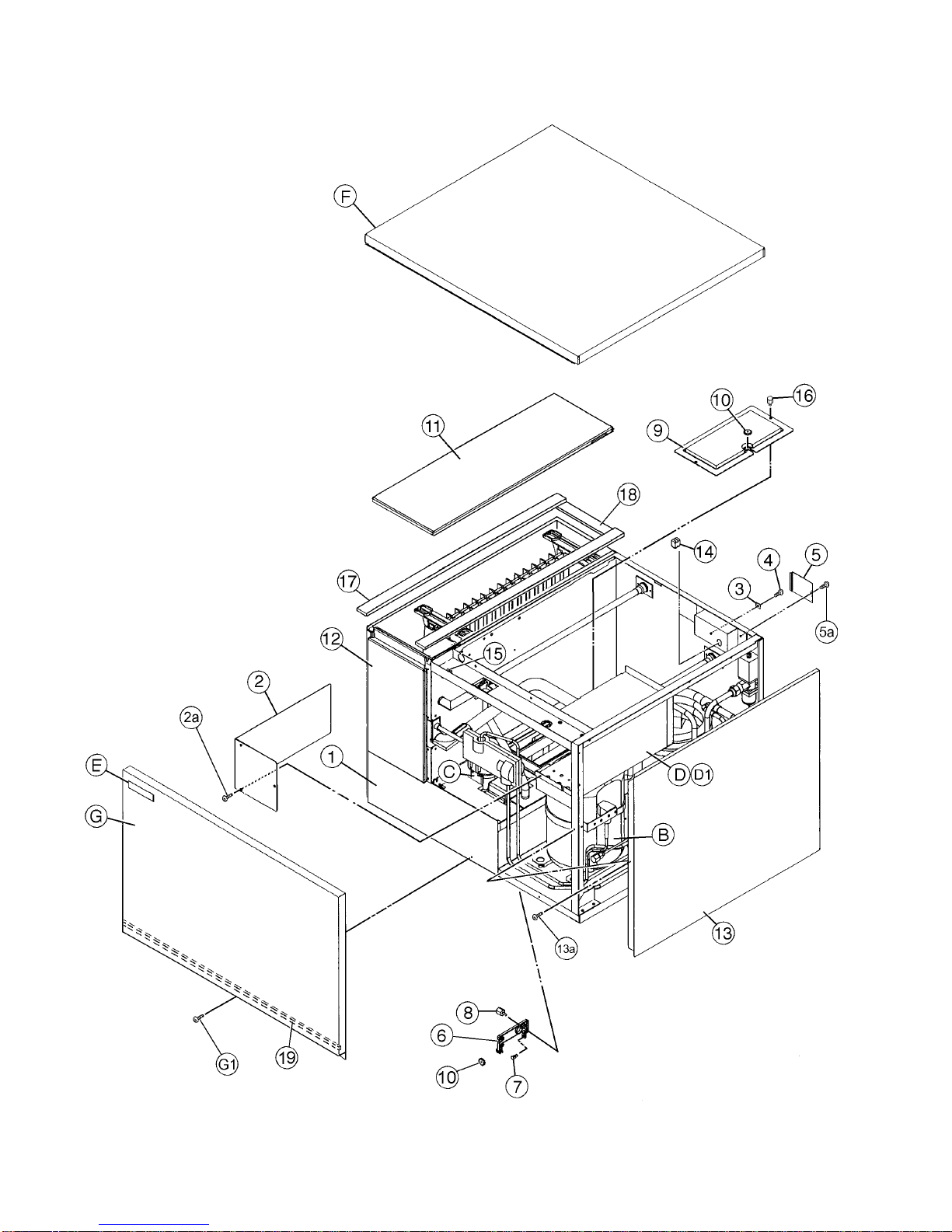

KML-350MWF A. ICE CUBER ASSEMBLY K-0

MODEL: KML-350MWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0

B REFRIGERATION CIRCUIT - 1A0444A01 1

C WATER CIRCUIT HS-1208 1A0938A01 1

D CONT. BOX ASSEMBLY - 2A1519A04 1

D1 T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A1321A01 1

F TOP PANEL ASSY - 3A0674A01 1

G FRONT PANEL - 3A1273A02 1

G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

1 EVAP. CASE HS-1014 2A1449G01 1

2 CONT. BOX COVER GS 3A0594-01 1

2a T2 SCREW 4X8 7C31-0408 3

3 SQUARE WASHER BRASS 433537-02 1

4 SCREW - GROUNDING BRASS 433304-02 1

5 JUNCTION BOX COVER GS 433410-01 1

5a T2 SCREW 4X8 7C31-0408 1

6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1

7 SPACER PE 443545-01 1

8 THUMBSCREW SS, ABS 415949G03 2

9 BIN CONT COVER GS 3A0664G01 1

10 CAPILLARY RING EP RUBBER 425307-01 2

11 TOP INSULATION PP 215730G01 1

12 FRONT INSULATION PP 2A0664G01 1

13 SIDE PANEL (R) SS 2A1456G01 1

13a T2 SCREW 4X8, SS 7P32-0408 1

14 BUSHING SR-30-1 420472-03 1

15 WIRE SADDLE VWS4238-C 4A0338-02 2

16 THUMBSCREW SS, ABS 415949G04 2

17 GASKET L=655 4A0808L02 2

18 GASKET L=190 4A0808L02 1

19 GASKET L=762 4A0808L02 1

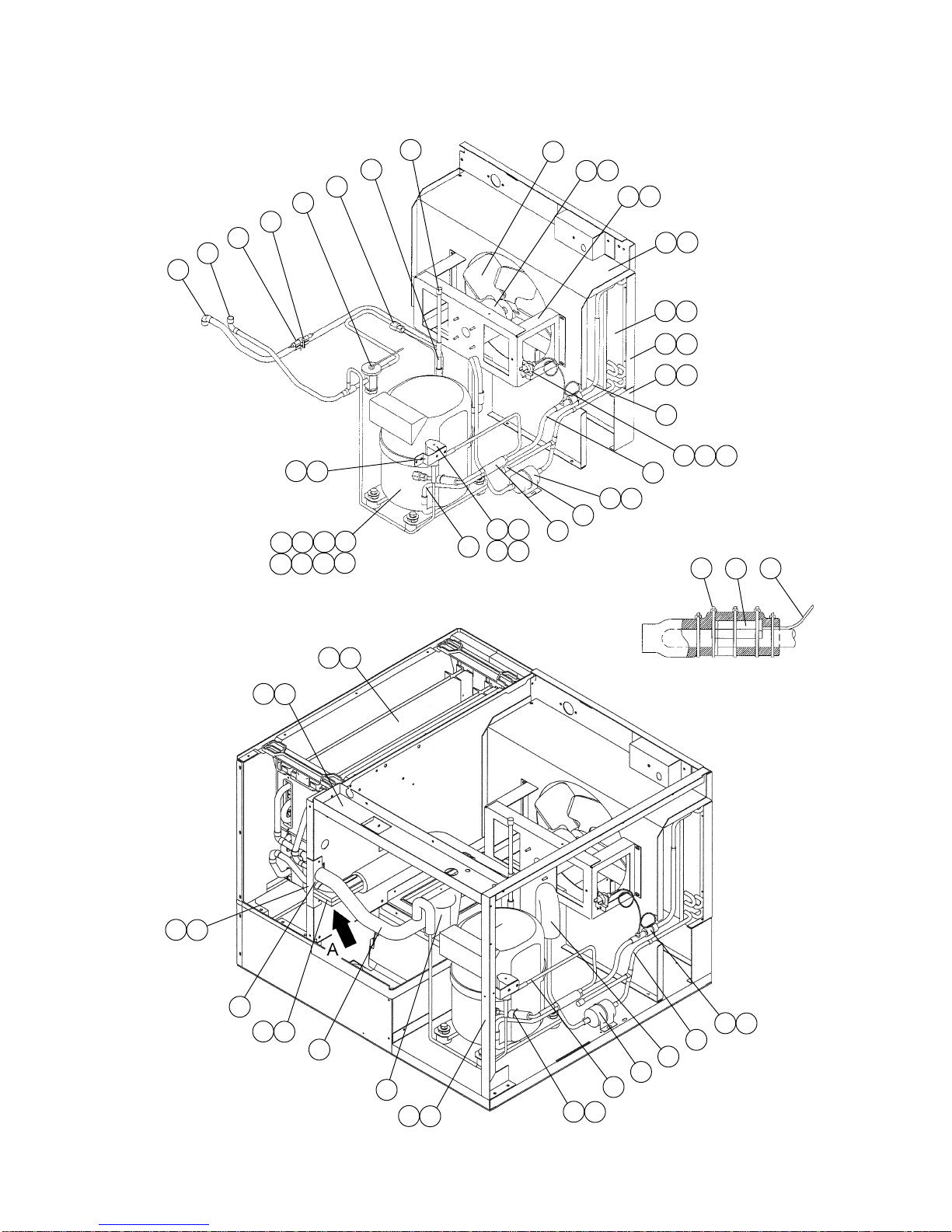

KML-350MAF B. REFRIGERATION CIRCUIT K-0

45 46 32 16 30 29 45 46

37 43 43a

40 41

48 48a

44 44a

19 19a

45 39 38

DETAIL A

26 20 21

22 22a 31 51 17 17a

27 23 24 24a

11a

33a

22a

44a

13 13a

14 14a

5678

910 11 12

47 47a

MODEL: KML-350MAF TITLE:B. REFRIGERATION CIRCUIT

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0

1 COND. SUPPORT GS 3A0589-01 1

1a T2 SCREW 4X8 7P31-0408 5

2 CONDENSER - 2A0779-01 1

2a T2 SCREW 4X8 7P31-0408 3

3 BARRIER GS 4A0932-01 1

3a T2 SCREW 4X8 7P31-0408 2

4 SHROUD GS 3A0597G01 1

4a T2 SCREW 4X8 7P31-0408 5

5 COMPRESSOR RS43C2E-CAA-219 4A2300-01 1

6 TERMINAL COVER COMP. ACCESSORY 4A2300F01 1

7 SPRING CLIP COMP. ACCESSORY 4A2300F02 1

8 MOTOR PROTECTOR COMP. ACCESSORY 4A1805-01 1

9 PROTECTOR HOLDER COMP. ACCESSORY 437339-01 1

10 BOLT 8X45 437889-01 4

11 SPACER 027-0072-02 434404-01 1

12 GROMMET 527-0039-04 434403-01 4

13 FAN MOTOR BRACKET GS 2A0181-01 1

13a HEX HEAD BOLT W/WASHER (LF) 5X12 7B0130512 4

14 FAN MOTOR U90B1 7190-1031 440911-01 1

14a SELF LOCKING NUT NO. 8-32 7N21I0832 4

15 FAN BLADE AD10CW32 444898-01 1

16 DRIER CW-0325-S 4A1413-01 1

17 DRIER BRACKET GS 4A0807-01 1

17a T2 SCREW 4X8 7P31-0408 2

18 EXP. VALVE AN ½ SW 70 4A1838-02 1

19 EVAPORATOR ASSEMBLY - 2A0717G01 1

19a T2 SCREW 4X16 7P31-0416 4

20 VALVE BODY 70 440352-01 1

21 COIL-VALVE ABS-25-1-HD-2 440353-01 1

MODEL: KML-350MAF TITLE:B. REFRIGERATION CIRCUIT

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER K-0

22 BOLT - 440353F01 1

22a TRUSS HEAD SCREW 4X8 7C31-0408 2

23 PRESSURE SWITCH ACB-1UB09 433441-07 1

24 PRESSURE SWITCH BRACKET GS 434938-01 1

24a T2 SCREW 4X8 7P31-0408 1

25 ACCESS VALVE TCJ-2F20 NH DU-1 457729-01 2

26 COPPER TUBE (A) - HIGH SIDE COPPER 4A1846-01 1

27 COPPER TUBE (B) - HIGH SIDE COPPER 3A1317-01 1

28 COPPER TUBE (C) - HIGH SIDE COPPER 3A1316G01 1

29 COPPER TUBE (D) - HIGH SIDE COPPER 3A1311G01 1

30 HEAT EXCHANGER COPPER 2A1498G01 1

31 STRAINER - 4A0397-01 1

32 COPPER TUBE (A) - HOT GAS COPPER 4A1878-01 1

33 COPPER TUBE (B) - HOT GAS COPPER 2A1502G01 1

34 COPPER TUBE (A) – ACCESS VALVE COPPER 3A1323G01 1

35 HOLDER / EXP. VALVE – 1/2 SS 3A0112-01 1

36 CLAMP SS 443461-02 1

37 EXPANSION VALVE COVER PE FOAM 4A1168-01 1

38 THERMISTOR - 429006-03 1

39 HOLDER - THERMISTOR COPPER 427430-01 1

40 INSULATION – THERMISTOR (A) PE FOAM 439368-01 1

41 INSULATION – THERMISTOR (B) PE FOAM 439368-02 1

42 INSULATED RUBBER TUBE EPDM 4A1008G01 1

43 FRAME (A) GS 2A0645-01 1

43a T2 SCREW 4X8 7P31-0408 4

44 FRAME (B) GS 3A0595-01 1

44a T2 SCREW 4X8 7P31-0408 4

45 CABLE TIE CV-200 7920-0010 14

46 INSULATION TUBE L=30 7762-1020 2

47 LINE VALVE BRACKET GS 4A1406-01 1
