Hoshizaki KM-630MAE User manual

NO.

ISSUED:

MODEL

HOSHIZAKI

MODULAR CRESCENT CUBER

(FINAL) PARTS LIST

KM-630MAE

KM-630MWE

KM-630MRE

APRIL12,1993

MAY 22, 2000

71080

REVISED:

KM-630MAE

C-0 Jan., 1993

C-1 March, 1993

C-2 June,1993

C-3 Aug., 1993

D-0 Dec., 1993

E-0 Jan., 1995

E-1 April, 1995

F-0 Dec., 1995

F-1 Sept., 1996

G-0 Dec., 1996

G-1 May,1997

H-0 Dec., 1997

H-1 June,1998

H-2 July,1998

H-3 Oct., 1998

H-4 Nov., 1998

J-0 Dec., 1998

KM-630MWE

C-0 Jan., 1993

C-1 March, 1993

C-2 June,1993

C-3 Aug., 1993

D-0 Dec., 1993

E-0 Dec., 1994

E-1 May,1995

F-0 Jan.,1996

F-1 Oct.,1996

G-0 Jan.,1997

G-1 May,1997

H-0 Dec., 1997

H-1 June,1998

H-2 July,1998

H-3 Oct.,1998

J-0 Dec., 1998

KM-630MRE

C-0 Jan., 1993

C-1 March, 1993

C-2 June,1993

C-3 Aug., 1993

D-0 Dec., 1993

E-0 Jan., 1995

E-1 April, 1995

F-0 Dec., 1995

F-1 Sept., 1996

G-0 Dec., 1996

G-1 May,1997

H-0 Dec., 1997

H-1 June,1998

H-2 July,1998

H-3 Oct.,1998

H-4 Nov.,1998

J-0 Dec., 1998

MATERIALABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide =Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = VinylNitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanizedsteel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990" or "2000". o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2Each time a part is changed non-interchangeably

in a year, this number advances.

FASTENERABBREVIATIONLIST

ST Phillips Truss Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1 Phillips Truss Head Tapping Screw (Correspond to Type A)

T2 Phillips Truss Head Tapping Screw (Correspond to Type B)

T3 Phillips Truss Head Tapping Screw (Correspond to Type C)

FT Phillips Truss Head Tapping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

WT External Tooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. ST0308S (Phillips Truss Head Machine Screw

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except toe list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

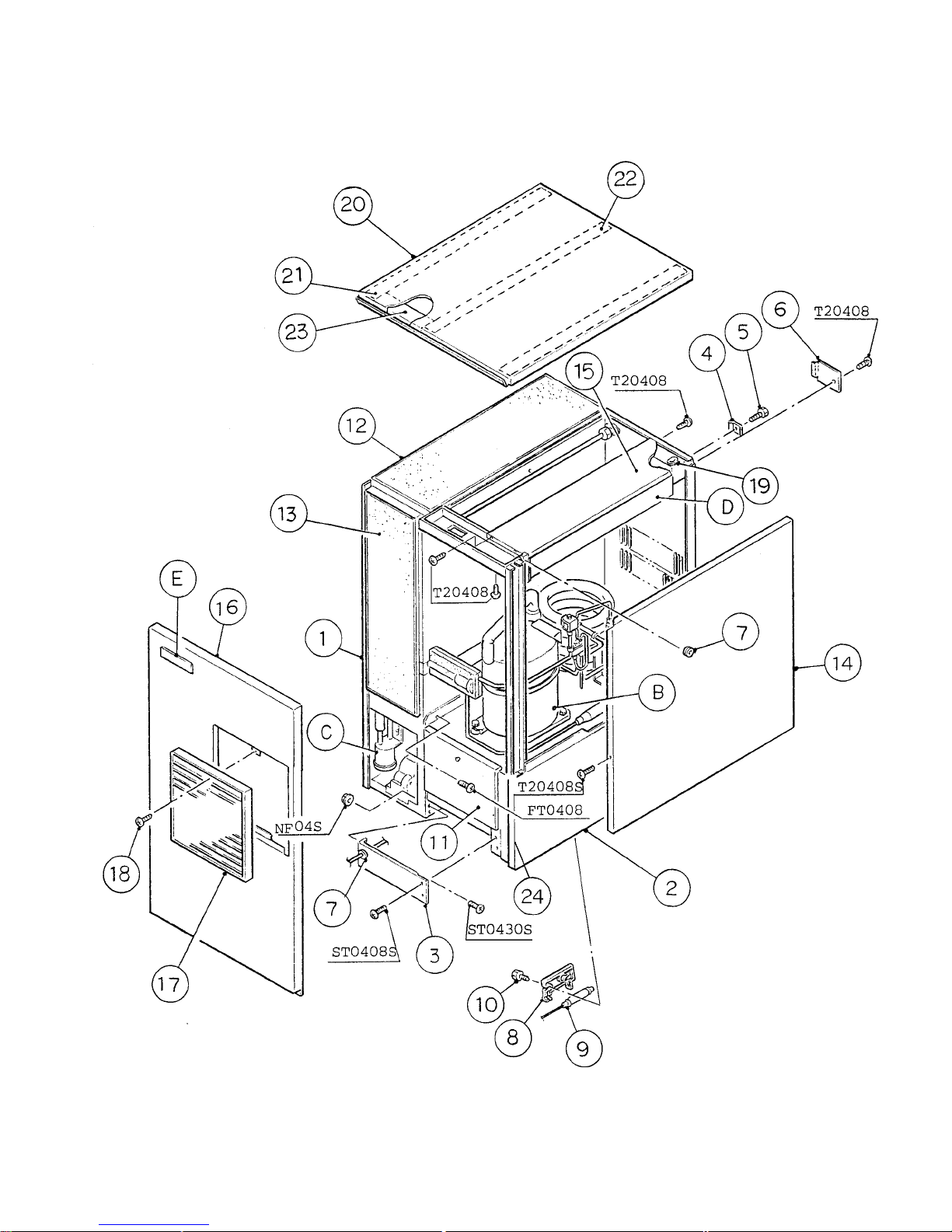

KM-630MAE A.ICE CUBER ASSEMBLY C-0, C-1, C-2, C-3

KM-630MAE A.ICE CUBER ASSEMBLY D-0, E-0, E-1, F-0, F-1, G-0, G-1,

H-0, H-1, H-2, H-3, H-4, J-0

MODEL: KM-630MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER C-0 C-1 C-2 C-3 D-0

E-0

E-1

F-0

F-1

G-0

G-1

H-0

H-1

H-2 H-3

B REFRIGERATION CIRCUIT - 106004A01 1 -

- 106004A02 1 1 -

- 106004A03 1 1 -

- 106004A04 1 1 1 1

C WATER CIRCUIT - 105126A01 1 1 -

- 105126A04 1 -

- 1A0058A02 1 1 -

- 1A0058A06 1 1 1 1

D CONTROL BOX ASSEMBLY - 212389A07 1 1 1 1 1 1 1 -

- 212389A09 1 -

- 212389A07 1

E LABEL LOCATION - 329414A01 1 1 1 1 1 1 1 -

- 329414A02 1 1

1 EVAP. CASE - 104404G06 1 1 1 1 x1

- 2A0143G02 o1 1 1 1 x1

- 1A0276G02 o1

2BASE - 2A0119G04111111111

3 FRONT FRAME SS 321524-01 1 1 1 1 -

FRAME ABS 3A0217-01 x1

ABS 3A0217G01 o1 1 1 1 1

4 SQUARE WASHER BRASS 433537-02 1 1 1 1 1 1 1 1 1

5SCREW-GROUNDING BRASS 433304-02111111111

6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1 1 1 1 1

7BUSHING EPRUBBER425307-01222211111

8BULBHOLDER ABS,PE 328919-01111111111

MODEL: KM-630MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER H-4 J-0

B REFRIGERATION CIRCUIT 106004A04 1 1

C WATER CIRCUIT 1A0058A06 1 1

D CONTROL BOX ASSEMBLY 212389A07 -

212389A09 1 1

E LABEL LOCATION 329414A02 1 1

1 EVAP. CASE 1A0276G02 1 1

2 BASE 2A0119G04 1 1

3 FRAME 3A0217G01 1 1

4 SQUARE WASHER 433537-02 1 1

5 SCREW - GROUNDING 433304-02 1 1

6 JUNCTION BOX COVER 433410-01 1 1

7 BUSHING 425307-01 2 2

8 BULB HOLDER 328919-01 1 1

MODEL: KM-630MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER C-0 C-1 C-2 C-3 D-0

E-0

E-1

F-0

F-1 G-0

G-1

H-0

H-1

H-2

H-3

H-4

J-0

9SPACER PE 443545-01222111111

10THUMBSCREW SS,ABS 415949G03222222222

11BASECOVER SS 321525G01111111111

12TOPINSULATION PP,PUR 215730G01111111111

13 FRONT INSULATION PP, PUR 215731G02 1 1 1 1 1 1 1 1 1

14SIDEPANEL(R) SS 211811G02111111111

15CONTROLBOXCOVER GS 322009G01111111111

16 FRONT PANEL SS 323004G03 1 1 1 1 x1

FRONT PANEL (A) SS 212935-01 o1 x1

SS 212935-02 o1 1 1 1

17 LOUVER (B) - 103121-01 2 x2

- 103121-03 o2 2 2 2 2 2 2 2

18 AIR FILTER (B) - 208283G01 2 x2

- 208283G03 o2 2 2 2 2 2 2 2

19 TAPPING SCREW ( BLACK) STEEL,4x8 433954-01 2 2 2 2 2 2 2 2 2

20BUSHING SR-30-1 420472-03111111111

21 TOP PANEL (324859A01)

213544-01111111111

22GASKET PVC 427014-04222222222

23GASKET(A) PVC 324859-03111111111

24 INSULATION PE FOAM 438012-01 1 1 1 1 1 1 1 1 1

25 BARRIER GS 4A0352-01 1 1 1 1 1 1 1

26 SIDE PANEL (R) BASE SS 212620-01 1 1 1 1 1 1 1 1 1

27 FRONT COVER PS 2A0182-01 1 1 1 1 1

28 BARRIER - INSULATION GS 4A1167-01 1 1

KM-630MWE A.ICE CUBER ASSEMBLY C-0, C-1, C-2, C-3
