Hoshizaki KM-101BAH User manual

㪥㫆㪅

㪤㪇㪇㪎㪄㪊㪇㪊㪐

㪠㪪㪪㪬㪜㪛㪑

㪡㪬㪣㪅㩷㪈㪍㪃㩷㪉㪇㪇㪎

㪩㪜㪭㪠㪪㪜㪛㪑㩷

㪘㪧㪩㪅㩷㪏㪃㪉㪇㪇㪏

㪪㪜㪩㪭㪠㪚㪜㩷㪠㪥㪝㪦㪩㪤㪘㪫㪠㪦㪥

㩷㪑㩷㪄㪄㪄

MODEL KM-101BAH

㪪㪄㪈㩷㩷㩷㪡㪬㪣㪅㩷㩷㪉㪇㪇㪎

㪪㪄㪉㩷㩷㩷㪪㪜㪧㪅㩷㩷㪉㪇㪇㪎

㪪㪄㪊㩷㩷㩷㪛㪜㪚㪅㩷㩷㪉㪇㪇㪎

㪫㪄㪇㩷㩷㩷㪡㪘㪥㪅㩷㩷㪉㪇㪇㪏

㪫㪄㪈㩷㩷㩷㪄㪄㪄

HOSHIZAKI

CRESCENT CUBER

PARTS LIST

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates significant part changes within the same year. Base is 0 and this number advances for

each change.

Example: P-1

"P" indicates 2004.

"1" indicates the first significant part change for 2004.

MARKS LOCATED UNDER THE AUXILIARY CODE

- = Part deleted.

x = Part deleted and replaced by "o"part.

o = New part in place of "x" part.

ST = Phillips Truss Head Machine Screw

SP = Phillips Pan Head Machine Screw

SF = Phillips Flat Head Machine Screw

SS = Phillips Pan Head Machine Screw with Split Lock Washer

SW = Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1 = Phillips Truss Head Tapping Screw (Correspond to Type A)

T2 = Phillips Truss Head Tapping Screw (Correspond to Type B)

T3 = Phillips Truss Head Tapping Screw (Correspond to Type C)

FT = Phillips Truss Head Tapping Screw (Special)

BH = Hexagon Head Bolt

BC =

BS = Hexagon Bolt with Split Washer

BW = Hexagon Bolt with Split Washer and Flat Washer

BF = Hexagon Flange Bolt

BR = Cross-Recessed Hexagon Head Bolt

BRW = Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL = Split Lock Washer

WT = External Tooth Washer

WF = Flat Washer

WS = Spring Washer

NH = Hexagon Nut

NF = Hexagon Flange Nut

NC = Hexagon Cap Nut

NS = Square Nut

NW = Wing Nut

Ex. S T 0 3 0 8 S (Phillips Truss Head Machine Screw,

3×8,made of stainless steel)

Material None:Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except the list.

Ex: S1,S2,B3 etc.

And abbreviations and names are shown under the illustration.

FASTENER ABBREVIATION LIST

ⅱ

Socket Head Cap Screw

S-1,S-

S-3,T-

T-1

B ICE MAKING MECHANISM ASSY 118492A01 1 1 1

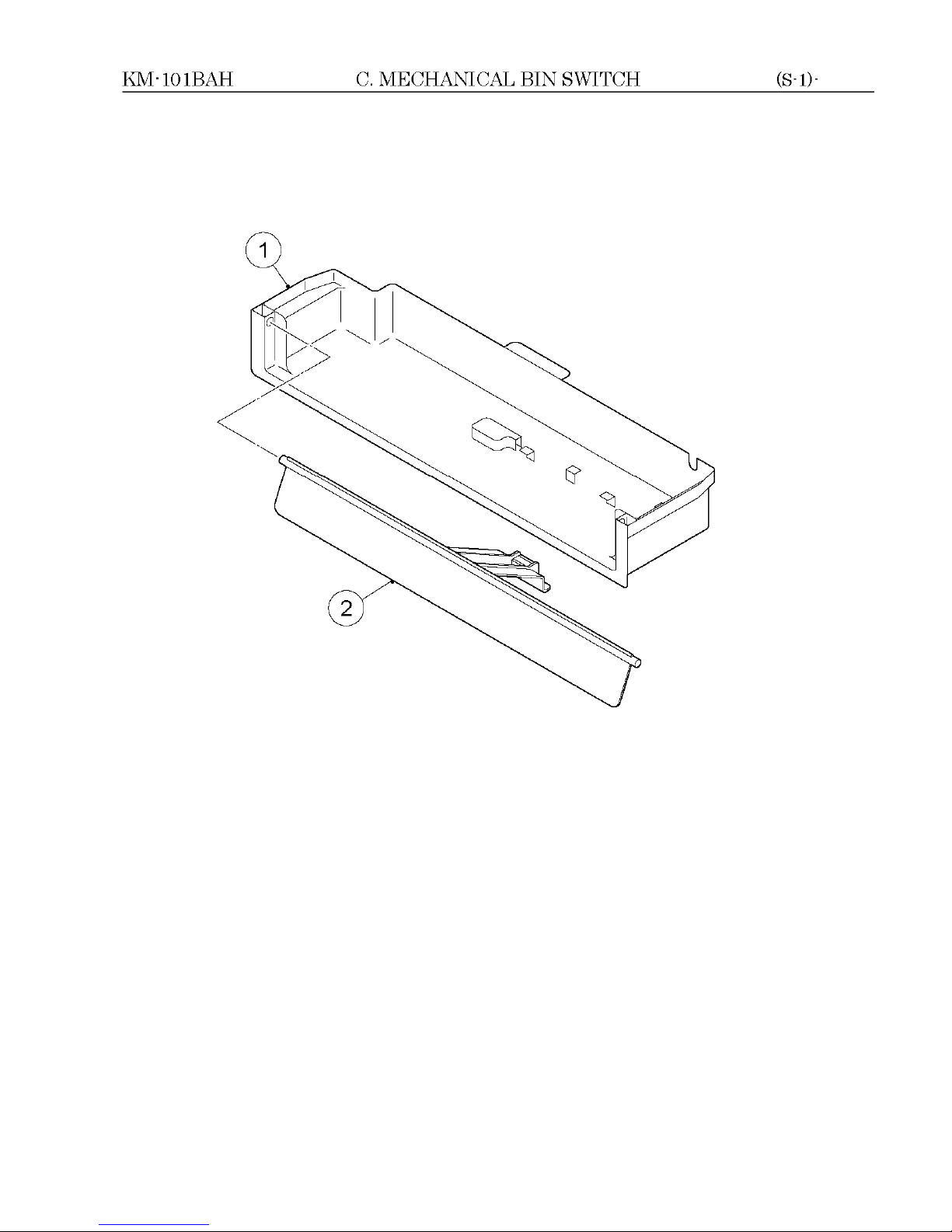

C MECHANICAL BIN SWITCH 369013A01 1 1 -

371151A01 1

D WATER CIRCUIT ASSY 253739A01 1

253739A02

E REFRIGERATION CIRCUIT 118495A01 1 1 1

F CONTROL BOX ASSY 252005A06 1 1 1

G LABEL LOCATION 254313S01 1 1 1

K ACCESSORIES 1 1 1

1 BODY ASSY 118008G01 1 1 1

2 FRONT FRAME 250745-01 1 1 1

3 RAIL (L) 117628-01 1 1 1

4 RAIL (R) 117629-01 1 1 1

5 AIR GUARD 470302-02 1 1 1

6 GROMMET-PIPE (C) EPDM (BLACK) 470311-01 1 1 1

7 GROMMET-PIPE (B) EPDM (BLACK) 470310-01 1 1 1

8 GROMMET-PIPE (A) EPDM (BLACK) 470309-01 1 1 1

9 FRONT PANEL 369014G01 1 1 1

10 COLLAR 471009P01 4 4 4

11 LOUVER 117635-01 1 1 1

12 AIR FILTER 250727G01 1 1 1

15 COVER - PIPE 368305-01 1 1 1

16 REAR COVER 368312-01 1 1 1

17 REAR PANEL 370654M01 1 1 1

18 POWER SUPPLY CORD

KP-30B SJT#16AWG

P00004-01 1 1 1

19 BUSHING SR-7K-2 420472-02 1 1 1

20 SEAL - OVERFLOW 4Y4321P01 1 1 1

21 CLAMP 427902-02 4 4 4

22 TWIST HOLDER P00424-01 1 1 1

23 DOOR 369051G01 1 1 1

24 TOP PANEL 369005A07 1 1 1

REQ'D NUMBER

MODEL

: KM-101BAH

TITLE

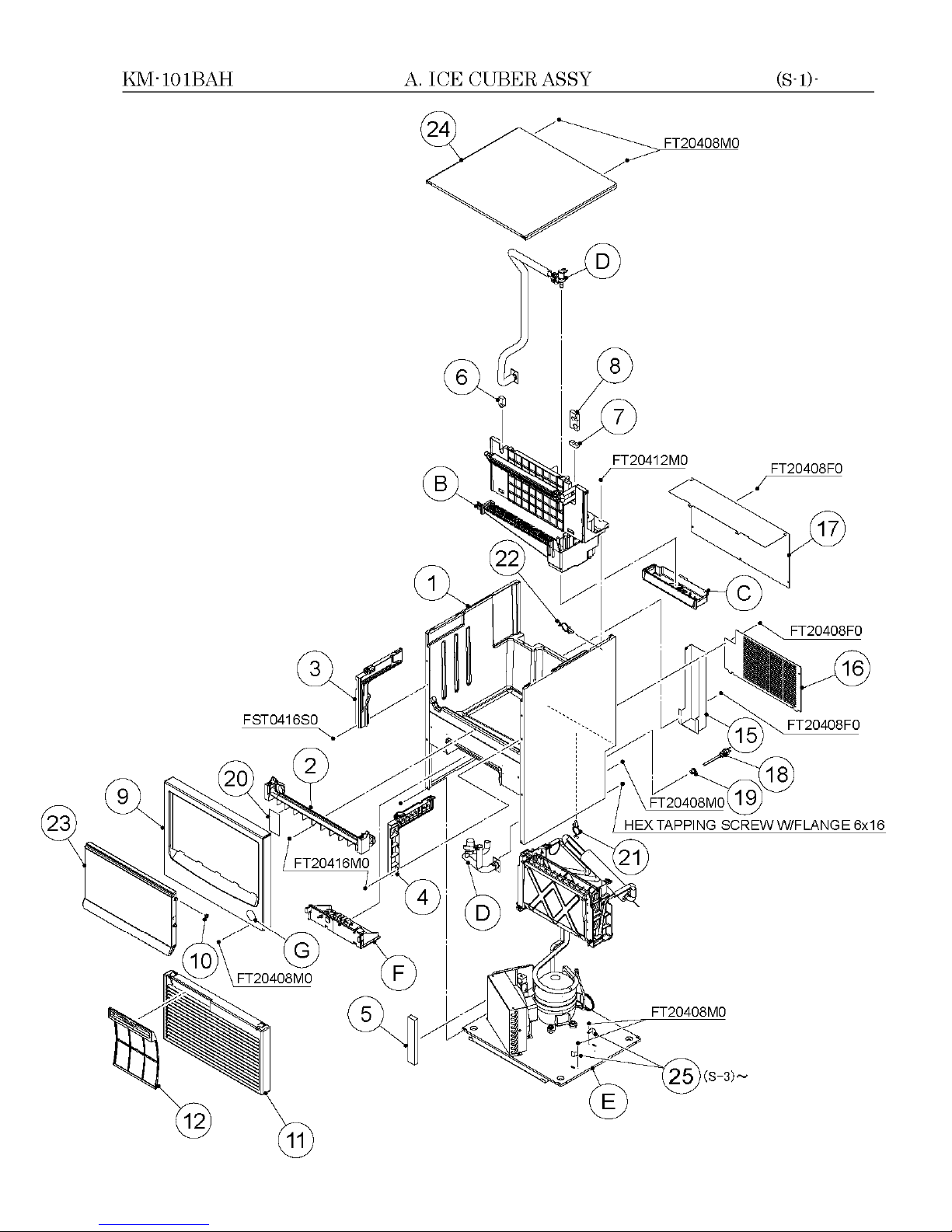

: A. ICE CUBER ASSY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

S-1,S-

S-3,T-

T-1

REQ'D NUMBER

MODEL

: KM-101BAH

TITLE

: A. ICE CUBER ASSY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

25 GUIDE - DRAIN 4Y0191-01 2 2

S-1,S-

S-3,T-

T-1

1 WATER TANK 117638-01 1 1 1

2 FLOAT SWITCH 4A3624-02 1 1 1

3 PUMP MOTOR PV-0511BHZ1 P00468-01 1 1 1

4 ELBOW 417703-01 1 1 1

5 CUBE GUIDE (A) 250742-01 2 2 2

6 CUBE GUIDE (B) 250741-01 1 1 1

7 BRACKET - ICE MAKING 117631-01 1 1 1

8 INSULATION - MECHANISM (A) 368345-01 1 1 1

9 INSULATION - MECHANISM (B) 368344-01 1 1 1

10 SOLENOID VALVE

DSVP12N-2NSX-120A-

L3SR

4A3722-01 1 1 1

11 WATER SUPPLY PIPE (A) 470306-01 1 1 1

12 ELBOW 470303-01 1 1 1

13 BYPASS PIPE 470308-01 1 1 1

14 WATER SUPPLY PIPE (B) 470307-01 1 1 1

15 TEE 470312-01 1 1 1

16 WATER SUPPLY TUBE 250743-01 1 1 1

17 SPRAY GUIDE 252052P01 1 1 1

18 SPRAY TUBE 250746-01 1 1 1

19 SPRAY TUBE CAP 3A2645-01 1 1 1

20 HOSE CLAMP 427443-04 2 2 2

21 HOSE CLAMP 427443-05 1 1 1

22 HOSE CLAMP 427443-06 1 1 1

23 SILICONE HOSE

L=300 14 DIA x 18 DIA

H11418300 1 1 1

(CLEAR)

24 SILICONE HOSE

L=30 14 DIA x 18 DIA

H11418030 3 3 3

(CLEAR)

25 CABLE TIE CV-100 7920-0002 8 8 8

26 HOSE CLAMP 427443-07 1 1 1

27 ORIFICE 4Y4194P02 1 1 1

28 INSULATION/MECHANISM (C) 3Y2432Z01 1 1 1

REQ'D NUMBER

MODEL

: KM-101BAH

TITLE

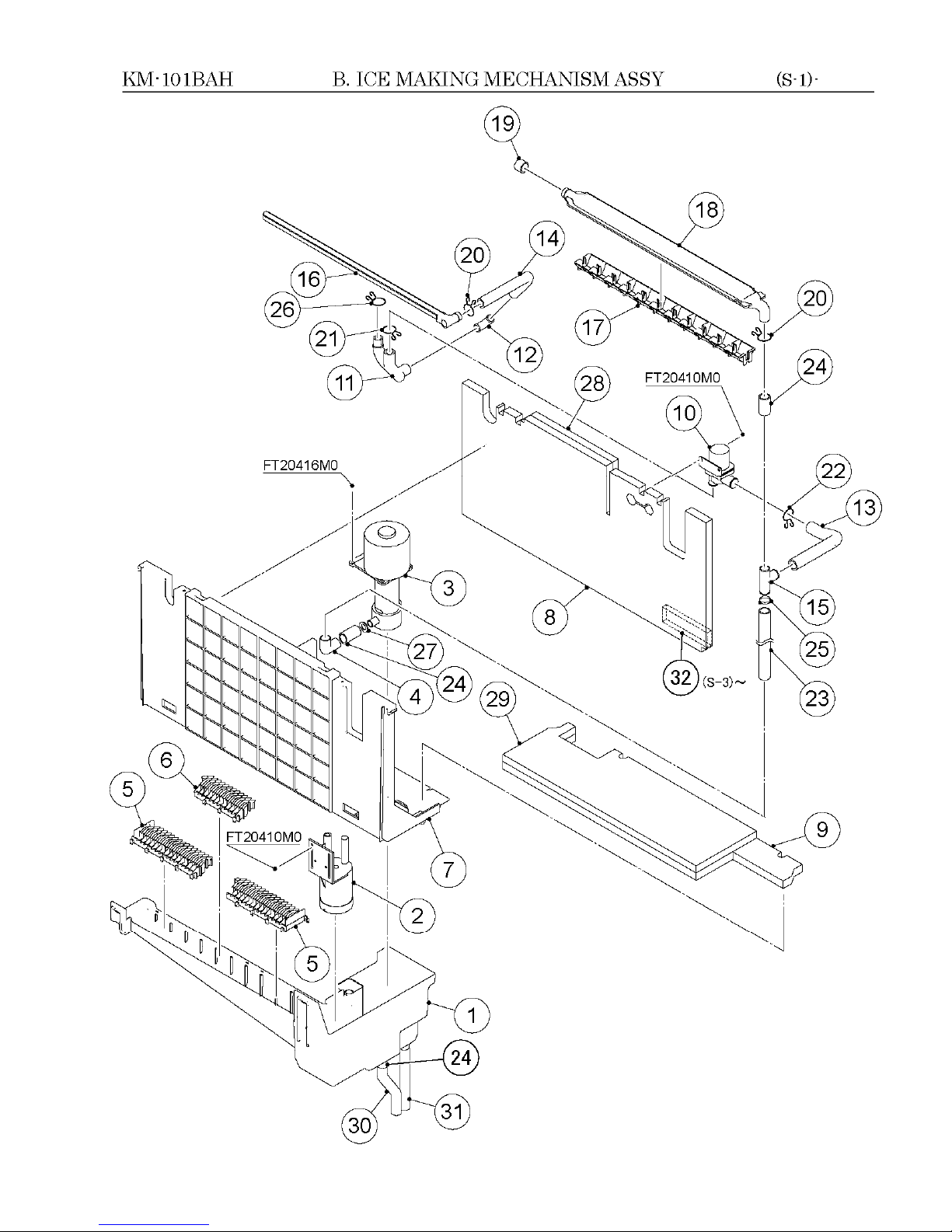

: B. ICE MAKING MECHANISM ASSY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

S-1,S-

S-3,T-

T-1

REQ'D NUMBER

MODEL

: KM-101BAH

TITLE

: B. ICE MAKING MECHANISM ASSY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL NUMBER

PART

NUMBER

29 INSULATION/MECHANISM (D) 3Y2433Z01 1 1 1

30 PIPE/OVERFLOW 369038P02 1 1 1

31 SILICONE HOSE

L=150 14 DIA x 18 DIA

H11418150 1 1 1

(CLEAR)

32 INSULATION - PUMP 472395Z01 1 1
