Hoshizaki F-450MAH User manual

PARTS LIST

F-450MAH(-C)

NO. OCT. 9, 2001

ISSUED: 71194

HOSHIZAKI

MODULAR FLAKER

MODEL

???

REVISED: ??, 200?

REVISED:

F-450MAH L-0 April, 2001

F-450MAH-C L-0 April, 2001

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile-butadiene-styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate =Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene=Teflon

PUR = Polyurethane

PVC = Polyvinylchloride

RUBBER

VN = Vinyl Nitrile

EPDM = EPrubber

NBR = Nitrilebutadienerubber

NR = Naturalrubber

NP = Neoprene

SI.R = Siliconerubber

SY.R = Syntheticrubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x =

Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" (interchangeable)

skipped. So, "K" indicates "2000". part.

Ex.2 L-0 o =

New part for "x" in the

"L" is the next in alphabetical

same auxiliary code.

order.So, "L" indicates "2001".

Ex.3 L-1Eachtime a part is changed non-interchangeably

in a year, this number advances.

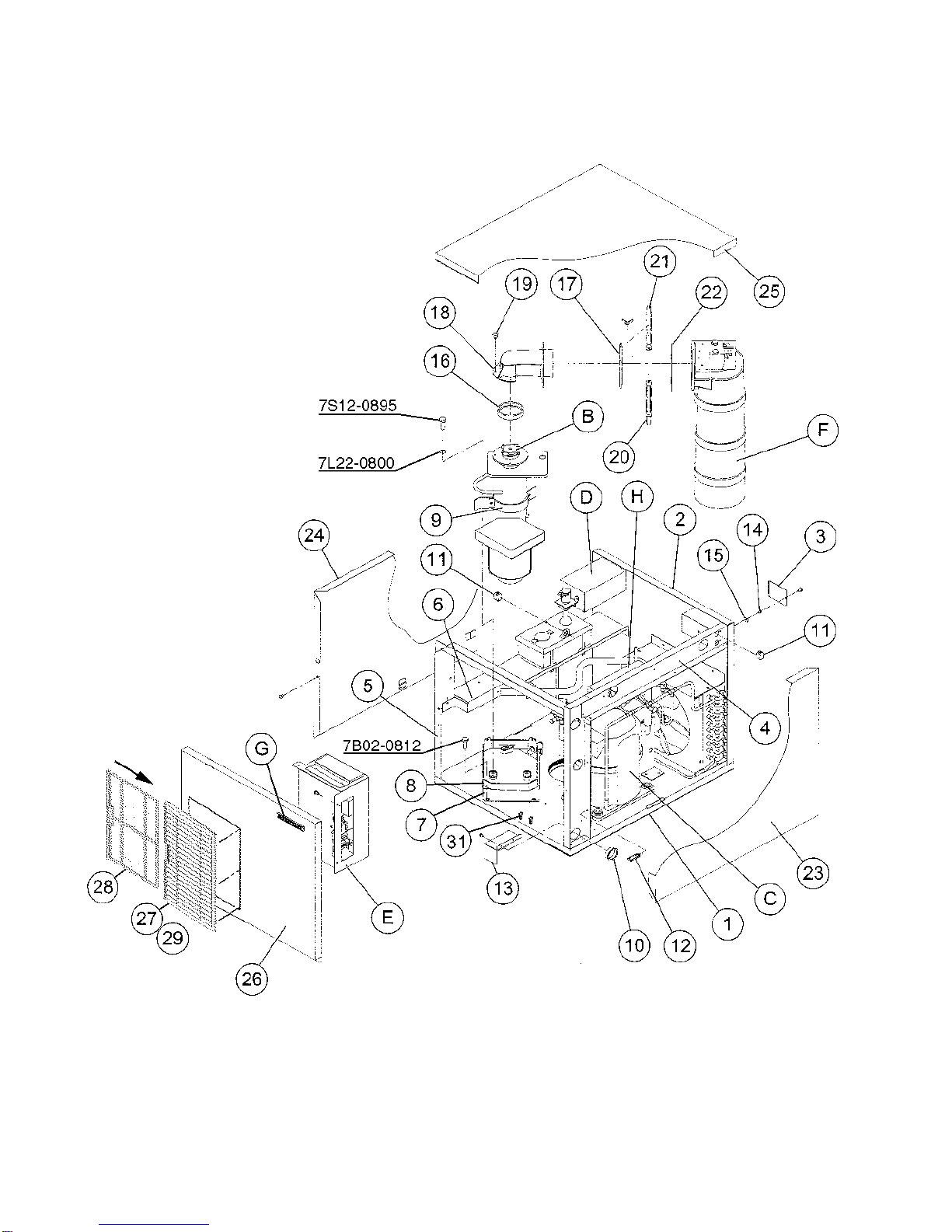

F-450MAH/(-C) A. ICE FLAKERASSEMBLY L-0

MODEL:F-450MAHTITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

B EVAPORATOR ASSEMBLY - 3A0841A01 1

SOCKET HEAD HEX BOLT SS, 8 X 95 7S12-0895 3

SPRINGWASHER SS, 8 7L22-0800 3

C REFRIGERATION UNIT - 2A0926A01 1

T2 SCREW SS, 4 X 8 7P32-0408 2

D WATER CIRCUIT - 2A0942A01 1

E CONTROL BOX ASSEMBLY - 2A0953A01 1

FT SCREW SS, 4 X 8 7F32-0408 3

F CHUTE ASSEMBLY - 2A1705A03 1

G LABEL LOCATION - 2A2080A01 1

MODEL:F-450MAH-C TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

B EVAPORATOR ASSEMBLY - 3A0841A02 1

SOCKET HEAD HEX BOLT SS, 8 X 95 7S12-0895 3

SPRING WASHER SS, 8 7L22-0800 3

C REFRIGERATION UNIT - 2A0926A01 1

T2 SCREW SS, 4 X 8 7P32-0408 2

D WATER CIRCUIT - 2A0942A01 1

E CONTROL BOX ASSEMBLY - 2A0953A01 1

FT SCREW SS, 4 X 8 7F32-0408 3

F CHUTE ASSEMBLY - 3A0874A01 1

G LABEL LOCATION - 2A2080A02 1

H POWER SUPPLY ASSEMBLY - 4A1315A01 1

MODEL:F-450MAH/-C TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER L-0

1 CHASSIS GS 2A1178G01 1

2 REAR PANEL GS 2A0916G01 1

TRUSS HEAD SCREW SS, 4 x 8 7C31-0408 2

3 JUNCTION BOX COVER GS 433410-01 1

T2 SCREW 4 x 8 7P31-0408 1

4 SIDE FRAME (R) GS 2A0917G01 1

TRUSS HEAD SCREW 4 x 8 7C31-0408 4

5 FRONT FRAME GS 2A0918G01 1

TRUSS HEAD SCREW 4 x 8 7C31-0408 4

6 BRACKET - RESERVOIR GS 2A0919G01 1

T2 SCREW 4 x 8 7P31-0408 4

7 BRACKET - GEAR MOTOR GS 3A0396G01 1

HEX BOLT SS, 8 x 12 7B02-0812 2

8 DRAIN PAN ABS 323765G02 1

9 STRAP GS 4A1262-01 1

T3 SCREW 5 x 12 7G31-0512 2

10 BUSHING SB-1500-21 420470-06 4

11 BUSHING SB-1500-21 420472-03 2

12 WIRE SADDLE LWS-4NS 4A0338-04 9

13 BARRIER GS 4A0688-01 1

FT SCREW SS, 4 x 8 7F32-0408 2

14 SCREW - GROUNDING BRASS 433304-02 1

15 SQUARE WASHER BRASS 433537-02 1

16 PACKING EPDM 427151-01 1

17 PACKING – SPOUT EPDM 321037-01 1

18 SPOUT PC 2A0915-01 1

19 THUMBSCREW SS, ABS 415949G04 3

20 STRAP SS 321038G02 1

21 STRAP SS 328703-02 1

WING NUT SS, 6 7E12-0600 2

MODEL:F-450MAH/-C TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

22 BRACKET - CHUTE SS 4A1712-01 1

23 SIDE PANEL (R) SS 2A2067G01 1

TRUSS HEAD SCREW SS, 4 x 8 7C32-0408 1

24 SIDE PANEL (L) SS 2A2066G01 1

TRUSS HEAD SCREW SS, 4 x 8 7C32-0408 1

25 TOP PANEL SS 2A2064-01 1

26 FRONT PANEL SS 2A2065-01 1

TRUSS HEAD SCREW SS, 4 x 10 7C32-0410 1

27 LOUVER (A) PP 1A0547-01 1

28 AIR FILTER (A) - 2A2062G01 1

29 PUSH RETAINER - 4A2414-01 3

30 CABLE TIE CV – 150 7920-0003 1

31 CLAMP - 4A0337-12 2

F-450MAH B. EVAPORATORASSEMBLY L-0

MODEL:F-450MAH TITLE:B. EVAPORATOR ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

1 GEAR MOTOR V06695AIAA 4A2193-01 1

2 BARRIER - GEAR MOTOR GS 3A1037-01 1

2a FT SCREW SS, 4 x 8 7F32-0408 2

3 COUPLING – SPLINE SS 418316-01 1

4 HOUSING BRASS 206013G03 1

4a BOLT 6 X 20 458660-01 4

5 “O” RING G40 7616-G040 1

6 MECHANICAL SEAL HK9A-MS φ22 432491-01 1

7 RING (B) NTKU-4 432494-01 1

8 AUGER SS 341448G01 1

9 EVAPORATOR - 2A1699G01 1

9a SOCKET HEAD CAP SCREW SS, 6 x 10 7S12-0610 4

9b SPLIT LOCK WASHER SS, 6 7L22-0800 4

10 EXTRUDING HEAD – 45F SS 340077G01 1

11 SOCKET HEAD CAP SCREW SS, 8 x 14 429121-01 3

12 WASHER SS 453791-01 3

13 CUTTER SS 453790-01 1

14 REDUCER COPPER 420915-06 1
