Hoshizaki F-1000MAF User manual
NO.
DEC. 9, 1998
ISSUED:
71138
PARTS LIST
HOSHIZAKI
MODULAR FLAKER
MODEL
F-1000MAF(-C)
F-1000MWF(-C)
F-1000MRF(-C)
F-1000MLF(-C)
OCT. 22, 2001
REVISED:
2
HA
F-1000MAF H-0 MARCH, 1998
J-0 DEC., 1998
K-0 DEC., 1999
F-1000MAF-C H-0 AUG., 1998
J-0 DEC., 1998
K-0 DEC., 1999
F-1000MWF H-0 MARCH, 1998
J-0 FEB., 1999
K-0 JAN., 2000
K-1 JUNE, 2000
F-1000MWF-C H-0 AUG., 1998
J-0 APRIL, 1999
K-0 JAN., 2000
K-1 JUNE, 2000
F-1000MRF H-0 MARCH, 1998
J-0 MARCH, 1999
K-0 DEC., 1999
K-1 JUNE, 2000
F-1000MRF-C H-0 NOV., 1998
J-0 MARCH, 1999
K-0 DEC., 1999
F-1000MLF H-0 MARCH, 1998
J-0 FEB., 1999
K-0 JAN., 2000
K-1 JUNE, 2000
F-1000MLF-C J-0
3
HA MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PIFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARYCODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "1990".
o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "1991".
Ex.3 A-2
Each time a part is changed
in a year, this number advances.
4
HA
FASTENER ABBREVIATION LIST
ST Phillips Truss Machine Screw
SP Phillips Pan Head Machine Screw
SF Phillips Flat Head Machine Screw
SS Phillips Pan Head Machine Screw with Split Lock Washer
SW Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
T1 Phillips Truss Head Tapping Screw (Correspond to Type A)
T2 Phillips Truss Head Tapping Screw (Correspond to Type B)
T3 Phillips Truss Head Tapping Screw (Correspond to Type C)
FT Phillips Truss Head Tapping Screw (Special)
BH Hexagon Head Bolt
BC Socket Head Cap Screw
BS Hexagon Bolt with Split Washer
BW Hexagon Bolt with Split Washer and Flat Washer
BF Hexagon Flange Bolt
BR Cross-Recessed Hexagon Head Bolt
BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL Split Lock Washer
WT External Tooth Washer
WF Flat Washer
WS Spring Washer
NH Hexagon Nut
NF Hexagon Flange Nut
NC Hexagon Cap Nut
NS Square Nut
NW Wing Nut
Ex. ST0308S (Phillips Truss Head Machine Screw
3x8, made of stainless steel)
Material None: Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except toe list.
Ex. S1, S2, B3 etc.
And abbreviations and names are shown under the illustration.
5
HA
18
27
33
F
17
14
2D 24
23
T20408
21
T20408
ST0408
11
C
25
23
19
34
15
16
12
B
BL0890S
WL08S
T20512
13
21
ST0408
26
ST0408S
6
5ST0408
22
28
G
30
29
9
10
ST0408
ST0408
E7
20 1
BH0812S
4
NW06S

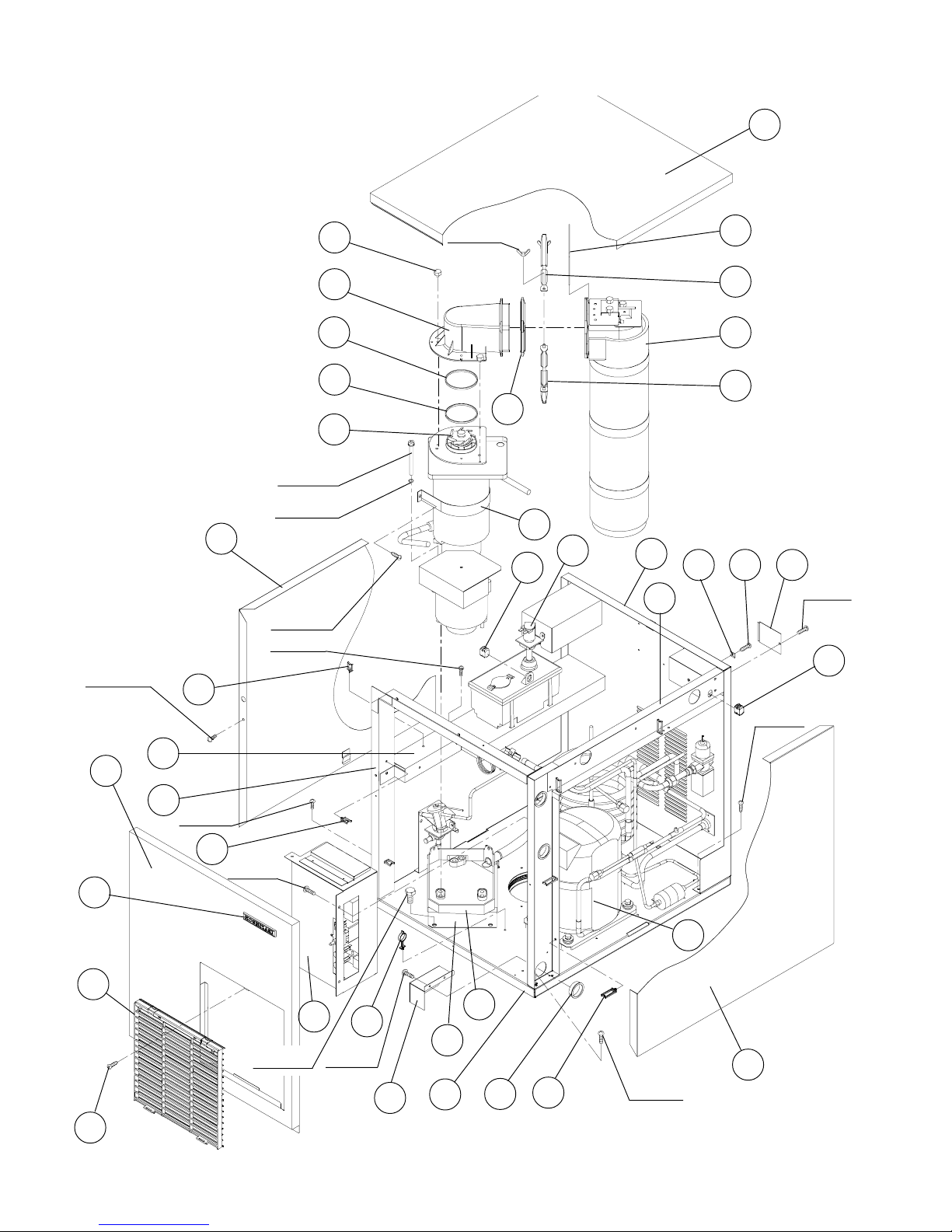

F-1000MAF/-C A. ICE FLAKER ASSEMBLY H-0, J-0, K-0
3
8
6
HA
MODEL: F-1000MAF TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 J-0 K-0
B ICE MAKING UNIT - 3A0962A01 1 1 1
C REFRIGERATION UNIT - 2A0969A01 1 1 1
D WATER CIRCUIT HS-0112 2A0968A01 1 1 1
E CONTROL BOX ASSEMBLY - 2A1045A01 1 1 1
F CHUTE ASSEMBLY HS-0093 2A0941A02 1 1 1
G LABEL LOCATION - 2A1039A01 1 1 1
7
HA
MODEL: F-1000MAF-C TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 J-0 K-0
B ICE MAKING UNIT - 3A0962A02 1 1 1
C REFRIGERATION UNIT - 2A0969A01 1 1 1
D WATER CIRCUIT HS-0112 2A0968A01 1 1 1
E CONTROL BOX ASSEMBLY - 2A1045A01 1 1 1
F CHUTE ASSEMBLY HS-0093 2A0941A02 1 1 1
G LABEL LOCATION - 2A1039A05 1 1 1
8
HA
MODEL: F-1000MAF/-C TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 J-0 K-0
1 CHASSIS G.S 2A1176G01 1 1 1
2 REAR PANEL G.S 2A1008G01 1 1 1
3 JUNCTION BOX COVER G.S 433410-01 1 1 1
4 SIDE FRAME (R) G.S 2A1047G01 1 1 1
5 FRONT FRAME G.S 3A0324G01 1 1 1
6 BRACKET-RESERVOIR G.S 2A1060-01 1 1 1
7 DRAIN PAN ABS 323765G02 1 1 1
8 STRAP G.S 4A1474-01 1 1 1
9 TAPPING SCREW - BLACK STEEL,4X8 433954-01 2 2 2
10 CLAMP WS75-75-C 4A0337-12 3 3 3
11 BUSHING SB-562-7 420470-09 1 1 1
12 RING PA 432661-02 1 1 1
13 “O” RING G70 7616-G070 1 1 1
14 PACKING-SPOUT EPDM 321037-01 1 1 1
15 SPOUT PC 104797-01 1 1 1
16 THUMBSCREW S.S,ABS 415949G04 3 3 3
17 STRAP S.S 321038G02 1 1 1
18 STRAP S.S 328703-02 1 1 1
19 BUSHING SB-1500-21 420470-06 3 3 3
20 BARRIER G.S 4A0688-01 1 1 1
21 BUSHING SR-30-1 420472-03 2 2 2
22 WIRE SADDLE LWS-2NS 4A0338-02 5 5 5
23 WIRE SADDLE LWS-4NS 4A0338-04 4 4 4
24 SCREW-GROUNDING BRASS 433304-02 1 1 1
25 SIDE PANEL (RIGHT) S.S 2A0324G01 1 1 1
26 SIDE PANEL (LEFT) S.S 2A1014G02 1 1 1
27 TOP PANEL S.S 2A1051-02 1 1 1
28 FRONT PANEL S.S 3A0325-01 1 1 1
29 LOUVER (B) P.P 103121-03 2 2 2
30 AIR FILTER (B) - 208283G03 2 2 2
31 CABLE TIE CV-150 7920-0003 1 1 1
9
HA
MODEL: F-1000MAF/-C TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 J-0 K-0
32 SQUARE WASHER BRASS 433537-02 1 1 1
33 BRACKET-CHUTE S.S 4A1712-01 1 1 1
34 BRACKET - GEAR MOTOR G.S 3A0396G01 1 1 1
10
HA
17
27
31
F
16
13
2
D3
24
23
T20408
21
T20408
ST0408
C
25
29
19
30
14
15
11
B
BL0890S
WL08S
T20512
12
21
ST0408
26
ST0408S
6
5ST0408
22
28
G
10
18
9
ST0408
ST0408
E7
20 1
BH0812S
4
NW06S

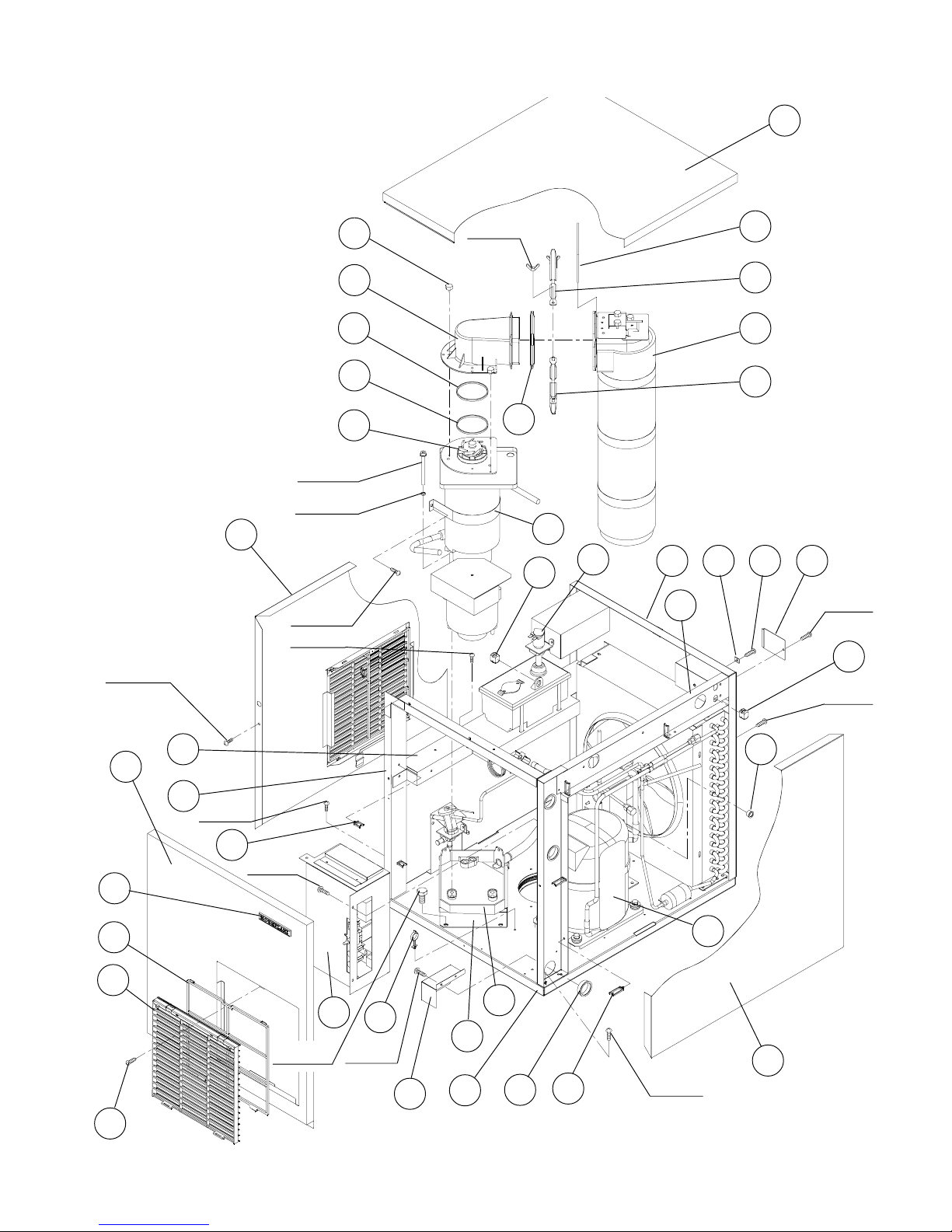

F-1000MWF/-C A. ICE FLAKER ASSEMBLY H-0, J-0, K-0, K-1
8
22
