Hoshizaki DCM-500BWF User manual

NO.

ISSUED:

71143

MODELS

HOSHIZAKI

CUBELET ICE DISPENSER

PARTS LIST

DCM-500BAF

DCM-500BWF

JAN. 12, 1999

REVISED: JAN. 27, 2003

DCM-500BAF H-0 June, 1998

J-0 Dec., 1998

J-1 July, 1999

K-0 Dec., 1999

K-1 July, 2000

K-2 Oct., 2000

L-0 Dec., 2000

L-1 Nov., 2001

M-0 Dec., 2001

N-0 Dec., 2002

DCM-500B F H-0 June, 1998

J-0 April, 1999

J-1 Aug., 1999

K-0 Dec., 1999

K-1 May, 2000

K-2 Nov., 2000

L-0 June, 2001

M-0 Jan., 2002

M-1 April, 2002

N-0 Dec., 2002

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

G.S = Galvanized steel

S.S = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

(Note) - = Part deleted.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part

skipped. So, "K" indicates "2000". (interchangeable).

Ex.2 L-0 o = New part for "x"

"L" is the next in alphabetical in the same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

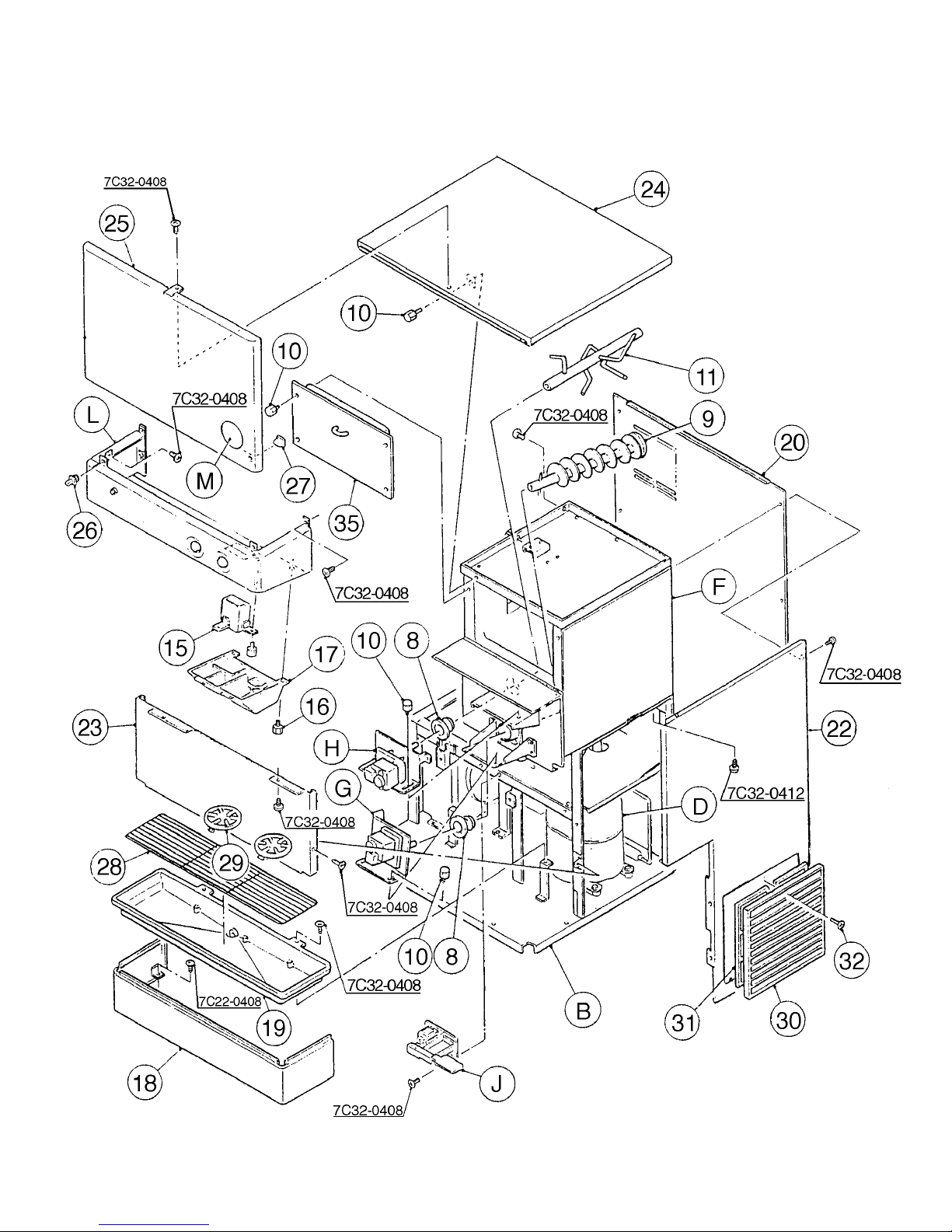

DCM-500BAF A. ICE DISPENSER ASSEMBLY (1/2) H-0, J-0, J-1, K-0, K-1,

K-2, L-0, L-1, M-0, N-0

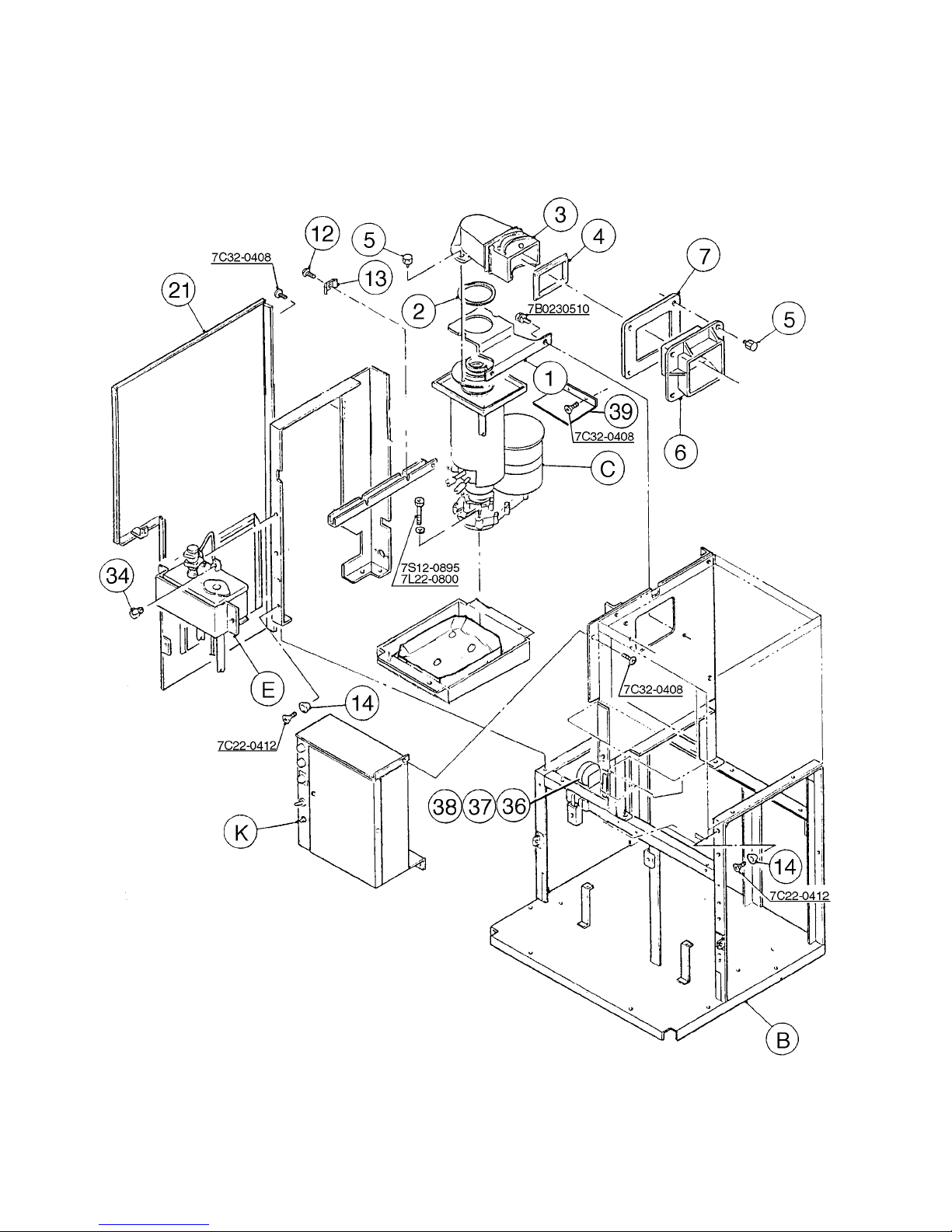

DCM-500BAF A. ICE DISPENSER ASSEMBLY (2/2) H-0, J-0

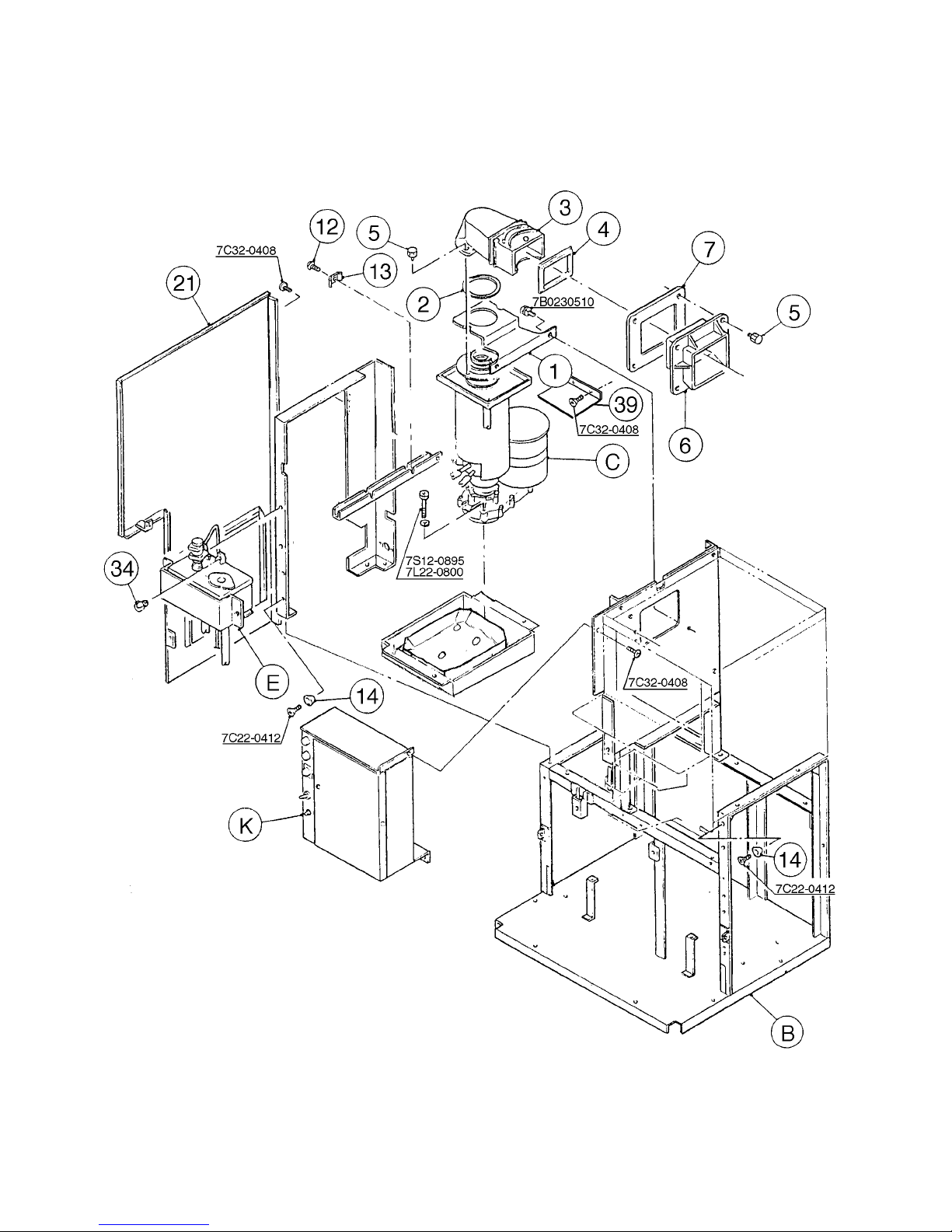

DCM-500BAF A. ICE DISPENSER ASSEMBLY (2/2) J-1, K-0, K-1, K-2,

L-0, L-1, M-0, N-0

MODEL: DCM-500BAF TITLE:A. ICE DISPENSER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

H-0 J-0 J-1 K-0

K-1

K-2 L-0 L-1

M-0

N-0

B FRAME ASSEMBLY - 2A0388A05 1 1 -

- 2A0388A01 1 1 1 1 1 1

C EVAPORATOR ASSEMBLY - 3A0623A02 1 1 1 1 -

- 3A0623A03 1 1 1 1

SOCKET HEAD HEX BOLT SS, 8 X 90 7S12-0890 3 3 3 3 3 x3

SS, 8 X 95 7S12-0895 o3 3 3

SPLIT LOCK WASHER SS, 8 7L22-0800 3 3 3 3 3 3 3 3

D REFRIGERATION CIRCUIT - 227494A01 1 1 1 1 -

- 227494A02 1 1 1 1

E WATER CIRCUIT - 2A0395A02 1 1 1 1 1 1 1 1

F BIN ASSEMBLY - 2A0413A01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 3 3 3 3 3 3 3 3

TRUSS HEAD SCREW 4 X 12 7C31-0412 2 2 2 2 2 2 2 2

G GEAR MOTOR ASSEMBLY - 4A0622A01 1 1 1 1 1 1 1 1

H GEAR MOTOR ASSEMBLY - 4A0620A01 1 1 1 1 1 1 1 1

J SHUTTER ASSEMBLY - 2A0410A01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2

K CONTROL BOX ASSEMBLY - 227498A03 1 1 -

- 227498A05 1 1 1 1 1 1

TRUSS HEAD SCREW 4 X 8 7C31-0408 3 3 3 3 3 3 3 3

L MIDDLE FRONT PANEL

ASSEMBLY

- 2A0409A03 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2

M LABEL LOCATION - 2A0407A05 1 -

- 2A0407A07 1 -

- 2A0407A09 1 1 1 1 1 1

1 BRACKET - EVAPORATOR - 3A0360-01 1 1 1 1 1 1 1 1

HEX HEAD BOLT

W/WASHER (LF)

SS, 5 X 10 7B0230510 2 2 2 2 2 2 2 2

MODEL: DCM-500BAF TITLE:A. ICE DISPENSER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

H-0 J-0 J-1 K-0 K-1 K-2 L-0

L-1

M-0

N-0

2 PACKING - 427151-02 1 1 1 1 1 1 1 1

3 SPOUT - 103329G01 1 1 1 1 1 1 1 1

4 PACKING (A) - SPOUT - 427195-01 1 1 1 1 1 1 1 1

5 THUMBSCREW - 415949G03 7 7 7 7 7 7 7 7

6 SPOUT (B) - 208807-01 1 1 1 1 1 1 1 1

7 PACKING(B) - SPOUT - 427196-01 1 1 1 1 1 1 1 1

8 GASKET - 429758-01 2 2 2 2 2 2 2 2

9 AUGER - 339192G01 1 1 1 1 1 1 1 1

10 THUMBSCREW - 415949G05 11 11 11 11 11 11 11 11

11 AGITATOR - 3A0895G01 1 1 1 1 1 1 1 1

12 SCREW - GROUNDING - 433304-02 1 1 1 1 1 1 1 1

13 WASHER - 433537-02 1 1 1 1 1 1 1 1

14 COLLAR - 4H0171-01 2 2 2 2 2 2 2 2

FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2 2 2 2 2 2

15 ICE CHUTE - 439788G01 1 1 1 1 x1

- 4A2204-01 o1 1 1 1

16 THUMBSCREW - 415949G08 4 4 4 4 4 4 4 4

17 SPOUT COVER - 215773-01 1 1 1 1 1 1 1 1

18 PANEL (LO) - 2A0699G01 1 1 1 1 1 1 1 1

FT SCREW SS, 4 X 8 7F32-0408 6 6 6 6 6 6 6 6

19 TRAY - DRIP - 105219G01 1 1 1 1 1 1 1 x1

- 2A2591G01 o1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4 4 4 4 4 4

20 REAR PANEL - 2A0405-01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4 4 4 4 4 4

21 SIDE PANEL (L) - 2A0696-01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6 6 6 6 6 6

22 SIDE PANEL (R) - 2A0695-01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6 6 6 6 6 6

MODEL: DCM-500BAF TITLE:A. ICE DISPENSER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

H-0 J-0 J-1 K-0 K-1 K-2 L-0 L-1

M-0

N-0

23 APRON PANEL - 2A0720-01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 4 4 4

FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2 2 2 -

24 TOP PANEL - 3A0640G01 1 1 1 x1

- 3A1728G01 o1 1 1 1 1

25 FRONT PANEL - 3A0638G01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 1 1 1 1 1 1 1 1

26 STRIKE - 4A0515-01 2 2 2 2 2 2 2 2

27 LATCH - 4A0508-03 2 2 2 2 2 2 2 2

28 GRILLE - 2A0827G01 1 1 1 1 1 1 1 1

29 GUIDE - CUP - 326702-01 2 2 2 2 2 2 2 2

30 LOUVER (B) - 103121-03 2 2 2 2 2 2 2 2

31 AIR FILTER (B) - 208283G03 1 1 1 1 1 1 1 1

32 TAPPING SCREW - BLACK - 433954-01 2 2 2 2 2 2 2 2

33 - - - - - - - - - - -

34 BUSHING - 420472-03 1 1 1 1 1 1 1 1

35 COVER – BIN - 2A0880A01 1 1 1 x1

- 2A0880A02 o1 1 1 1 1

36 TIMER - 4A0889-01 1 1 -

37 CONNECTOR - 4A0889-02 1 1 -

38 SCREW #6 - 32 X 3/8 4A0898-01 2 2 -

39 MOTOR COVER - 3A1058-01 1 1 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2

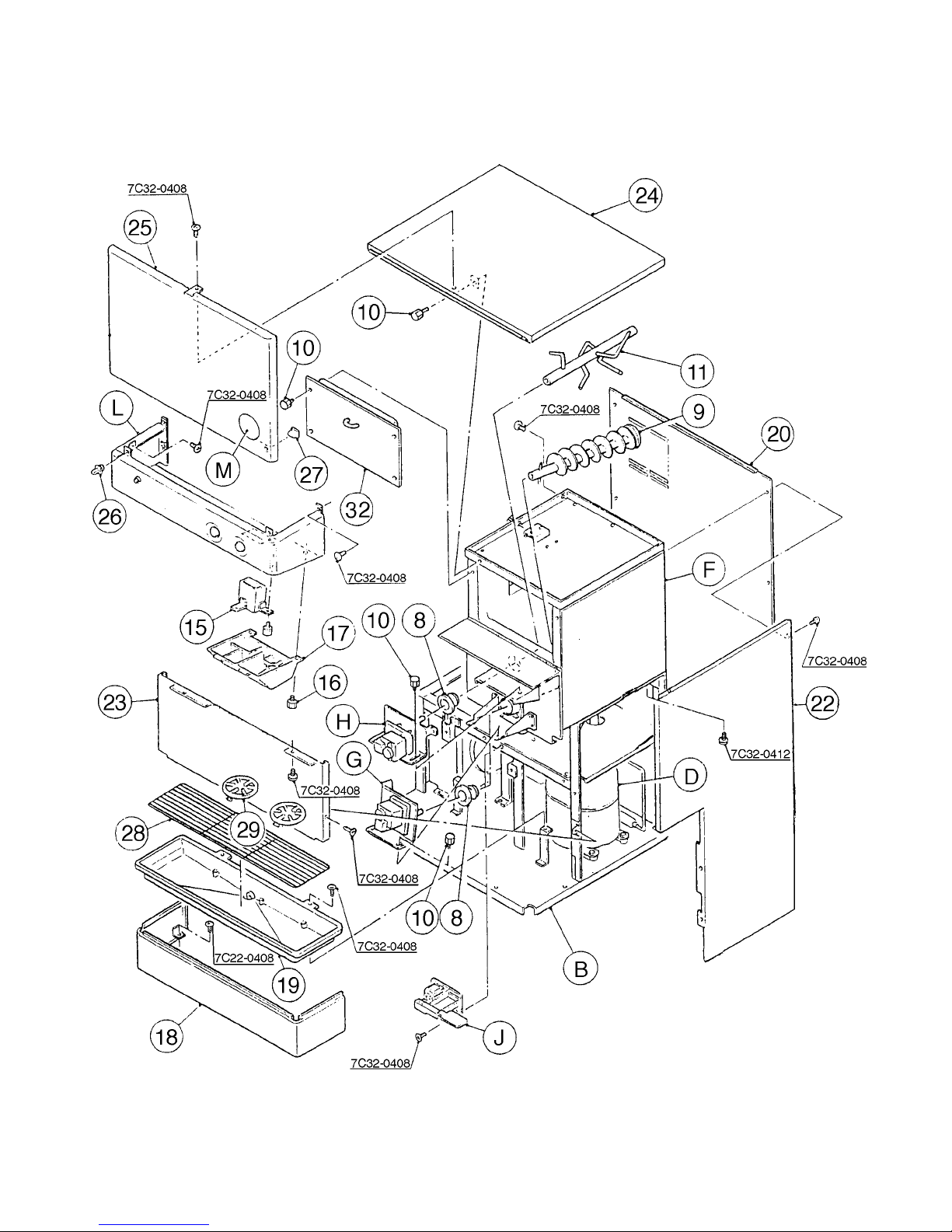

DCM-500BWF A. ICE DISPENSER ASSEMBLY (1/2) H-0, J-0, J-1, K-0, K-1,

K-2, L-0, M-0, M-1, N-0
