Hoover U5753900 User manual
MODEL NO.
SECTION CONTENTS
888.321.1134
HOOVER
SM
07-2009
* P
RICING
,
SPECIFICATION’S
,
AND PRODUCT AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT
NOTICE
. P
RICING IS
FOB
FACTORY
, C
ANTON
, OH
* A
LL INFORMATION CONTAINED WITHIN THIS SERVICE MANUAL IS PROPRIETARY INFORMATION
OF
TTI F
LOOR CARE
N
ORTH
A
MERICA.
* WARNING:
T
O REDUCE THE RISK OF ELECTRICAL SHOCK OR INJURY
,
ALWAYS DISCONNECT
THE APPLIANCE CORD FROM THE ELECTRICAL OUTLET OR REMOVE BATTERY PRIOR TO
SERVICING THE UNIT.
7-1
MODEL NO.
PAGE
N
O.
U5753-900
7-2
THRU
7-6
U5760-900
7-2
THRU
7-6
U5786-900
7-2
THRU
7-6
UH40125
7-2
THRU
7-6
U5762-900
7-7
THRU
7-11
UH40020
7-7
THRU
7-11
UH40065
7-7
THRU
7-11
UH40145B
7-7
THRU
7-11
U5753-900
U5760-900
U5762-900
U5786-900
UH40020
UH40065
UH40125
UH40145B
MODEL NO.
888.321.1134
HOOVER
SM
07-2009

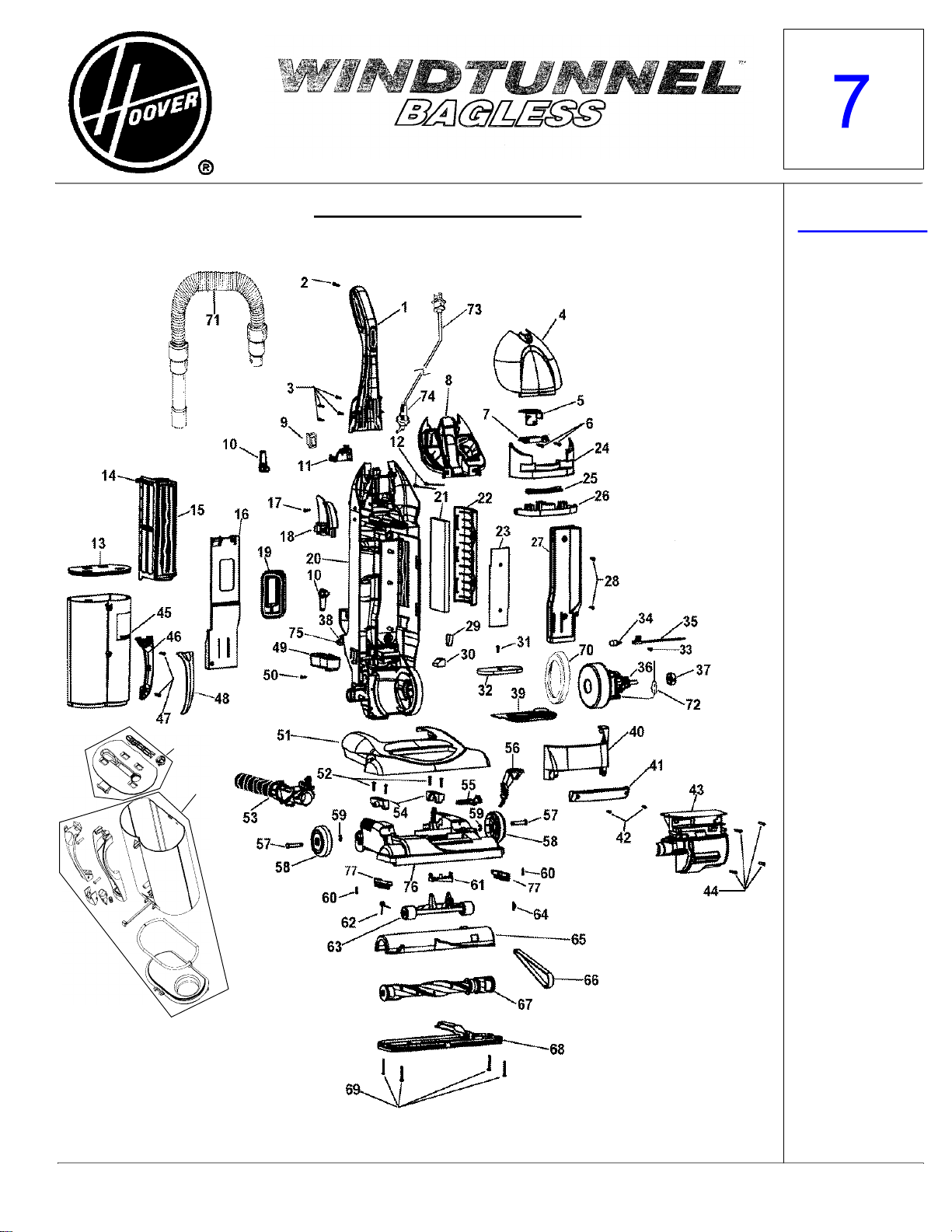

ASSEMBLY SCHEMATIC
13
45
U5762-900
UH40020
UH40065
UH40145B
7-7
MODEL NO.
888.321.1134
HOOVER
SM
07-2009
PART LISTING / PRICE LIST
U5762-900
UH40020
UH40065
UH40145B
ITEM PART NUMBER MODELS
T
O
F
IT PART DESCRIPTION LIST
C
OST
1
39466088
ALL
UPPER HANDLE ASSEMBLY -
DARK CHARCOAL GRAY
9.06
2
21447236
ALL
SCREW
1.12
3
21447072
ALL
SCREW
.57
4
37257263
U5762-900
TOOL DOOR
WITH LOGO
9.06
37257305
ALL
TOOL DOOR
WITH LOGO
5.44
5
92001088
ALL
DIRT CUP LID LATCH -
BLACK
1.12
6
21447242
ALL
SCREW - SELF TAPPING
1.12
7
36155013
ALL
DIRT CUP LID LATCH HOLDER -
DARK CHARCOAL GRAY
1.12
8
36433149
U5762-900
TOOL HOLDER
4.17
36433146
ALL
TOOL HOLDER -
DARK CHARCOAL GRAY
9.74
9
28161067
ALL
SWITCH
2.63
10 39442048
ALL
CORD WRAP -
MAGNESIUM GRAY
1.14
11 36923004
ALL
SWITCH SUPPORT -
DARK CHARCOAL GRAY
2.26
12 21447246
ALL
SCREW
1.12
13 37249042
U5762-900
DIRT CUP LID -
DARK CHARCOAL GRAY
6.20
42249015
UH40020, UH40125,
UH40145B
DIRT CUP LID ASSEMBLY
4.06
14 92001025
U5762-900
PRE-FILTER SUPPORT ASSEMBLY
7.93
36426099
UH40020, UH40125,
UH40145B
PRE-FILTER SUPPORT ASSEMBLY
6.07
15 40140201
ALL
CARTRIDGE FILTER
16.00
NON DISC
16 37258121
ALL
WIRE CHANNEL COVER -
DARK CHARCOAL GRAY
4.86
17 21447242
ALL
SCREW - SELF TAPPING
1.12
18 36433148
ALL
UPPER WAND/HOSE HOLDER -
DARK CHARCOAL GRAY
3.16
19 38783027
ALL
DIRT CUP INLET SEAL -
BLACK
4.53
20 42259027
ALL
BACK HOUSING ASSEMBLY -
DARK CHARCOAL GRAY
40.24
37255015
ALL
REAR MUFFLER COVER -
DARK CHARCOAL GRAY
1.46
21 40110006
ALL
FINAL / EXHAUST FILTER - 2
PK
3.49
NON DISC
38766030
ALL
FINAL / EXHAUST FILTER
WITH
SLIT - 1
EA
4.19
22 37257289
ALL
FINAL / EXHAUST FILTER DOOR -
MIST GRAY TRANSPARENT
6.79
23
ALL
FOAM - MUFFLER FILTER
N.A.
7-8
MODEL NO.
888.321.1134
HOOVER
SM
07-2009
PART LISTING / PRICE LIST
U5762-900
UH40020
UH40065
UH40145B
ITEM PART NUMBER MODELS
T
O
F
IT PART DESCRIPTION LIST COST
24
37258166
U5762-900
DIRT CUP LATCH COVER SHROUD -
PEWTER METALLIC
5.88
38258215
UH40020
DIRT CUP LATCH COVER SHROUD -
BRONZE PENDING
37258218
UH40065
DIRT CUP LATCH COVER SHROUD -
EASY BLUE PENDING
37258224
UH40145B
DIRT CUP LATCH COVER SHROUD -
RED PENDING
25
37258206
ALL
CAM SLOT CAP -
SILVER PENDING
26
38567062
ALL
DIRT CUP LATCH COVER
2.57
27
37259016
ALL
MUFFLER FILTER COVER -
DARK CHARCOAL GRAY
4.86
28
21447242
ALL
SCREW - SELF TAPPING
1.12
29
34131009
ALL
WIRE CHANNEL FOAM
1.12
30
34131019
ALL
WIRE OPENING PLUG
1.12
31
21447242
ALL
SCREW - SELF TAPPING
1.12
32
38762008
ALL
SECONDARY / INLET FILTER
2.47
33
21447072
ALL
SCREW
.57
34
27313101
ALL
LAMP - LIGHT BULB
2.26
35
47173027
ALL
WIRING HARNESS
4.53
36
27212057
ALL
MOTOR ASSEMBLY COMPLETE
62.09
49811079
ALL
LEAD WIRE -
WHITE
12
AMP
1.12
37
36322030
ALL
MOTOR MOUNT -
SMALL
1.12
38
21447242
ALL
SCREW - SELF TAPPING
1.12
39
43615088
ALL
SECONDARY / INLET FILTER RETAINER
4.53
40
37944023
U5762-900
CIRCUIT BOARD COVER -
SILVER QUARTZ
5.31
37944037
UH40020
CIRCUIT BOARD COVER -
BRONZE PENDING
37944039
UH40065
CIRCUIT BOARD COVER -
EASY BLUE PENDING
37944043
UH40145B
CIRCUIT BOARD COVER -
RED PENDING
41
39383107
ALL
LENS
2.59
42
21447228
ALL
SCREW - SELF TAPPING
.57
43
37196160
ALL
MOTOR COVER 9.06
44
21447230
ALL
SCREW - SELF TAPPING
1.12
45
38775077
U5762-900
DIRT CUP
40.81
42254195
UH40020, UH40065,
UH40145B
COMPLETE DIRT CUP ASSEMBLY
42.77
46
39457018
U5762-900
DIRT CUP HANDLE -
INNER
3.39
UH40020, UH40065,
UH40145B
DIRT CUP HANDLE -
ORDER
#45
7-9
MODEL NO.
888.321.1134
HOOVER
SM
07-2009
PART LISTING / PRICE LIST
U5762-900
UH40020
UH40065
UH40145B
ITEM PART NUMBER MODELS
T
O
F
IT PART DESCRIPTION LIST COST
47 21447043
ALL
SCREW - SELF TAPPING
.57
48 39457033
U5762-900
DIRT CUP HANDLE COVER
4.86
UH40020, UH40065,
UH40145B
DIRT CUP HANDLE COVER -
ORDER
#45
49 36433147
ALL
LOWER WAND HOLDER -
DARK CHARCOAL GRAY
1.69
50 21447242
ALL
SCREW - SELF TAPPING
1.12
51 37253390
U5762-900
HOOD / NOZZLE COVER -
BLACK N.L.A.
42252B78
UH40020
HOOD / NOZZLE COVER -
BRONZE PENDING
42252B75
UH40065
HOOD / NOZZLE COVER -
EASY BLUE
43.73
42252B81
UH40145B
HOOD / NOZZLE COVER -
RED PENDING
52 21447072
ALL
SCREW
.57
53 43516010
ALL
LOWER HOSE / VALVE ASSEMBLY
13.60
54 36131094
ALL
TRUNNION COVER
1.12
55 40309004
ALL
HEIGHT ADJUSTMENT LEVER
AND
CAM
3.16
56 38458043
ALL
HANDLE RELEASE LEVER
2.26
57 32434007
ALL
REAR AXEL
1.12
58 38522077
U5762-900
REAR WHEEL
2.26
43247033
UH40020, UH40065,
UH40145B
REAR WHEEL ASSEMBLY
6.82
59
160017--
ALL
LOCK RING
.58
60 21447228
ALL
SCREW - SELF TAPPING
.57
61 40309004
ALL
HEIGHT ADJUSTMENT LEVER
AND
CAM
3.16
62 38355010
ALL
TORSION SPRING
1.12
63 43248064
U5762-900
FRONT WHEEL ASSEMBLY COMPLETE
9.06
43248075
UH40020, UH40065,
UH40145B
FRONT WHEEL ASSEMBLY COMPLETE
PENDING
64
013261AY
ALL
RIB SHOES
.57
65 40309026
ALL
BOTTOM PLATE DUCT / NOZZLE GUARD
19.27
66 38528033
ALL
FLAT BELT
1.50
NON DISC
40201160
ALL
FLAT BELT - 2
PACK
1.50
NON DISC
67 48414115
ALL
AGITATOR / BRUSH ROLL
24.94
48414132
ALL
AGITATOR / BRUSH ROLL
22.67
68 40309026
ALL
BOTTOM PLATE DUCT / NOZZLE GUARD
19.27
69 21447121
ALL
SCREW
.57
70 36322037
ALL
MOTOR MOUNT -
LARGE
2.59
71 43491051
ALL
HOSE ASSEMBLY
13.60
72 28382093
ALL
THERMAL PROTECTOR
7.58
7-10
MODEL NO.
888.321.1134
HOOVER
SM
07-2009
PART LISTING / PRICE LIST
U5762-900
UH40020
UH40065
UH40145B
ITEM PART NUMBER MODELS
T
O
F
IT PART DESCRIPTION LIST COST
73
46383334
ALL
POWER CORD - 35’
15.87
74
36215028
ALL
CORD PROTECTOR
1.81
75
36171035
ALL
HOSE CLAMP
1.12
76
37242135
ALL
MAIN BODY / NOZZLE BASE
15.87
77
39511018
ALL
LITTER PICKER -
BLACK
2.26
78
43486010
U5762-900
DIRT DUCT TUBE
9.06
43486019
UH40020, UH40065,
UH40145B
DIRT DUCT TUBE
PENDING
38614044
U5762-900
FURNITURE NOZZLE -
GRAPHITE GRAY
5.66
92001196
UH40020, UH40065,
UH40145B
FURNITURE NOZZLE -
BLACK
3.39
38617031
ALL
CREVICE TOOL -
LONG
GRAPHITE GRAY
5.66
38617033
ALL
CREVICE TOOL -
SHORT
3.39
38634078
ALL
EXTENSION TUBE -
BLACK
6.79
43414197
ALL
DUSTING BRUSH ASSEMBLY -
BLACK
2.68
49129032
ALL
TURBINE HAND TOOL
14.62
43434043
ALL
HOSE ASSEMBLY DELUXE - 20’
43.46
59156137
UH40145B - A
LL
BARE FLOOR BRUSH
12.46
93001960
ALL
12” HARD FLOOR BRUSH -
BLACK
14.16
7-11
MODEL NO.
888.321.1134
HOOVER
SM
07-2009
U5753-900
U5760-900
U5762-900
U5786-900
UH40020
UH40065
UH40125
UH40145B

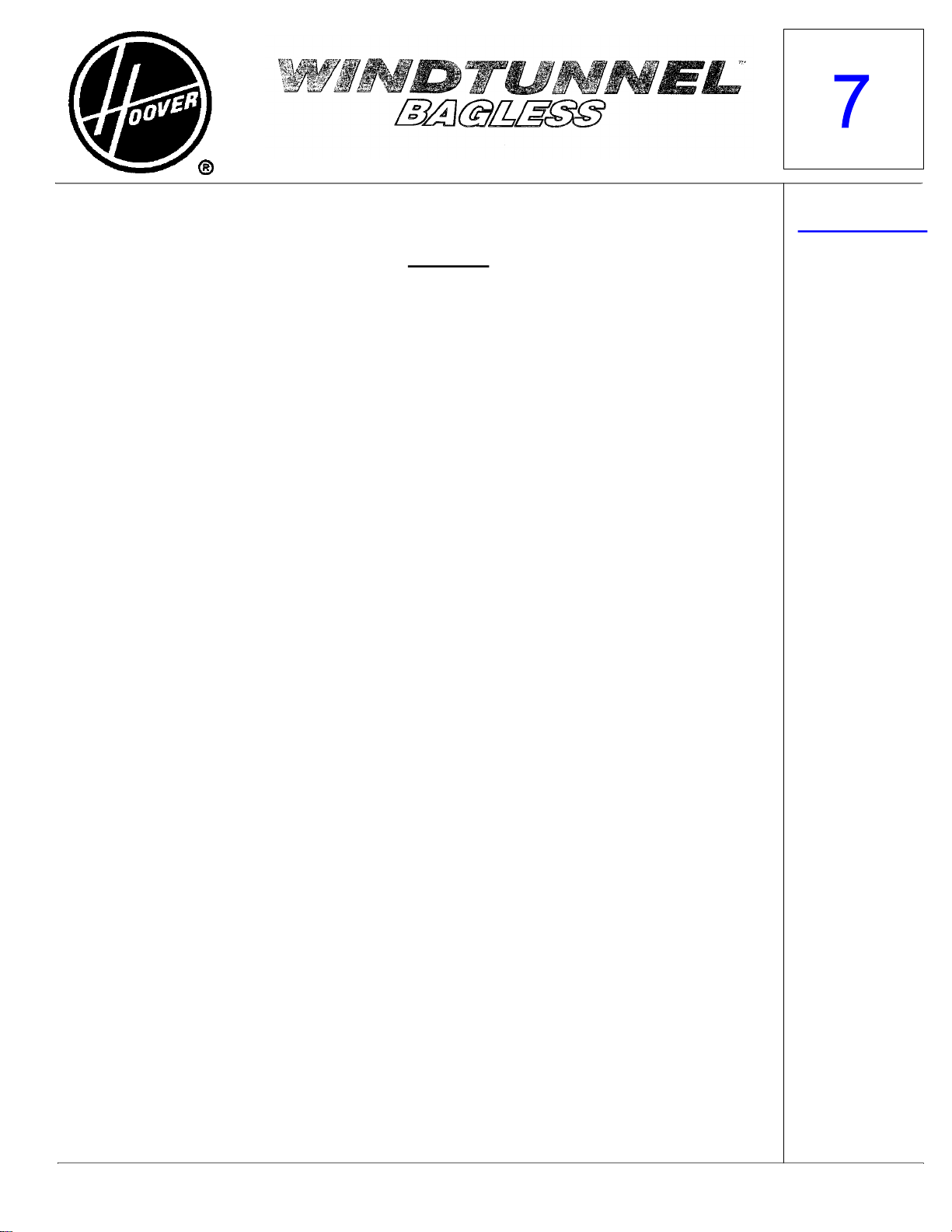

NOTES
7-12
