Hoover PUREPOWER User manual

UP-RIGHT CLEANERS

39100201 PU2120 001

Service Manual

39100201 PU2120 001 0905 (31/01/2009)

Ref. Descrizione - Description - Beschreibung - Descripcion

Fine

Ending

Fin

End

Fin

Inizio

Beginning

Debut

Begin

Inicio

Ricambio

Part No.

Piece

E-Teil

Pieza

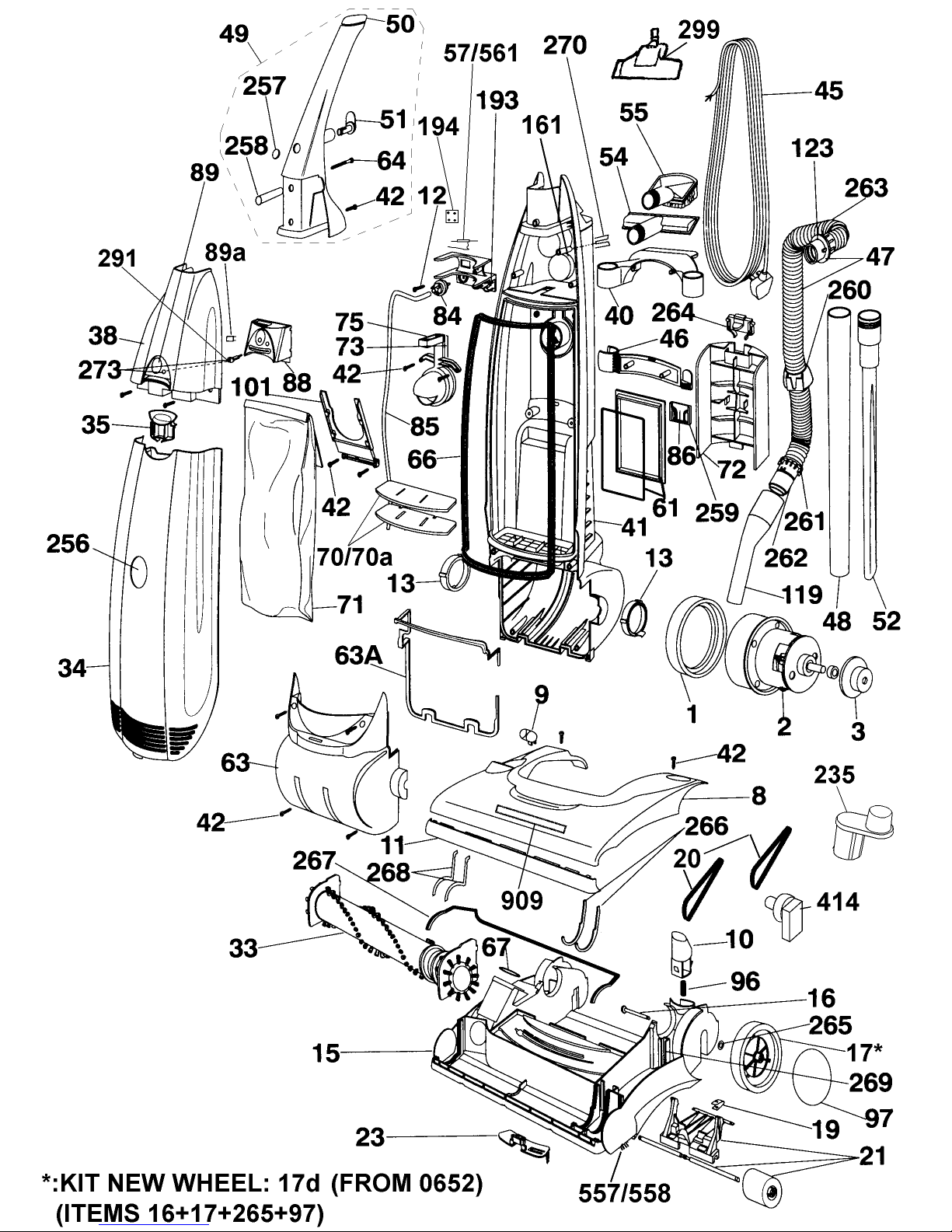

1 Motor mount - fan end 03870747

2 Motor assembly 04315025

3 Motor mount - commutator end 03875032

8 Hood upper body 48000789

9 Nozzle height adjustment knob 03845092

10 Handle release pedal 03845200

11 Furniture guard 03625059

12 Screw 21448050

13 Trunion ring 03630076

15 Chassis 03726721

16 Rear wheel shaft 03345002

17d Rear wheel kit 04065027

19 Wheel carrier spring 03830148

20 Agitator belt 09161985

21 Castor wheel 04195002

23 Nozzle height cam 04320064

33 Agitator assy 04845056

34 Bag door 48000793

35 Door latch 03615252

38 Top cover 48000790

40 Hose support upper 03645292

41 Bag housing 04225914

45 Plug and cord assembly 04635064

46 Hose support 03645252

47 Hose assembly 04345084

48 Extension tube 03865243

49 Handle 48000786

50 Handle plug 03795098

51 Upper cord hook 48000783

52 Crevice tool 03865194

54 Furniture nozzle 04345216

39100201 PU2120 001 0905 (31/01/2009)

Ref. Descrizione - Description - Beschreibung - Descripcion

Fine

Ending

Fin

End

Fin

Inizio

Beginning

Debut

Begin

Inicio

Ricambio

Part No.

Piece

E-Teil

Pieza

55 Dusting brush 04865081

63 Motor cover 03726717

63a Seal (Exhaust) 03870744

64 Tie bolt 21446069

66 Bag door seal 48000753

70a Filter kit 09181827

71 Disposal bag 09173717

72 Filter retainer 03726718

75 Inlet hose 03640444

85 Pressure switch tube 66655711

88 Electronic module 04685041

89 On/Off button / switch button small 03845091

89a Push switch 48000144

96 Spring 03830020

119 Flex hose end 03865244

123 Elbow connector 03865189

161 Cord protection 03625056

165 Valve 04345242

193 Cord clamp 03610296

194 Terminal block/harness 27684032

235 Adapter 03615256

256 Plug (bag door) 48000787

257 Roundel (Hoover emblem) 05160111

258 Handle insert 03230038

260 Hose retainer 03615253

261 Retaining ring 03615254

262 Adapt swivel connector (hose end) 03610002

264 Filter cover latch 03615309

267 Agitator chamber seal 03870370

270 Tool retaining clip 03615250

368 Litter picker 04840090

39100201 PU2120 001 0905 (31/01/2009)

Ref. Descrizione - Description - Beschreibung - Descripcion

Fine

Ending

Fin

End

Fin

Inizio

Beginning

Debut

Begin

Inicio

Ricambio

Part No.

Piece

E-Teil

Pieza

557 Agitator end cap RH 03645014

558 Agitator end cap LH 03645015

561 Harness 04665017

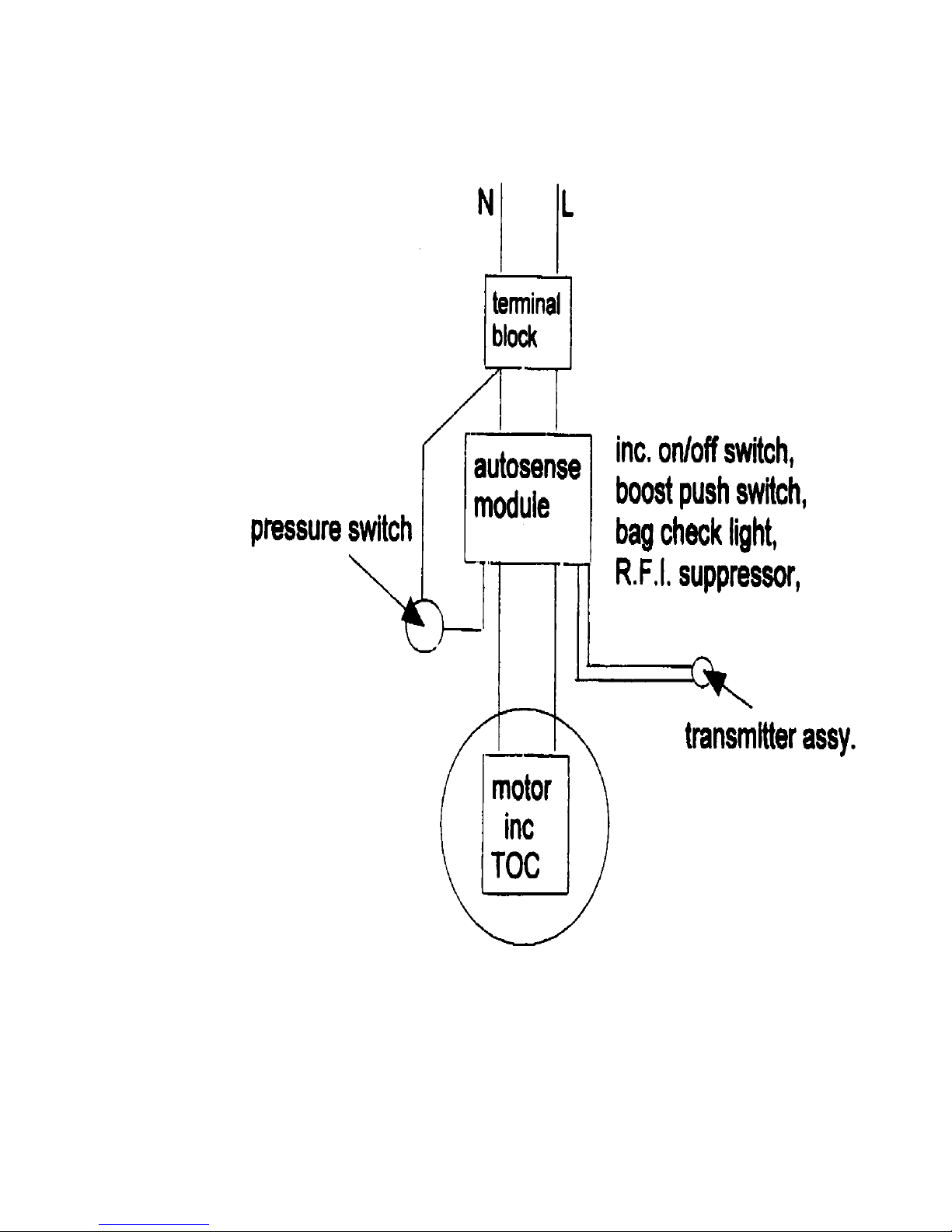

Purepower Upright Cleaner

MODEL: PUREPOWER UPRIGHT VACUUM CLEANERS

FITTING NOTES

Handle Replacement &Upper Cord Hook Replacement

Remove two screws in handle and slide handle out of top of the bag housing.

The Cord storage hook upper can be removed by pushing inwards 2 of the 4

lugs inside the handle whilst pulling the cord storage hook away from the

handle.

Top Cover Removal

Remove top screw in the handle.

Remove bag door to access the two screws at bottom of top cover. Take off top

cover.

Modules and On/Off Switches

Take off top cover and the module can be released from top cover.

To take off switch, pull off switch button and push switch through the top cover.

Hood and Activator

To remove hood, pull off height right knob and remove the two screws at rear of

hood.

Removing the hood allows access to the agitator and belt assembly.

The agitator is a non serviceable assembly.

Handle Control Lever

To remove handle control lever, remove hood.

The underside of the control lever can be accessed from the underside of

chassis. Compress lugs on either side of lever and push through chassis to

remove.

Motor Removal

Remove Hood.

Lower handle and bag housing to the floor.

Slide out the two trunion supports. Remove four screws holding motor cover.

This allows access to motor which can be removed.

Replace in reverse order.

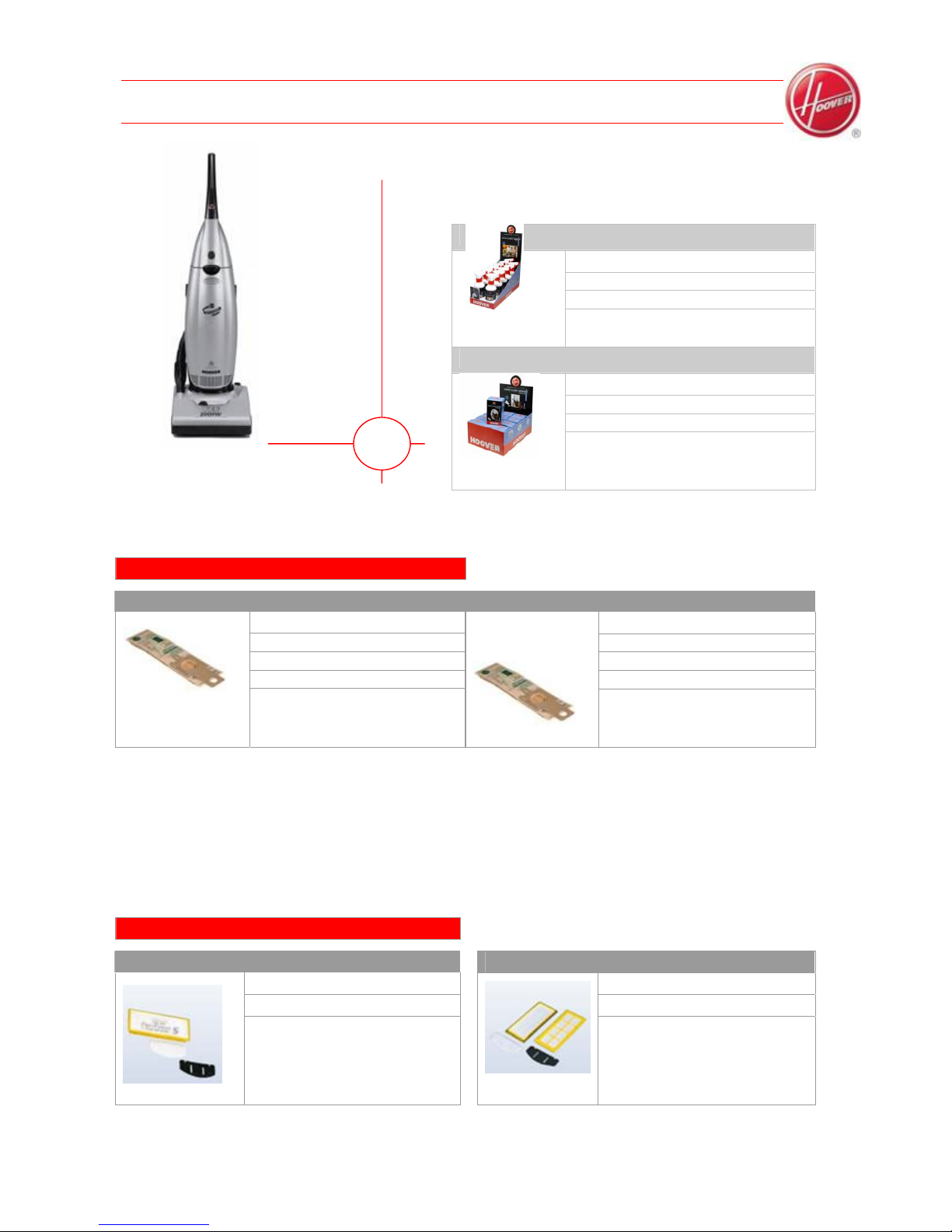

PurePower

PUREPOWER/ PUREPOWER PETS

FILTERS

S-CLASS FILTER KIT STANDARD FILTER KIT

U9 U6

Product code: 09181835 Product code: 09181827

EAN code: 5010418140972

EAN code: 5010418140965

Washable HEPA filter

ALLERGY DEFENDER SPRAY

A30S

Product code: 35600450

EAN code: 8016361739758

10 bottles per display

ALLERGY DEFENDER GRANULES

A31G

Product code: 35600451

EAN code: 8016361739765

15 boxes per display

PAPER BAG H20 POLYBAG

Product code: 09162280

EAN code: 010418020434

N° of layers: 2

N° of bags in pack: 5

BAGS

PAPER BAGS H20 BOX

Product code: 09173717

EAN code: 5010418135152

N° of layers: 2

N° of bags in pack: 5 + 1

filter

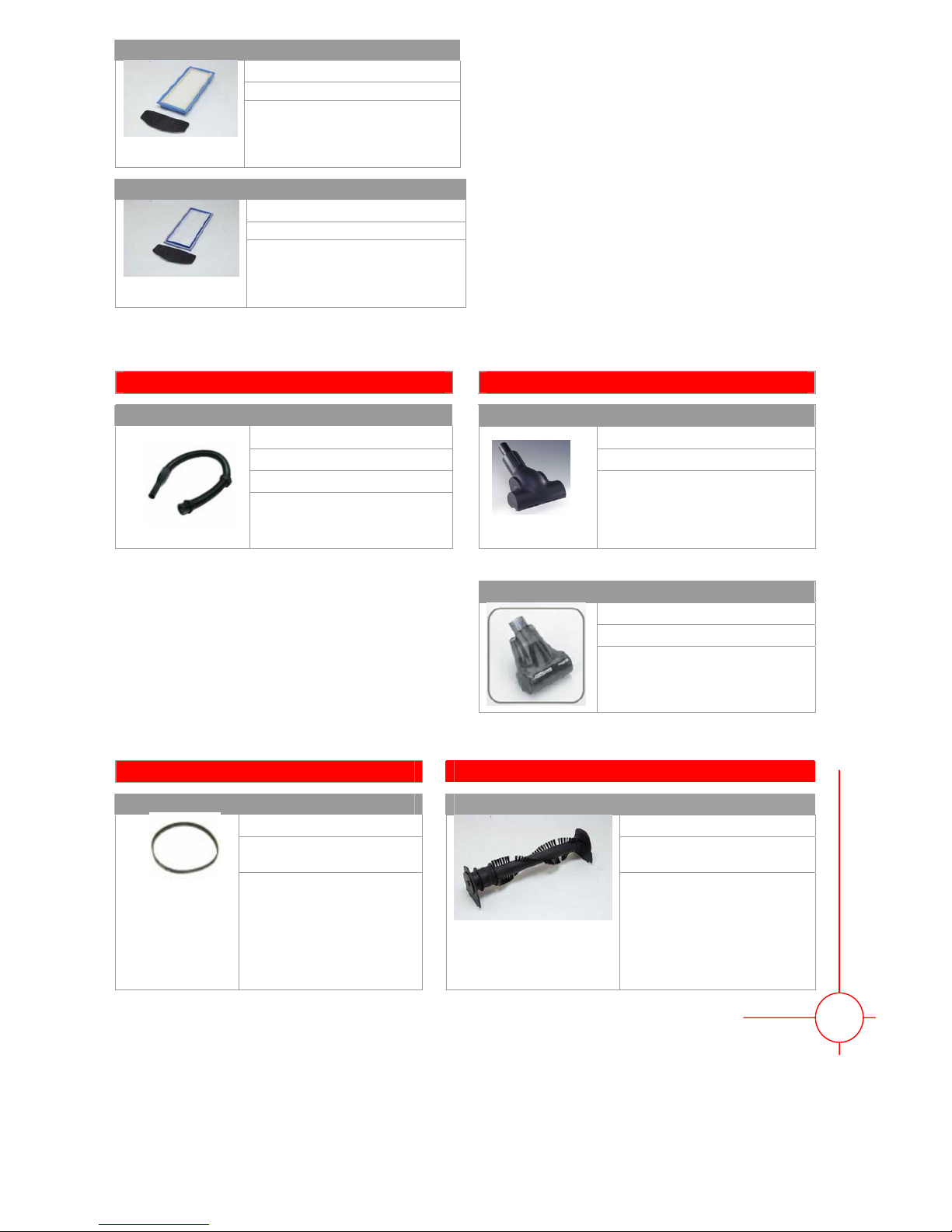

PurePower

HEPA FILTER KIT

U25

Product code: 09199050

EAN code: 5010418163070

To fit PurePower pets model

STANDARD FILTER KIT

U19

Product code: 09186941

EAN code: 5010418149296

To fit PurePower pets model

HOSES NOZZLES

COMPLETE HOSE MINI TURBONOZZLE

D1 J20

Product code: 04345084 Product code: 09200356

EAN code: 8032767170742

Stair length hose EAN code: 8032767166387

To fit PurePower models

MINI TURBONOZZLE

J21

Product code: 04845086

EAN code: 8016361900622

To fit PurePower pets model

BELTS AGITATOR

BELT AGITATOR

V17 Y14

Product code:

09161985 Product code: 04845056

EAN code:

5010418020489

It’s replaced by

V30 – 35600838

(Freedom belt)

EAN code:

8032767181885
