Hoover Convrtible U4109 User manual

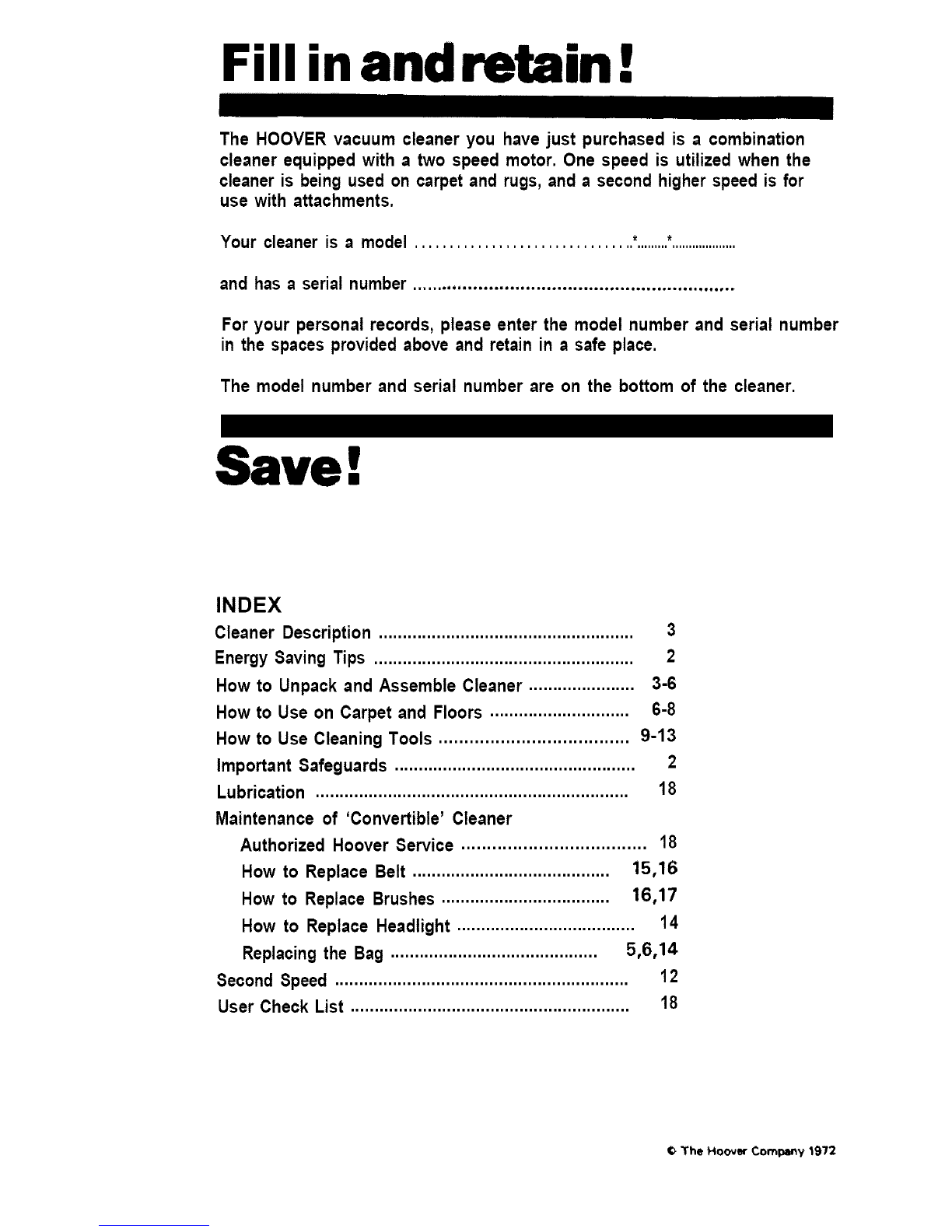

Fill in and retain !

The HOOVER vacuum cleaner you have just purchased is acombination

cleaner equipped with atwo speed motor. One speed is utilized when the

cleaner is being used on carpet and rugs, and a second higher speed is for

use with attachments.

Your cleaner is amodel ................................ *.........*...................

and has aserial number ..............................................................

For your personal records, please enter the model number and serial number

in the spaces provided above and retain in asafe place.

The model number and serial number are on the bottom of the cleaner.

Save!

INDEX

Cleaner Description ..................................................... 3

Energy Saving Tips ...................................................... 2

How to Unpack and Assemble Cleaner ...................... 3-6

How to Use on Carpet and Floors ............................. 6-8

How to Use Cleaning Tools ..................................... 9-13

Important Safeguards .................................................. 2

Lubrication ................................................................. 18

Maintenance of 'Convertible' Cleaner

Authorized Hoover Service .................................... 18

How to Replace Belt ......................................... 15,16

How to Replace Brushes ................................... 16,17

How to Replace Headlight ..................................... 14

Replacing the Bag ........................................... 5,6,14

Second Speed ............................................................. 12

User Check List .......................................................... 18

©The HoOver Company 1972

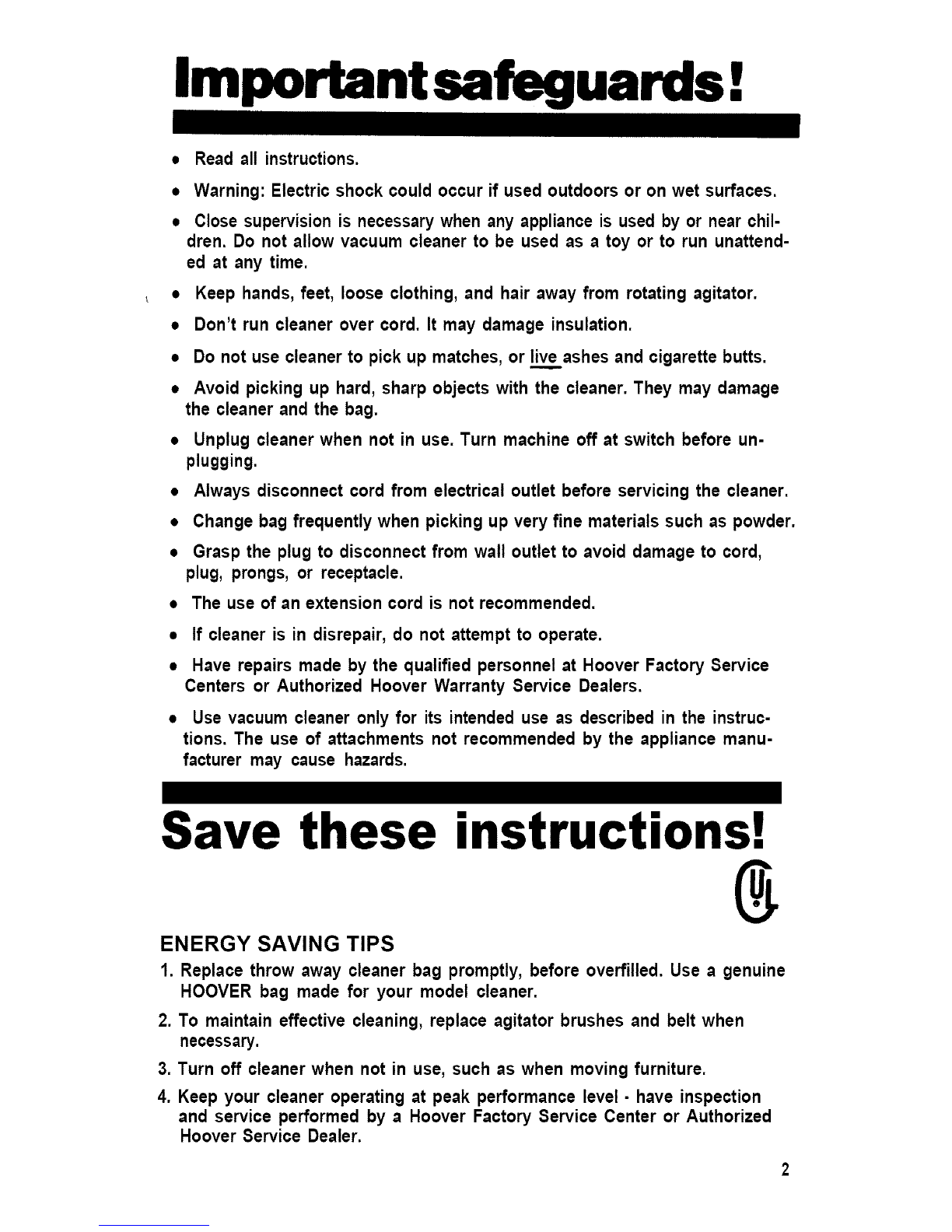

Important safeguards !

•Read all instructions.

•Warning: Electric shock could occur if used outdoors or on wet surfaces.

•Close supervision is necessary when any appliance is used by or near chil-

dren. Do not allow vacuum cleaner to be used as a toy or to run unattend-

ed at any time.

•Keep hands, feet, loose clothing, and hair away from rotating agitator.

•Don't run cleaner over cord. It may damage insulation.

•Do not use cleaner to pick up matches, or live ashes and cigarette butts.

•Avoid picking up hard, sharp objects with the cleaner. They may damage

the cleaner and the bag.

•Unplug cleaner when not in use. Turn machine off at switch before un-

plugging.

•Always disconnect cord from electrical outlet before servicing the cleaner.

•Change bag frequently when picking up very fine materials such as powder.

•Grasp the plug to disconnect from wall outlet to avoid damage to cord,

plug, prongs, or receptacle.

•The use of an extension cord is not recommended.

If cleaner is in disrepair, do not attempt to operate.

Have repairs made by the qualified personnel at Hoover Factory Service

Centers or Authorized Hoover Warranty Service Dealers.

•Use vacuum cleaner only for its intended use as described in the instruc-

tions. The use of attachments not recommended by the appliance manu-

facturer may cause hazards.

Save these instructions w

ENERGY SAVING TIPS

1. Replace throw away cleaner bag promptly, before overfilled. Use agenuine

HOOVER bag made for your model cleaner.

2. To maintain effective cleaning, replace agitator brushes and belt when

necessary.

3. Turn off cleaner when not in use, such as when moving furniture.

4. Keep your cleaner operating at peak performance level - have inspection

and service performed by aHoover Factory Service Center or Authorized

Hoover Service Dealer.

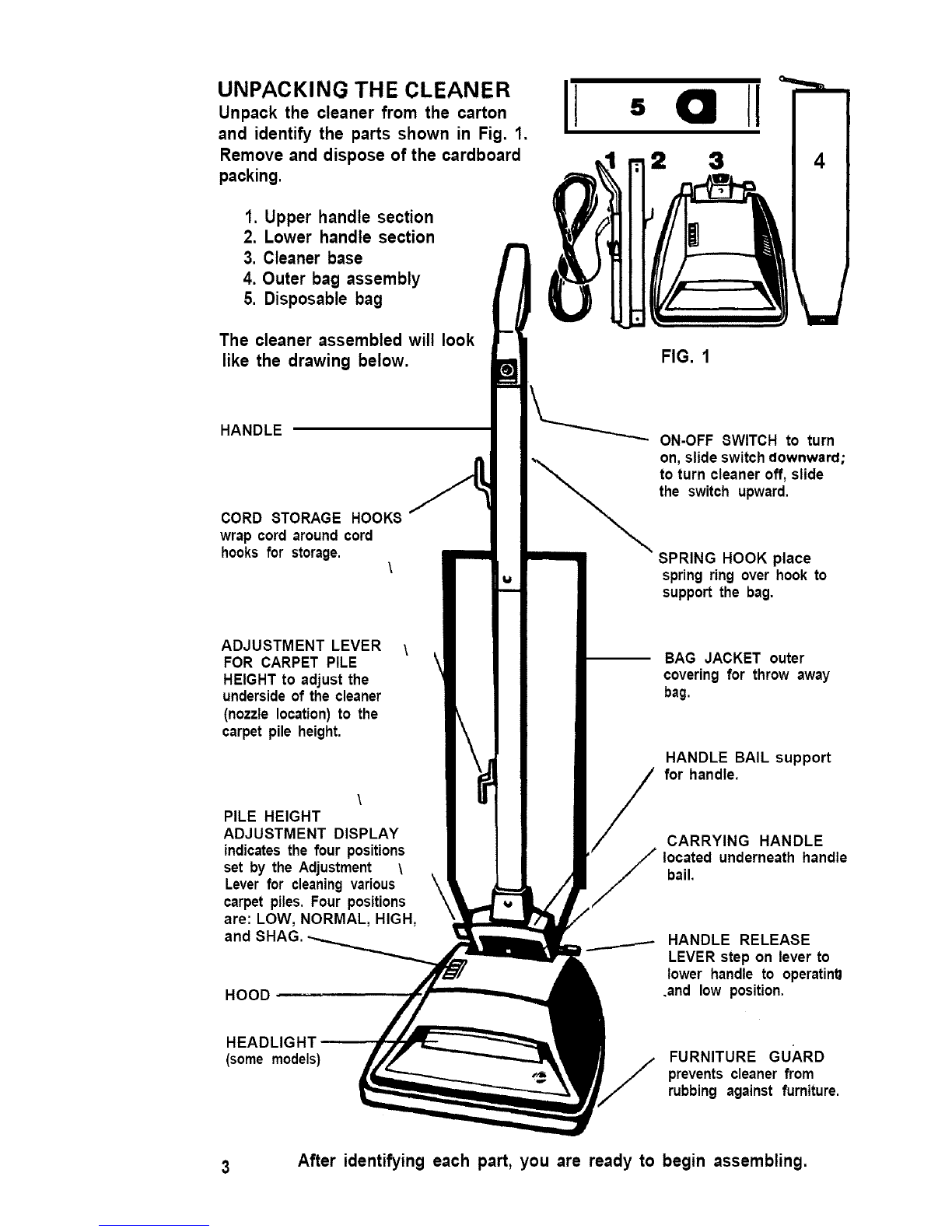

UNPACKING THE CLEANER

Unpack the cleaner from the carton

and identify the parts shown in Fig. 1.

Remove and dispose of the cardboard

packing.

1. Upper handle section

2. Lower handle section

3. Cleaner base

4. Outer bag assembly

5. Disposable bag

The cleaner assembled will look

like the drawing below.

HANDLE

CORD STORAGE HOOKS

wrap cord around cord

hooks for storage. \

ADJUSTMENT LEVER

FOR CARPET PILE

HEIGHT to adjust the

undersideof the cleaner

(nozzle location) to the

carpet pile height.

\ \

PILE HEIGHT

ADJUSTMENT DISPLAY

indicates the four positions

set by the Adjustment \

Lever for cleaningvarious

carpet piles. Four positions

are: LOW, NORMAL, HIGH,

and SHAG.

HOOD

1 2 3

FIG. 1

ON-OFF SWITCH to turn

on, slide switch downward;

to turn cleaner off, slide

the switch upward.

SPRING HOOK place

spring ring over hook to

suppo_ the bag.

BAG JACKET outer

covering for throw away

bag.

HANDLE BAIL support

for handle.

CARRYING HANDLE

located underneath handle

bail.

HANDLE RELEASE

LEVER step on lever to

lower handle to operatint_

.and low position.

HEADLIGHT

(some models) FURNITURE GUARD

prevents c_eanerfrom

rubbing against furniture.

3 After identifying each part, you are ready to begin assembling.

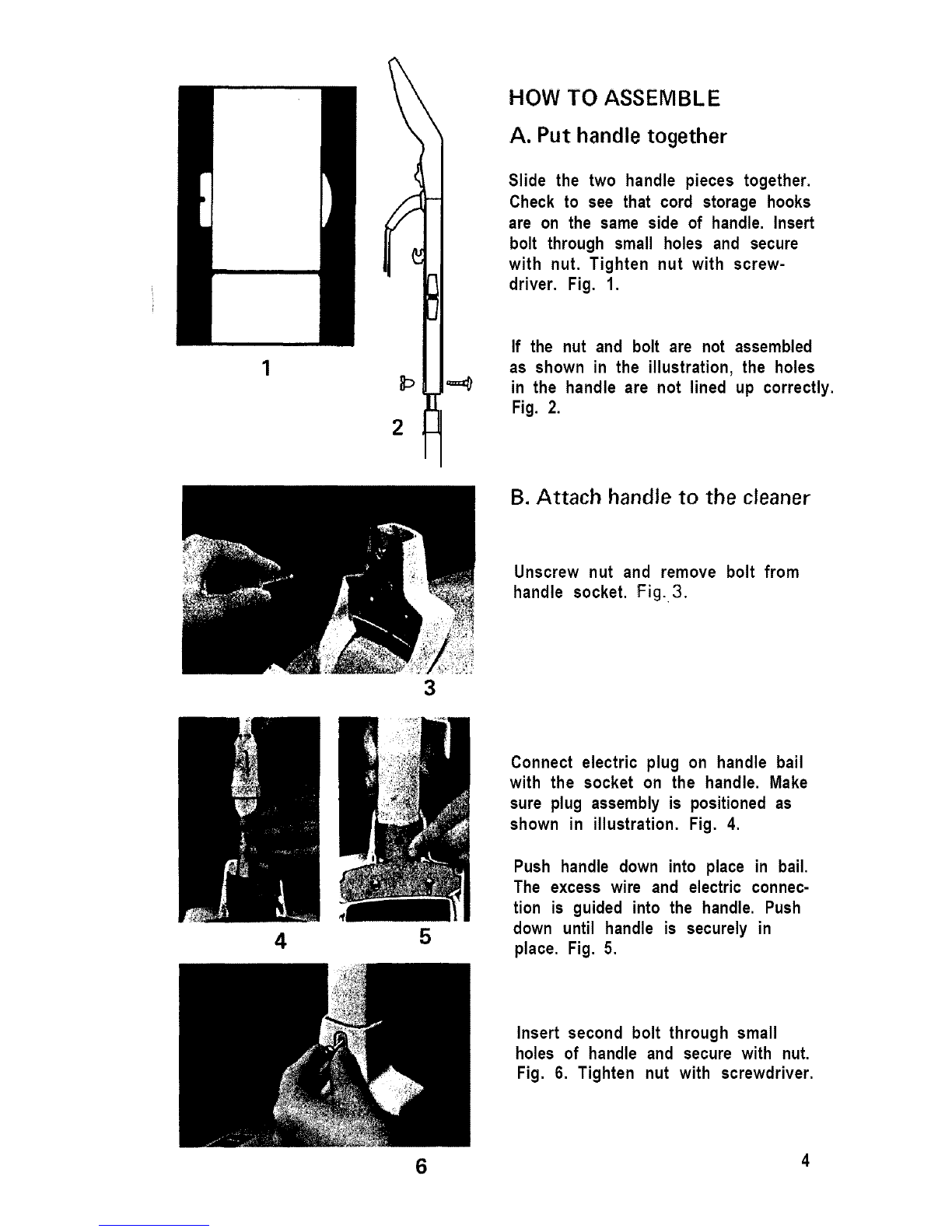

HOW TO ASSEMBLE

A. Put handle together

Slide the two handle pieces together.

Check to see that cord storage hooks

are on the same side of handle. Insert

bolt through small holes and secure

with nut. Tighten nut with screw-

driver. Fig. 1.

If the nut and bolt are not assembled

as shown in the illustration, the holes

in the handle are not lined up correctly.

Fig. 2.

B. Attach handle to the cleaner

Unscrew nut and remove bolt from

handle socket. Fig. 3.

Connect electric plug on handle bail

with the socket on the handle. Make

sure plug assembly is positioned as

shown in illustration. Fig. 4.

Push handle down into place in bail.

The excess wire and electric connec-

tion is guided into the handle. Push

down until handle is securely in

place. Fig. 5.

Insert second bolt through small

holes of handle and secure with nut.

Fig. 6. Tighten nut with screwdriver.

6 4

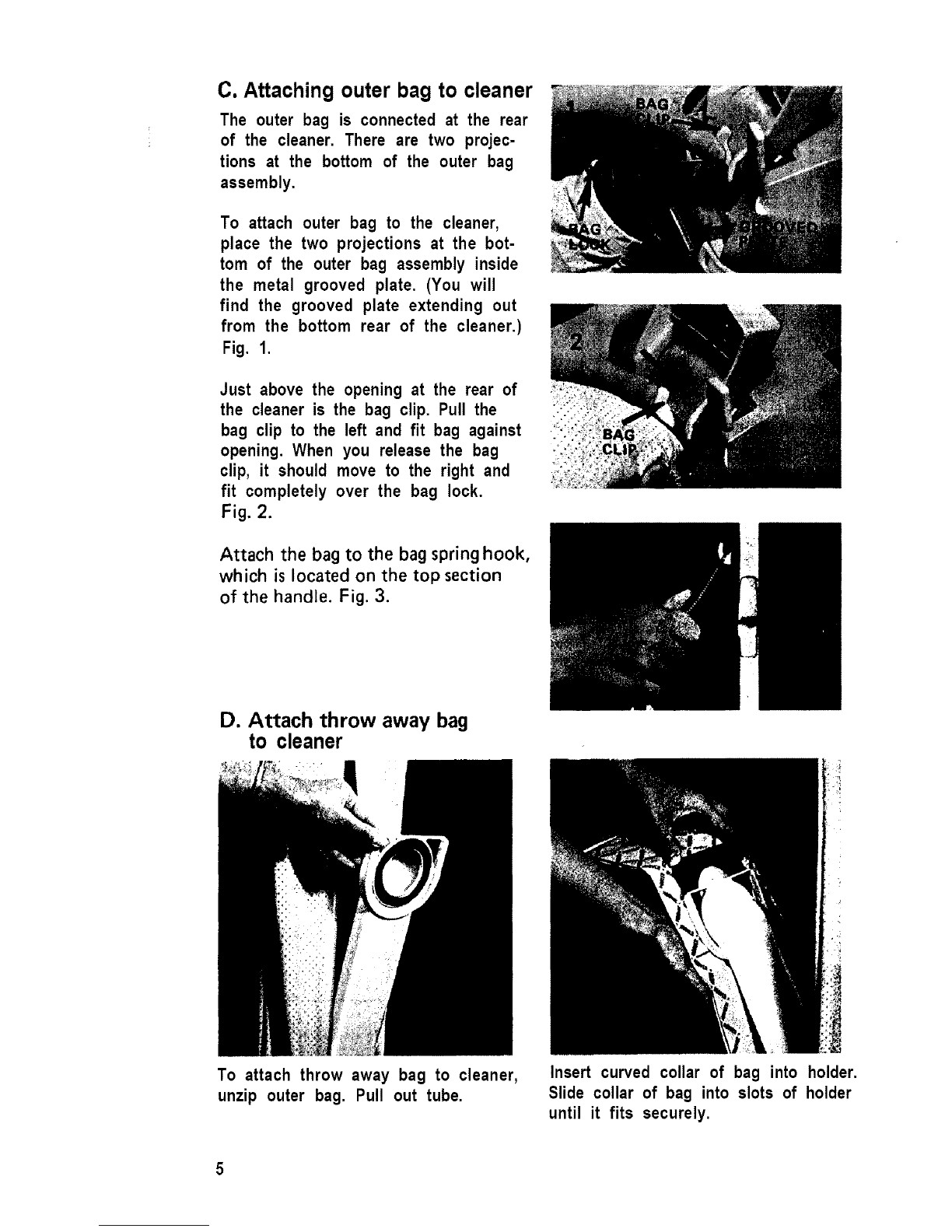

C. Attaching outer bag to cleaner

The outer bag is connected at the rear

of the cleaner. There are two projec-

tions at the bottom of the outer bag

assembly.

To attach outer bag to the cleaner,

place the two projections at the bot-

tom of the outer bag assembly inside

the metal grooved plate. (You will

find the grooved plate extending out

from the bottom rear of the cleaner.)

Fig. 1.

Just above the opening at the rear of

the cleaner is the bag clip. Pull the

bag clip to the left and fit bag against

opening. When you release the bag

clip, it should move to the right and

fit completely over the bag lock.

Fig. 2.

Attach the bag to the bag spring hook,

which is located on the top section

of the handle. Fig. 3.

D. Attach throw away bag

to cleaner

To attach throw away bag to cleaner,

unzip outer bag. Pull out tube.

Insert curved collar of bag into holder.

Slide collar of bag into slots of holder

until it fits securely.

Pull out pleatsof bag. Tuck top of bag into outer bag; then

bottom of bag into outer bag. Zip

outer bag.

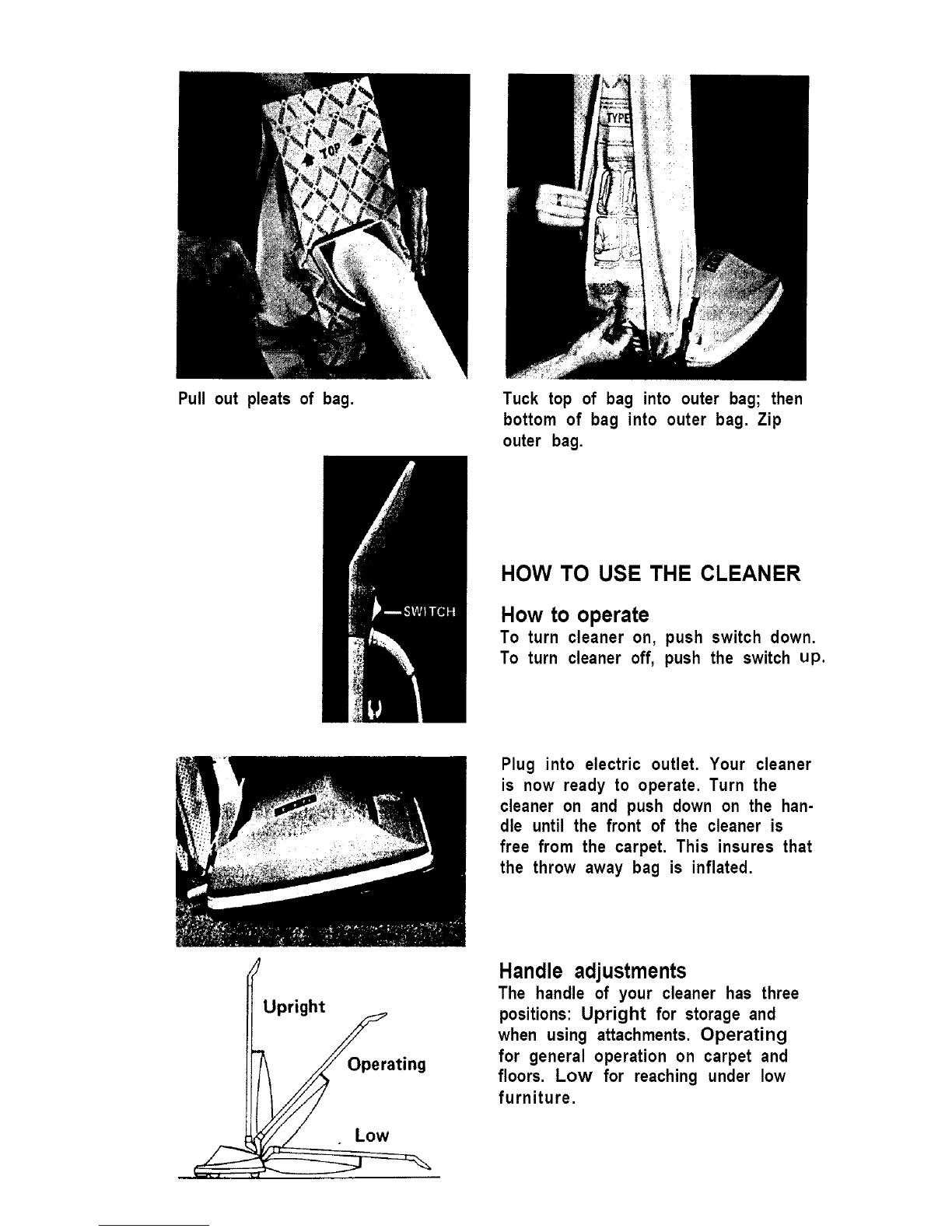

HOW TO USE THE CLEANER

How to operate

To turn cleaner on, push switch down.

To turn cleaner off, push the switch up.

Plug into electric outlet. Your cleaner

is now ready to operate. Turn the

cleaner on and push down on the han-

dle until the front of the cleaner is

free from the carpet. This insures that

the throw away bag is inflated.

Upright

erating

Handle adjustments

The handle of your cleaner has three

positions: Upright for storage and

when using attachments. Operating

for general operation on carpet and

floors. Low for reaching under low

furniture.

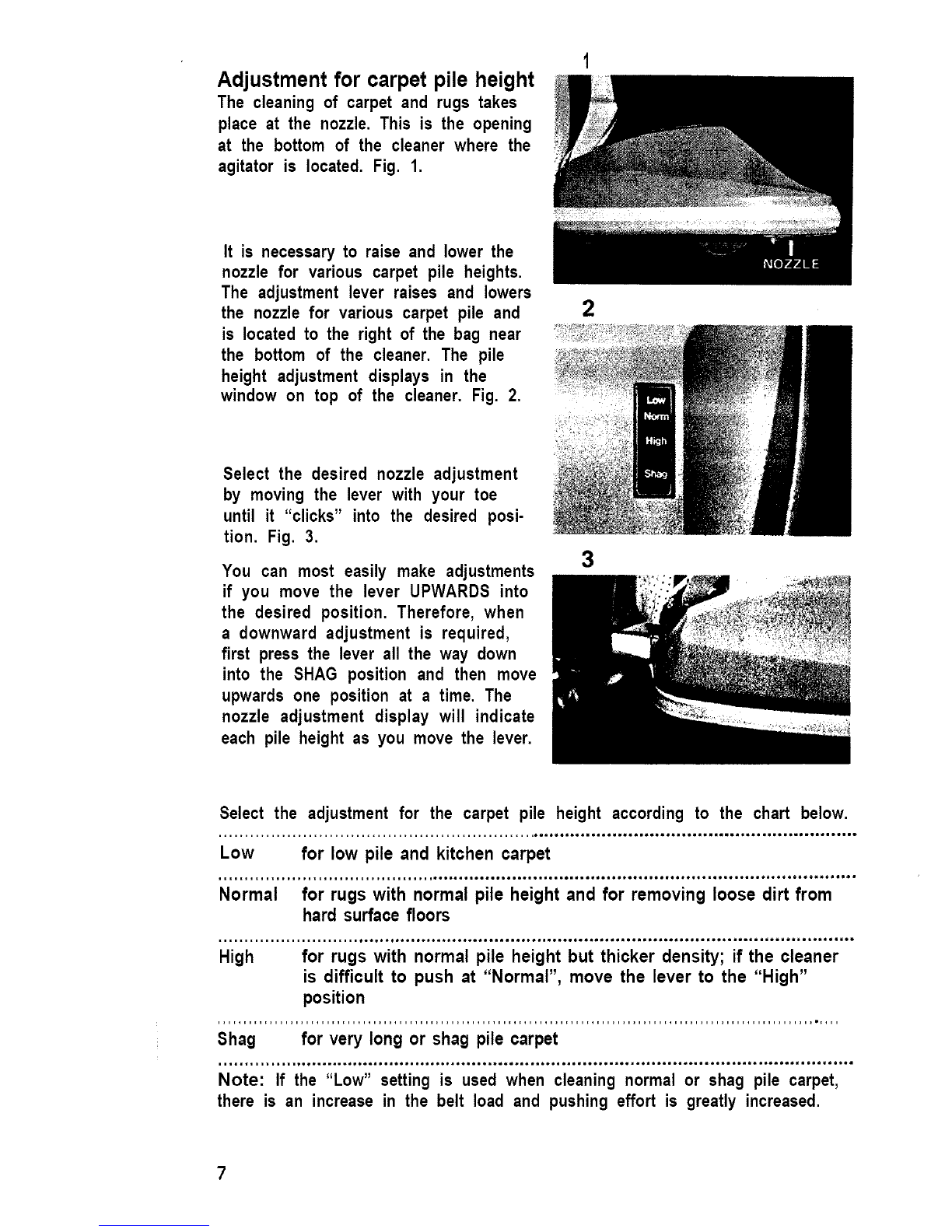

Adjustment for carpet pile height

The cleaning of carpet and rugs takes

place at the nozzle. This is the opening

at the bottom of the cleaner where the

agitator is located. Fig. 1.

It is necessary to raise and lower the

nozzle for various carpet pile heights.

The adjustment lever raises and lowers

the nozzle for various carpet pile and 2

is located to the right of the bag near

the bottom of the cleaner. The pile

height adjustment displays in the

window on top of the cleaner. Fig. 2.

Select the desired nozzle adjustment

by moving the lever with your toe

until it "clicks" into the desired posi-

tion. Fig. 3.

You can most easily make adjustments

if you move the lever UPWARDS into

the desired position. Therefore, when

a downward adjustment is required,

first press the lever all the way down

into the SHAG position and then move

upwards one position at a time. The

nozzle adjustment display will indicate

each pile height as you move the lever.

Select the adjustment for the carpet pile height according to the chart below.

............................................................ :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

Low for low pile and kitchen carpet

,,,,,,,,,,.,,,,,,,.,,,,,,,,,,,,,,,,,,,,, ,_H.HIIOgaIH=HHOQ'O..O=_. JJ_OI_IOJlq*H6H*I'''=='O=Oa*=='O6"O_ J*_=lJ4=

Normal for rugs with normal pile height and for removing loose dirt from

hard surface floors

High for rugs with normal pile height but thicker density; if the cleaner

is difficult to push at "Normal", move the lever to the "High"

position

Shag for very long or shag pile carpet

Note: If the "Low" setting is used when cleaning normal or shag pile carpet,

there is an increase in the belt load and pushing effort is greatly increased.

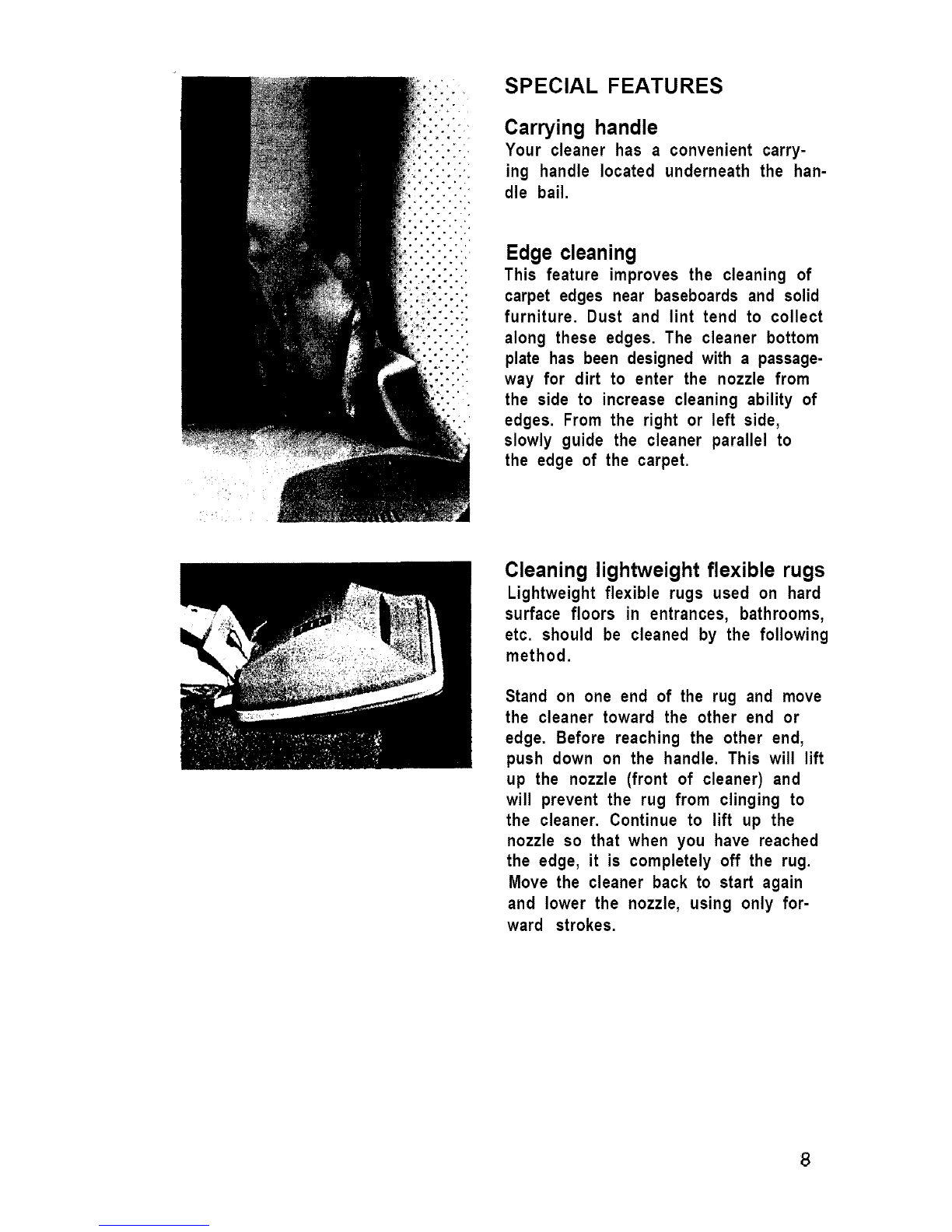

SPECIAL FEATURES

Carrying handle

Your cleaner has a convenient carry-

ing handle located underneath the han-

dle bail.

Edge cleaning

This feature improves the cleaning of

carpet edges near baseboards and solid

furniture. Dust and lint tend to collect

along these edges. The cleaner bottom

plate has been designed with a passage-

way for dirt to enter the nozzle from

the side to increase cleaning ability of

edges. From the right or left side,

slowly guide the cleaner parallel to

the edge of the carpet.

Cleaning lightweight flexible rugs

Lightweight flexible rugs used on hard

surface floors in entrances, bathrooms,

etc. should be cleaned by the following

method.

Stand on one end of the rug and move

the cleaner toward the other end or

edge. Before reaching the other end,

push down on the handle. This will lift

up the nozzle (front of cleaner) and

will prevent the rug from clinging to

the cleaner. Continue to lift up the

nozzle so that when you have reached

the edge, it is completely off the rug.

Move the cleaner back to start again

and lower the nozzle, using only for-

ward strokes.

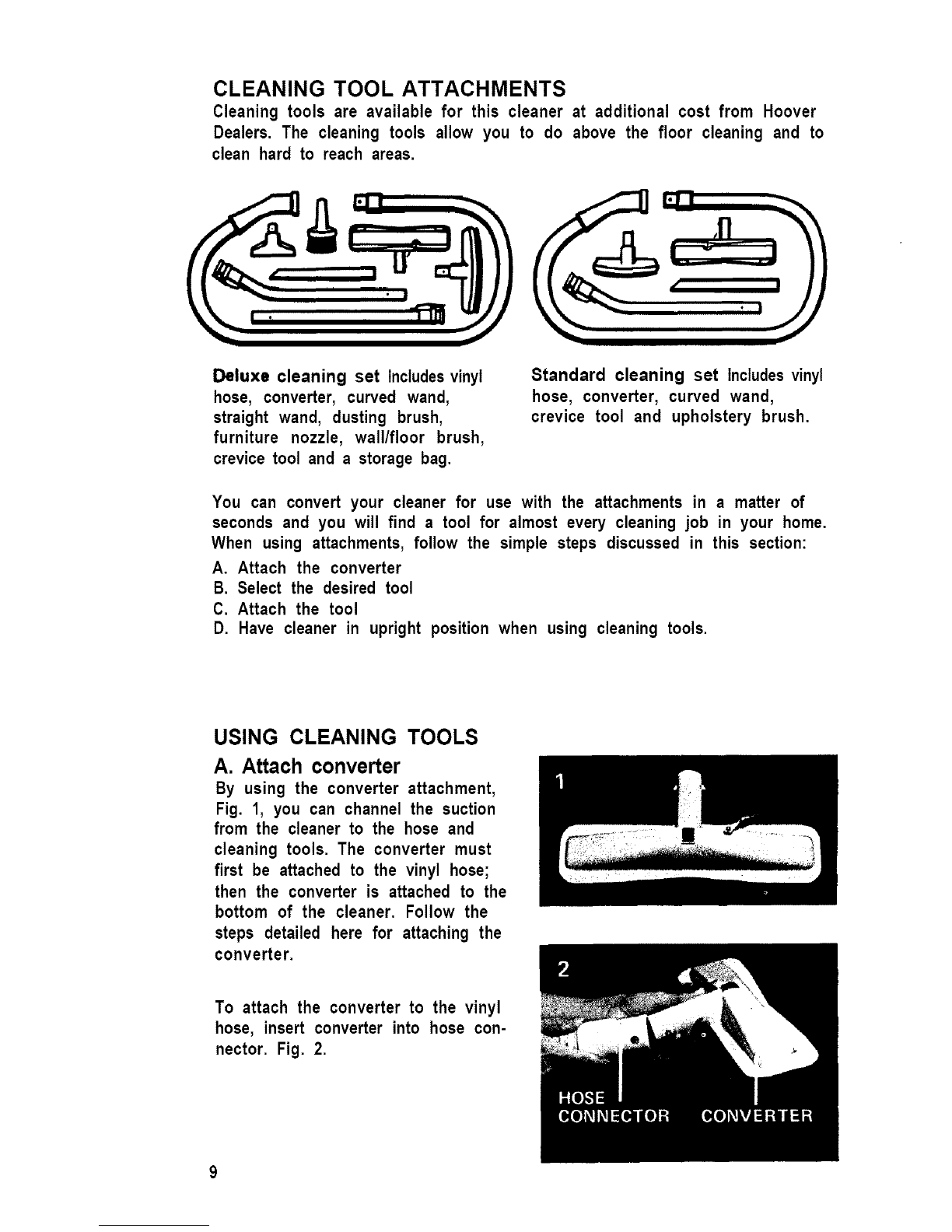

CLEANING TOOL ATTACHMENTS

Cleaning tools are available for this cleaner at additional cost from Hoover

Dealers. The cleaning tools allow you to do above the floor cleaning and to

clean hard to reach areas.

Deluxe cleaning set Includes vinyl

hose, converter, curved wand,

straight wand, dusting brush,

furniture nozzle, wall/floor brush,

crevice tool and a storage bag.

Standard cleaning set Includes vinyl

hose, converter, curved wand,

crevice tool and upholstery brush.

You can convert your cleaner for use with the attachments in a matter of

seconds and you will find a tool for almost every cleaning job in your home.

When using attachments, follow the simple steps discussed in this section:

A. Attach the converter

B. Select the desired tool

C. Attach the tool

D. Have cleaner in upright position when using cleaning tools.

USING CLEANING TOOLS

A. Attach converter

By using the converter attachment,

Fig. 1, you can channel the suction

from the cleaner to the hose and

cleaning tools. The converter must

first be attached to the vinyl hose;

then the converter is attached to the

bottom of the cleaner. Follow the

steps detailed here for attaching the

converter.

To attach the converter to the vinyl

hose, insert converter into hose con-

nector. Fig. 2.

This manual suits for next models

Table of contents

Other Hoover Vacuum Cleaner manuals

Hoover

Hoover KS42JCAR 011 User manual

Hoover

Hoover U5473 User manual

Hoover

Hoover U5182900 User manual

Hoover

Hoover U5365 User manual

Hoover

Hoover U2440 User manual

Hoover

Hoover air cordless 2 in 1 User manual

Hoover

Hoover HDW1- ME User manual

Hoover

Hoover Rush ML User manual

Hoover

Hoover MAXLIFE TOTAL HOME PET User manual

Hoover

Hoover SteamVac F7428-900 User manual

Hoover

Hoover ROYAL User manual

Hoover

Hoover Robocom 2 User manual

Hoover

Hoover SJ60DA/1 User manual

Hoover

Hoover WindTunnel U8146-900 User manual

Hoover

Hoover UH50000 - Self Propelled WindTunnel Anniversary... User manual

Hoover

Hoover PUREPOWER User manual

Hoover

Hoover SMARTWASH PET COMPLETE AUTOMATIC CARPET... User manual

Hoover

Hoover UH20020 User manual

Hoover

Hoover Lander User manual

Hoover

Hoover UH70060RM User manual

Hoover

Hoover HF1 User manual

Hoover

Hoover KS60H&CAR 011 User manual

Hoover

Hoover 2240 classic User manual

Hoover

Hoover HHWD14 Installation guide

Popular Vacuum Cleaner manuals by other brands

Bissell

Bissell LittleGreen Proheat 1425 Series user guide

Panasonic

Panasonic MC-YL637S147-AE Service manual

NEFF

NEFF N17XH10 0 Series instruction manual

LG A9 Series owner's manual

Oreck

Oreck Cordless Captura BK51700 Series user guide

Kogan

Kogan KAVACROBVWA user manual

Kränzle

Kränzle VENTOS 50 ID Use and maintenance

EVVO

EVVO Ai35 instruction manual

DeWalt

DeWalt DWH200D instruction manual

Pontec

Pontec Pondomatic Vacuum Cleaner operating instructions

Cleanmaxx

Cleanmaxx PC-P007E instruction manual

Exido

Exido 240-114 manual

RIDGID

RIDGID WD1685AU0 owner's manual

Ezviz

Ezviz RE4P manual

STG global

STG global TANVAC HDV3000 Operator's manual

Shark

Shark ROTATOR PRO COMPLETE NV550 Series manual

Factory

Factory M3340 operating manual

Shop-Vac

Shop-Vac VN92 SERIES user manual
